| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_246T03_9000000990_07240cztM0_level2.evt | modeM0/AS1G05_246T03_9000000990_07240cztM0_level2_quad_clean.evt |
| Size (bytes) | 628,971,840 | 95,987,520 |
| Size | 599.8 MB | 91.5 MB |
| Events in quadrant A | 3,439,325 | 620,509 |
| Events in quadrant B | 7,435,093 | 554,405 |
| Events in quadrant C | 3,634,327 | 624,452 |
| Events in quadrant D | 4,042,757 | 597,120 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15253 | 3 |
| B | 0 | 27099 | 2 |
| C | 0 | 15861 | 2 |
| D | 0 | 17507 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 8 | 0 |
| B | 0 | 8 | 0 |
| C | 0 | 8 | 0 |
| D | 0 | 9 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 148 | 0 |
| B | 0 | 148 | 0 |
| C | 0 | 148 | 0 |
| D | 0 | 148 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7328 | 127 | 1.733079% |
| B | 7328 | 1813 | 24.740721% |
| C | 7328 | 38 | 0.518559% |
| D | 7328 | 93 | 1.269105% |

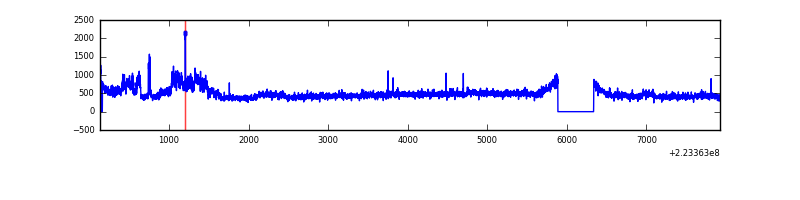

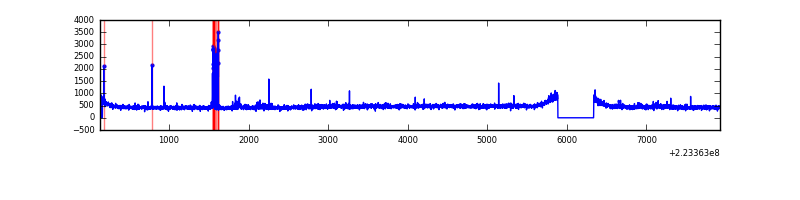

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7793 | 7330 | 21 | 21 | 0.27% | 0.29% |  |
| B | 7793 | 7330 | 1668 | 1668 | 21.40% | 22.76% |  |
| C | 7793 | 7330 | 2 | 2 | 0.03% | 0.03% |  |
| D | 7793 | 7330 | 40 | 40 | 0.51% | 0.55% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 15 | 80117 | 455.45 | 846 | 828 | 174.1 |
| A | 13 | 248 | 72445 | 411.38 | 846 | 828 | 174.1 |
| A | 3 | 1 | 14057 | 75.99 | 846 | 828 | 174.1 |
| B | 10 | 16 | 4547569 | 33181.72 | 711 | 695 | 137.0 |
| B | 4 | 81 | 63860 | 460.96 | 711 | 695 | 137.0 |
| B | 0 | 214 | 40410 | 289.83 | 711 | 695 | 137.0 |
| C | 9 | 68 | 445015 | 2340.03 | 816 | 818 | 189.8 |
| C | 13 | 61 | 6275 | 28.75 | 816 | 818 | 189.8 |
| C | 10 | 22 | 4754 | 20.73 | 816 | 818 | 189.8 |
| D | 2 | 216 | 580662 | 2881.21 | 816 | 787 | 201.3 |
| D | 12 | 233 | 148932 | 736.08 | 816 | 787 | 201.3 |
| D | 2 | 33 | 72412 | 355.88 | 816 | 787 | 201.3 |

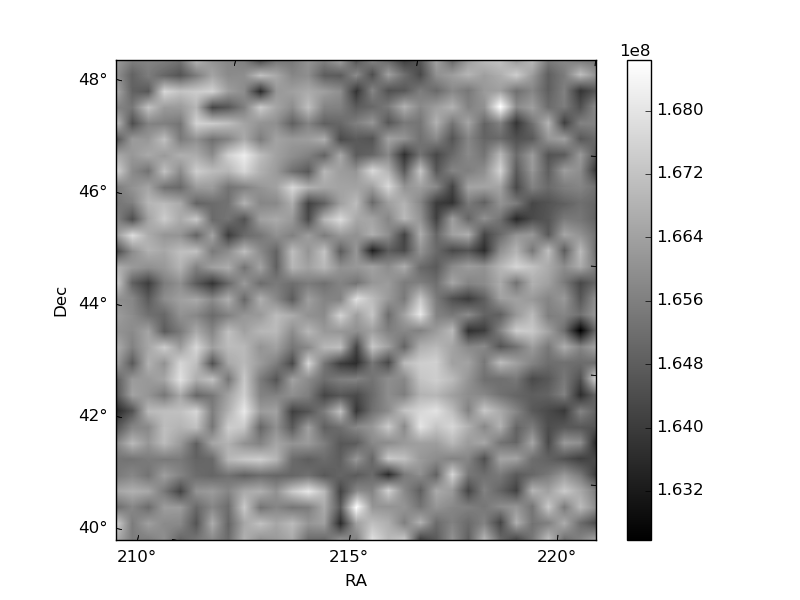

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

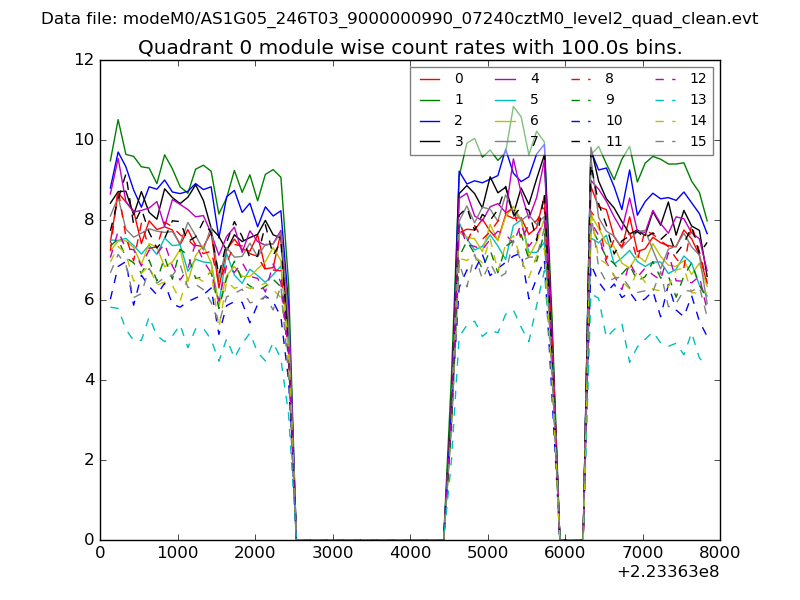

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

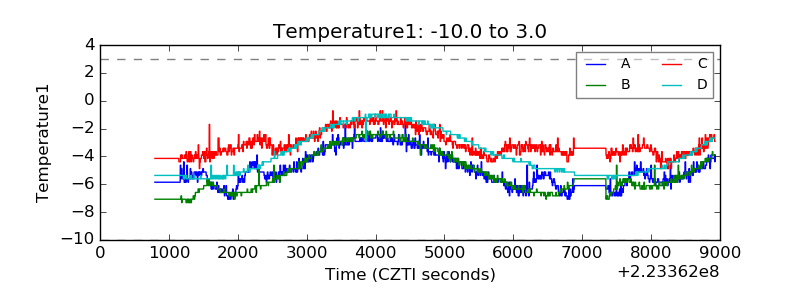

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

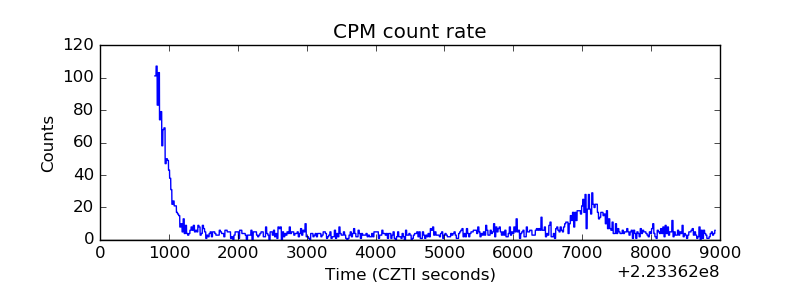

| _CPM_Rate |  |

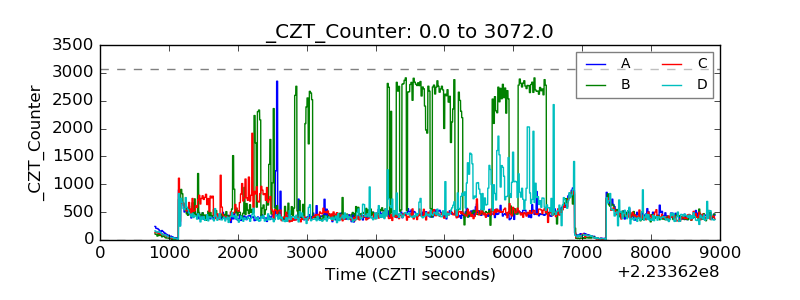

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
