| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_246T03_9000000990_07249cztM0_level2.evt | modeM0/AS1G05_246T03_9000000990_07249cztM0_level2_quad_clean.evt |
| Size (bytes) | 450,714,240 | 90,192,960 |
| Size | 429.8 MB | 86.0 MB |
| Events in quadrant A | 3,288,796 | 568,483 |
| Events in quadrant B | 3,267,203 | 584,403 |
| Events in quadrant C | 3,073,544 | 580,861 |
| Events in quadrant D | 3,582,117 | 547,827 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14061 | 3 |
| B | 0 | 14162 | 2 |
| C | 0 | 13588 | 2 |
| D | 0 | 15173 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 24 | 0 |
| B | 0 | 24 | 0 |
| C | 0 | 24 | 0 |
| D | 0 | 24 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6451 | 65 | 1.007596% |
| B | 6451 | 82 | 1.271121% |
| C | 6451 | 49 | 0.759572% |
| D | 6451 | 165 | 2.557743% |

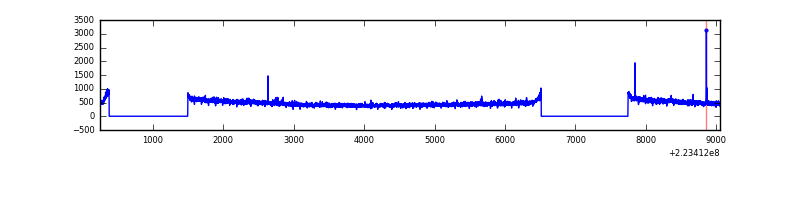

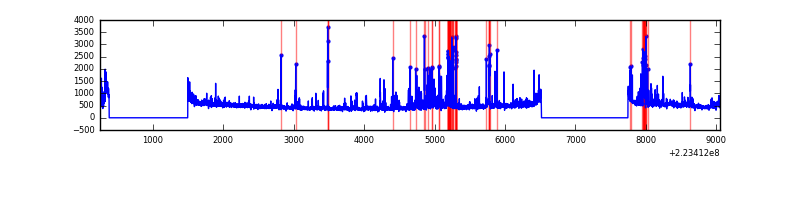

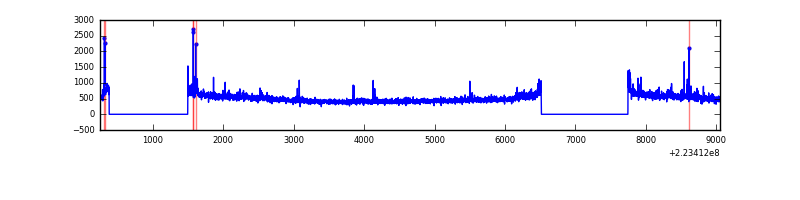

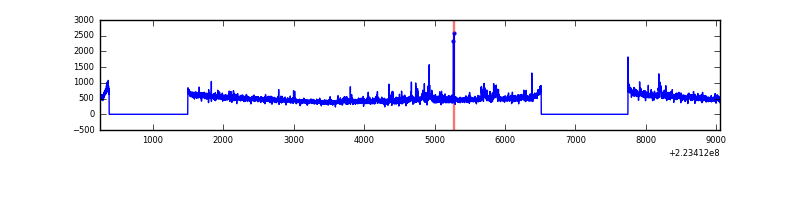

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8796 | 6452 | 2 | 2 | 0.02% | 0.03% |  |
| B | 8796 | 6452 | 6 | 6 | 0.07% | 0.09% |  |
| C | 8796 | 6452 | 1 | 1 | 0.01% | 0.02% |  |
| D | 8796 | 6452 | 76 | 76 | 0.86% | 1.18% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 15 | 155796 | 975.07 | 786 | 769 | 159.0 |
| A | 14 | 111 | 83284 | 518.99 | 786 | 769 | 159.0 |
| A | 0 | 23 | 15876 | 95.02 | 786 | 769 | 159.0 |
| B | 0 | 214 | 92624 | 603.09 | 800 | 782 | 152.3 |
| B | 15 | 85 | 19412 | 122.34 | 800 | 782 | 152.3 |
| B | 12 | 111 | 14849 | 92.37 | 800 | 782 | 152.3 |
| C | 9 | 243 | 14431 | 75.79 | 779 | 784 | 180.1 |
| C | 12 | 4 | 9616 | 49.05 | 779 | 784 | 180.1 |
| C | 13 | 61 | 5945 | 28.66 | 779 | 784 | 180.1 |
| D | 2 | 216 | 419649 | 2228.58 | 767 | 742 | 188.0 |
| D | 2 | 14 | 89956 | 474.62 | 767 | 742 | 188.0 |
| D | 12 | 233 | 87263 | 460.29 | 767 | 742 | 188.0 |

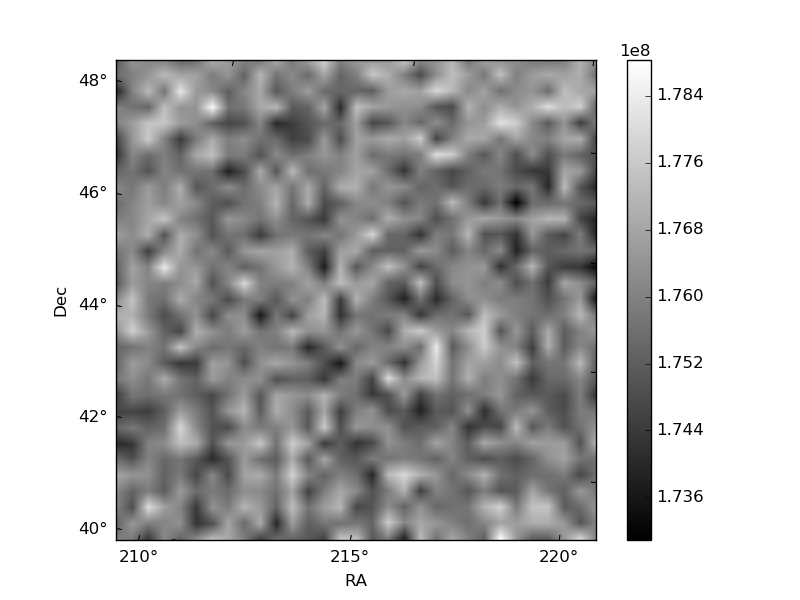

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

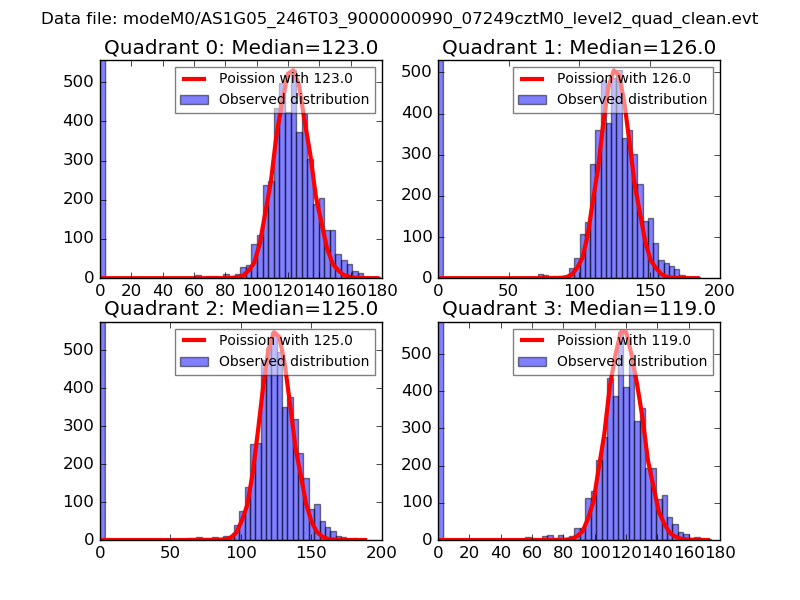

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

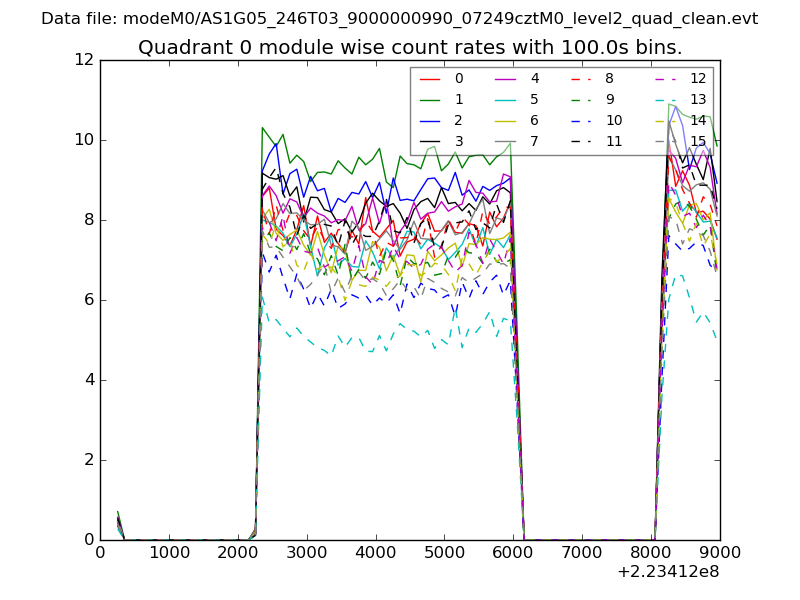

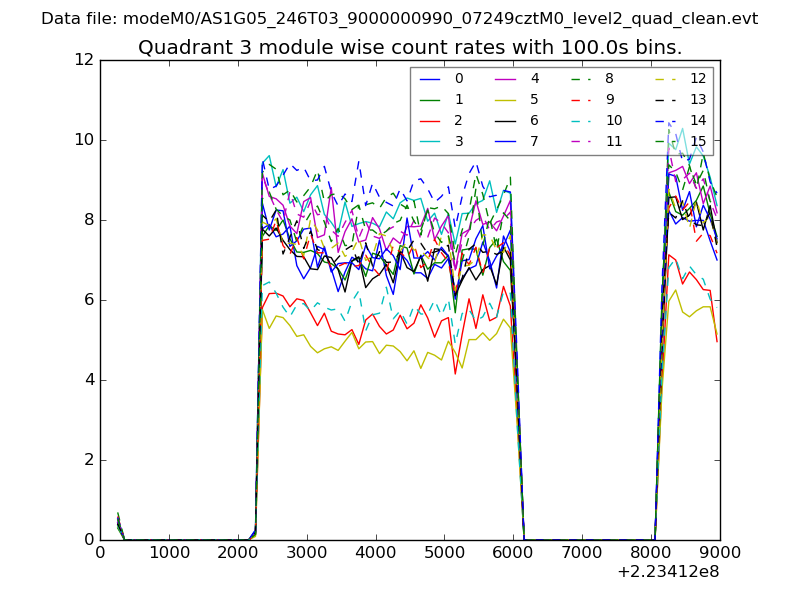

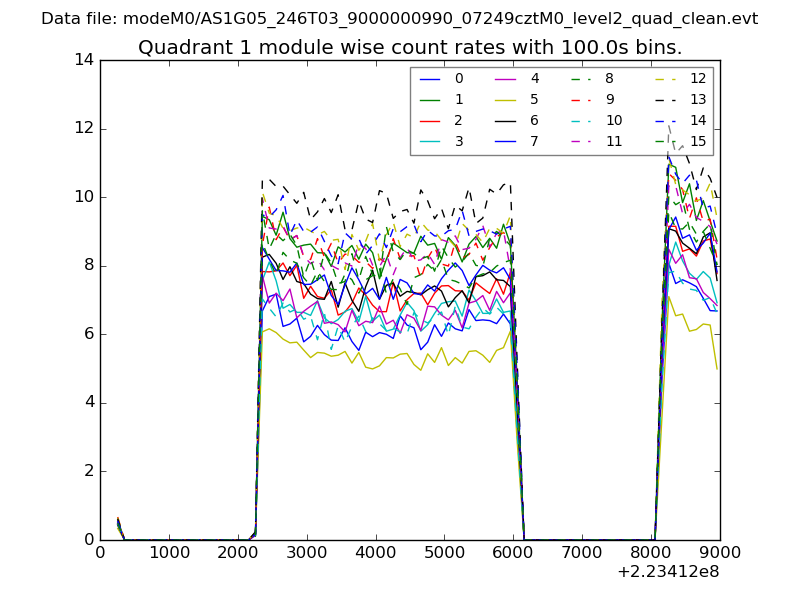

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

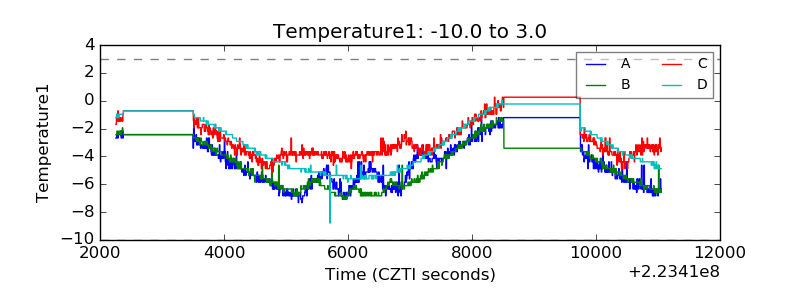

| Temperature 1 |  |

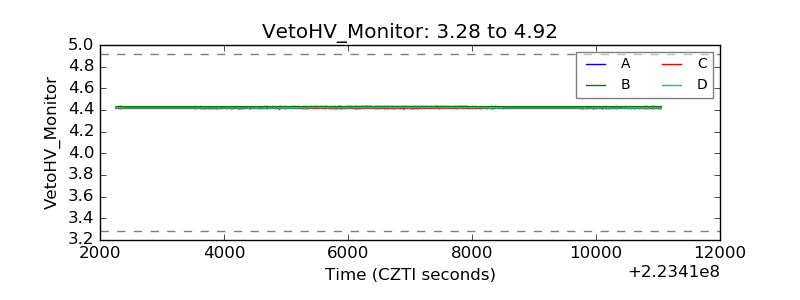

| Veto HV Monitor |  |
| Veto LLD |  |

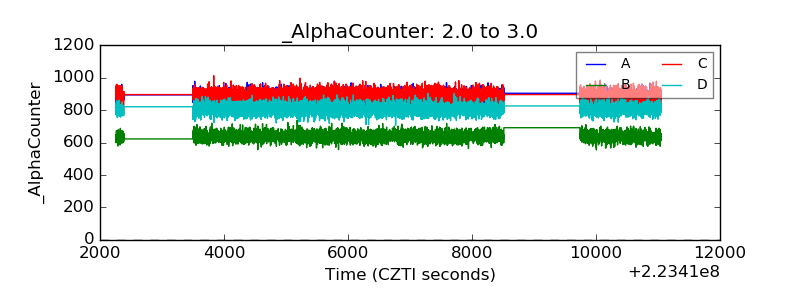

| Alpha Counter |  |

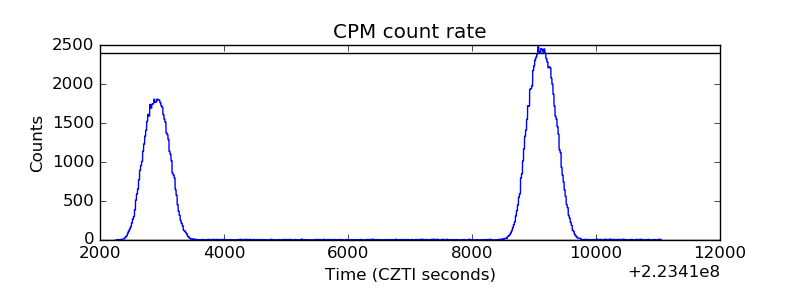

| _CPM_Rate |  |

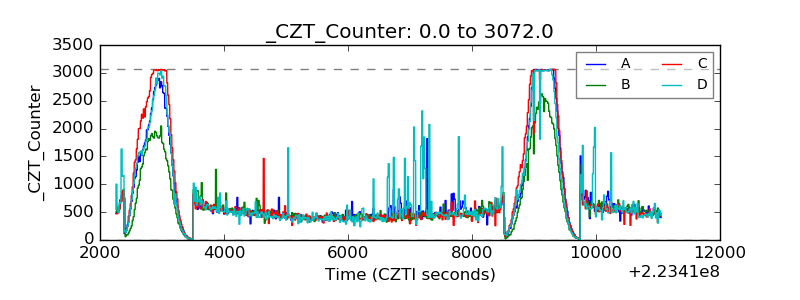

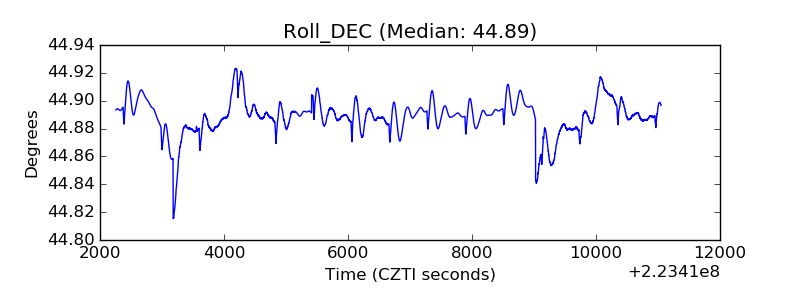

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

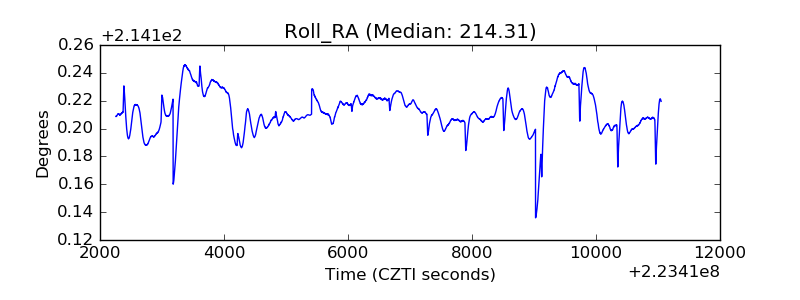

| _Roll_RA |  |

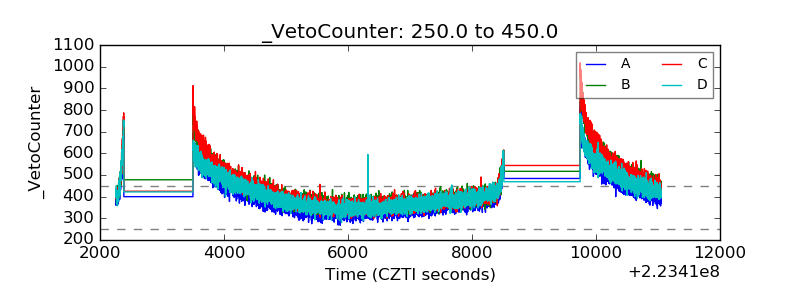

| Veto Counter |  |
