| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_246T03_9000000990_07253cztM0_level2.evt | modeM0/AS1G05_246T03_9000000990_07253cztM0_level2_quad_clean.evt |
| Size (bytes) | 448,787,520 | 90,676,800 |
| Size | 428.0 MB | 86.5 MB |
| Events in quadrant A | 3,069,237 | 571,215 |
| Events in quadrant B | 3,281,837 | 587,591 |
| Events in quadrant C | 3,009,588 | 577,587 |
| Events in quadrant D | 3,772,328 | 539,368 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13869 | 3 |
| B | 0 | 14387 | 2 |
| C | 0 | 13847 | 2 |
| D | 0 | 16261 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 138 | 0 |
| B | 0 | 138 | 0 |
| C | 0 | 138 | 0 |
| D | 0 | 138 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6740 | 22 | 0.326409% |
| B | 6740 | 69 | 1.023739% |
| C | 6740 | 13 | 0.192878% |
| D | 6741 | 167 | 2.477377% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7835 | 6741 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7835 | 6740 | 17 | 17 | 0.22% | 0.25% |  |
| C | 7835 | 6741 | 1 | 1 | 0.01% | 0.01% |  |
| D | 7836 | 6742 | 140 | 140 | 1.79% | 2.08% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 15 | 34616 | 210.79 | 787 | 771 | 160.6 |
| A | 0 | 226 | 7523 | 42.05 | 787 | 771 | 160.6 |
| A | 12 | 194 | 6932 | 38.37 | 787 | 771 | 160.6 |
| B | 10 | 245 | 60330 | 390.86 | 798 | 779 | 152.4 |
| B | 4 | 239 | 45436 | 293.11 | 798 | 779 | 152.4 |
| B | 4 | 81 | 30892 | 197.65 | 798 | 779 | 152.4 |
| C | 9 | 68 | 13446 | 71.78 | 765 | 769 | 176.6 |
| C | 13 | 61 | 5998 | 29.61 | 765 | 769 | 176.6 |
| C | 12 | 4 | 5823 | 28.62 | 765 | 769 | 176.6 |
| D | 2 | 14 | 370270 | 2013.65 | 752 | 728 | 183.5 |
| D | 12 | 233 | 293102 | 1593.16 | 752 | 728 | 183.5 |
| D | 12 | 110 | 86918 | 469.65 | 752 | 728 | 183.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

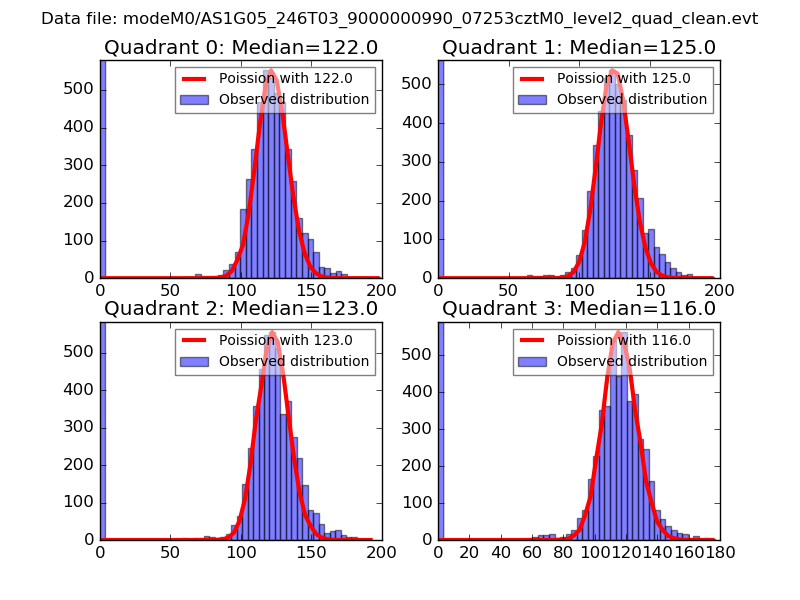

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

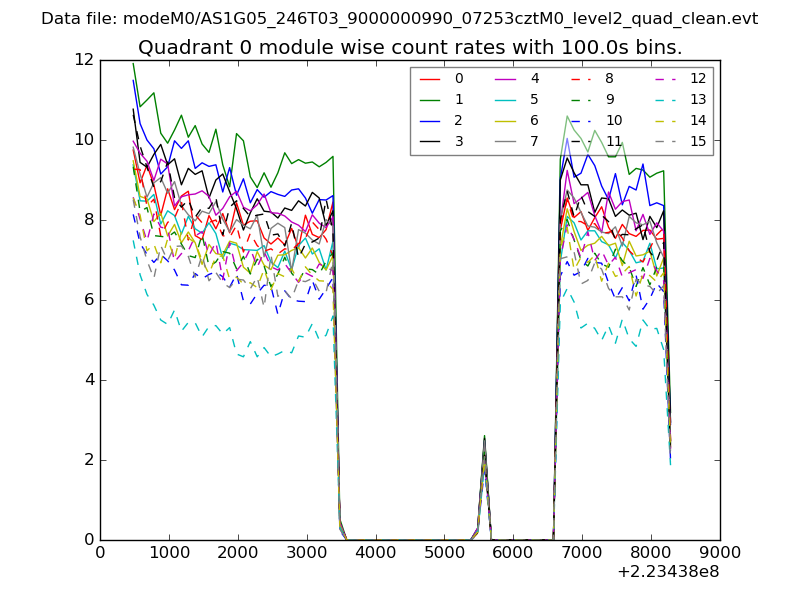

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

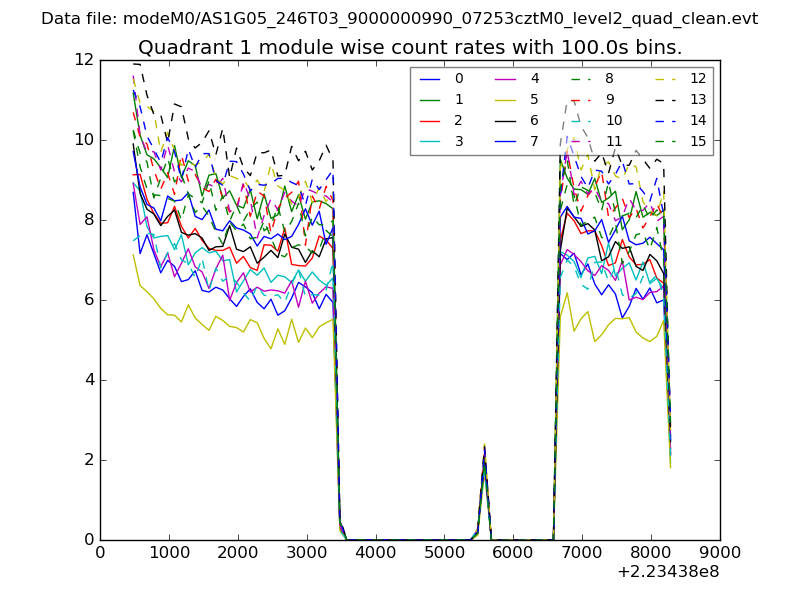

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

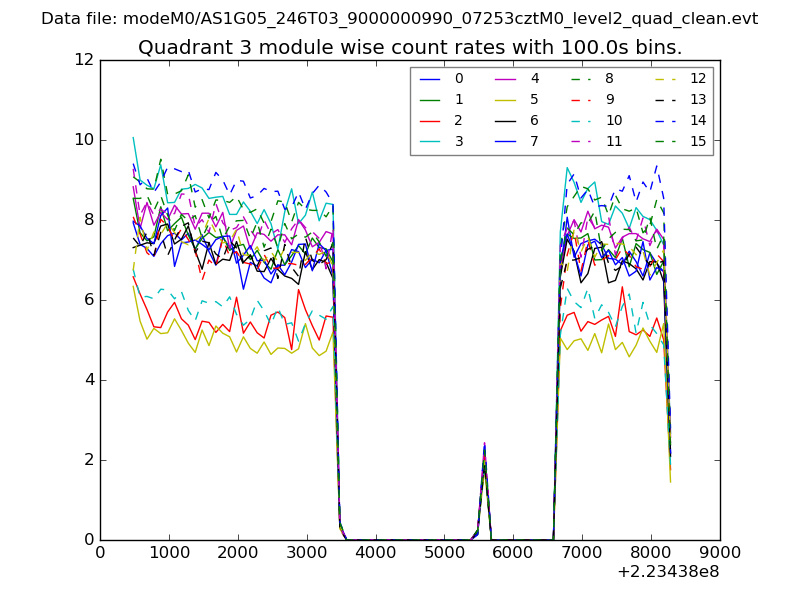

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

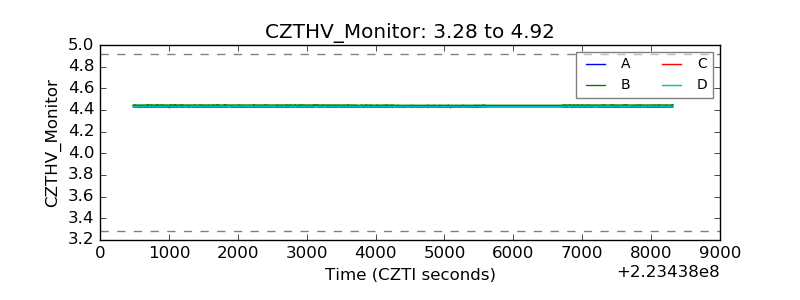

| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

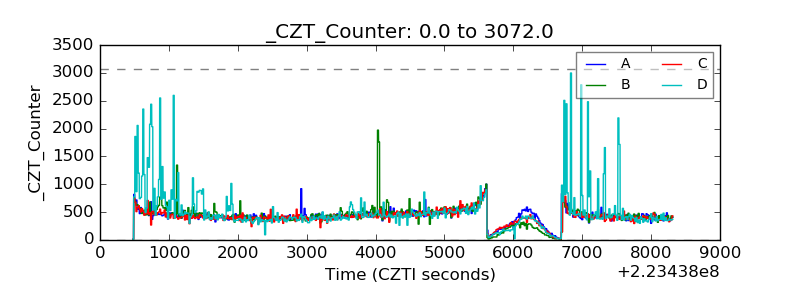

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

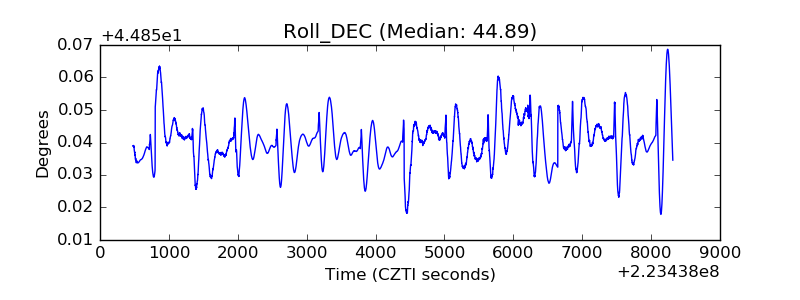

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
