| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G06_036T01_9000000988_07224cztM0_level2.evt | modeM0/AS1G06_036T01_9000000988_07224cztM0_level2_quad_clean.evt |
| Size (bytes) | 470,070,720 | 70,395,840 |
| Size | 448.3 MB | 67.1 MB |
| Events in quadrant A | 3,134,313 | 414,394 |
| Events in quadrant B | 3,584,058 | 426,126 |
| Events in quadrant C | 3,335,618 | 425,126 |
| Events in quadrant D | 3,726,638 | 398,385 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14 | 0 |
| B | 0 | 14 | 0 |
| C | 0 | 14 | 0 |
| D | 0 | 15 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13770 | 3 |
| B | 0 | 15005 | 2 |
| C | 0 | 14246 | 2 |
| D | 0 | 15573 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 136 | 0 |
| B | 0 | 136 | 0 |
| C | 0 | 136 | 0 |
| D | 0 | 136 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6705 | 31 | 0.462342% |
| B | 6705 | 61 | 0.909769% |
| C | 6705 | 34 | 0.507084% |
| D | 6705 | 67 | 0.999254% |

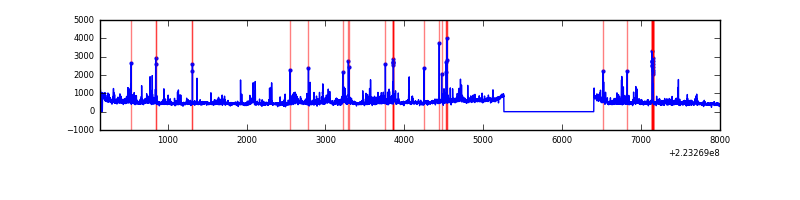

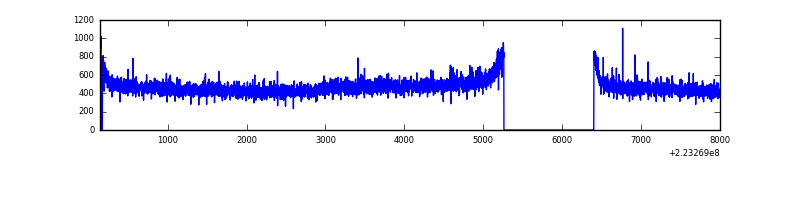

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7860 | 6706 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7860 | 6707 | 26 | 26 | 0.33% | 0.39% |  |
| C | 7860 | 6707 | 7 | 7 | 0.09% | 0.10% |  |
| D | 7860 | 6707 | 38 | 38 | 0.48% | 0.57% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 15 | 47181 | 283.33 | 798 | 780 | 163.8 |
| A | 0 | 226 | 7552 | 41.35 | 798 | 780 | 163.8 |
| A | 12 | 194 | 7174 | 39.04 | 798 | 780 | 163.8 |
| B | 10 | 16 | 263926 | 1681.62 | 813 | 795 | 156.5 |
| B | 0 | 214 | 80570 | 509.83 | 813 | 795 | 156.5 |
| B | 0 | 228 | 32329 | 201.53 | 813 | 795 | 156.5 |
| C | 9 | 68 | 242805 | 1299.05 | 791 | 796 | 186.3 |
| C | 13 | 61 | 6054 | 28.22 | 791 | 796 | 186.3 |
| C | 12 | 4 | 3850 | 16.39 | 791 | 796 | 186.3 |
| D | 2 | 216 | 329799 | 1699.96 | 780 | 754 | 193.6 |
| D | 2 | 63 | 161479 | 830.36 | 780 | 754 | 193.6 |
| D | 2 | 14 | 100987 | 517.84 | 780 | 754 | 193.6 |

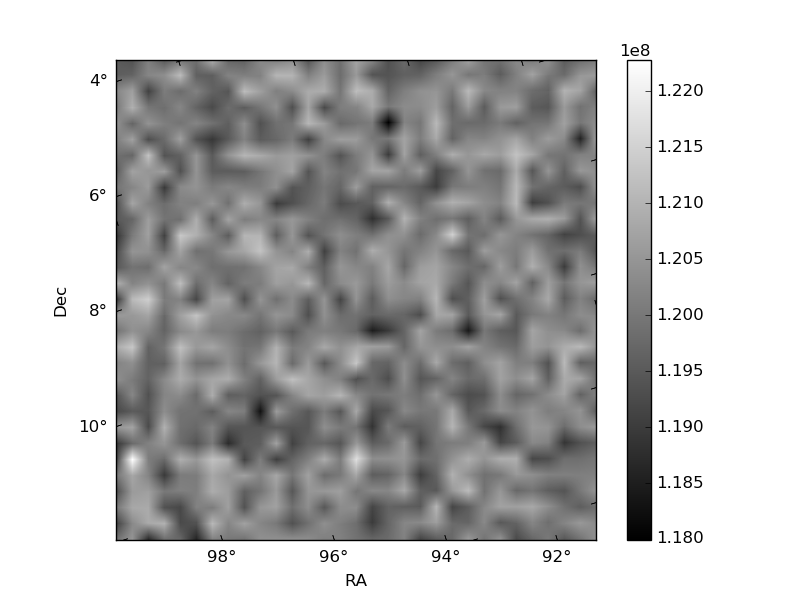

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

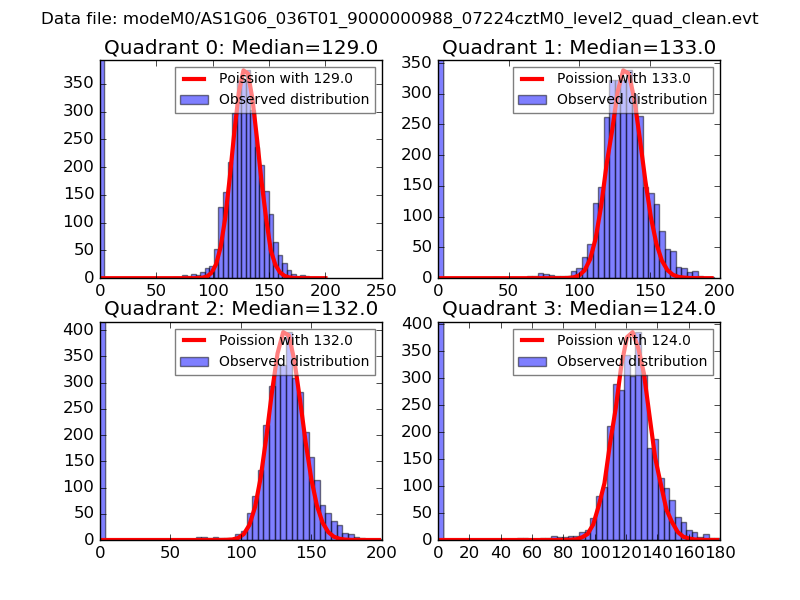

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

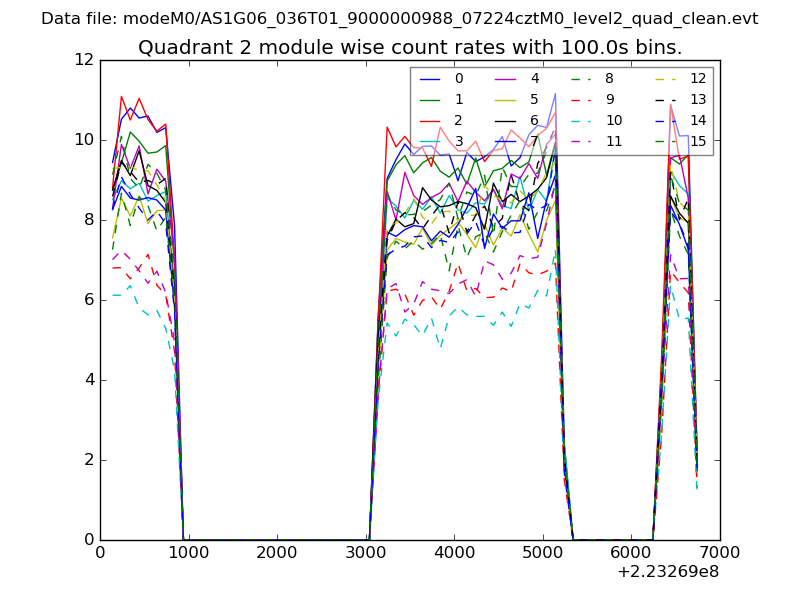

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

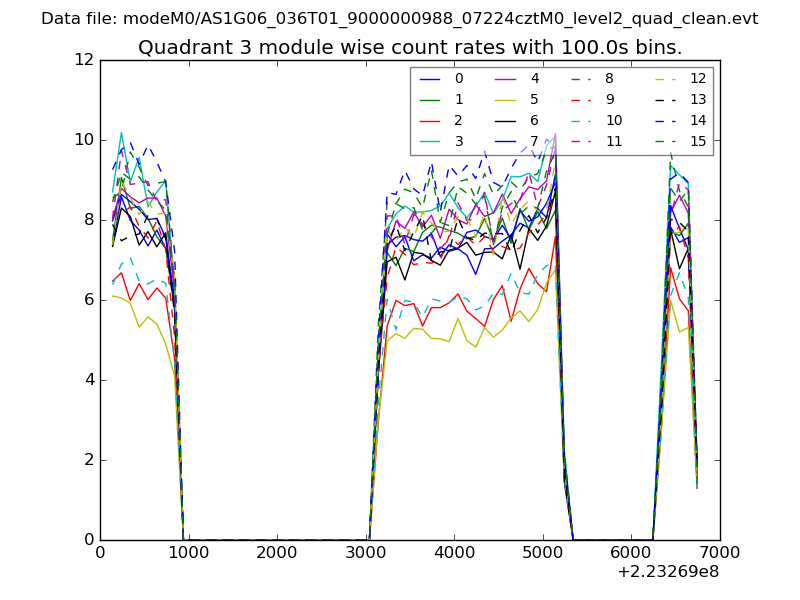

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

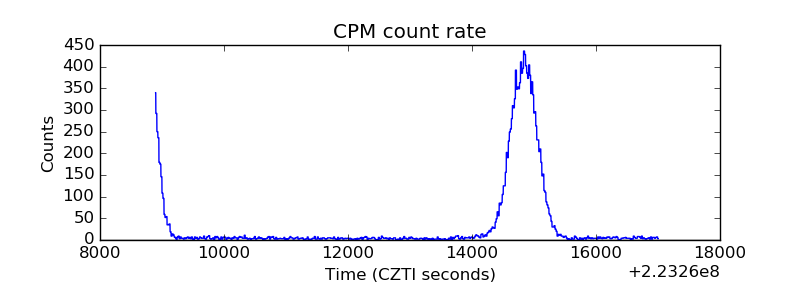

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

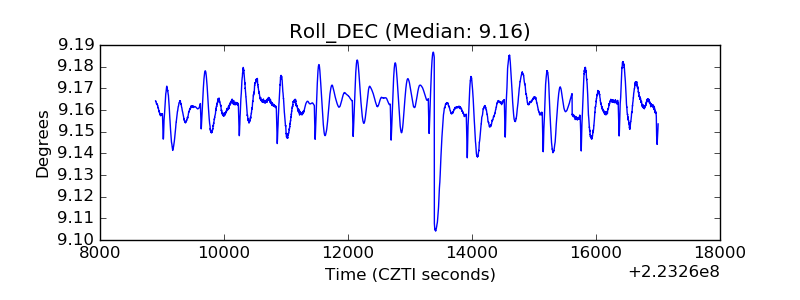

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
