| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G06_036T01_9000000988_07227cztM0_level2.evt | modeM0/AS1G06_036T01_9000000988_07227cztM0_level2_quad_clean.evt |
| Size (bytes) | 594,218,880 | 82,964,160 |
| Size | 566.7 MB | 79.1 MB |
| Events in quadrant A | 4,156,443 | 482,005 |
| Events in quadrant B | 4,149,281 | 491,486 |
| Events in quadrant C | 4,564,437 | 490,228 |
| Events in quadrant D | 4,558,994 | 468,286 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 2 | 0 |
| B | 0 | 2 | 0 |
| C | 0 | 2 | 0 |
| D | 0 | 2 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17888 | 3 |
| B | 0 | 17774 | 2 |
| C | 0 | 19225 | 2 |
| D | 0 | 19545 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 170 | 0 |
| B | 0 | 170 | 0 |
| C | 0 | 170 | 0 |
| D | 0 | 170 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 8348 | 382 | 4.575946% |
| B | 8348 | 435 | 5.210829% |
| C | 8348 | 243 | 2.910877% |
| D | 8348 | 350 | 4.192621% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8613 | 8348 | 2 | 2 | 0.02% | 0.02% |  |
| B | 8613 | 8349 | 3 | 3 | 0.03% | 0.04% |  |
| C | 8613 | 8350 | 22 | 22 | 0.26% | 0.26% |  |
| D | 8613 | 8351 | 90 | 90 | 1.04% | 1.08% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 15 | 78992 | 363.63 | 1030 | 1004 | 214.5 |
| A | 13 | 248 | 62158 | 285.14 | 1030 | 1004 | 214.5 |
| A | 14 | 111 | 29993 | 135.17 | 1030 | 1004 | 214.5 |
| B | 0 | 214 | 44217 | 210.8 | 1040 | 1012 | 205.0 |
| B | 4 | 81 | 36575 | 173.51 | 1040 | 1012 | 205.0 |
| B | 12 | 111 | 21867 | 101.75 | 1040 | 1012 | 205.0 |
| C | 9 | 68 | 563971 | 2355.11 | 1013 | 1016 | 239.0 |
| C | 8 | 128 | 17484 | 68.89 | 1013 | 1016 | 239.0 |
| C | 9 | 243 | 11415 | 43.5 | 1013 | 1016 | 239.0 |
| D | 13 | 137 | 429525 | 1708.55 | 1005 | 973 | 250.8 |
| D | 2 | 14 | 192629 | 764.1 | 1005 | 973 | 250.8 |
| D | 12 | 233 | 83123 | 327.52 | 1005 | 973 | 250.8 |

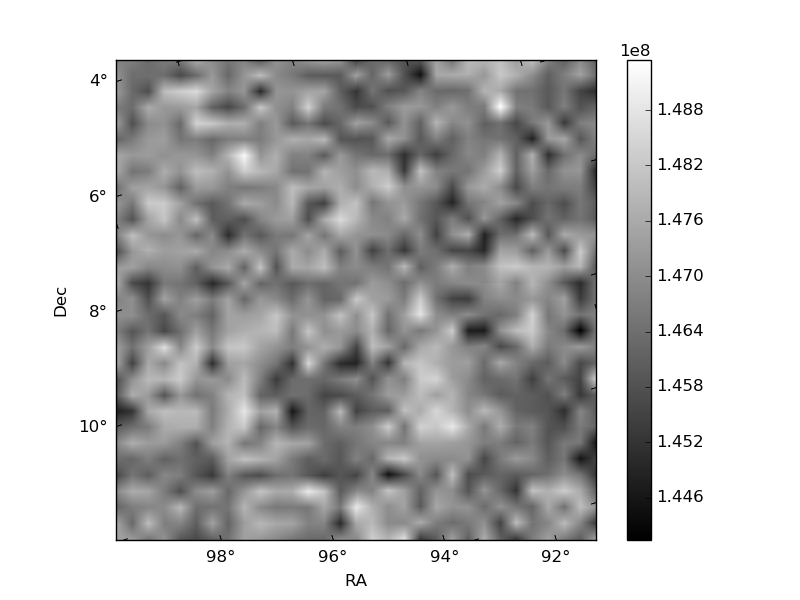

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

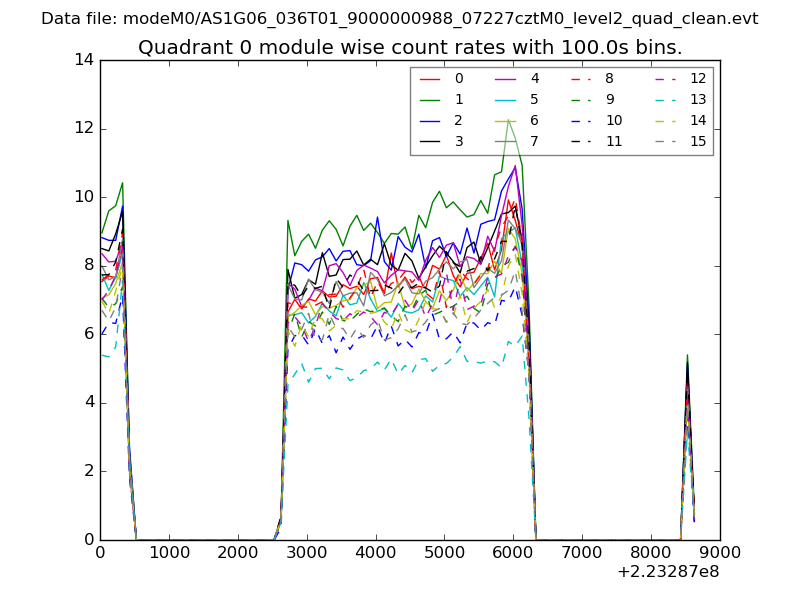

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

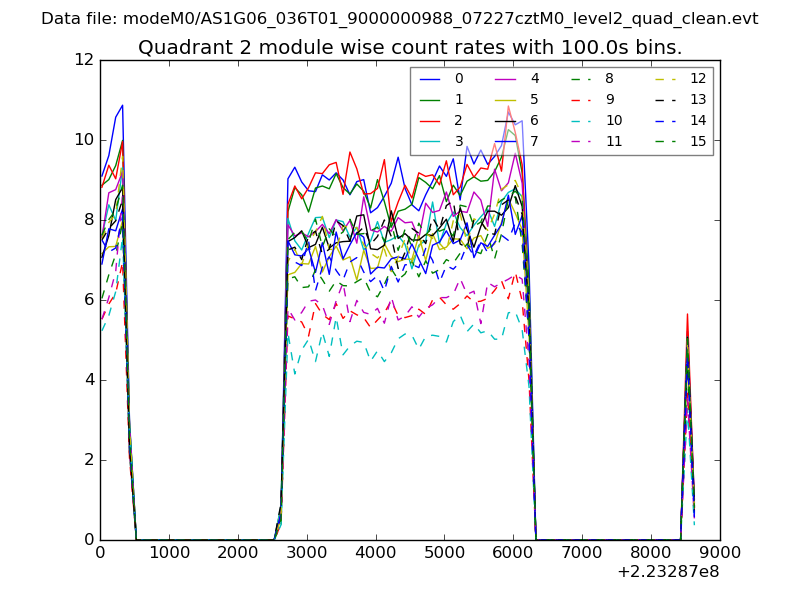

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

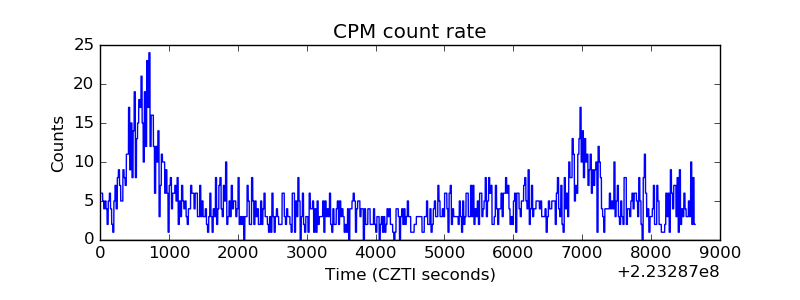

| _CPM_Rate |  |

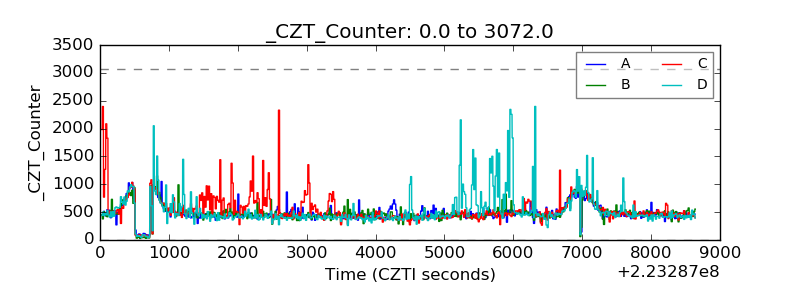

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

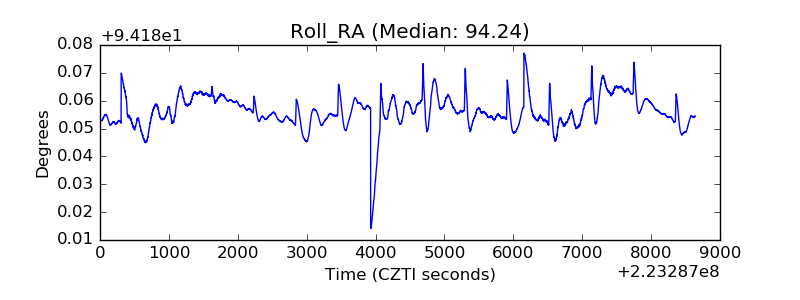

| _Roll_RA |  |

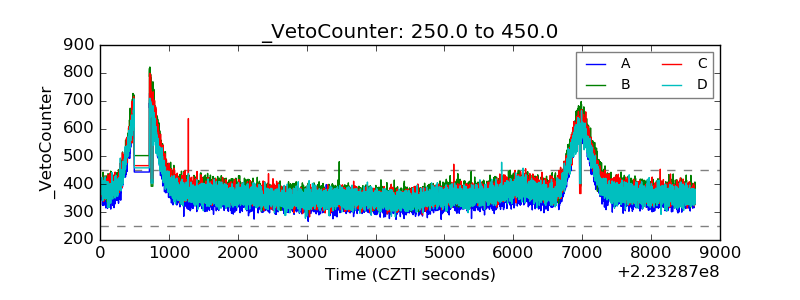

| Veto Counter |  |
