| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A02_155T01_9000000994_07268cztM0_level2.evt | modeM0/AS1A02_155T01_9000000994_07268cztM0_level2_quad_clean.evt |
| Size (bytes) | 442,981,440 | 92,632,320 |
| Size | 422.5 MB | 88.3 MB |
| Events in quadrant A | 3,129,951 | 582,399 |
| Events in quadrant B | 3,287,224 | 601,343 |
| Events in quadrant C | 3,406,019 | 587,948 |
| Events in quadrant D | 3,128,770 | 558,311 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14 | 0 |
| B | 0 | 14 | 0 |
| C | 0 | 14 | 0 |
| D | 0 | 15 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14032 | 3 |
| B | 0 | 14363 | 2 |
| C | 0 | 14549 | 2 |
| D | 0 | 14366 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 140 | 0 |
| B | 0 | 140 | 0 |
| C | 0 | 140 | 0 |
| D | 0 | 140 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6814 | 29 | 0.425594% |
| B | 6814 | 60 | 0.880540% |
| C | 6814 | 29 | 0.425594% |
| D | 6814 | 25 | 0.366892% |

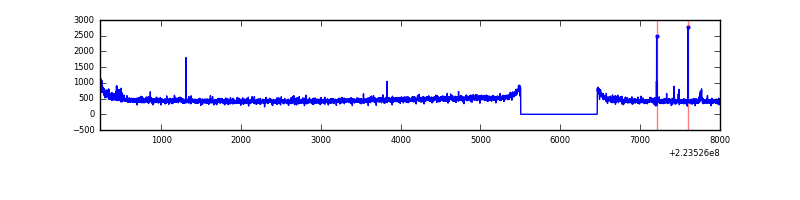

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7774 | 6815 | 2 | 2 | 0.03% | 0.03% |  |
| B | 7774 | 6815 | 3 | 3 | 0.04% | 0.04% |  |
| C | 7774 | 6815 | 2 | 2 | 0.03% | 0.03% |  |
| D | 7774 | 6815 | 11 | 11 | 0.14% | 0.16% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 15 | 50634 | 307.92 | 794 | 775 | 161.9 |
| A | 14 | 111 | 17866 | 105.55 | 794 | 775 | 161.9 |
| A | 0 | 226 | 7587 | 42.07 | 794 | 775 | 161.9 |
| B | 4 | 81 | 69689 | 449.89 | 806 | 788 | 153.2 |
| B | 0 | 228 | 29327 | 186.34 | 806 | 788 | 153.2 |
| B | 0 | 214 | 18076 | 112.88 | 806 | 788 | 153.2 |
| C | 7 | 247 | 294405 | 1603.75 | 789 | 795 | 183.1 |
| C | 9 | 68 | 19157 | 100.3 | 789 | 795 | 183.1 |
| C | 10 | 22 | 13191 | 67.71 | 789 | 795 | 183.1 |
| D | 14 | 34 | 92407 | 482.18 | 778 | 754 | 190.1 |
| D | 2 | 14 | 72927 | 379.7 | 778 | 754 | 190.1 |
| D | 12 | 233 | 16248 | 81.51 | 778 | 754 | 190.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

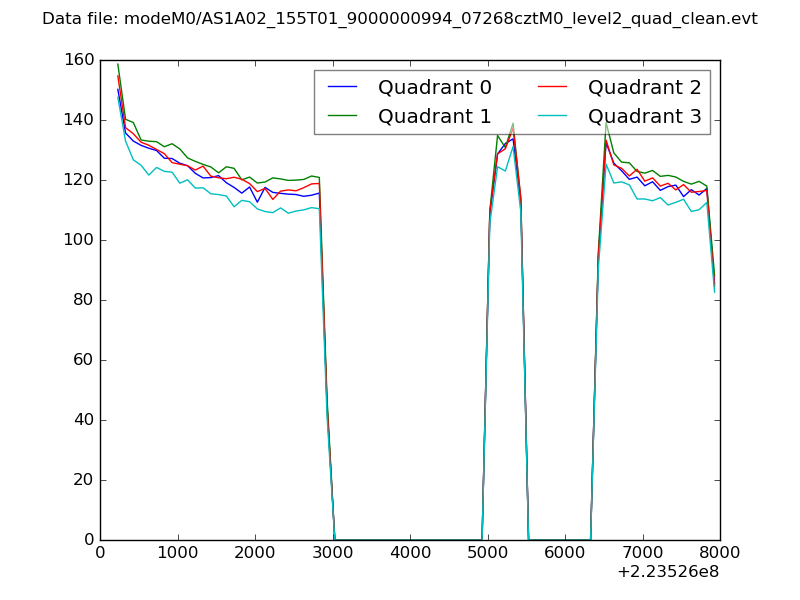

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

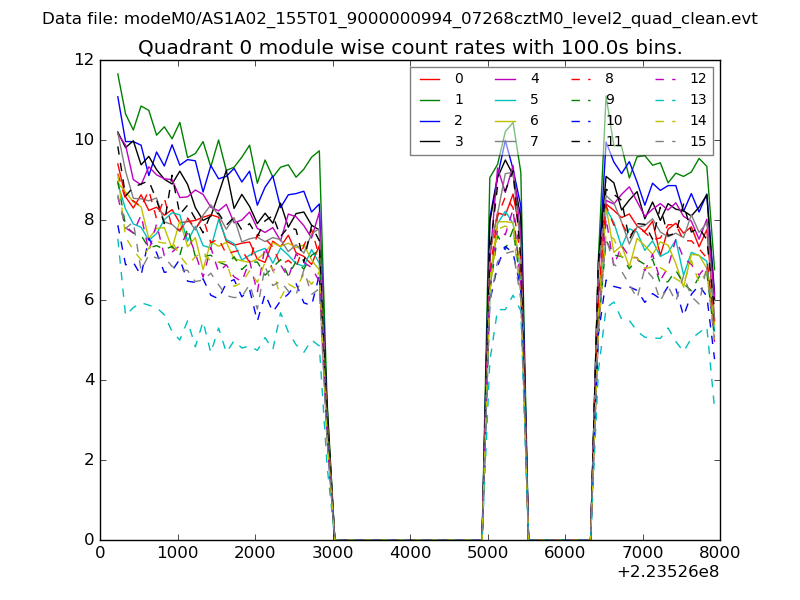

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

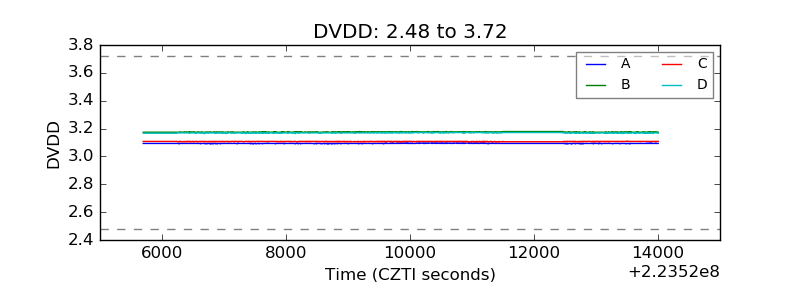

| D_VDD |  |

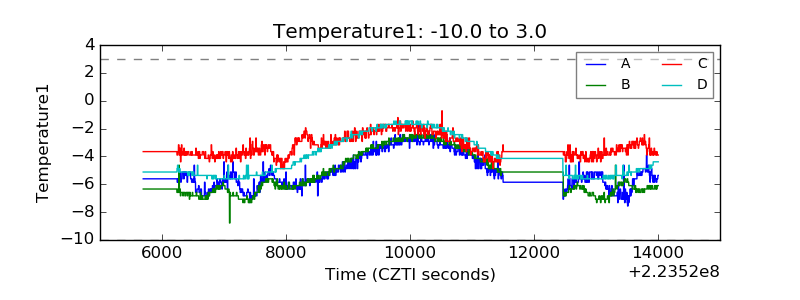

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

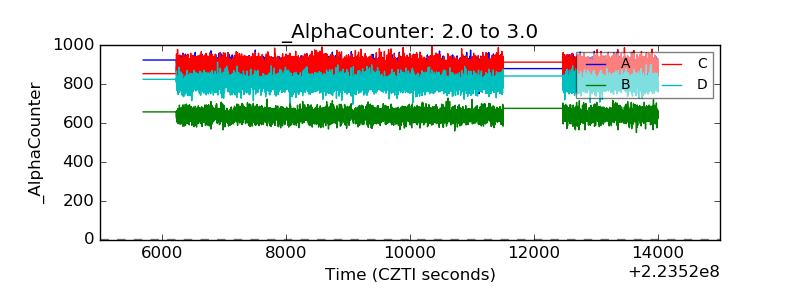

| Alpha Counter |  |

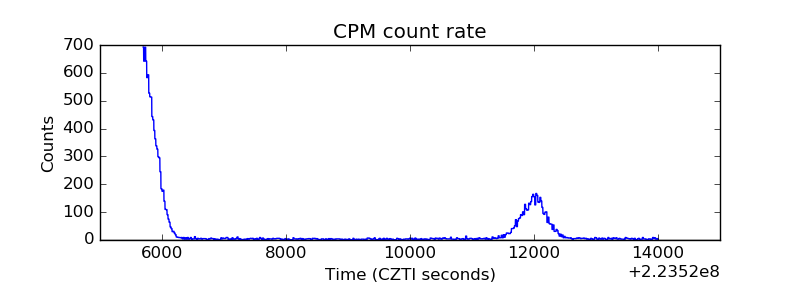

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

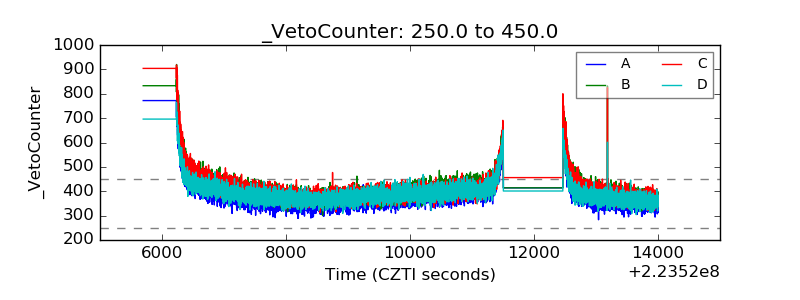

| Veto Counter |  |
