| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G06_154T03_9000000996_07277cztM0_level2.evt | modeM0/AS1G06_154T03_9000000996_07277cztM0_level2_quad_clean.evt |
| Size (bytes) | 437,345,280 | 84,844,800 |
| Size | 417.1 MB | 80.9 MB |
| Events in quadrant A | 3,124,682 | 528,738 |
| Events in quadrant B | 3,323,419 | 537,808 |
| Events in quadrant C | 3,111,531 | 532,950 |
| Events in quadrant D | 3,239,066 | 512,013 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13803 | 3 |
| B | 0 | 14393 | 2 |
| C | 0 | 13734 | 2 |
| D | 0 | 14331 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16 | 0 |
| B | 0 | 16 | 0 |
| C | 0 | 16 | 0 |
| D | 0 | 17 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6569 | 33 | 0.502360% |
| B | 6569 | 60 | 0.913381% |
| C | 6569 | 28 | 0.426244% |
| D | 6569 | 58 | 0.882935% |

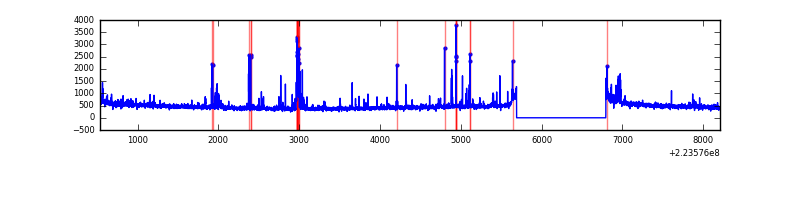

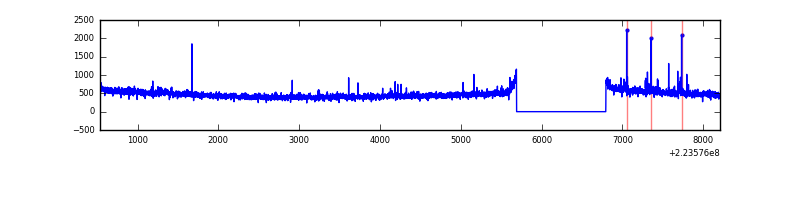

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7674 | 6569 | 1 | 1 | 0.01% | 0.02% |  |
| B | 7674 | 6569 | 14 | 14 | 0.18% | 0.21% |  |
| C | 7674 | 6570 | 3 | 3 | 0.04% | 0.05% |  |
| D | 7674 | 6570 | 25 | 25 | 0.33% | 0.38% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 15 | 80894 | 493.6 | 791 | 772 | 162.3 |
| A | 0 | 226 | 7606 | 42.1 | 791 | 772 | 162.3 |
| A | 12 | 194 | 7000 | 38.37 | 791 | 772 | 162.3 |
| B | 0 | 228 | 79773 | 514.74 | 800 | 781 | 153.5 |
| B | 0 | 214 | 79294 | 511.62 | 800 | 781 | 153.5 |
| B | 0 | 229 | 19833 | 124.15 | 800 | 781 | 153.5 |
| C | 9 | 68 | 39928 | 217.12 | 777 | 780 | 180.3 |
| C | 1 | 16 | 27739 | 149.52 | 777 | 780 | 180.3 |
| C | 14 | 67 | 12458 | 64.77 | 777 | 780 | 180.3 |
| D | 2 | 14 | 163616 | 861.11 | 771 | 747 | 189.1 |
| D | 2 | 216 | 75069 | 392.95 | 771 | 747 | 189.1 |
| D | 1 | 52 | 61965 | 323.67 | 771 | 747 | 189.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

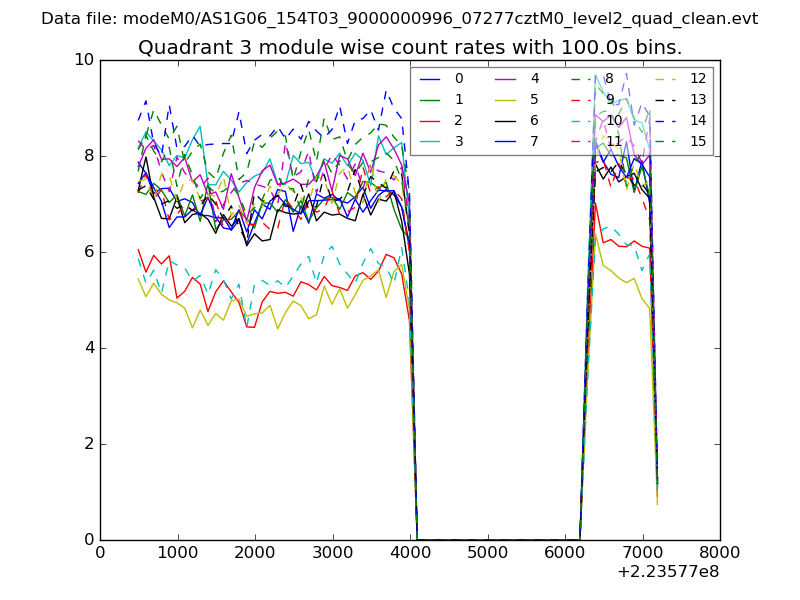

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

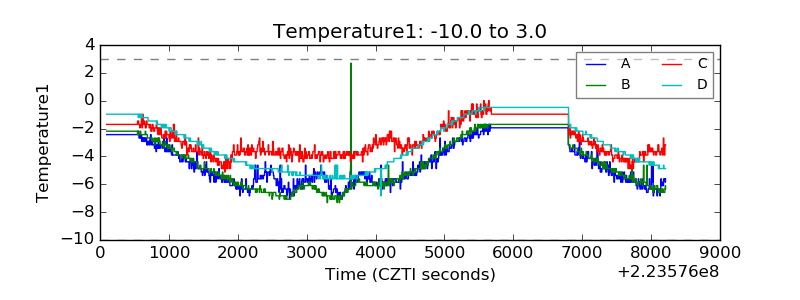

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

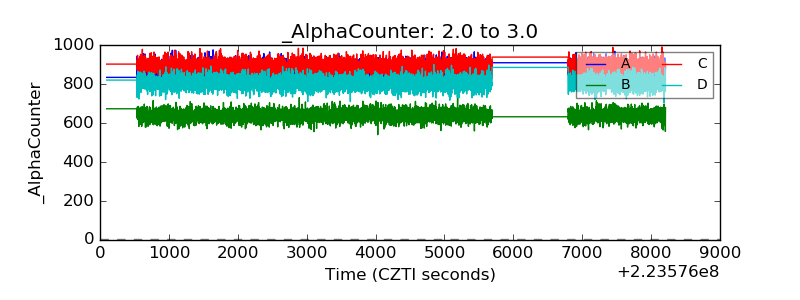

| Alpha Counter |  |
| _CPM_Rate |  |

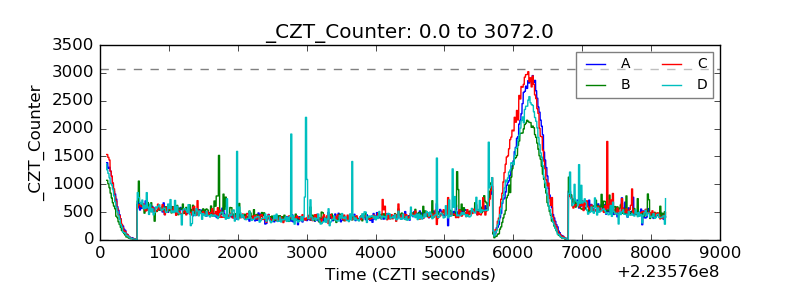

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

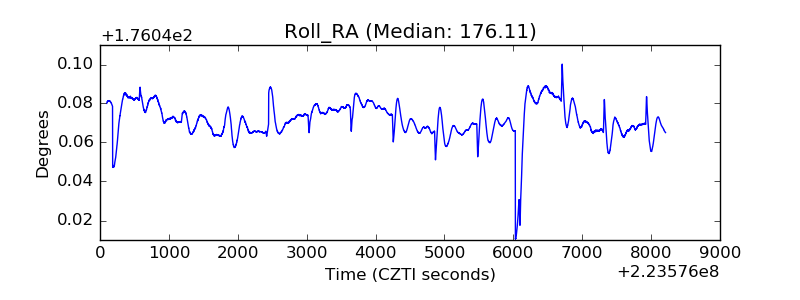

| _Roll_RA |  |

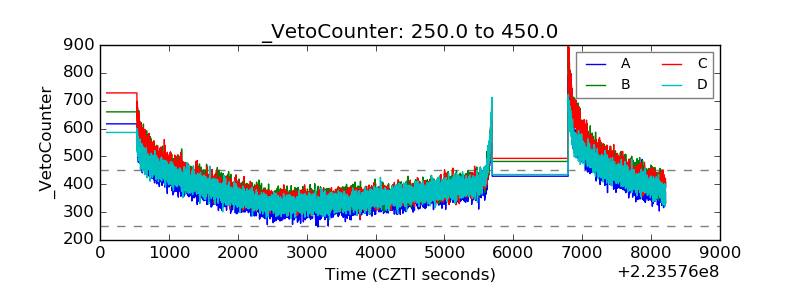

| Veto Counter |  |
