| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G06_154T03_9000000996_07279cztM0_level2.evt | modeM0/AS1G06_154T03_9000000996_07279cztM0_level2_quad_clean.evt |
| Size (bytes) | 470,039,040 | 100,039,680 |
| Size | 448.3 MB | 95.4 MB |
| Events in quadrant A | 3,189,171 | 647,684 |
| Events in quadrant B | 3,385,274 | 672,475 |
| Events in quadrant C | 3,113,793 | 650,883 |
| Events in quadrant D | 4,104,706 | 604,487 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13814 | 3 |
| B | 0 | 14350 | 2 |
| C | 0 | 13560 | 2 |
| D | 0 | 16701 | 6 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 136 | 0 |
| B | 0 | 136 | 0 |
| C | 0 | 136 | 0 |
| D | 0 | 136 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 25 | 0 |
| B | 0 | 25 | 0 |
| C | 0 | 25 | 0 |
| D | 0 | 25 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6506 | 36 | 0.553335% |
| B | 6506 | 62 | 0.952966% |
| C | 6506 | 30 | 0.461113% |
| D | 6505 | 157 | 2.413528% |

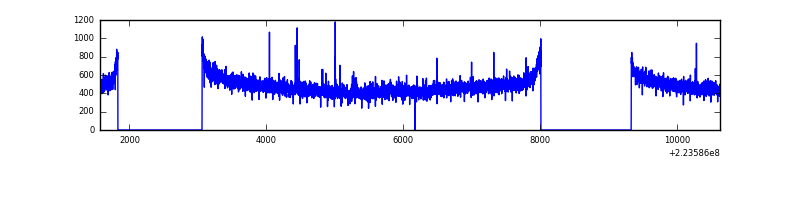

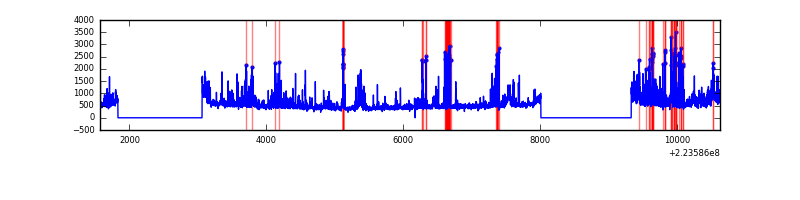

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 9058 | 6509 | 0 | 0 | 0.00% | 0.00% |  |
| B | 9058 | 6509 | 7 | 7 | 0.08% | 0.11% |  |
| C | 9058 | 6509 | 0 | 0 | 0.00% | 0.00% |  |
| D | 9057 | 6508 | 100 | 100 | 1.10% | 1.54% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 15 | 76946 | 464.54 | 808 | 792 | 163.9 |
| A | 0 | 226 | 7715 | 42.23 | 808 | 792 | 163.9 |
| A | 12 | 194 | 7181 | 38.97 | 808 | 792 | 163.9 |
| B | 4 | 81 | 76442 | 484.88 | 821 | 802 | 156.0 |
| B | 0 | 214 | 65573 | 415.2 | 821 | 802 | 156.0 |
| B | 0 | 228 | 26149 | 162.48 | 821 | 802 | 156.0 |
| C | 9 | 68 | 28225 | 149.72 | 787 | 793 | 183.2 |
| C | 7 | 247 | 12977 | 66.5 | 787 | 793 | 183.2 |
| C | 13 | 61 | 6102 | 28.98 | 787 | 793 | 183.2 |
| D | 2 | 216 | 481824 | 2525.45 | 774 | 750 | 190.5 |
| D | 2 | 33 | 280328 | 1467.68 | 774 | 750 | 190.5 |
| D | 2 | 14 | 213033 | 1114.4 | 774 | 750 | 190.5 |

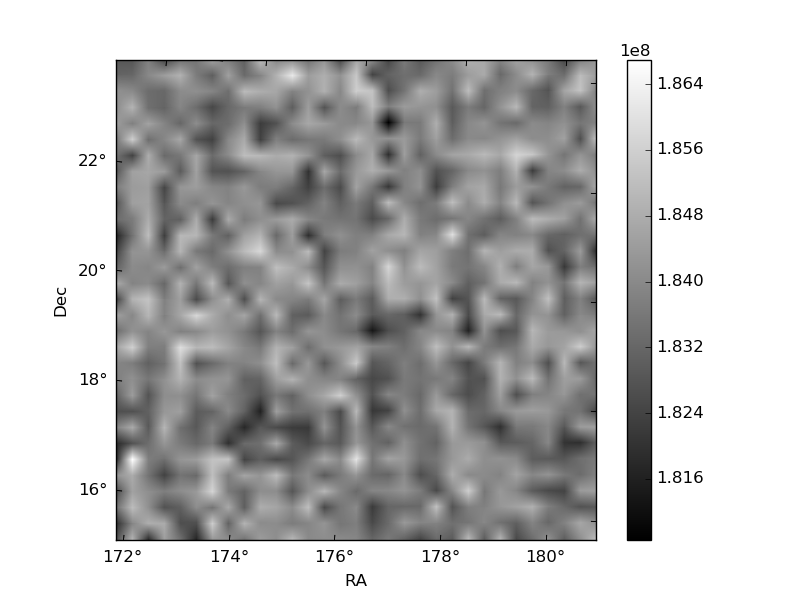

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

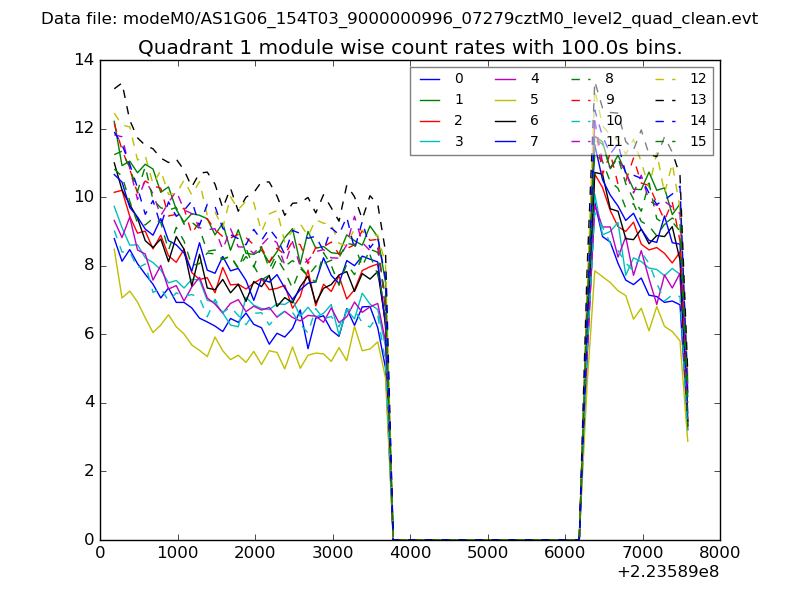

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

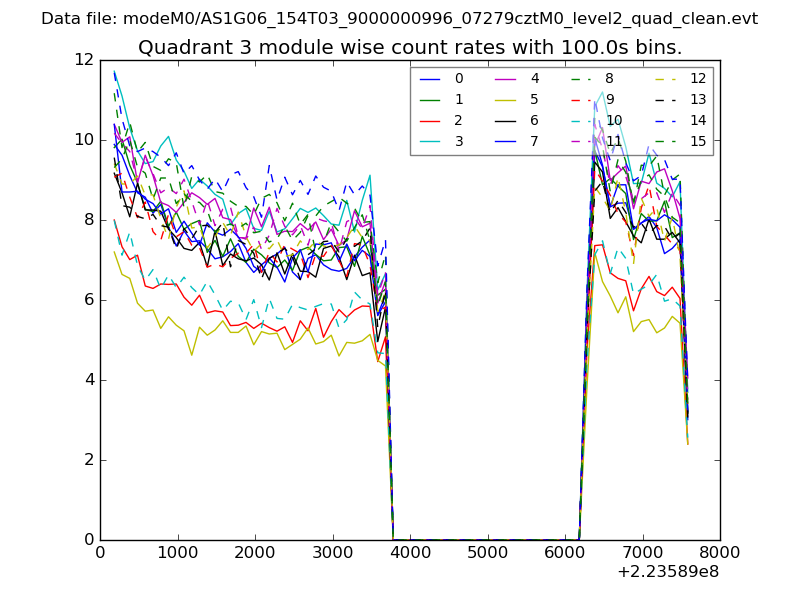

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

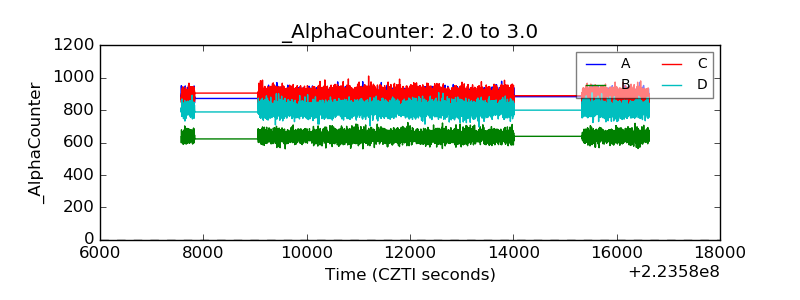

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

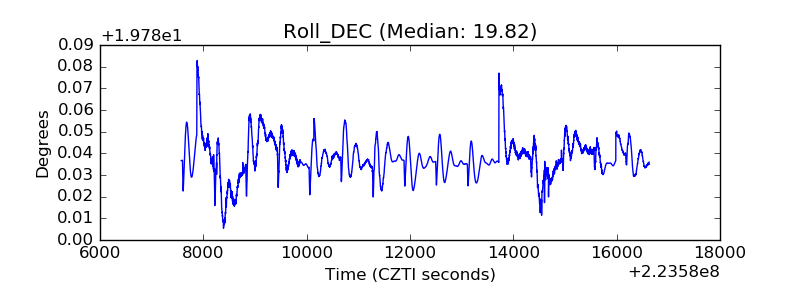

| _Roll_DEC |  |

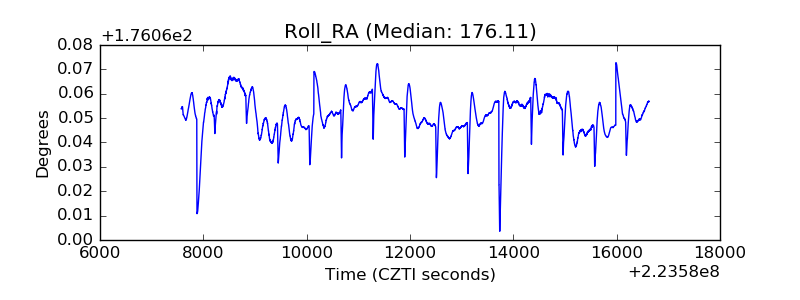

| _Roll_RA |  |
| Veto Counter |  |
