| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G06_154T03_9000000996_07282cztM0_level2.evt | modeM0/AS1G06_154T03_9000000996_07282cztM0_level2_quad_clean.evt |
| Size (bytes) | 464,970,240 | 92,234,880 |
| Size | 443.4 MB | 88.0 MB |
| Events in quadrant A | 3,479,125 | 575,873 |
| Events in quadrant B | 3,414,811 | 595,470 |
| Events in quadrant C | 3,178,270 | 586,626 |
| Events in quadrant D | 3,541,013 | 555,088 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15032 | 3 |
| B | 0 | 14812 | 2 |
| C | 0 | 14307 | 2 |
| D | 0 | 15490 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 140 | 0 |
| B | 0 | 140 | 0 |
| C | 0 | 140 | 0 |
| D | 0 | 140 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 14 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6887 | 151 | 2.192537% |
| B | 6887 | 156 | 2.265137% |
| C | 6887 | 68 | 0.987368% |
| D | 6887 | 137 | 1.989255% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7922 | 6887 | 31 | 31 | 0.39% | 0.45% |  |
| B | 7922 | 6887 | 34 | 34 | 0.43% | 0.49% |  |
| C | 7922 | 6888 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7922 | 6888 | 82 | 82 | 1.04% | 1.19% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 239 | 217328 | 1285.65 | 826 | 809 | 168.4 |
| A | 8 | 15 | 48643 | 284.03 | 826 | 809 | 168.4 |
| A | 14 | 111 | 31484 | 182.14 | 826 | 809 | 168.4 |
| B | 4 | 239 | 86972 | 529.47 | 839 | 820 | 162.7 |
| B | 4 | 81 | 44457 | 268.18 | 839 | 820 | 162.7 |
| B | 0 | 214 | 22172 | 131.22 | 839 | 820 | 162.7 |
| C | 1 | 16 | 6768 | 31.12 | 812 | 816 | 191.2 |
| C | 13 | 61 | 6267 | 28.5 | 812 | 816 | 191.2 |
| C | 7 | 247 | 4859 | 21.14 | 812 | 816 | 191.2 |
| D | 2 | 14 | 252492 | 1271.52 | 803 | 777 | 198.0 |
| D | 13 | 105 | 104020 | 521.52 | 803 | 777 | 198.0 |
| D | 1 | 52 | 59498 | 296.62 | 803 | 777 | 198.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file

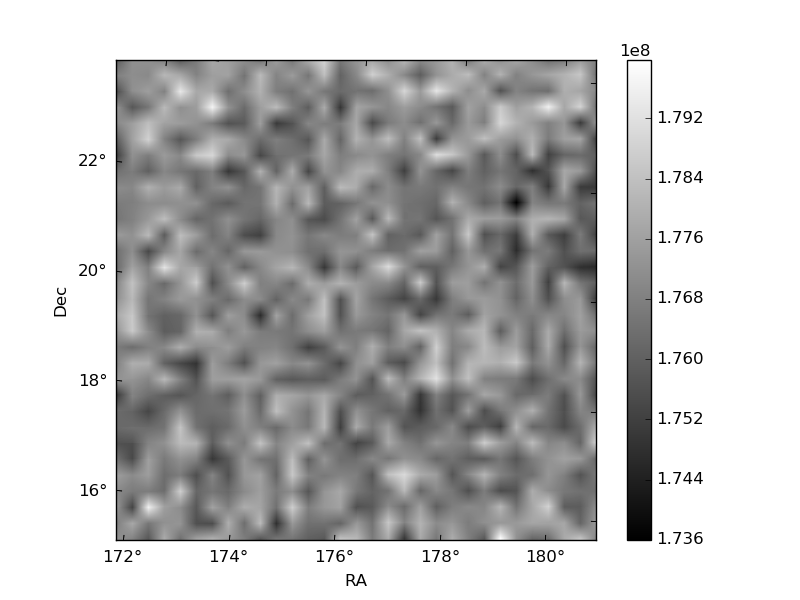

| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |

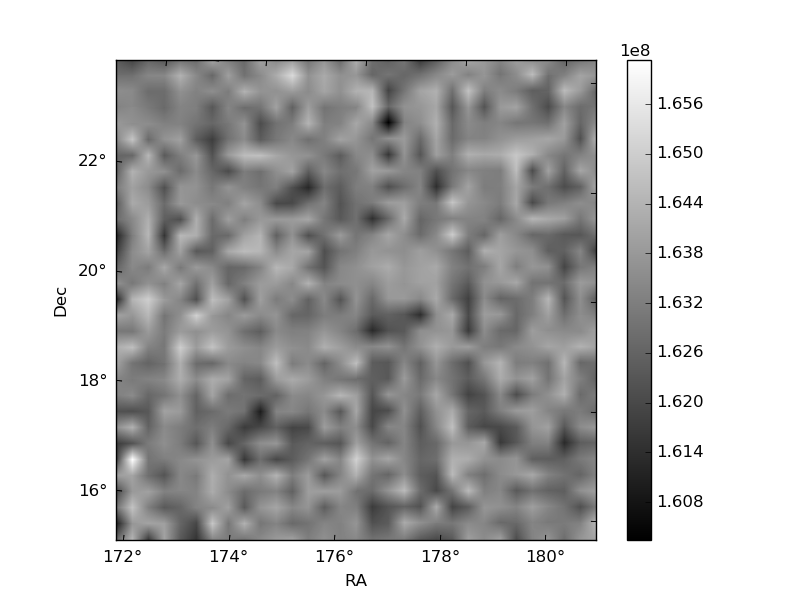

Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

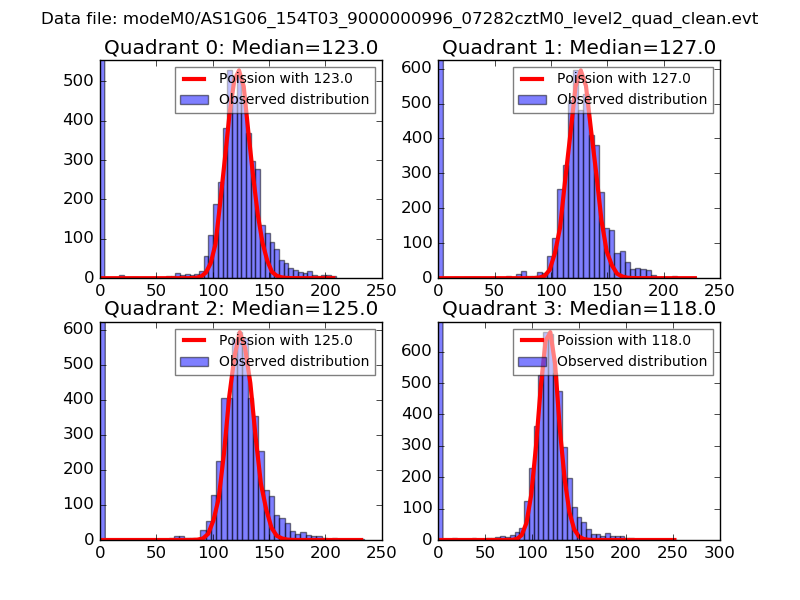

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

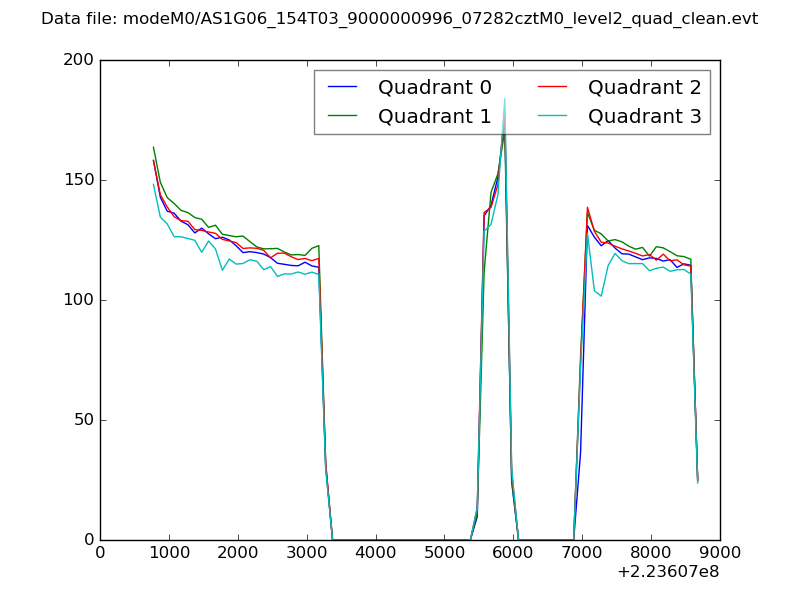

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

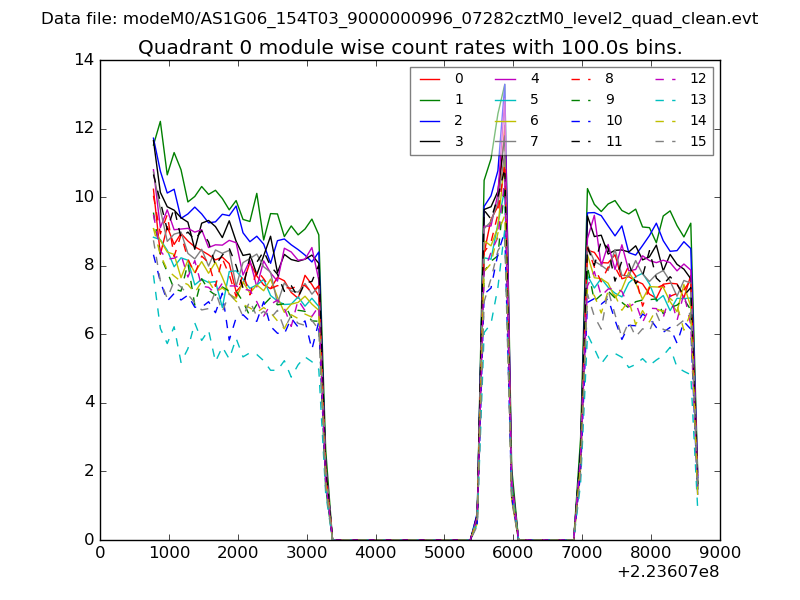

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

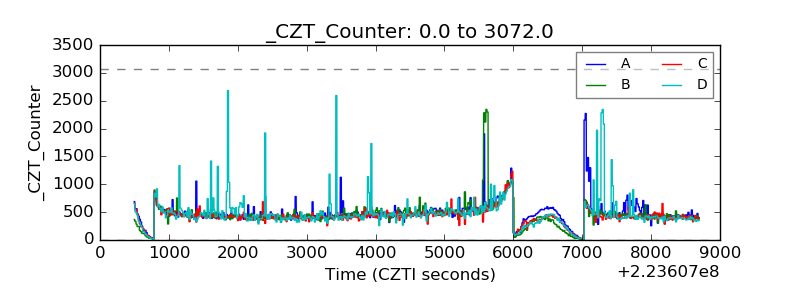

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

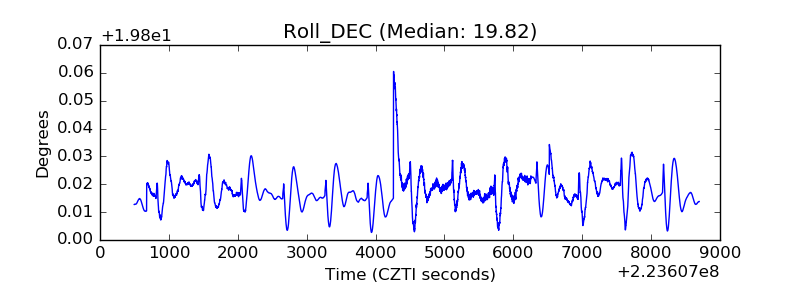

| _Roll_DEC |  |

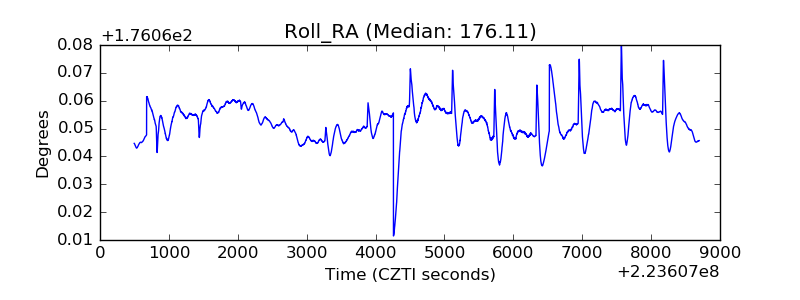

| _Roll_RA |  |
| Veto Counter |  |
