| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G06_154T04_9000000998_07289cztM0_level2.evt | modeM0/AS1G06_154T04_9000000998_07289cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,620,645,120 | 264,404,160 |
| Size | 1.5 GB | 252.2 MB |
| Events in quadrant A | 11,611,227 | 1,606,675 |
| Events in quadrant B | 11,330,807 | 1,628,375 |
| Events in quadrant C | 10,849,169 | 1,611,331 |
| Events in quadrant D | 13,689,763 | 1,532,853 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 23 | 0 |
| B | 0 | 23 | 0 |
| C | 0 | 23 | 0 |
| D | 0 | 23 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 482 | 0 |
| B | 0 | 482 | 0 |
| C | 0 | 482 | 0 |
| D | 0 | 482 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 50916 | 5 |
| B | 0 | 49516 | 4 |
| C | 0 | 48692 | 4 |
| D | 0 | 57658 | 4 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 23665 | 892 | 3.769280% |
| B | 23665 | 285 | 1.204310% |
| C | 23665 | 244 | 1.031059% |
| D | 23665 | 1207 | 5.100359% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 26010 | 23665 | 162 | 162 | 0.62% | 0.68% |  |
| B | 26010 | 23665 | 17 | 17 | 0.07% | 0.07% |  |
| C | 26010 | 23665 | 6 | 6 | 0.02% | 0.03% |  |
| D | 26009 | 23665 | 913 | 913 | 3.51% | 3.86% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 239 | 1006084 | 1811.51 | 2718 | 2655 | 553.9 |
| A | 14 | 111 | 54571 | 93.73 | 2718 | 2655 | 553.9 |
| A | 3 | 1 | 48471 | 82.71 | 2718 | 2655 | 553.9 |
| B | 0 | 214 | 305770 | 562.56 | 2798 | 2730 | 538.7 |
| B | 4 | 81 | 101431 | 183.23 | 2798 | 2730 | 538.7 |
| B | 12 | 111 | 55335 | 97.66 | 2798 | 2730 | 538.7 |
| C | 9 | 68 | 220012 | 345.6 | 2706 | 2718 | 628.7 |
| C | 1 | 16 | 66424 | 101.32 | 2706 | 2718 | 628.7 |
| C | 13 | 61 | 20855 | 28.85 | 2706 | 2718 | 628.7 |
| D | 12 | 221 | 2015342 | 3079.93 | 2643 | 2560 | 653.5 |
| D | 2 | 216 | 597449 | 910.29 | 2643 | 2560 | 653.5 |
| D | 2 | 14 | 572330 | 871.85 | 2643 | 2560 | 653.5 |

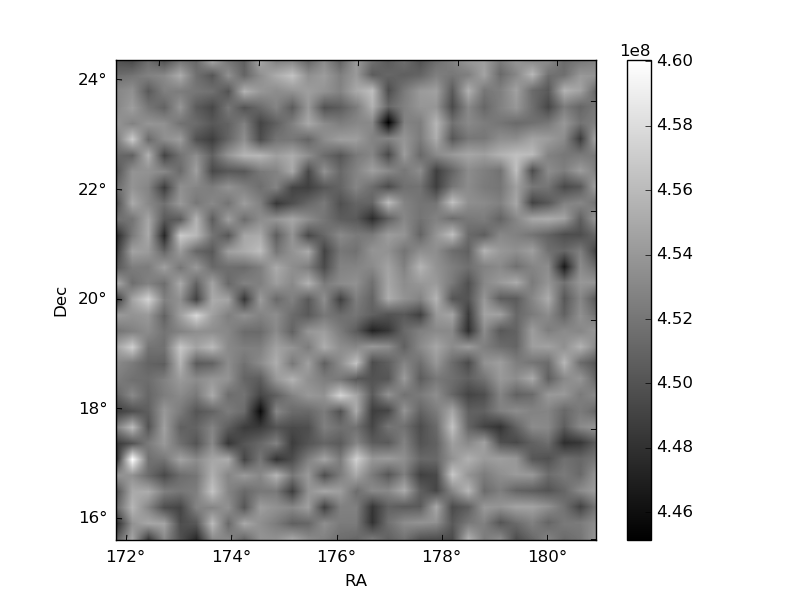

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

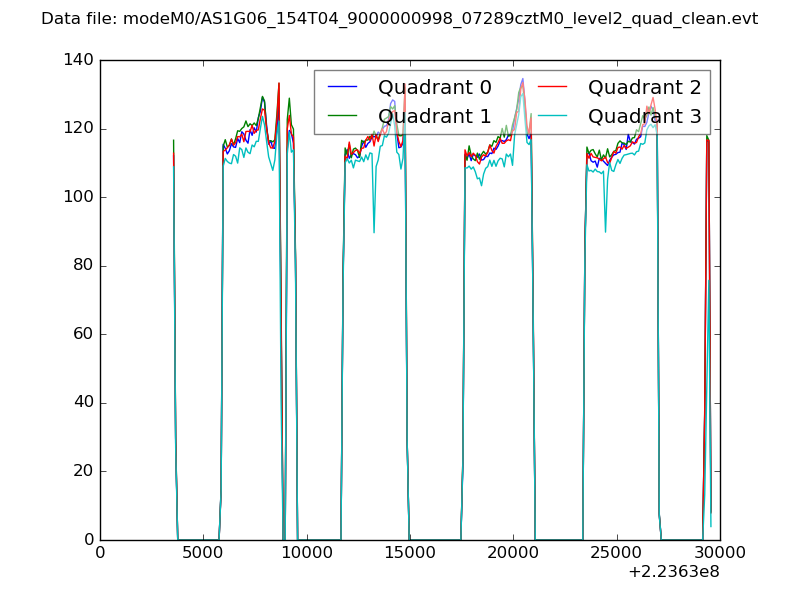

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

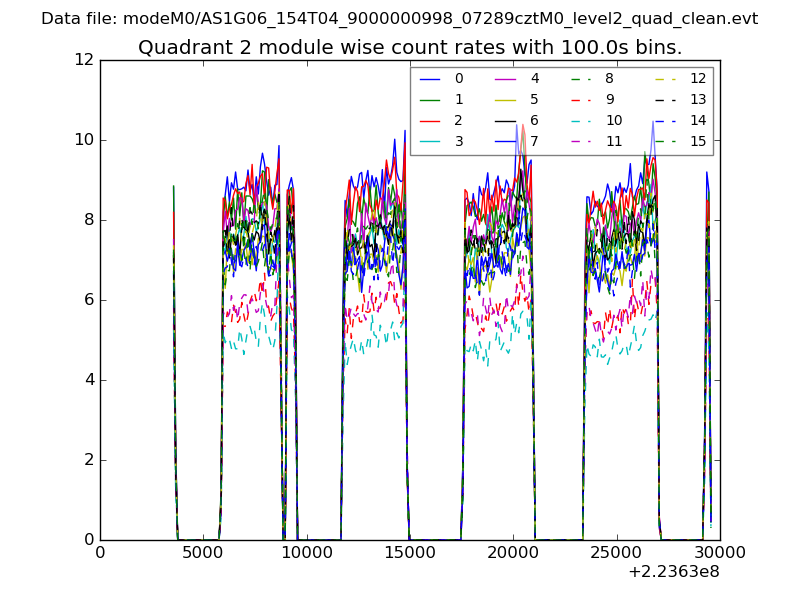

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

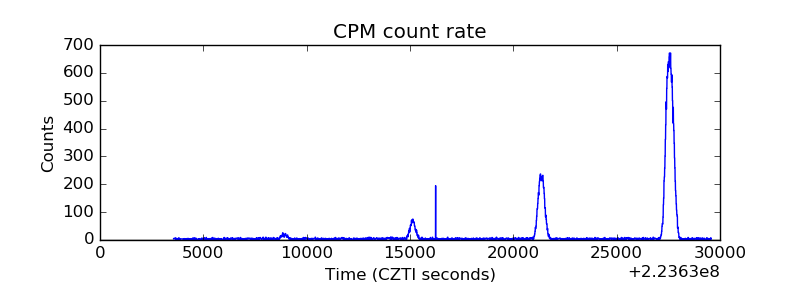

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

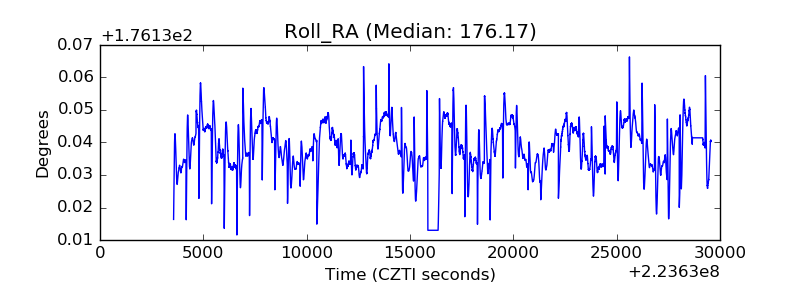

| _Roll_RA |  |

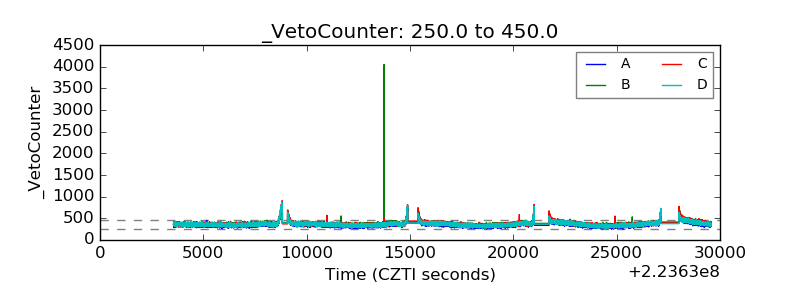

| Veto Counter |  |
