| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G06_154T04_9000000998_07292cztM0_level2.evt | modeM0/AS1G06_154T04_9000000998_07292cztM0_level2_quad_clean.evt |
| Size (bytes) | 442,880,640 | 86,434,560 |
| Size | 422.4 MB | 82.4 MB |
| Events in quadrant A | 3,105,511 | 540,149 |
| Events in quadrant B | 3,200,361 | 555,883 |
| Events in quadrant C | 3,129,970 | 549,219 |
| Events in quadrant D | 3,540,130 | 523,825 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 20 | 0 |
| B | 0 | 20 | 0 |
| C | 0 | 20 | 0 |
| D | 0 | 21 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13723 | 3 |
| B | 0 | 13894 | 2 |
| C | 0 | 13562 | 2 |
| D | 0 | 15018 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6421 | 43 | 0.669678% |
| B | 6421 | 40 | 0.622956% |
| C | 6421 | 28 | 0.436069% |
| D | 6421 | 114 | 1.775424% |

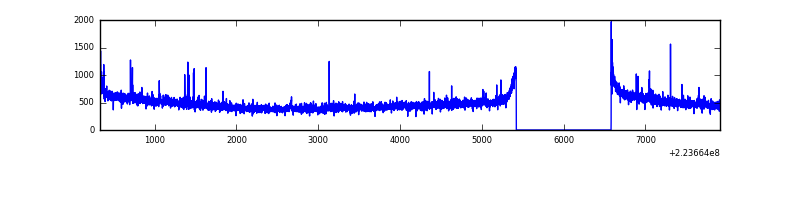

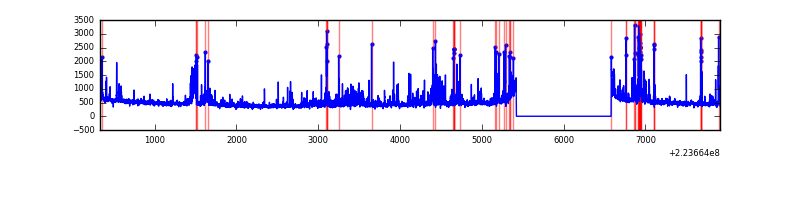

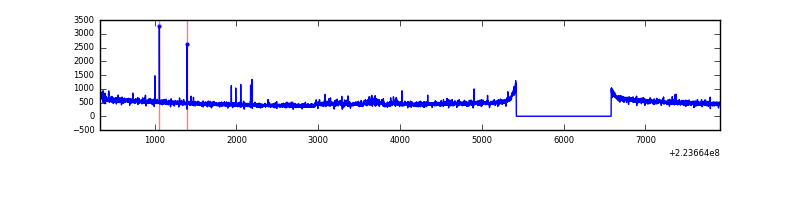

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7581 | 6422 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7581 | 6422 | 1 | 1 | 0.01% | 0.02% |  |
| C | 7581 | 6422 | 2 | 2 | 0.03% | 0.03% |  |
| D | 7581 | 6422 | 66 | 66 | 0.87% | 1.03% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 15 | 22475 | 135.84 | 786 | 769 | 159.8 |
| A | 14 | 111 | 21593 | 130.32 | 786 | 769 | 159.8 |
| A | 15 | 234 | 17595 | 105.3 | 786 | 769 | 159.8 |
| B | 0 | 214 | 68542 | 452.6 | 795 | 776 | 149.7 |
| B | 4 | 81 | 23330 | 150.63 | 795 | 776 | 149.7 |
| B | 0 | 213 | 15211 | 96.41 | 795 | 776 | 149.7 |
| C | 9 | 68 | 110545 | 613.85 | 769 | 774 | 178.8 |
| C | 12 | 4 | 6393 | 31.42 | 769 | 774 | 178.8 |
| C | 1 | 16 | 6147 | 30.05 | 769 | 774 | 178.8 |
| D | 2 | 216 | 289463 | 1521.39 | 765 | 742 | 189.8 |
| D | 14 | 34 | 233996 | 1229.11 | 765 | 742 | 189.8 |
| D | 2 | 14 | 81496 | 425.52 | 765 | 742 | 189.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

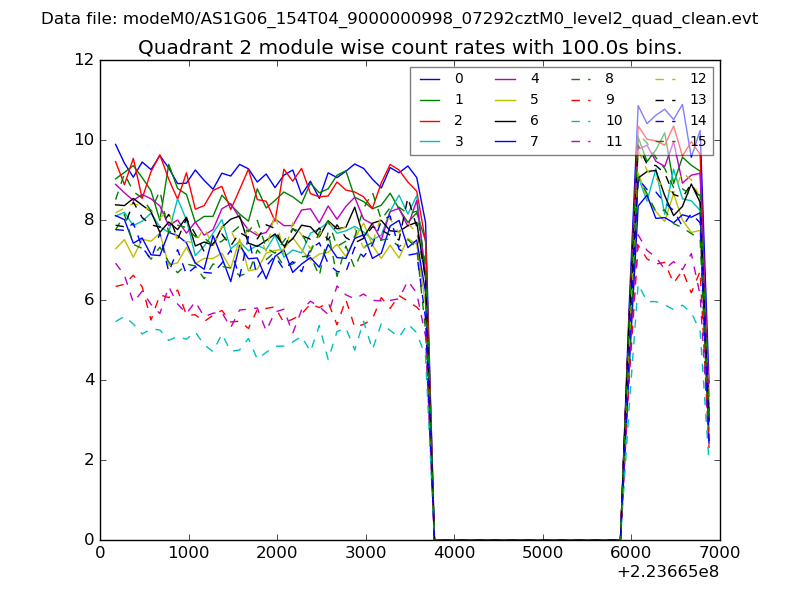

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

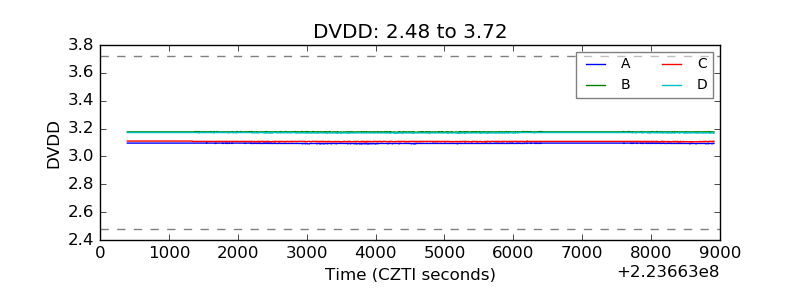

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

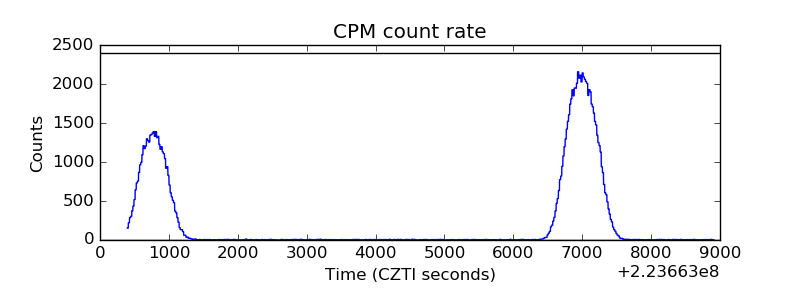

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

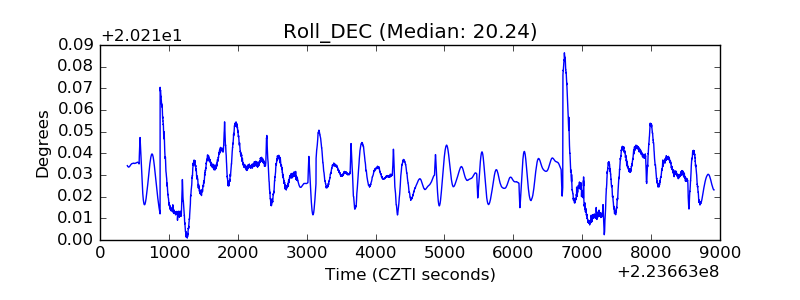

| _Roll_DEC |  |
| _Roll_RA |  |

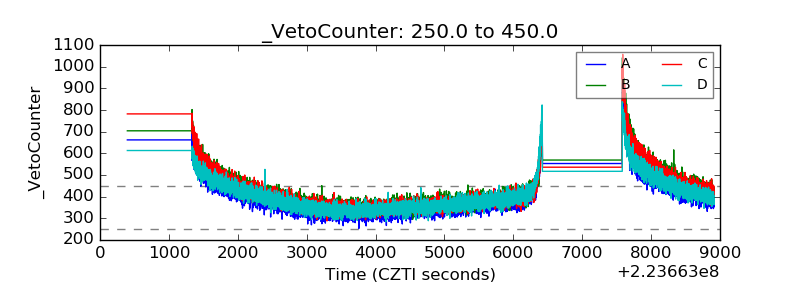

| Veto Counter |  |
