| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G06_137T02_9000001002_07312cztM0_level2.evt | modeM0/AS1G06_137T02_9000001002_07312cztM0_level2_quad_clean.evt |
| Size (bytes) | 490,276,800 | 91,100,160 |
| Size | 467.6 MB | 86.9 MB |
| Events in quadrant A | 3,707,087 | 561,963 |
| Events in quadrant B | 3,386,269 | 581,533 |
| Events in quadrant C | 3,101,982 | 577,549 |
| Events in quadrant D | 4,173,730 | 546,555 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15975 | 2 |
| B | 0 | 14989 | 1 |
| C | 0 | 14428 | 1 |
| D | 0 | 16589 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 142 | 0 |
| B | 0 | 142 | 0 |
| C | 0 | 142 | 0 |
| D | 0 | 142 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 7 | 0 |
| B | 0 | 7 | 0 |
| C | 0 | 7 | 0 |
| D | 0 | 7 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7056 | 114 | 1.615646% |
| B | 7056 | 112 | 1.587302% |
| C | 7056 | 42 | 0.595238% |
| D | 7056 | 94 | 1.332200% |

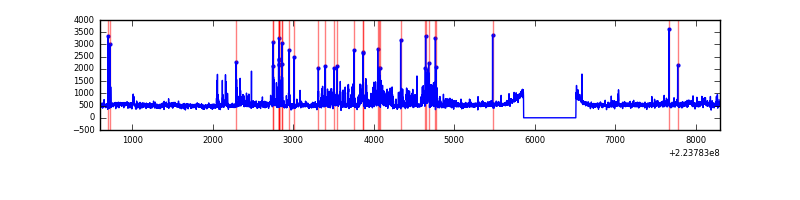

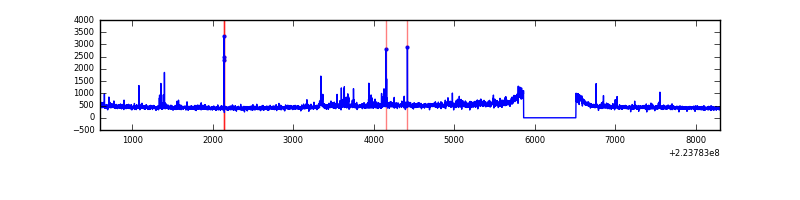

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

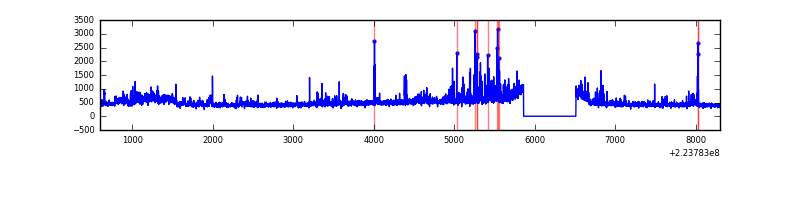

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7706 | 7056 | 11 | 11 | 0.14% | 0.16% |  |
| B | 7706 | 7056 | 5 | 5 | 0.06% | 0.07% |  |
| C | 7706 | 7057 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7706 | 7057 | 33 | 33 | 0.43% | 0.47% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 15 | 453215 | 2722.93 | 812 | 796 | 166.2 |
| A | 14 | 111 | 98142 | 585.89 | 812 | 796 | 166.2 |
| A | 0 | 226 | 7817 | 42.26 | 812 | 796 | 166.2 |
| B | 0 | 214 | 61936 | 385.04 | 824 | 803 | 158.8 |
| B | 4 | 81 | 60020 | 372.97 | 824 | 803 | 158.8 |
| B | 11 | 51 | 54775 | 339.93 | 824 | 803 | 158.8 |
| C | 13 | 61 | 6331 | 29.71 | 795 | 799 | 186.2 |
| C | 3 | 202 | 1916 | 6.0 | 795 | 799 | 186.2 |
| C | 12 | 4 | 1893 | 5.88 | 795 | 799 | 186.2 |
| D | 1 | 20 | 676307 | 3450.17 | 788 | 763 | 195.8 |
| D | 2 | 216 | 393593 | 2006.28 | 788 | 763 | 195.8 |
| D | 14 | 34 | 39364 | 197.14 | 788 | 763 | 195.8 |

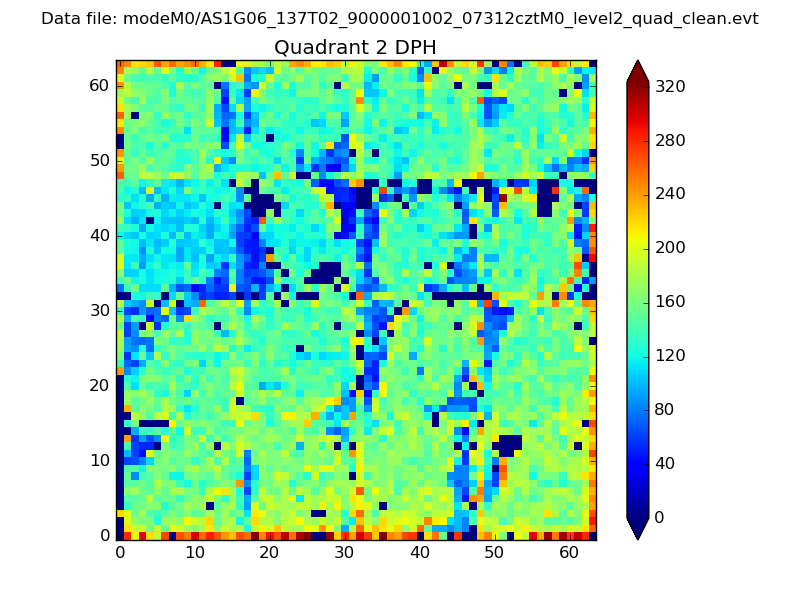

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |

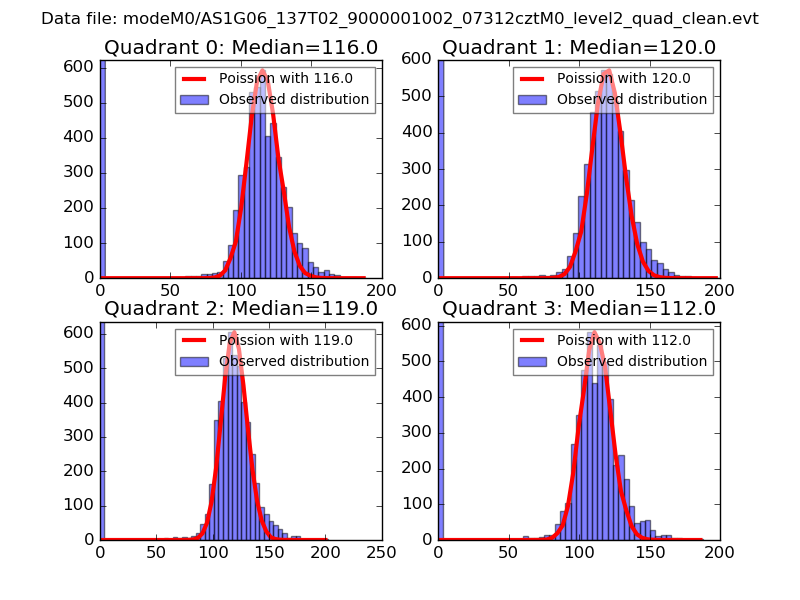

| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

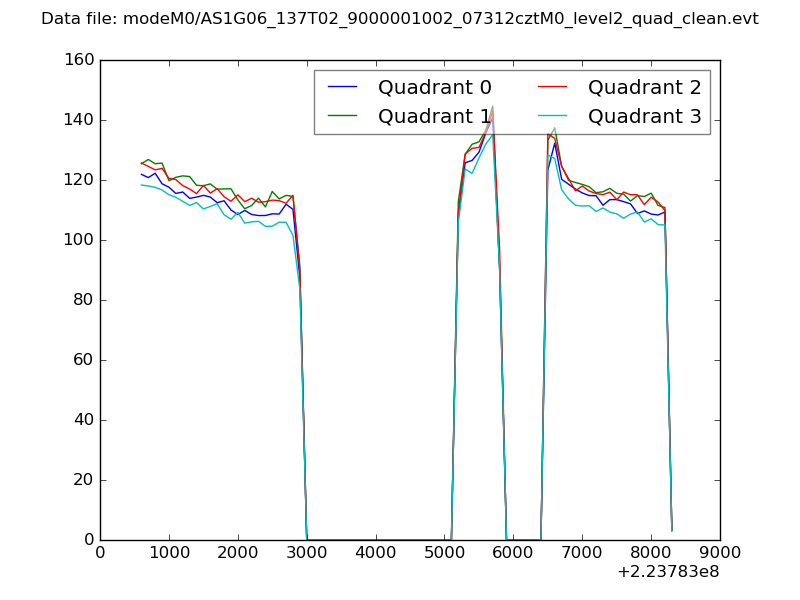

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

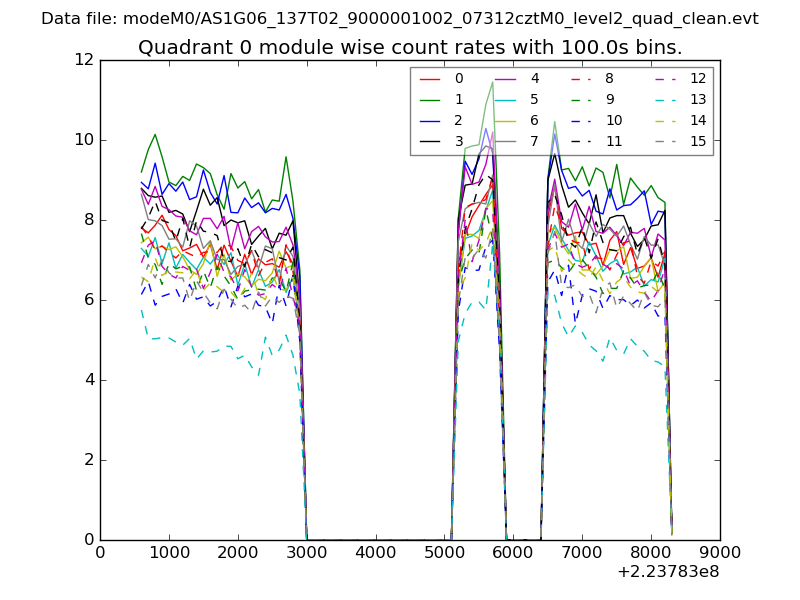

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

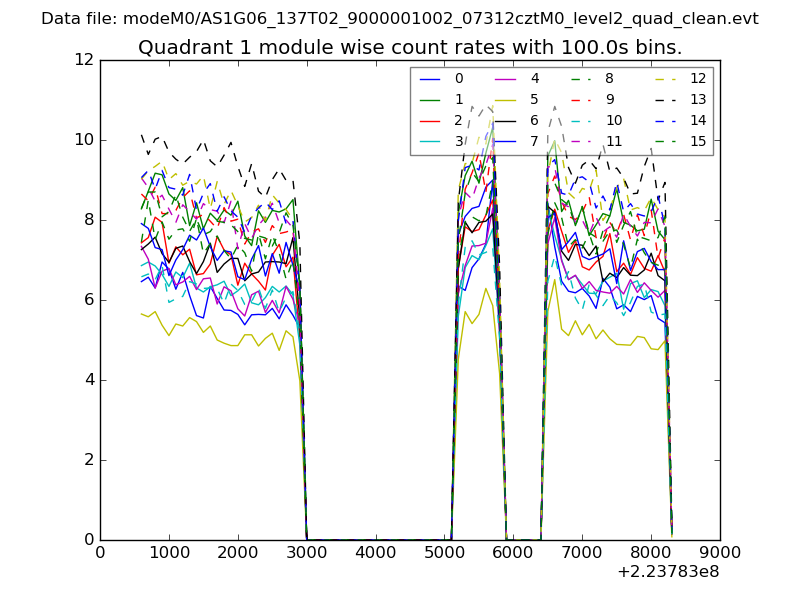

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

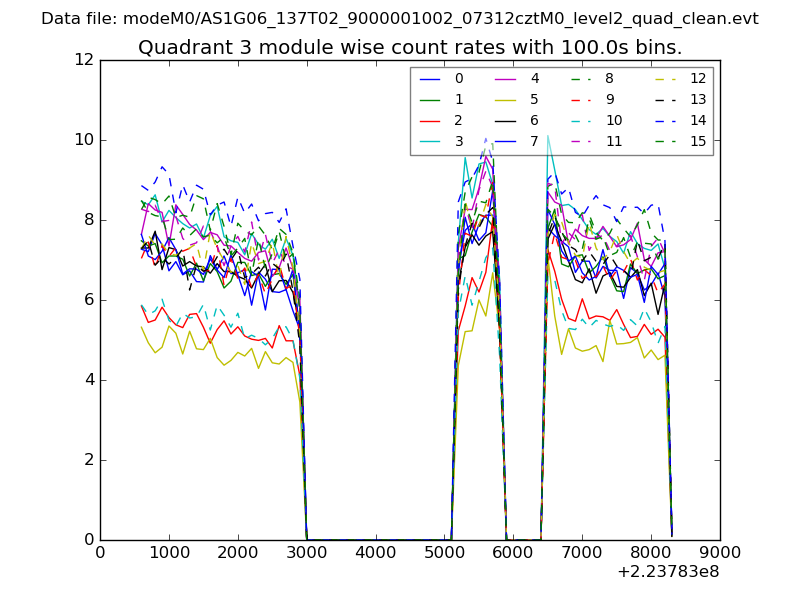

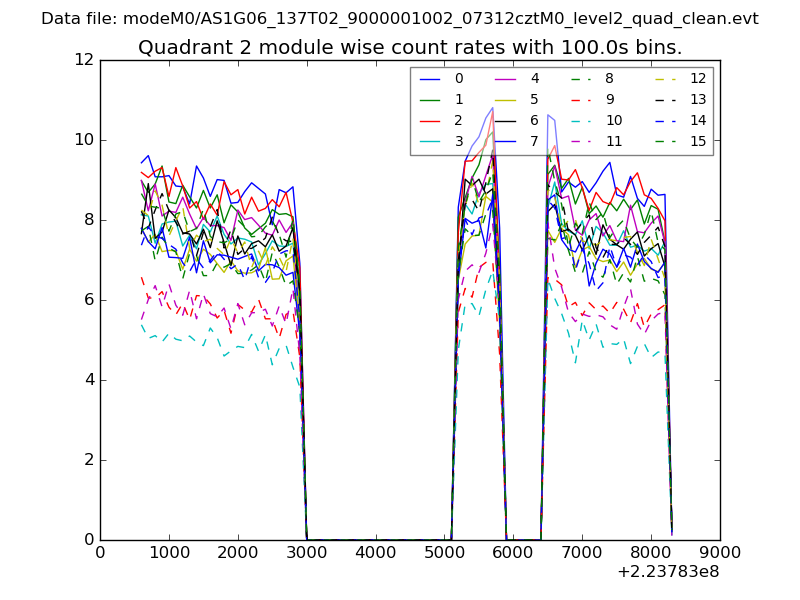

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |

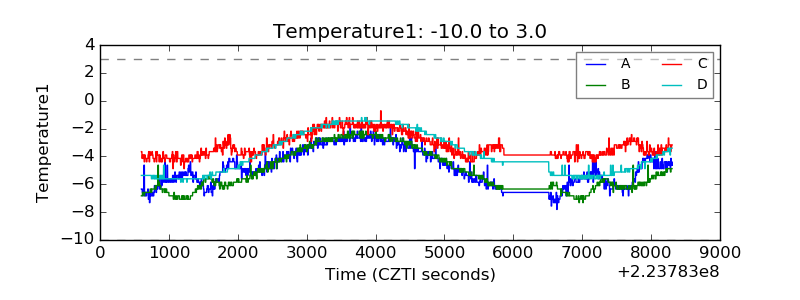

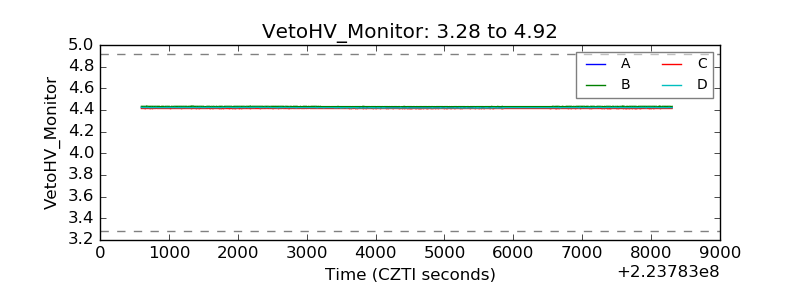

| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

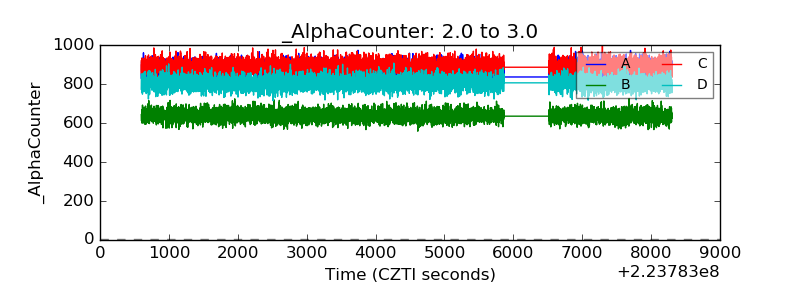

| Alpha Counter |  |

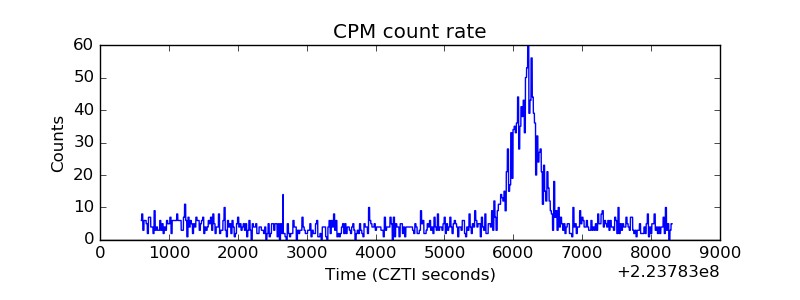

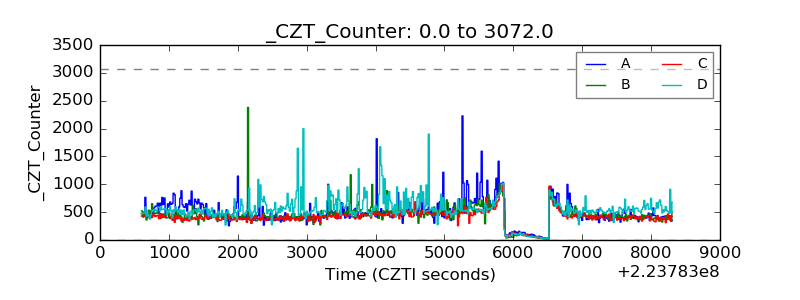

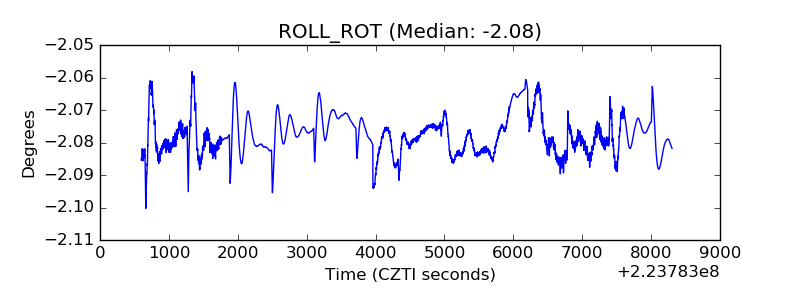

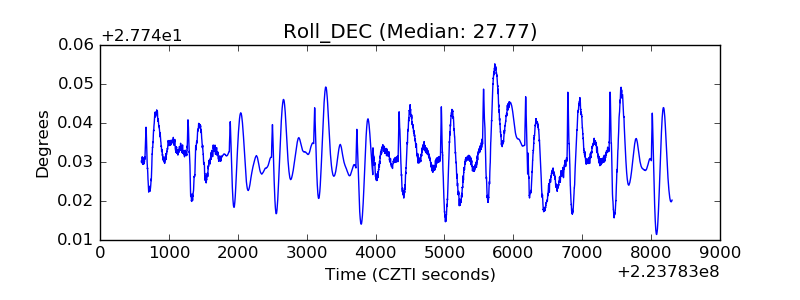

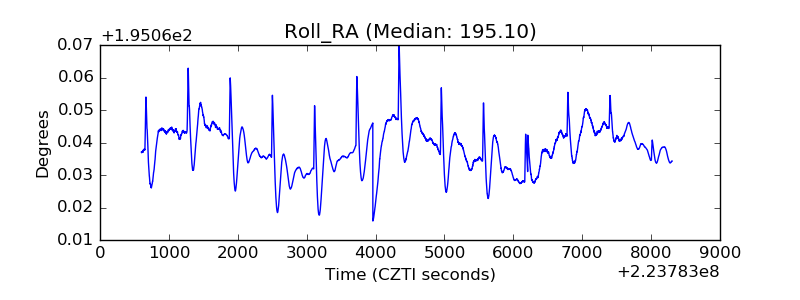

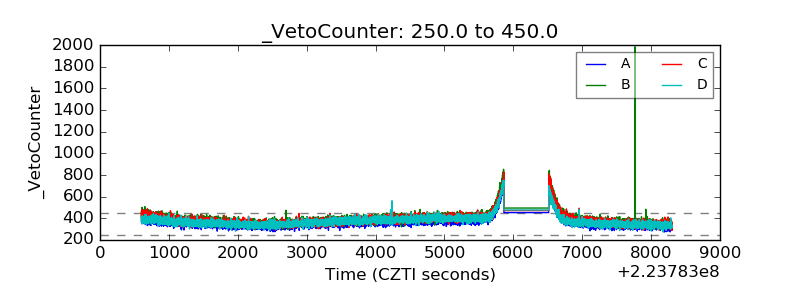

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
