| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G06_137T02_9000001002_07314cztM0_level2.evt | modeM0/AS1G06_137T02_9000001002_07314cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,015,758,720 | 154,912,320 |
| Size | 968.7 MB | 147.7 MB |
| Events in quadrant A | 7,377,556 | 917,087 |
| Events in quadrant B | 7,102,094 | 949,928 |
| Events in quadrant C | 6,444,686 | 941,491 |
| Events in quadrant D | 8,861,549 | 886,236 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 31913 | 17 |
| B | 0 | 31066 | 10 |
| C | 0 | 29597 | 6 |
| D | 0 | 35535 | 7 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 292 | 0 |
| B | 0 | 292 | 0 |
| C | 0 | 292 | 2 |
| D | 0 | 292 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18 | 0 |
| B | 0 | 18 | 0 |
| C | 0 | 18 | 0 |
| D | 0 | 18 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 14438 | 197 | 1.364455% |
| B | 14441 | 170 | 1.177204% |
| C | 14443 | 72 | 0.498511% |
| D | 14443 | 183 | 1.267050% |

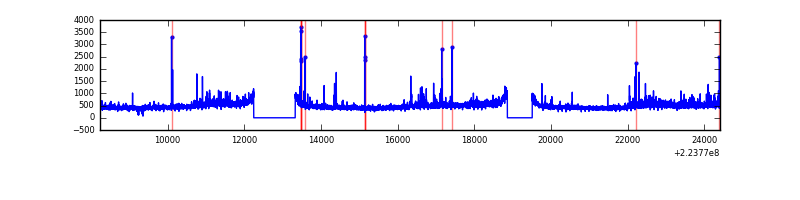

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 16180 | 14446 | 29 | 29 | 0.18% | 0.20% |  |
| B | 16180 | 14446 | 13 | 13 | 0.08% | 0.09% |  |
| C | 16180 | 14447 | 11 | 11 | 0.07% | 0.08% |  |
| D | 16180 | 14447 | 78 | 78 | 0.48% | 0.54% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 15 | 680498 | 1998.08 | 1676 | 1641 | 339.8 |
| A | 14 | 111 | 147271 | 428.63 | 1676 | 1641 | 339.8 |
| A | 13 | 170 | 60264 | 172.54 | 1676 | 1641 | 339.8 |
| B | 0 | 214 | 188298 | 575.32 | 1696 | 1655 | 324.4 |
| B | 4 | 81 | 159525 | 486.63 | 1696 | 1655 | 324.4 |
| B | 11 | 51 | 143046 | 435.83 | 1696 | 1655 | 324.4 |
| C | 9 | 68 | 62042 | 159.05 | 1635 | 1641 | 379.8 |
| C | 13 | 61 | 12957 | 29.8 | 1635 | 1641 | 379.8 |
| C | 12 | 4 | 4828 | 8.39 | 1635 | 1641 | 379.8 |
| D | 1 | 20 | 1420830 | 3525.14 | 1629 | 1576 | 402.6 |
| D | 2 | 216 | 1012857 | 2511.82 | 1629 | 1576 | 402.6 |
| D | 12 | 233 | 102935 | 251.76 | 1629 | 1576 | 402.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

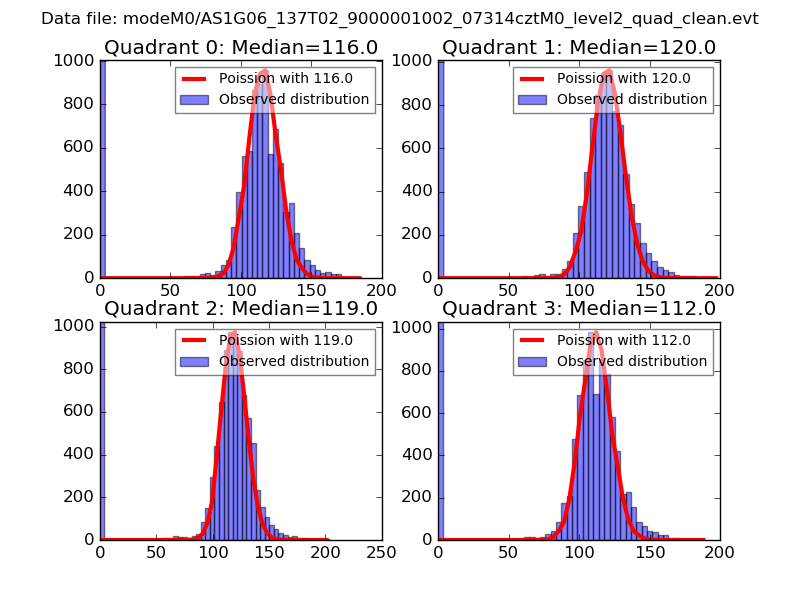

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

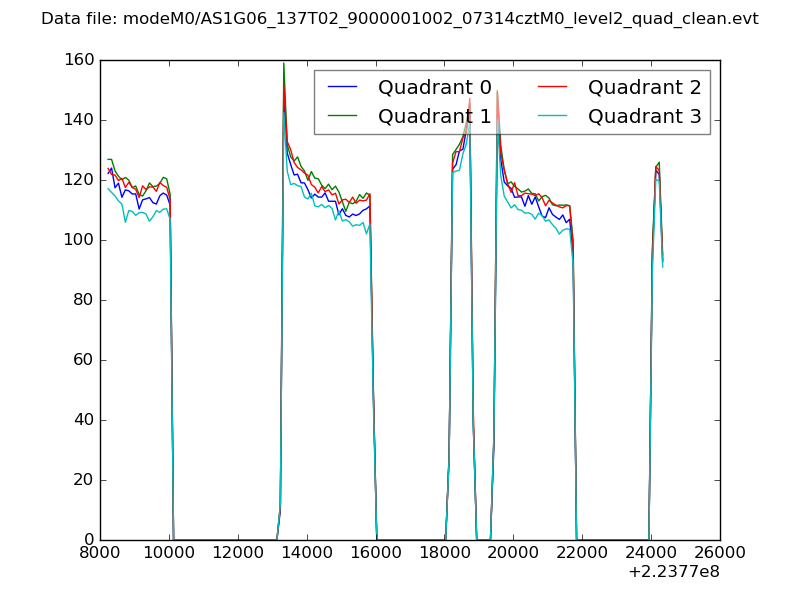

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

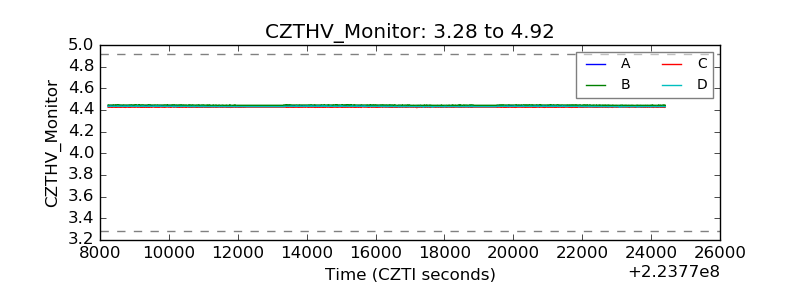

| CZT HV Monitor |  |
| D_VDD |  |

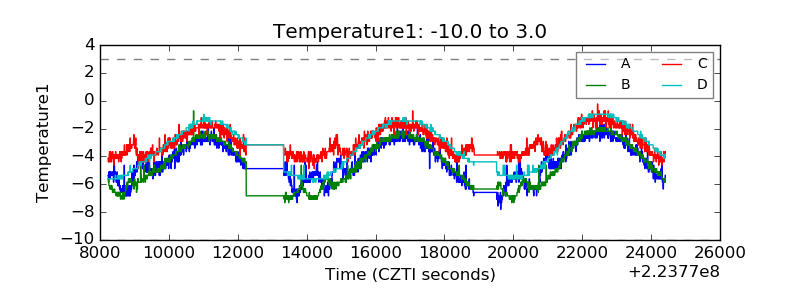

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

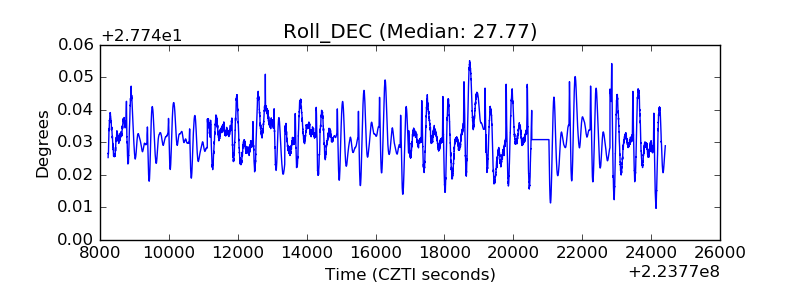

| _Roll_DEC |  |

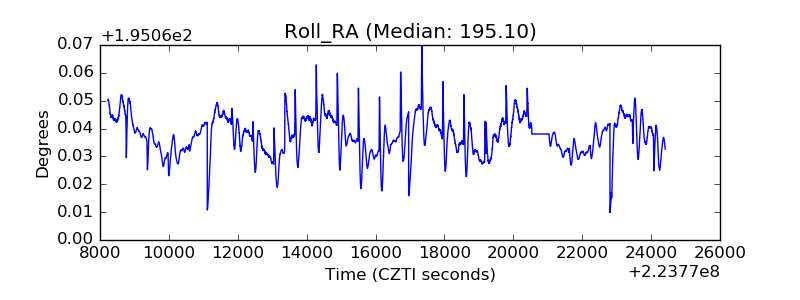

| _Roll_RA |  |

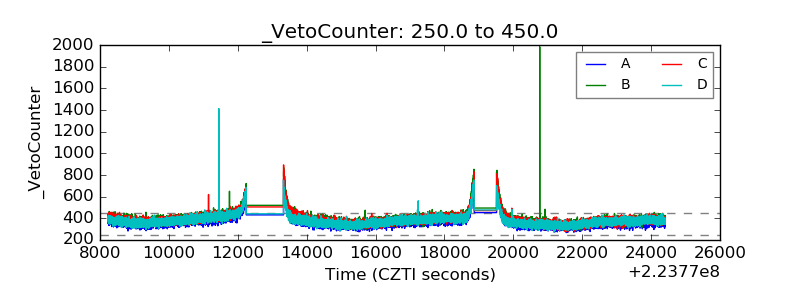

| Veto Counter |  |
