| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G06_157T02_9000001008_07350cztM0_level2.evt | modeM0/AS1G06_157T02_9000001008_07350cztM0_level2_quad_clean.evt |
| Size (bytes) | 3,138,897,600 | 534,075,840 |
| Size | 2.9 GB | 509.3 MB |
| Events in quadrant A | 21,933,751 | 3,267,430 |
| Events in quadrant B | 22,542,641 | 3,335,497 |
| Events in quadrant C | 20,861,629 | 3,301,500 |
| Events in quadrant D | 26,666,930 | 3,163,289 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 96628 | 9 |
| B | 0 | 97210 | 8 |
| C | 0 | 93800 | 8 |
| D | 0 | 110987 | 8 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 920 | 0 |
| B | 0 | 920 | 0 |
| C | 0 | 920 | 0 |
| D | 0 | 920 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 47 | 0 |
| B | 0 | 47 | 0 |
| C | 0 | 47 | 0 |
| D | 0 | 47 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 45276 | 1093 | 2.414083% |
| B | 45276 | 849 | 1.875166% |
| C | 45276 | 531 | 1.172807% |
| D | 45276 | 1482 | 3.273257% |

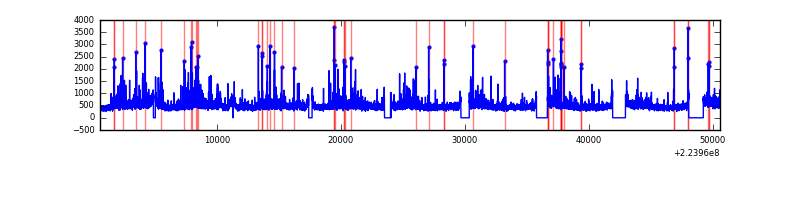

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 50001 | 45280 | 197 | 197 | 0.39% | 0.44% |  |
| B | 50001 | 45281 | 53 | 53 | 0.11% | 0.12% |  |
| C | 50001 | 45280 | 9 | 9 | 0.02% | 0.02% |  |
| D | 50001 | 45280 | 635 | 635 | 1.27% | 1.40% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 239 | 575072 | 527.4 | 5308 | 5178 | 1080.6 |
| A | 15 | 234 | 556637 | 510.34 | 5308 | 5178 | 1080.6 |
| A | 14 | 111 | 367081 | 334.92 | 5308 | 5178 | 1080.6 |
| B | 0 | 214 | 642554 | 626.79 | 5363 | 5228 | 1016.8 |
| B | 11 | 51 | 551249 | 536.99 | 5363 | 5228 | 1016.8 |
| B | 4 | 81 | 225101 | 216.24 | 5363 | 5228 | 1016.8 |
| C | 9 | 68 | 485254 | 397.4 | 5199 | 5216 | 1207.9 |
| C | 13 | 61 | 40616 | 29.31 | 5199 | 5216 | 1207.9 |
| C | 1 | 16 | 35763 | 25.29 | 5199 | 5216 | 1207.9 |
| D | 2 | 216 | 2967192 | 2342.15 | 5160 | 5002 | 1264.7 |
| D | 12 | 233 | 1063361 | 836.82 | 5160 | 5002 | 1264.7 |
| D | 13 | 105 | 861321 | 677.08 | 5160 | 5002 | 1264.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

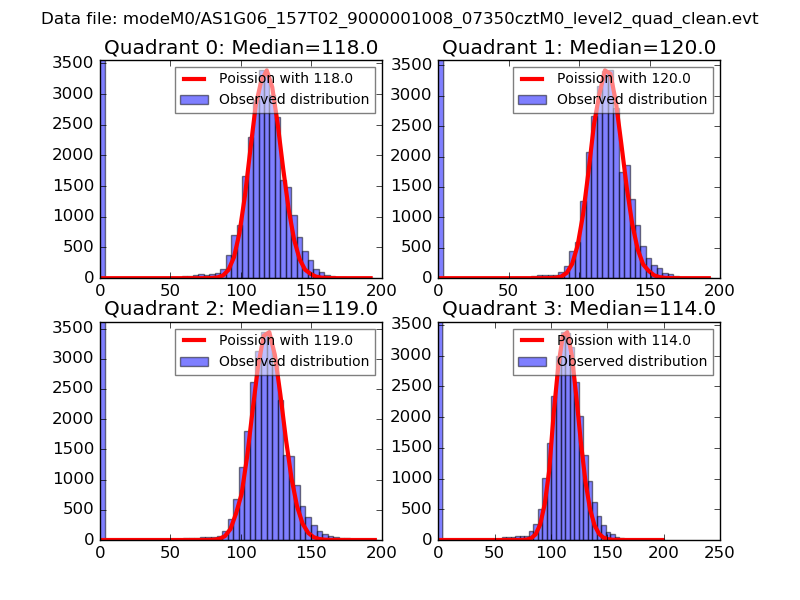

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

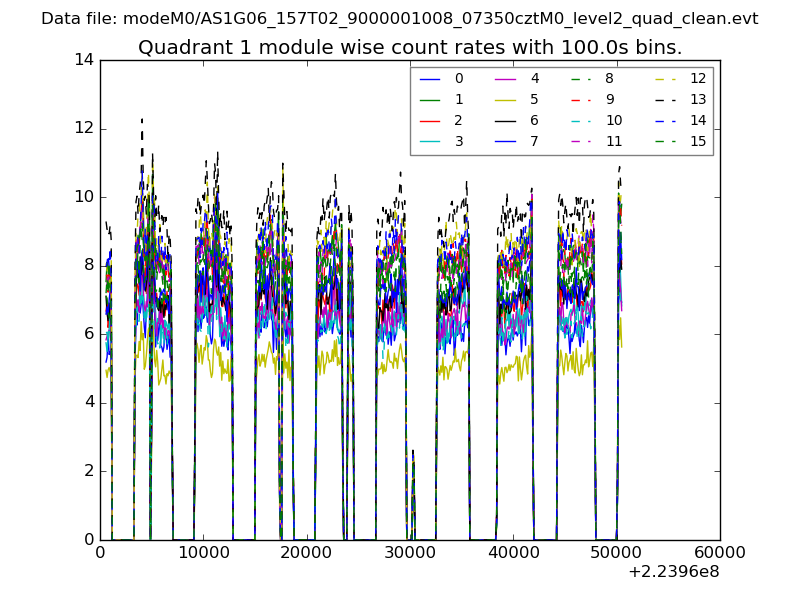

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

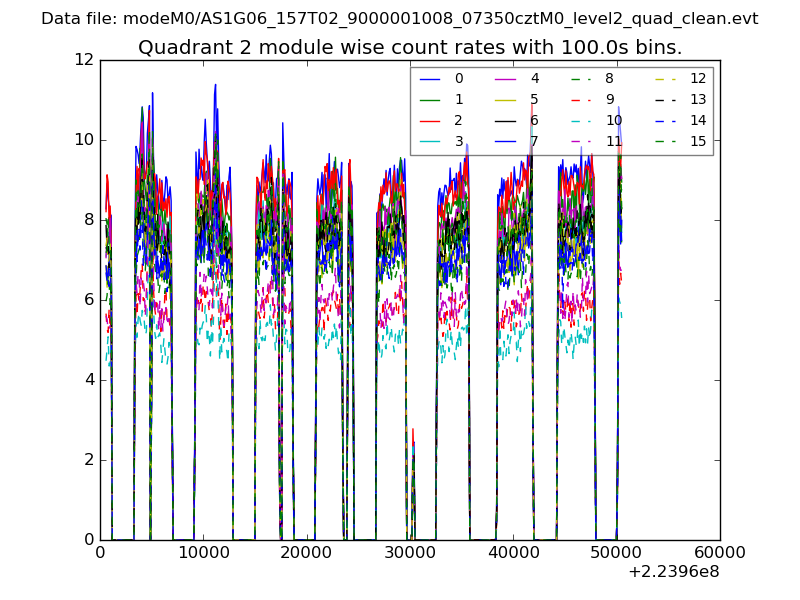

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

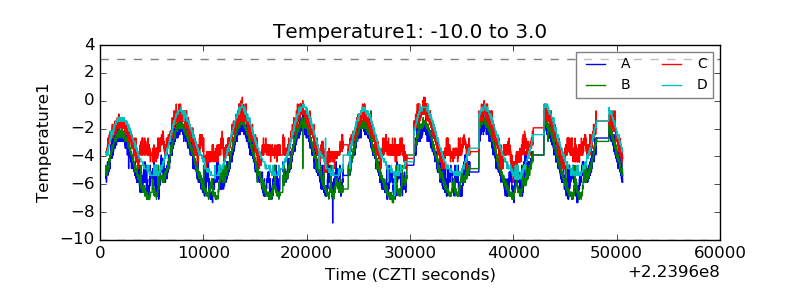

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

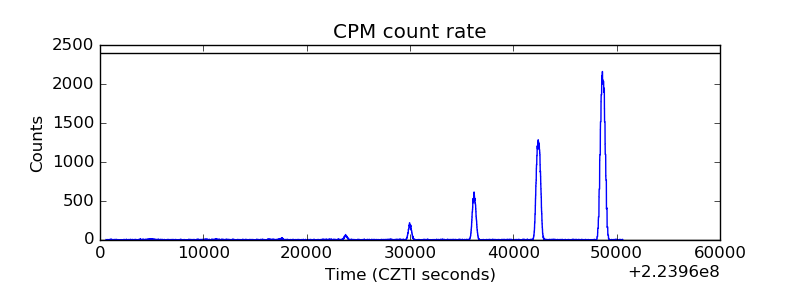

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

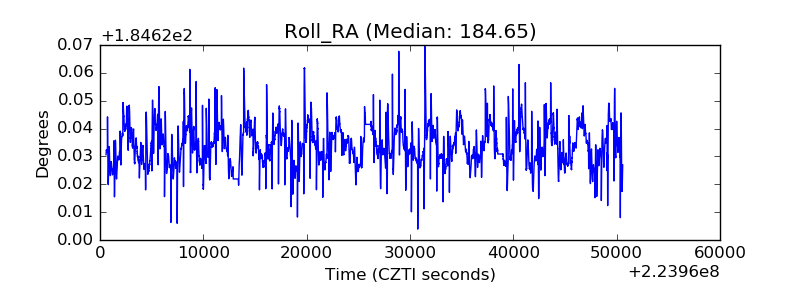

| _Roll_RA |  |

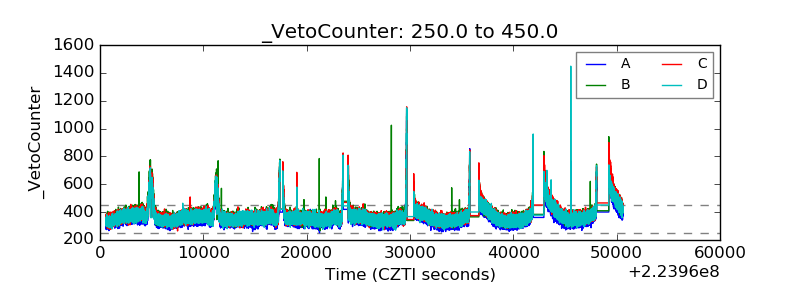

| Veto Counter |  |
