| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G06_157T02_9000001008_07352cztM0_level2.evt | modeM0/AS1G06_157T02_9000001008_07352cztM0_level2_quad_clean.evt |
| Size (bytes) | 442,802,880 | 96,992,640 |
| Size | 422.3 MB | 92.5 MB |
| Events in quadrant A | 3,016,524 | 622,468 |
| Events in quadrant B | 3,159,176 | 643,689 |
| Events in quadrant C | 3,551,184 | 636,723 |
| Events in quadrant D | 3,264,279 | 603,866 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13103 | 3 |
| B | 0 | 13546 | 2 |
| C | 0 | 14265 | 2 |
| D | 0 | 14058 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 20 | 0 |
| B | 0 | 20 | 0 |
| C | 0 | 20 | 0 |
| D | 0 | 21 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6168 | 57 | 0.924125% |
| B | 6168 | 42 | 0.680934% |
| C | 6168 | 46 | 0.745785% |
| D | 6168 | 89 | 1.442931% |

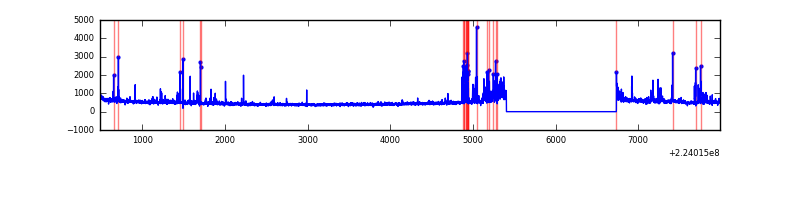

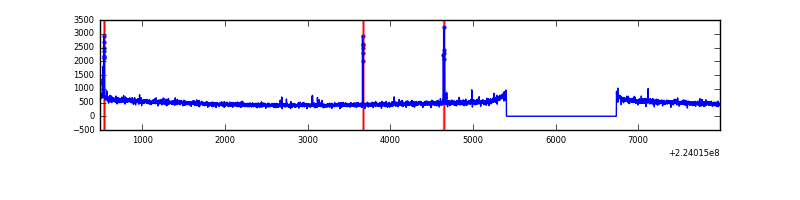

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7498 | 6169 | 18 | 18 | 0.24% | 0.29% |  |
| B | 7498 | 6169 | 2 | 2 | 0.03% | 0.03% |  |
| C | 7498 | 6169 | 2 | 2 | 0.03% | 0.03% |  |
| D | 7498 | 6169 | 26 | 26 | 0.35% | 0.42% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 234 | 22500 | 139.71 | 765 | 750 | 155.7 |
| A | 14 | 111 | 21394 | 132.61 | 765 | 750 | 155.7 |
| A | 15 | 239 | 15024 | 91.69 | 765 | 750 | 155.7 |
| B | 0 | 214 | 92210 | 614.98 | 783 | 767 | 148.7 |
| B | 12 | 111 | 14337 | 91.26 | 783 | 767 | 148.7 |
| B | 7 | 202 | 12882 | 81.48 | 783 | 767 | 148.7 |
| C | 9 | 68 | 570143 | 3262.19 | 760 | 766 | 174.5 |
| C | 10 | 22 | 7823 | 40.43 | 760 | 766 | 174.5 |
| C | 1 | 16 | 6900 | 35.14 | 760 | 766 | 174.5 |
| D | 14 | 34 | 175669 | 940.09 | 752 | 731 | 186.1 |
| D | 2 | 216 | 107784 | 575.29 | 752 | 731 | 186.1 |
| D | 8 | 195 | 80106 | 426.55 | 752 | 731 | 186.1 |

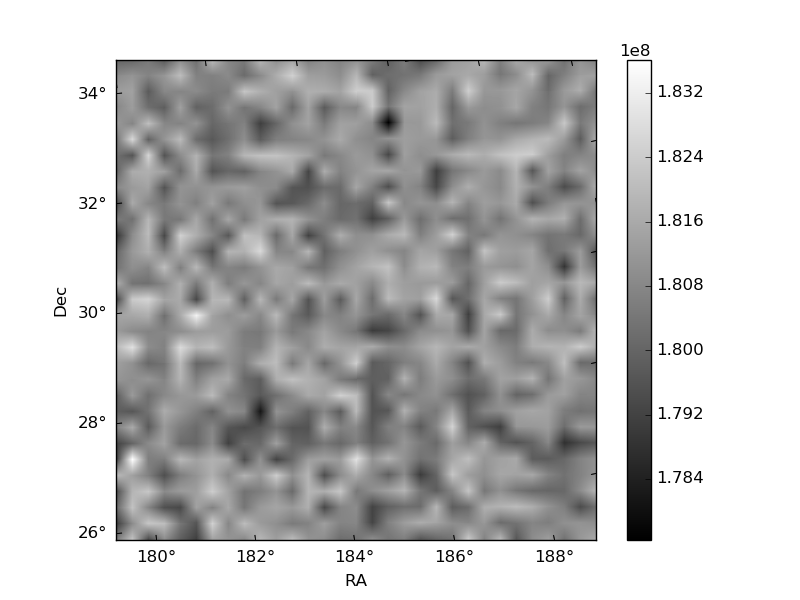

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

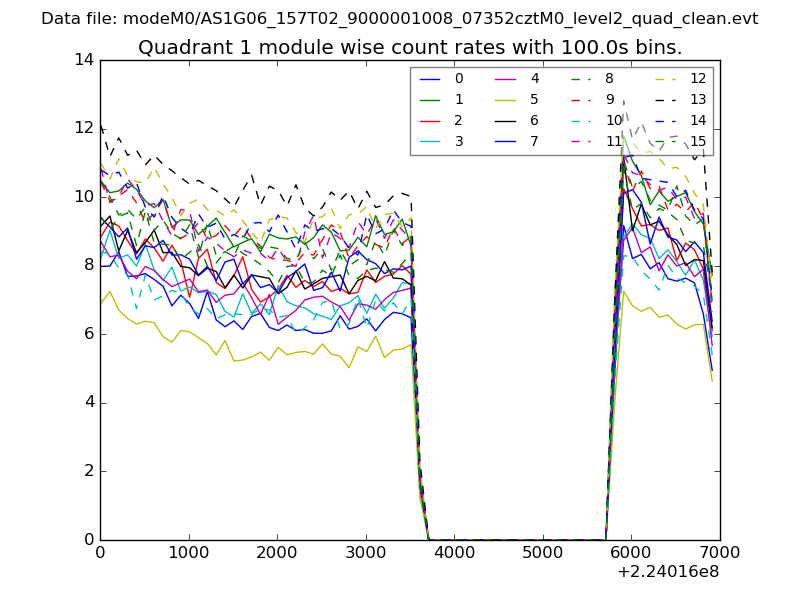

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

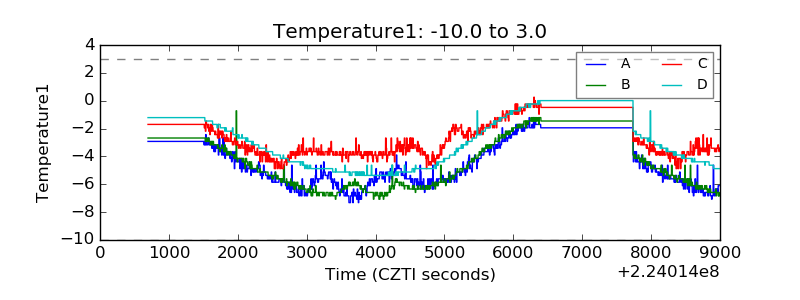

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

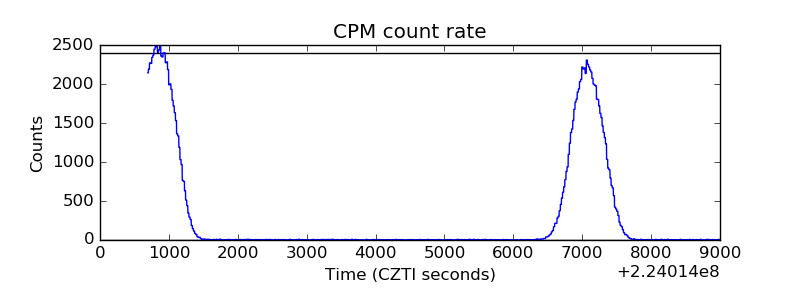

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

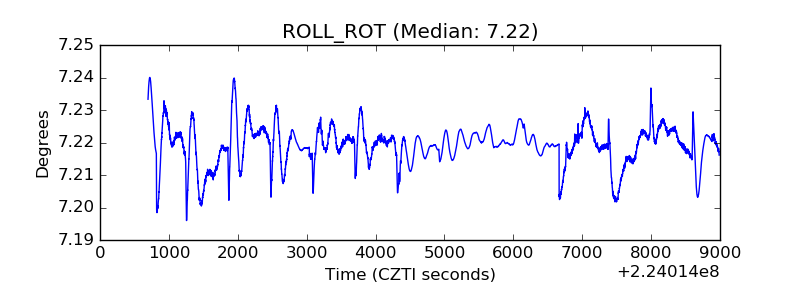

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

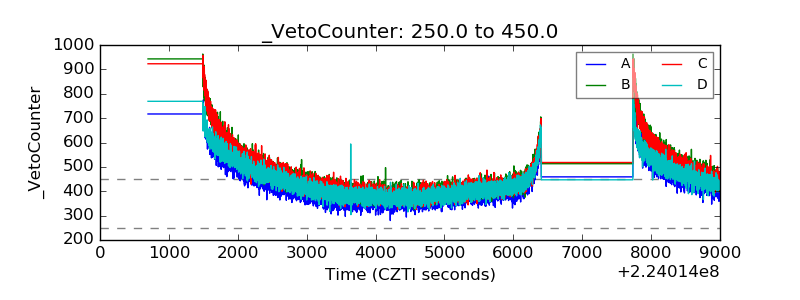

| Veto Counter |  |
