| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G06_117T01_9000001012_07382cztM0_level2.evt | modeM0/AS1G06_117T01_9000001012_07382cztM0_level2_quad_clean.evt |
| Size (bytes) | 539,104,320 | 100,612,800 |
| Size | 514.1 MB | 96.0 MB |
| Events in quadrant A | 5,475,279 | 615,183 |
| Events in quadrant B | 3,158,271 | 682,652 |
| Events in quadrant C | 3,001,429 | 678,673 |
| Events in quadrant D | 4,269,435 | 635,358 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17 | 0 |
| B | 0 | 17 | 0 |
| C | 0 | 17 | 0 |
| D | 0 | 18 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 20433 | 3 |
| B | 0 | 13462 | 2 |
| C | 0 | 13066 | 2 |
| D | 0 | 17106 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6234 | 745 | 11.950594% |
| B | 6234 | 60 | 0.962464% |
| C | 6234 | 48 | 0.769971% |
| D | 6234 | 140 | 2.245749% |

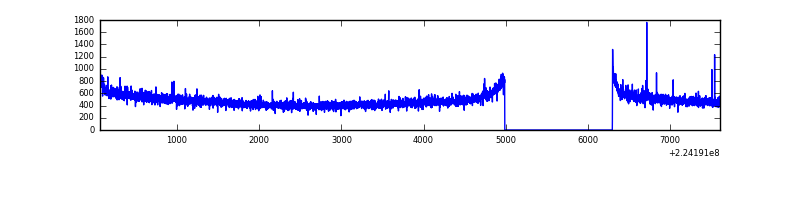

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7544 | 6235 | 566 | 566 | 7.50% | 9.08% |  |
| B | 7544 | 6235 | 1 | 1 | 0.01% | 0.02% |  |
| C | 7544 | 6235 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7544 | 6235 | 56 | 56 | 0.74% | 0.90% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 239 | 2562987 | 17271.01 | 734 | 720 | 148.4 |
| A | 14 | 111 | 70376 | 469.52 | 734 | 720 | 148.4 |
| A | 13 | 248 | 12315 | 78.16 | 734 | 720 | 148.4 |
| B | 0 | 214 | 61581 | 410.5 | 781 | 763 | 148.2 |
| B | 4 | 97 | 32234 | 212.42 | 781 | 763 | 148.2 |
| B | 12 | 111 | 14607 | 93.44 | 781 | 763 | 148.2 |
| C | 1 | 16 | 18050 | 98.12 | 763 | 767 | 176.1 |
| C | 13 | 61 | 6164 | 30.64 | 763 | 767 | 176.1 |
| C | 12 | 4 | 3775 | 17.08 | 763 | 767 | 176.1 |
| D | 13 | 137 | 1036839 | 5686.46 | 747 | 725 | 182.2 |
| D | 13 | 105 | 187677 | 1026.04 | 747 | 725 | 182.2 |
| D | 14 | 34 | 68654 | 372.81 | 747 | 725 | 182.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

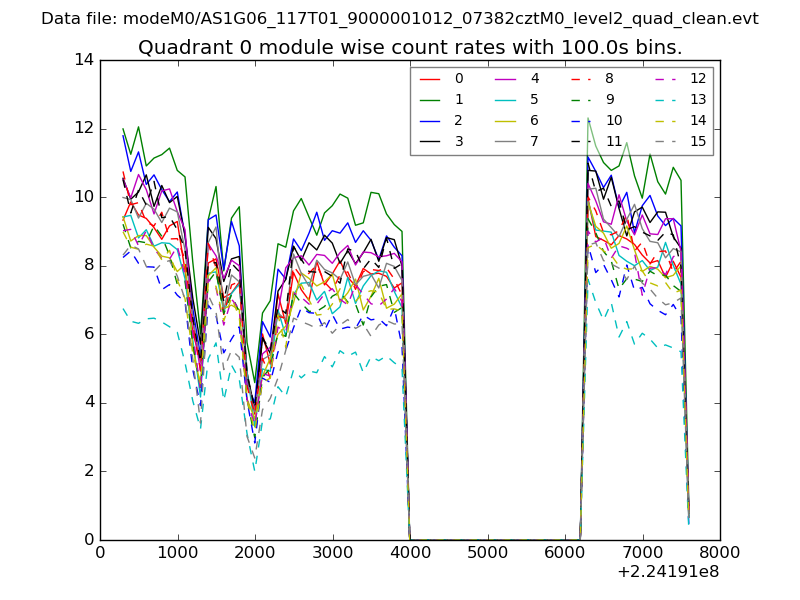

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

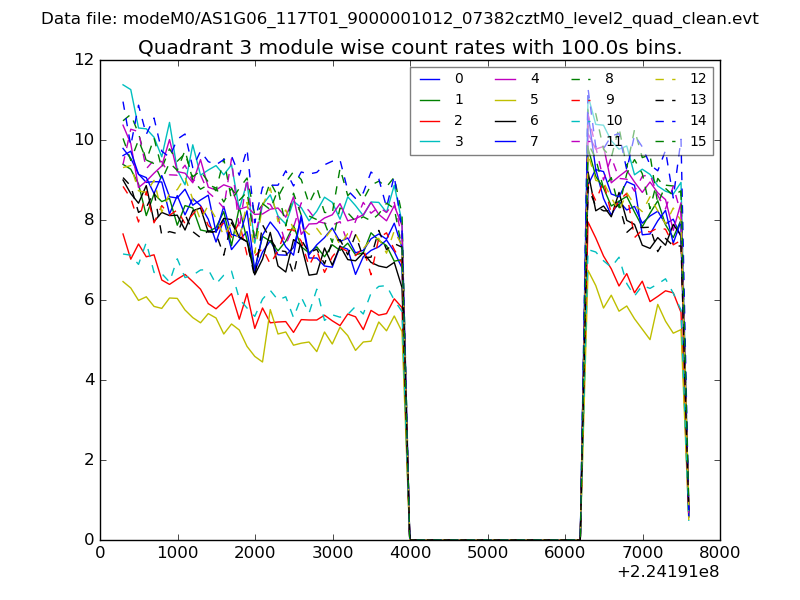

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

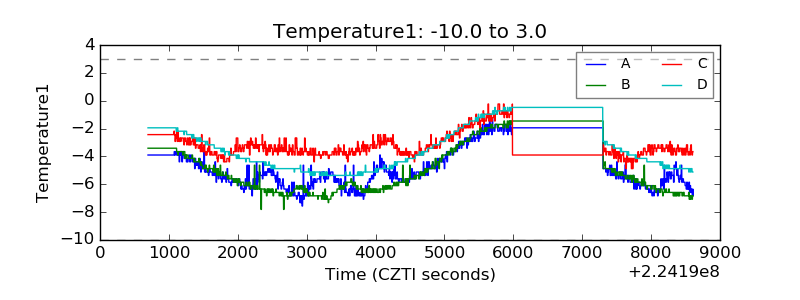

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

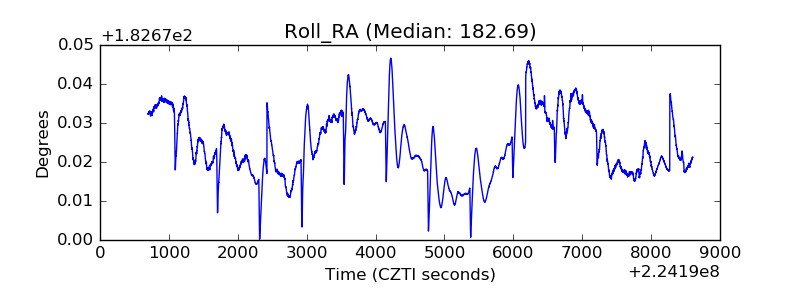

| _Roll_RA |  |
| Veto Counter |  |
