| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G06_117T01_9000001012_07391cztM0_level2.evt | modeM0/AS1G06_117T01_9000001012_07391cztM0_level2_quad_clean.evt |
| Size (bytes) | 491,440,320 | 64,117,440 |
| Size | 468.7 MB | 61.1 MB |
| Events in quadrant A | 3,157,282 | 371,755 |
| Events in quadrant B | 3,332,529 | 377,175 |
| Events in quadrant C | 3,285,857 | 373,759 |
| Events in quadrant D | 4,647,932 | 346,711 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 2 |
| B | 0 | 10 | 2 |
| C | 0 | 9 | 1 |
| D | 0 | 10 | 1 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13888 | 47 |
| B | 0 | 14348 | 48 |
| C | 0 | 14381 | 37 |
| D | 0 | 18382 | 34 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 136 | 4 |
| B | 0 | 135 | 1 |
| C | 0 | 136 | 2 |
| D | 0 | 136 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6774 | 40 | 0.590493% |
| B | 6772 | 64 | 0.945068% |
| C | 6779 | 107 | 1.578404% |
| D | 6779 | 363 | 5.354772% |

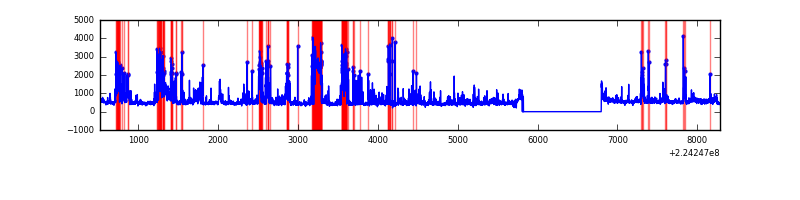

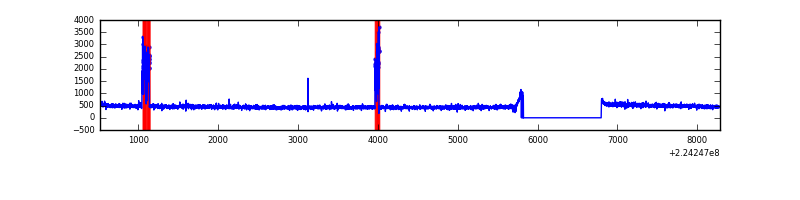

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|

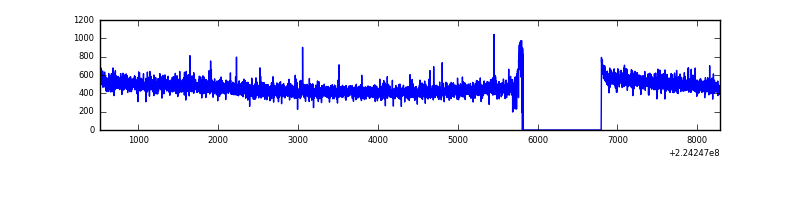

| A | 7766 | 6786 | 0 | 0 | 0.00% | 0.00% |  |

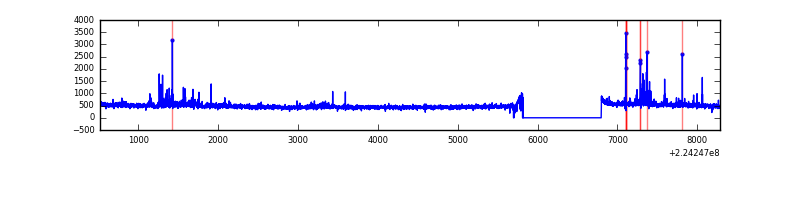

| B | 7766 | 6784 | 9 | 9 | 0.12% | 0.13% |  |
| C | 7766 | 6785 | 62 | 62 | 0.80% | 0.91% |  |
| D | 7766 | 6784 | 256 | 256 | 3.30% | 3.77% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 234 | 13474 | 75.86 | 813 | 795 | 167.1 |
| A | 3 | 1 | 12968 | 72.84 | 813 | 795 | 167.1 |
| A | 0 | 226 | 7550 | 40.42 | 813 | 795 | 167.1 |
| B | 0 | 214 | 114184 | 721.52 | 816 | 798 | 157.1 |
| B | 4 | 81 | 44257 | 276.55 | 816 | 798 | 157.1 |
| B | 12 | 111 | 15902 | 96.11 | 816 | 798 | 157.1 |
| C | 9 | 68 | 209101 | 1136.59 | 787 | 791 | 183.3 |
| C | 13 | 61 | 6092 | 28.92 | 787 | 791 | 183.3 |
| C | 1 | 16 | 3743 | 16.11 | 787 | 791 | 183.3 |
| D | 2 | 216 | 1311034 | 6806.85 | 775 | 751 | 192.5 |
| D | 12 | 221 | 104320 | 538.04 | 775 | 751 | 192.5 |
| D | 2 | 14 | 103985 | 536.29 | 775 | 751 | 192.5 |

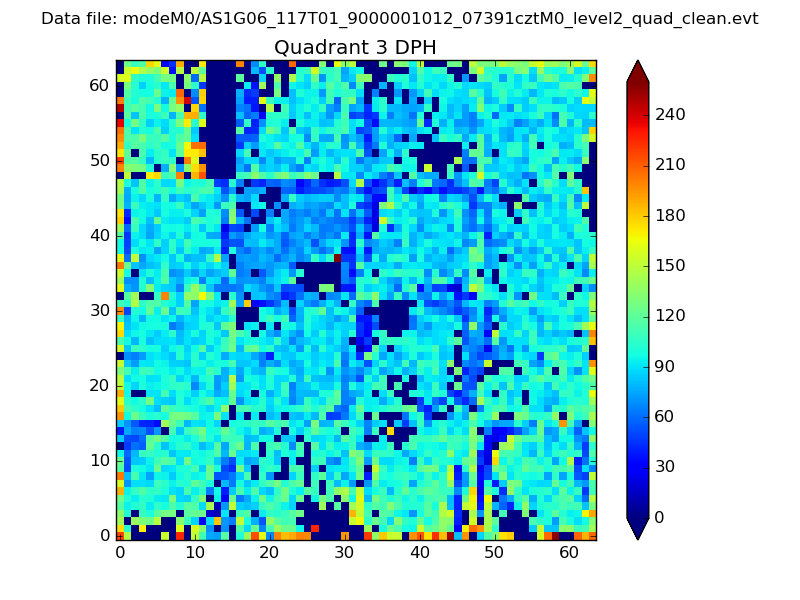

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

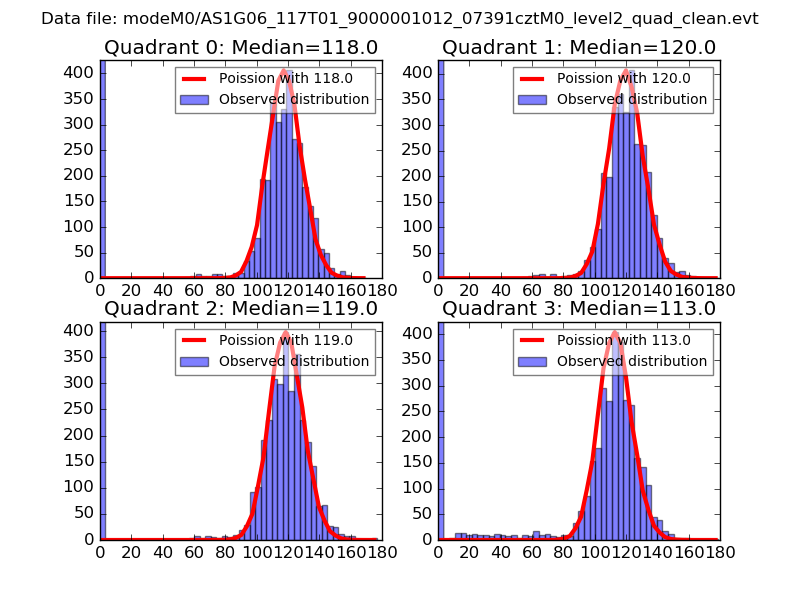

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

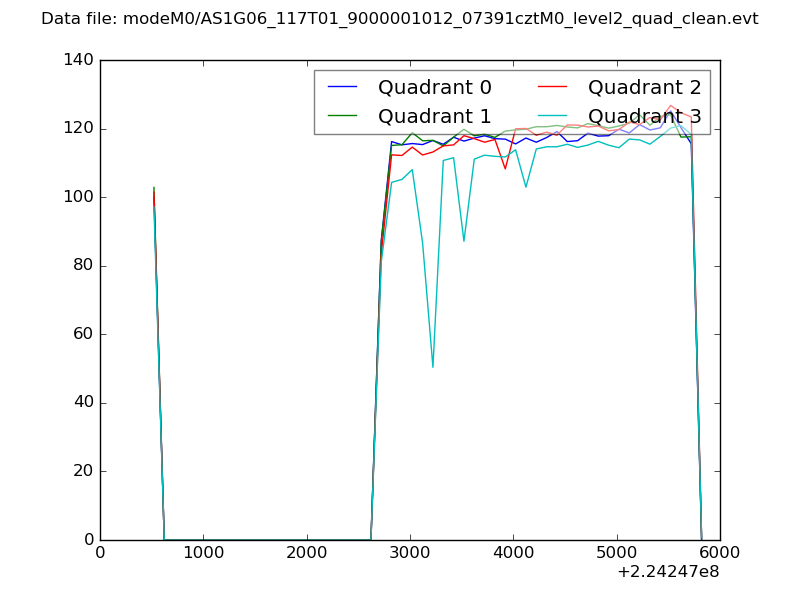

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

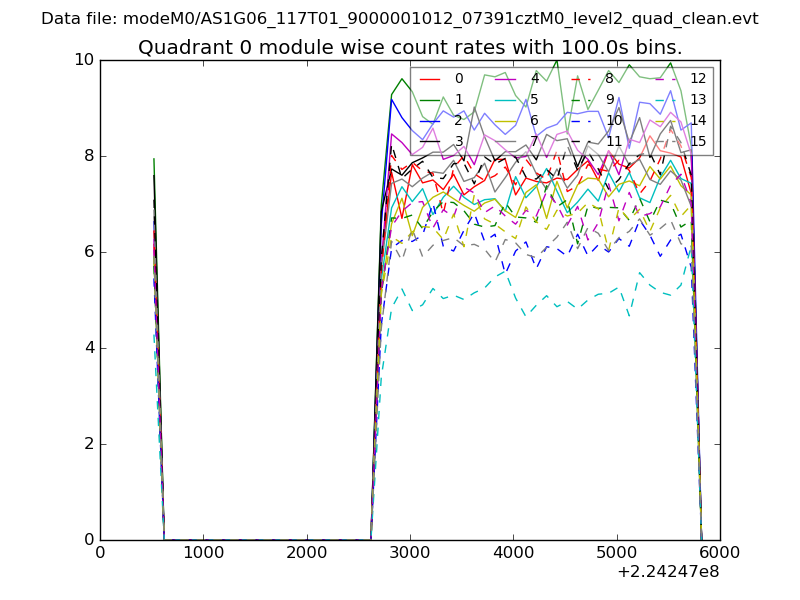

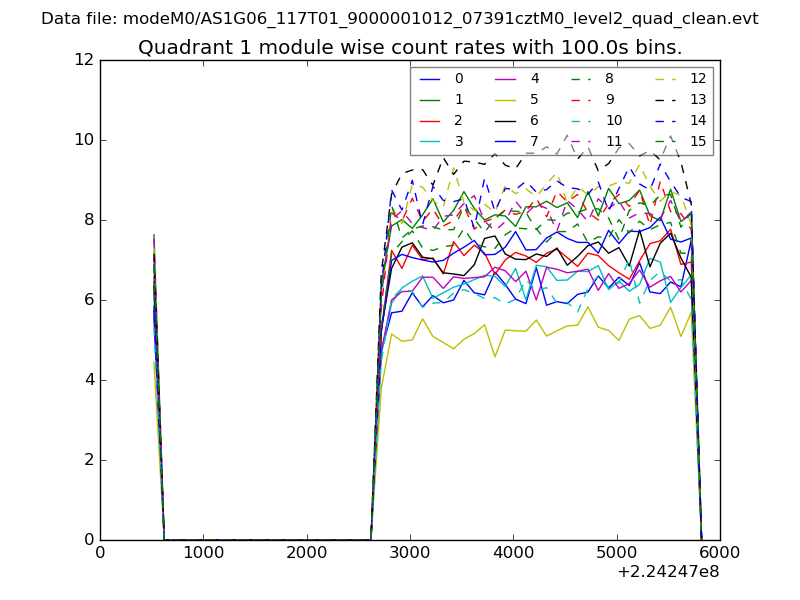

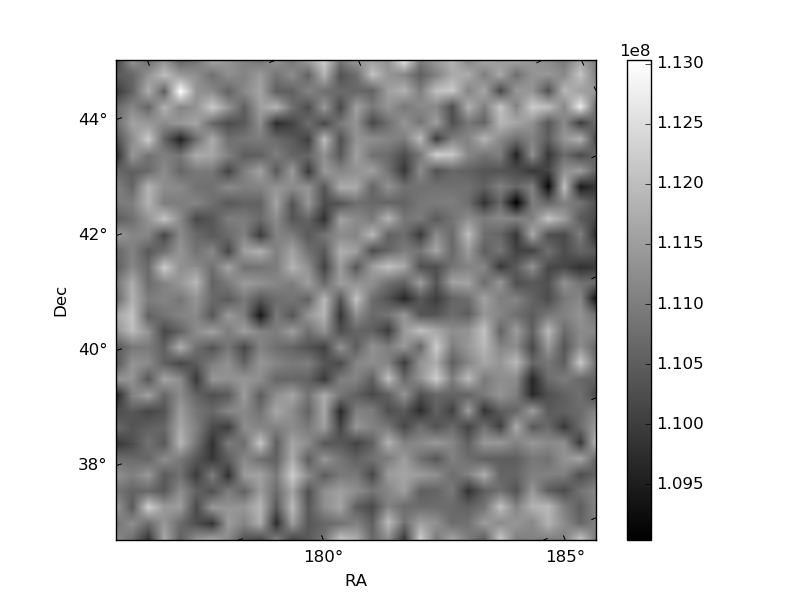

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

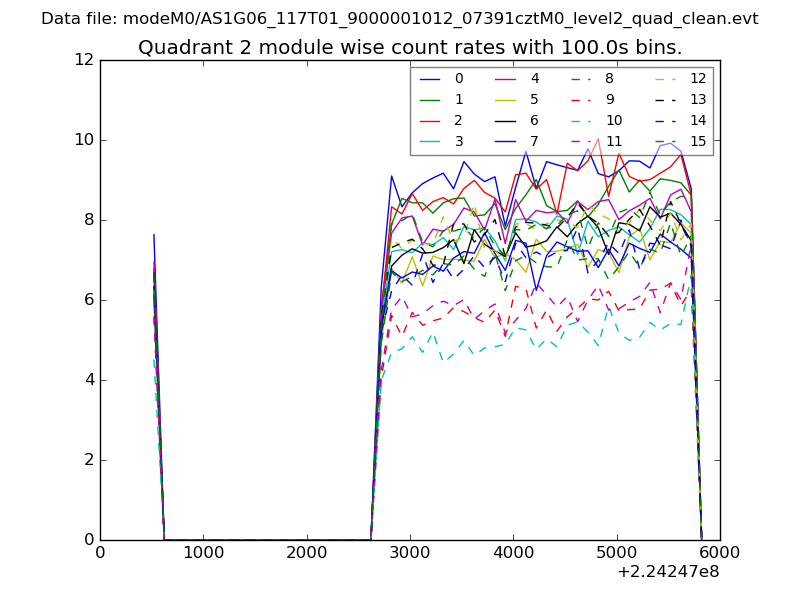

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

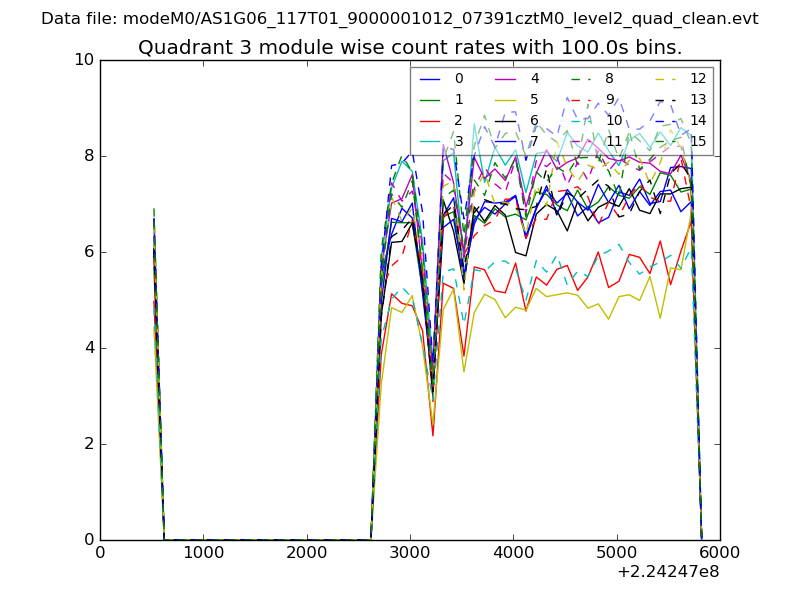

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

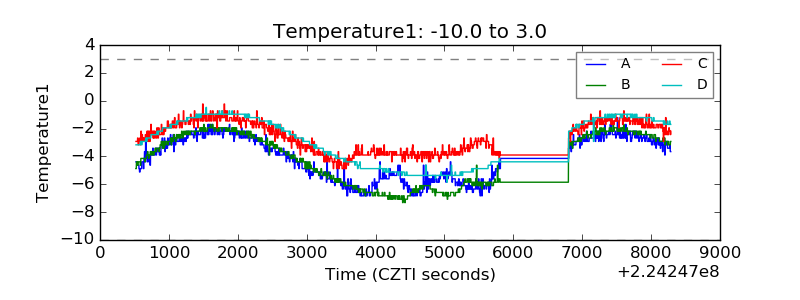

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

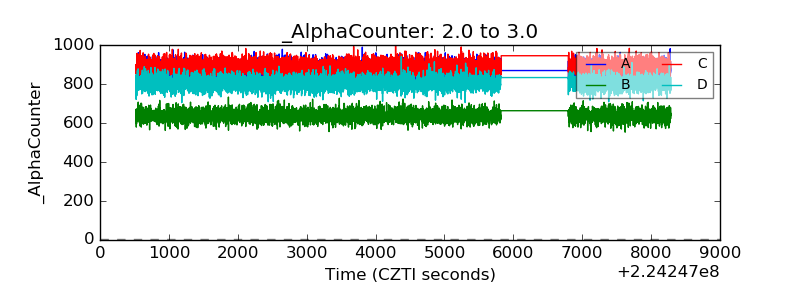

| Alpha Counter |  |

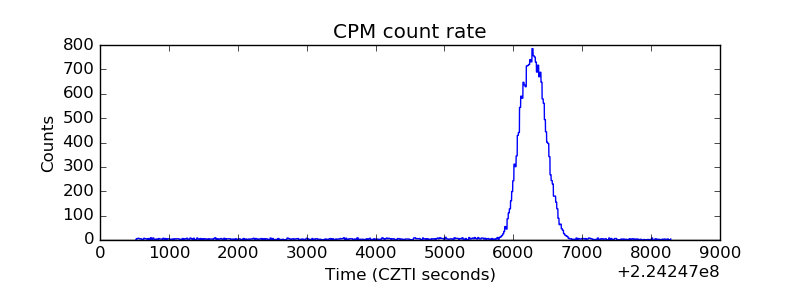

| _CPM_Rate |  |

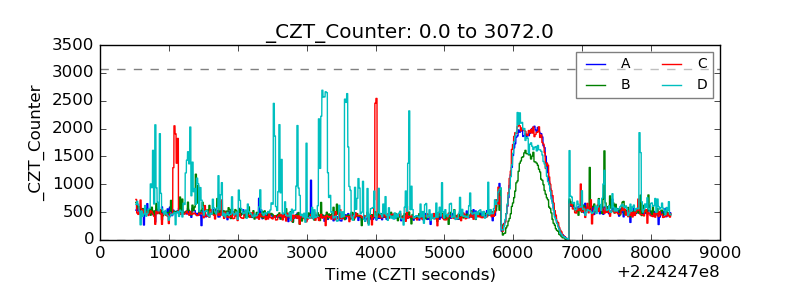

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

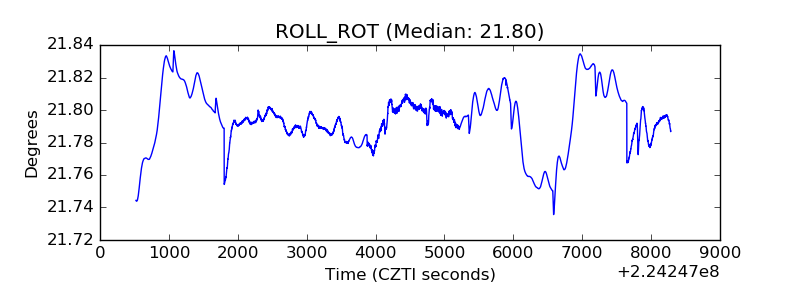

| _ROLL_ROT |  |

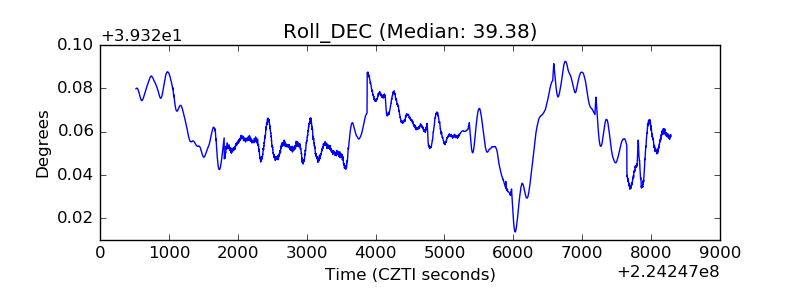

| _Roll_DEC |  |
| _Roll_RA |  |

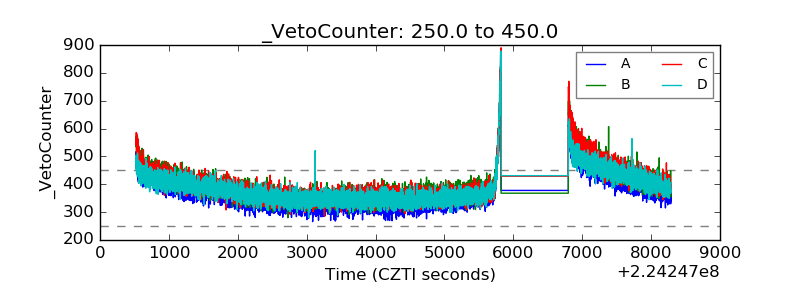

| Veto Counter |  |
