| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A02_031T01_9000001014_07397cztM0_level2.evt | modeM0/AS1A02_031T01_9000001014_07397cztM0_level2_quad_clean.evt |
| Size (bytes) | 159,592,320 | 36,843,840 |
| Size | 152.2 MB | 35.1 MB |
| Events in quadrant A | 1,093,320 | 237,681 |
| Events in quadrant B | 1,129,369 | 244,516 |
| Events in quadrant C | 1,108,990 | 241,055 |
| Events in quadrant D | 1,343,249 | 226,598 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 3 | 0 |
| B | 0 | 3 | 0 |
| C | 0 | 3 | 0 |
| D | 0 | 4 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 49 | 3 |
| B | 0 | 48 | 2 |
| C | 0 | 48 | 2 |
| D | 0 | 48 | 2 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 5020 | 247 |
| B | 0 | 5090 | 274 |
| C | 0 | 5022 | 258 |
| D | 0 | 5859 | 275 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 2302 | 3 | 0.130321% |
| B | 2286 | 8 | 0.349956% |
| C | 2293 | 2 | 0.087222% |
| D | 2292 | 33 | 1.439791% |

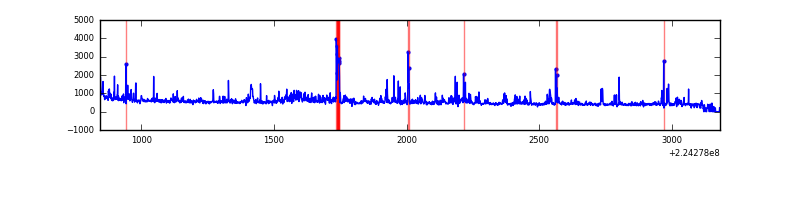

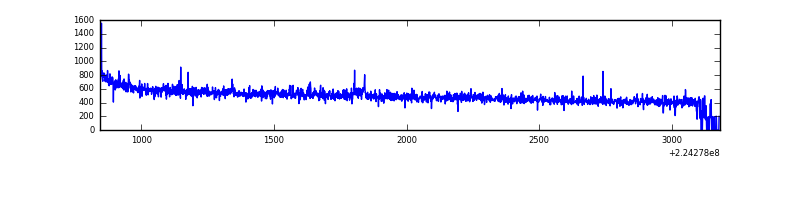

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 2335 | 2315 | 0 | 0 | 0.00% | 0.00% |  |
| B | 2337 | 2305 | 0 | 0 | 0.00% | 0.00% |  |
| C | 2335 | 2309 | 0 | 0 | 0.00% | 0.00% |  |
| D | 2339 | 2310 | 18 | 18 | 0.77% | 0.78% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 234 | 5908 | 94.62 | 281 | 275 | 59.5 |
| A | 0 | 226 | 2722 | 41.11 | 281 | 275 | 59.5 |
| A | 12 | 194 | 2511 | 37.56 | 281 | 275 | 59.5 |
| B | 0 | 214 | 9317 | 162.35 | 288 | 282 | 55.7 |
| B | 12 | 111 | 5384 | 91.68 | 288 | 282 | 55.7 |
| B | 11 | 111 | 4101 | 68.62 | 288 | 282 | 55.7 |
| C | 1 | 16 | 19091 | 284.57 | 279 | 282 | 66.1 |
| C | 13 | 61 | 2298 | 30.5 | 279 | 282 | 66.1 |
| C | 12 | 4 | 1459 | 17.81 | 279 | 282 | 66.1 |
| D | 2 | 216 | 183298 | 2682.92 | 272 | 263 | 68.2 |
| D | 2 | 14 | 53222 | 776.27 | 272 | 263 | 68.2 |
| D | 13 | 169 | 17614 | 254.33 | 272 | 263 | 68.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

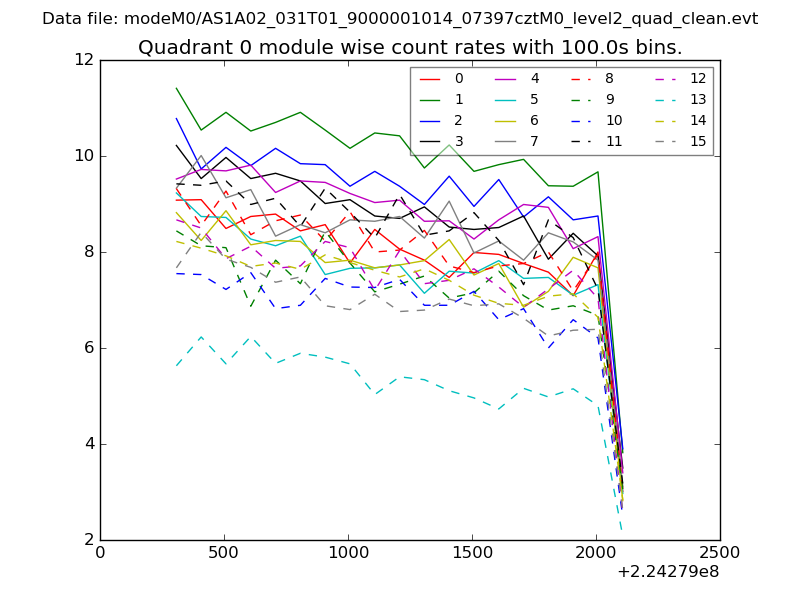

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

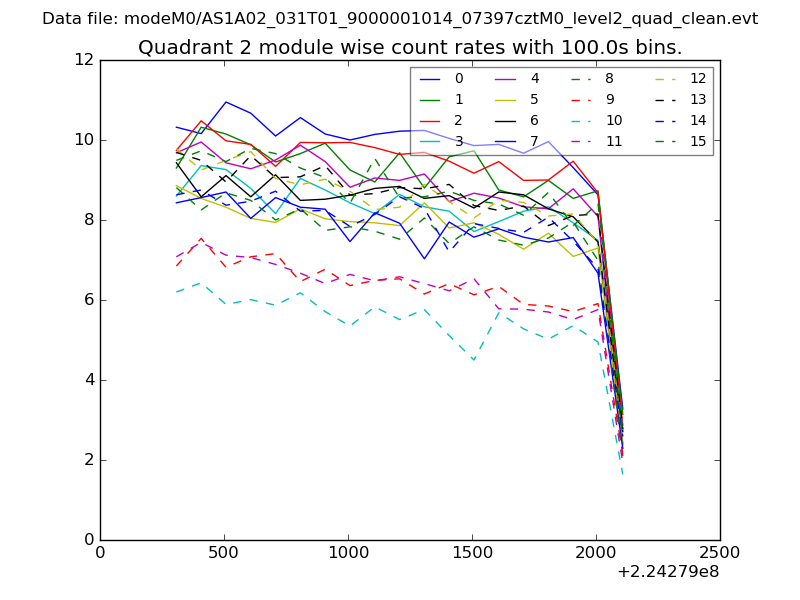

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

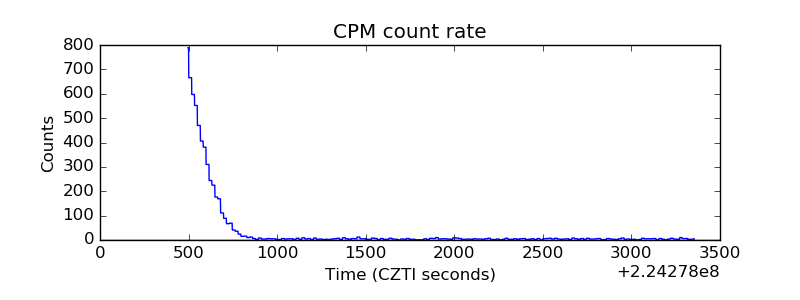

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

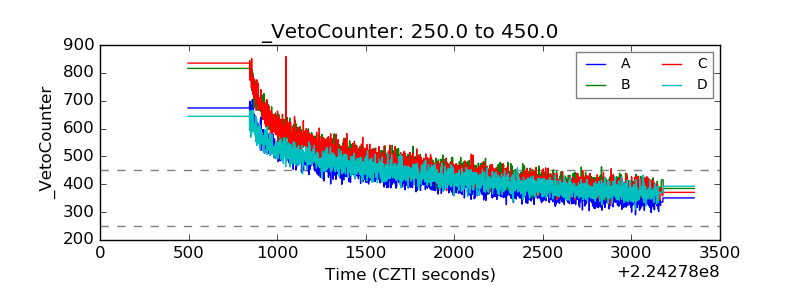

| Veto Counter |  |
