| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A02_031T01_9000001014_07399cztM0_level2.evt | modeM0/AS1A02_031T01_9000001014_07399cztM0_level2_quad_clean.evt |
| Size (bytes) | 494,781,120 | 96,713,280 |
| Size | 471.9 MB | 92.2 MB |
| Events in quadrant A | 3,398,507 | 600,257 |
| Events in quadrant B | 3,808,818 | 616,763 |
| Events in quadrant C | 3,353,157 | 613,033 |
| Events in quadrant D | 3,922,739 | 585,164 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15 | 0 |
| B | 0 | 15 | 0 |
| C | 0 | 15 | 0 |
| D | 0 | 16 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 148 | 0 |
| B | 0 | 148 | 0 |
| C | 0 | 148 | 0 |
| D | 0 | 148 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15352 | 3 |
| B | 0 | 16420 | 2 |
| C | 0 | 15241 | 2 |
| D | 0 | 16981 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7385 | 53 | 0.717671% |
| B | 7385 | 79 | 1.069736% |
| C | 7385 | 29 | 0.392688% |
| D | 7385 | 70 | 0.947867% |

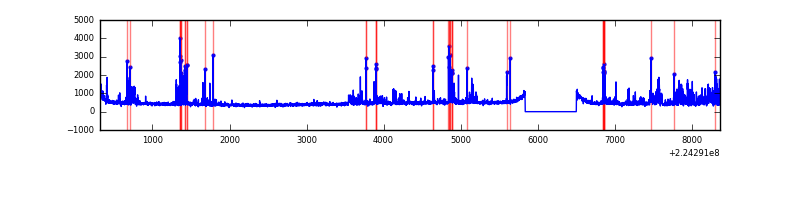

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8050 | 7386 | 1 | 1 | 0.01% | 0.01% |  |
| B | 8050 | 7386 | 7 | 7 | 0.09% | 0.09% |  |
| C | 8050 | 7386 | 0 | 0 | 0.00% | 0.00% |  |
| D | 8050 | 7386 | 41 | 41 | 0.51% | 0.56% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 4 | 2 | 61190 | 337.44 | 864 | 845 | 178.8 |
| A | 0 | 226 | 8328 | 41.84 | 864 | 845 | 178.8 |
| A | 12 | 194 | 7832 | 39.07 | 864 | 845 | 178.8 |
| B | 10 | 252 | 272308 | 1606.17 | 877 | 856 | 169.0 |
| B | 0 | 214 | 67930 | 396.87 | 877 | 856 | 169.0 |
| B | 4 | 170 | 31347 | 180.41 | 877 | 856 | 169.0 |
| C | 8 | 229 | 16201 | 76.93 | 851 | 857 | 199.4 |
| C | 12 | 4 | 8007 | 35.85 | 851 | 857 | 199.4 |
| C | 13 | 61 | 6658 | 29.09 | 851 | 857 | 199.4 |
| D | 2 | 216 | 289159 | 1374.58 | 842 | 815 | 209.8 |
| D | 12 | 233 | 177448 | 842.04 | 842 | 815 | 209.8 |
| D | 1 | 52 | 137805 | 653.05 | 842 | 815 | 209.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

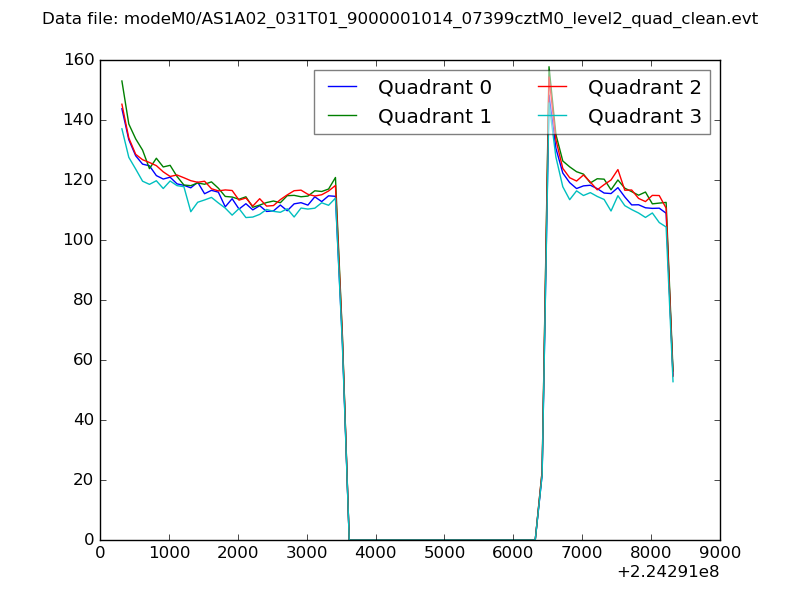

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

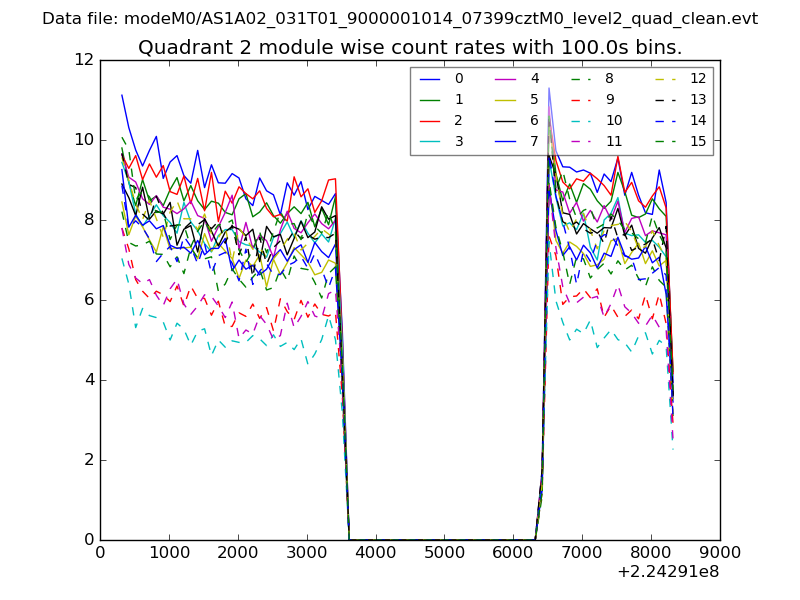

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

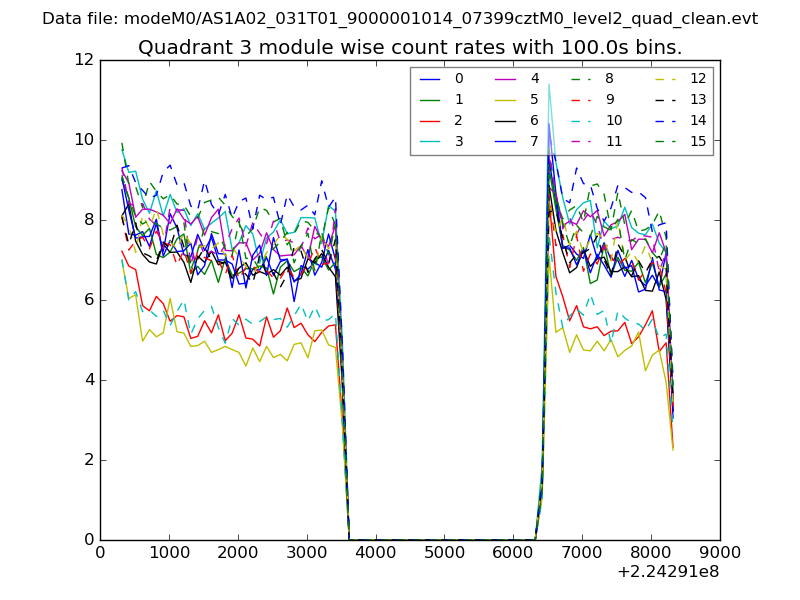

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

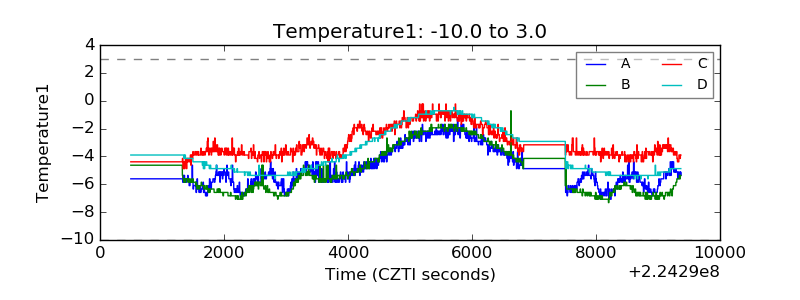

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

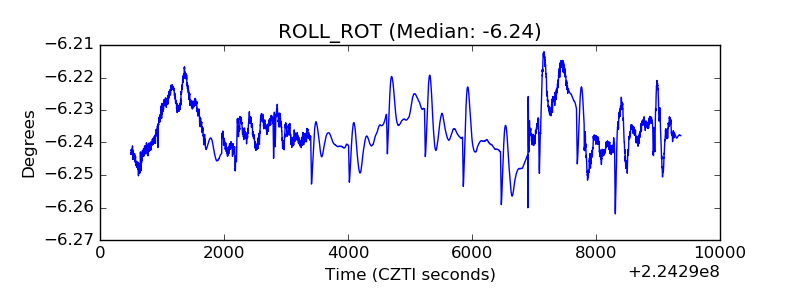

| _ROLL_ROT |  |

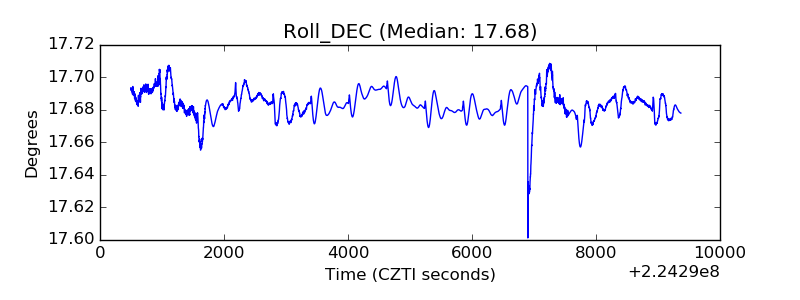

| _Roll_DEC |  |
| _Roll_RA |  |

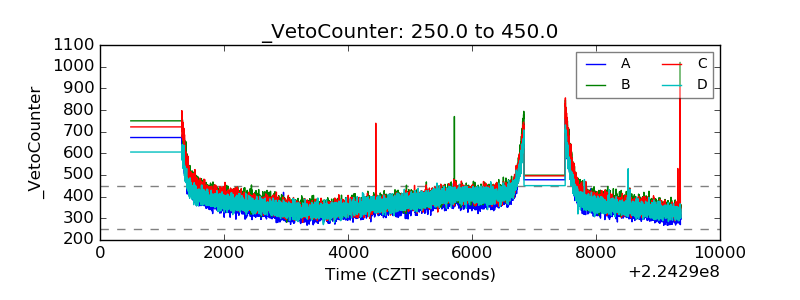

| Veto Counter |  |
