| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A02_150T03_9000001018_07411cztM0_level2.evt | modeM0/AS1A02_150T03_9000001018_07411cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,498,743,360 | 291,836,160 |
| Size | 1.4 GB | 278.3 MB |
| Events in quadrant A | 10,038,417 | 1,903,917 |
| Events in quadrant B | 10,569,986 | 1,936,934 |
| Events in quadrant C | 9,820,293 | 1,884,910 |
| Events in quadrant D | 13,539,515 | 1,665,745 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 44564 | 595 |
| B | 0 | 46000 | 624 |
| C | 0 | 44110 | 583 |
| D | 0 | 55331 | 662 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 436 | 2 |
| B | 0 | 435 | 3 |
| C | 0 | 436 | 2 |
| D | 0 | 435 | 6 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 55 | 1 |
| B | 0 | 54 | 0 |
| C | 0 | 54 | 0 |
| D | 0 | 57 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 21016 | 249 | 1.184812% |
| B | 21002 | 326 | 1.552233% |
| C | 21014 | 176 | 0.837537% |
| D | 21013 | 1650 | 7.852282% |

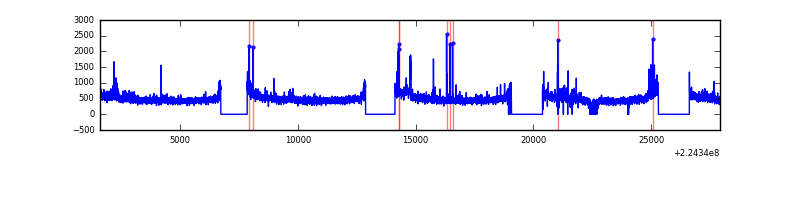

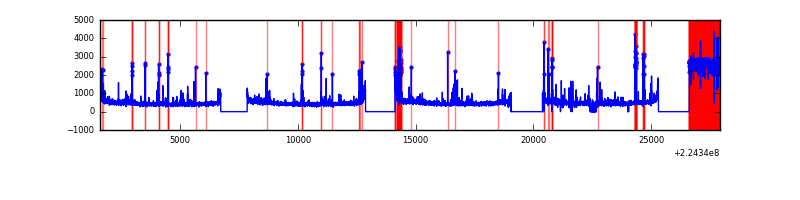

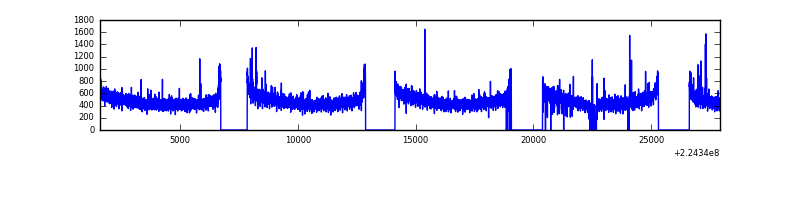

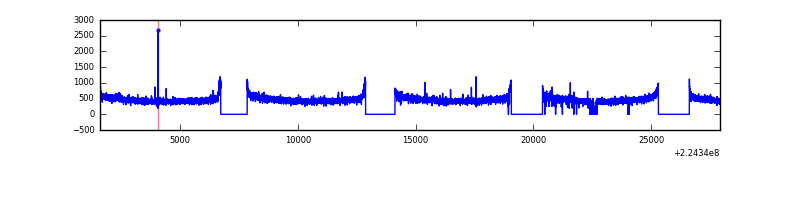

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 26327 | 21104 | 0 | 0 | 0.00% | 0.00% |  |
| B | 26327 | 21076 | 9 | 9 | 0.03% | 0.04% |  |
| C | 26327 | 21096 | 1 | 1 | 0.00% | 0.00% |  |
| D | 26326 | 21092 | 1425 | 1425 | 5.41% | 6.76% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 3 | 1 | 61507 | 114.36 | 2585 | 2537 | 515.7 |
| A | 0 | 226 | 25596 | 44.72 | 2585 | 2537 | 515.7 |
| A | 12 | 194 | 23010 | 39.7 | 2585 | 2537 | 515.7 |
| B | 0 | 214 | 177081 | 359.99 | 2608 | 2555 | 484.8 |
| B | 11 | 51 | 145262 | 294.36 | 2608 | 2555 | 484.8 |
| B | 0 | 229 | 68898 | 136.85 | 2608 | 2555 | 484.8 |
| C | 1 | 16 | 21985 | 33.78 | 2507 | 2521 | 576.1 |
| C | 13 | 61 | 19505 | 29.48 | 2507 | 2521 | 576.1 |
| C | 12 | 4 | 12867 | 17.96 | 2507 | 2521 | 576.1 |
| D | 13 | 105 | 3608229 | 6299.54 | 2348 | 2275 | 572.4 |
| D | 1 | 20 | 261839 | 453.45 | 2348 | 2275 | 572.4 |
| D | 10 | 15 | 167884 | 289.32 | 2348 | 2275 | 572.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

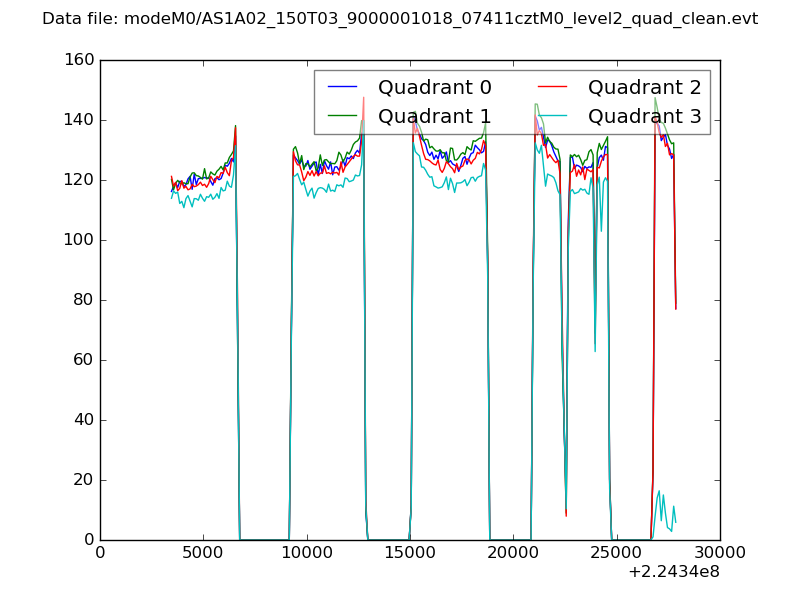

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

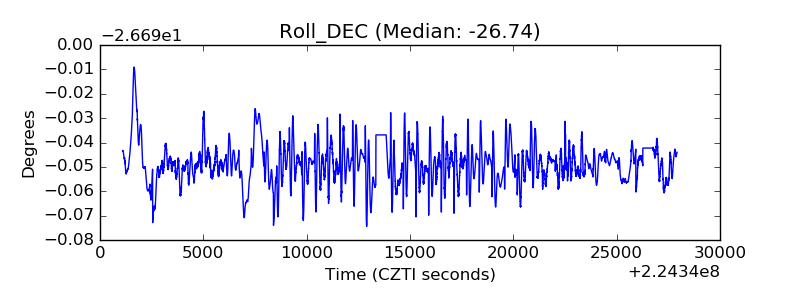

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
