| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A02_150T03_9000001018_07412cztM0_level2.evt | modeM0/AS1A02_150T03_9000001018_07412cztM0_level2_quad_clean.evt |
| Size (bytes) | 616,029,120 | 87,511,680 |
| Size | 587.5 MB | 83.5 MB |
| Events in quadrant A | 2,958,560 | 617,423 |
| Events in quadrant B | 3,131,437 | 632,732 |
| Events in quadrant C | 2,884,233 | 614,123 |
| Events in quadrant D | 9,256,187 | 346,452 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13087 | 3 |
| B | 0 | 13525 | 2 |
| C | 0 | 12923 | 2 |
| D | 0 | 31677 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 13 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6286 | 37 | 0.588610% |
| B | 6286 | 66 | 1.049952% |
| C | 6286 | 9 | 0.143175% |
| D | 6286 | 2573 | 40.932230% |

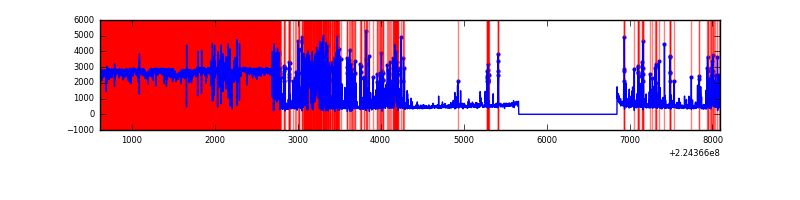

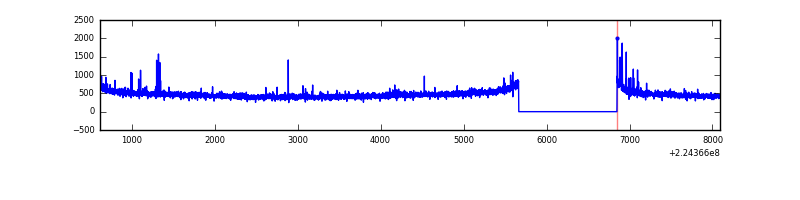

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7471 | 6287 | 1 | 1 | 0.01% | 0.02% |  |
| B | 7471 | 6287 | 9 | 9 | 0.12% | 0.14% |  |
| C | 7471 | 6287 | 1 | 1 | 0.01% | 0.02% |  |
| D | 7471 | 6287 | 2459 | 2459 | 32.91% | 39.11% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 3 | 1 | 32524 | 209.16 | 750 | 733 | 152.0 |
| A | 13 | 248 | 17684 | 111.52 | 750 | 733 | 152.0 |
| A | 15 | 234 | 11471 | 70.65 | 750 | 733 | 152.0 |
| B | 0 | 214 | 72901 | 496.11 | 762 | 744 | 145.4 |
| B | 0 | 187 | 66535 | 452.34 | 762 | 744 | 145.4 |
| B | 0 | 229 | 22467 | 149.36 | 762 | 744 | 145.4 |
| C | 1 | 16 | 22474 | 127.23 | 732 | 736 | 170.9 |
| C | 13 | 61 | 5671 | 28.88 | 732 | 736 | 170.9 |
| C | 12 | 4 | 4530 | 22.21 | 732 | 736 | 170.9 |
| D | 13 | 105 | 6860328 | 54505.19 | 504 | 487 | 125.9 |
| D | 5 | 233 | 244436 | 1938.31 | 504 | 487 | 125.9 |
| D | 2 | 216 | 104837 | 829.12 | 504 | 487 | 125.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

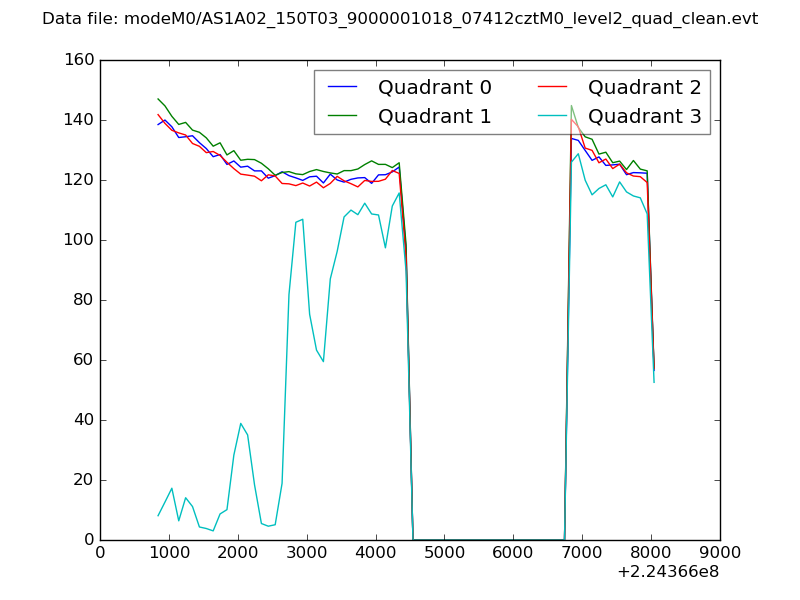

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

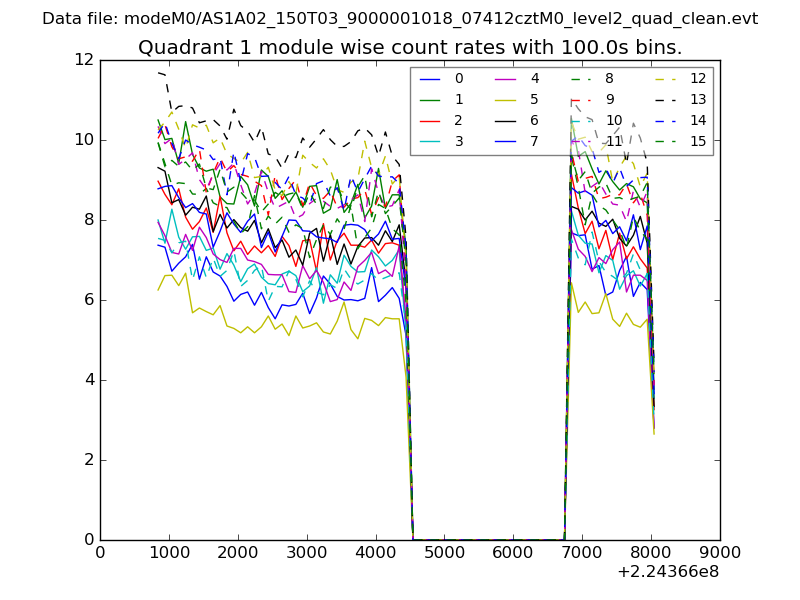

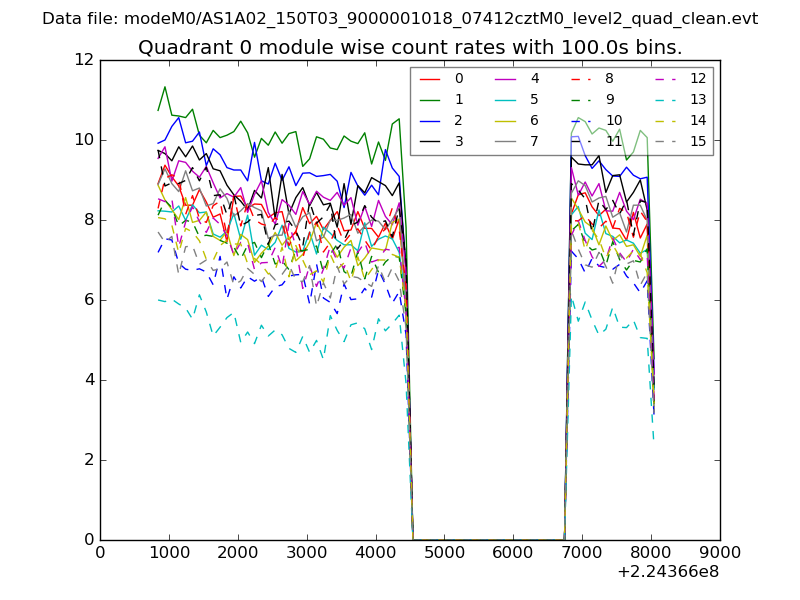

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

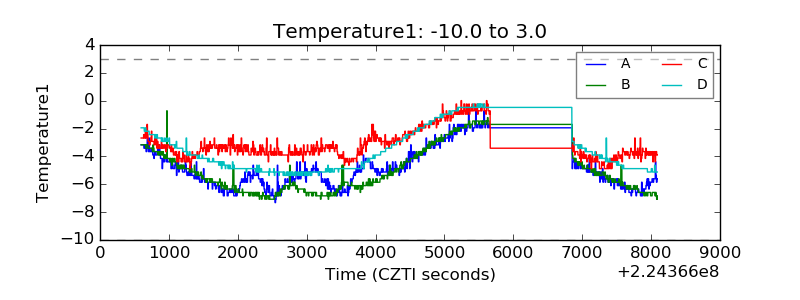

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

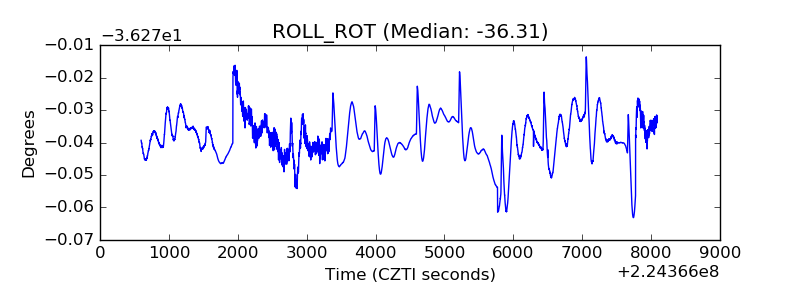

| _ROLL_ROT |  |
| _Roll_DEC |  |

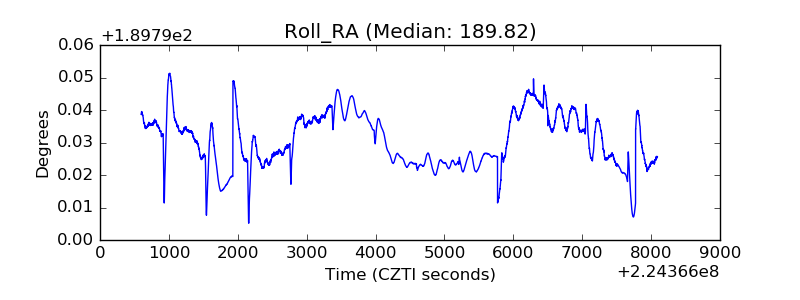

| _Roll_RA |  |
| Veto Counter |  |
