| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A02_150T04_9000001022_07424cztM0_level2.evt | modeM0/AS1A02_150T04_9000001022_07424cztM0_level2_quad_clean.evt |
| Size (bytes) | 455,339,520 | 70,729,920 |
| Size | 434.2 MB | 67.5 MB |
| Events in quadrant A | 3,279,561 | 424,309 |
| Events in quadrant B | 3,228,103 | 432,936 |
| Events in quadrant C | 3,535,376 | 436,149 |
| Events in quadrant D | 3,329,497 | 419,135 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13811 | 3 |
| B | 0 | 13552 | 2 |
| C | 0 | 14559 | 2 |
| D | 0 | 14087 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6143 | 125 | 2.034836% |
| B | 6143 | 67 | 1.090672% |
| C | 6143 | 57 | 0.927885% |
| D | 6143 | 97 | 1.579033% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7418 | 6144 | 46 | 46 | 0.62% | 0.75% |  |
| B | 7418 | 6144 | 3 | 3 | 0.04% | 0.05% |  |
| C | 7418 | 6144 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7418 | 6144 | 20 | 20 | 0.27% | 0.33% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 234 | 216413 | 1351.4 | 790 | 775 | 159.6 |
| A | 3 | 1 | 13449 | 79.43 | 790 | 775 | 159.6 |
| A | 0 | 226 | 7616 | 42.87 | 790 | 775 | 159.6 |
| B | 0 | 214 | 33266 | 216.83 | 802 | 786 | 149.8 |
| B | 4 | 81 | 32529 | 211.91 | 802 | 786 | 149.8 |
| B | 4 | 173 | 32345 | 210.68 | 802 | 786 | 149.8 |
| C | 9 | 68 | 464785 | 2573.12 | 786 | 792 | 180.3 |
| C | 13 | 61 | 6057 | 29.2 | 786 | 792 | 180.3 |
| C | 12 | 4 | 5211 | 24.51 | 786 | 792 | 180.3 |
| D | 2 | 14 | 96415 | 501.42 | 782 | 761 | 190.8 |
| D | 2 | 216 | 62475 | 323.5 | 782 | 761 | 190.8 |
| D | 13 | 105 | 48251 | 248.94 | 782 | 761 | 190.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

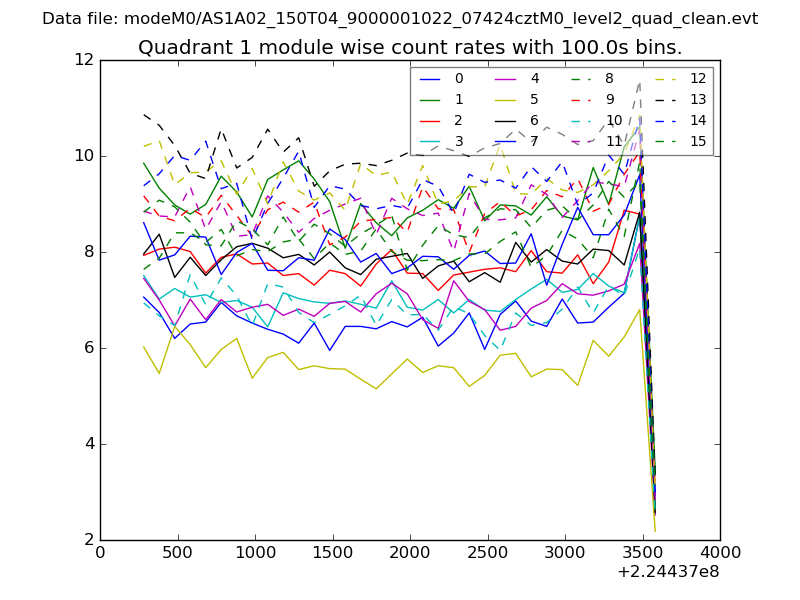

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

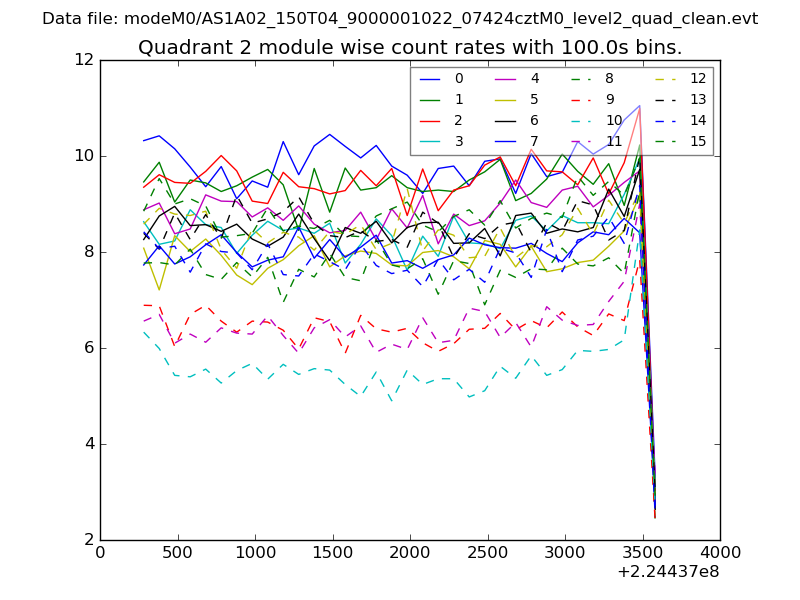

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

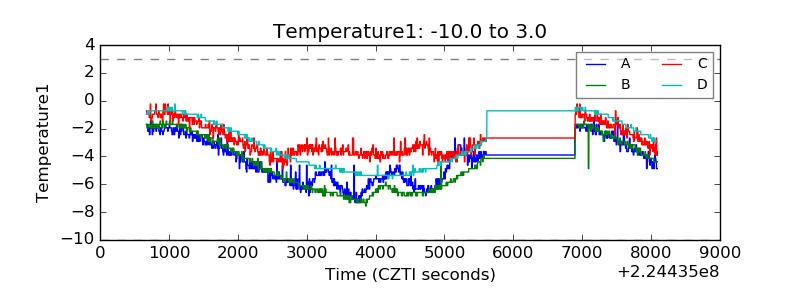

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

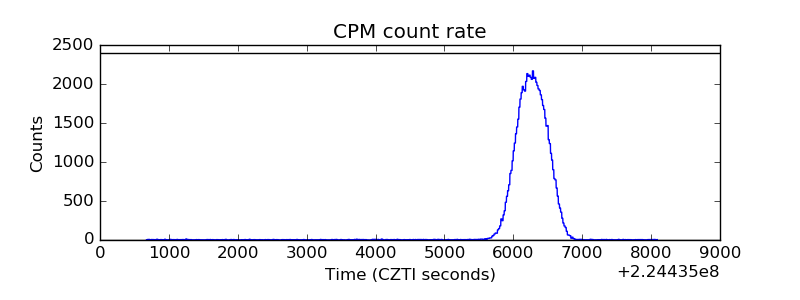

| _CPM_Rate |  |

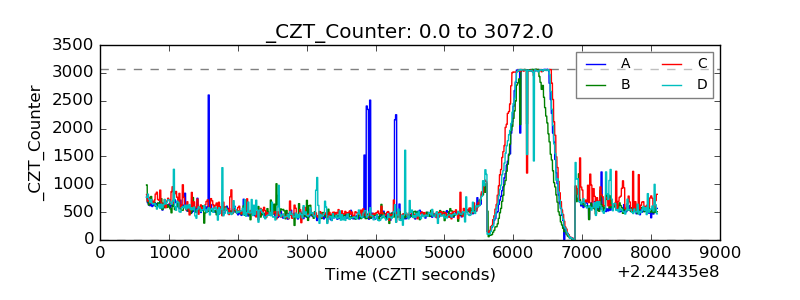

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

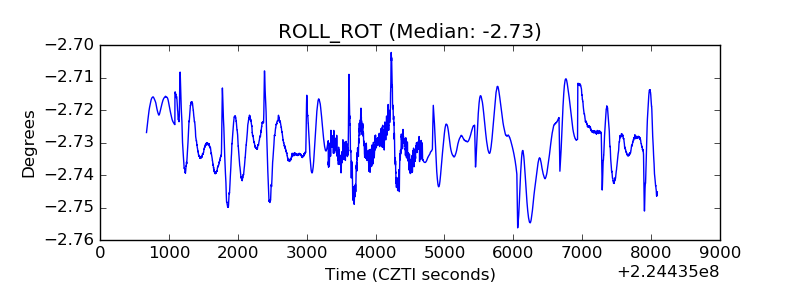

| _ROLL_ROT |  |
| _Roll_DEC |  |

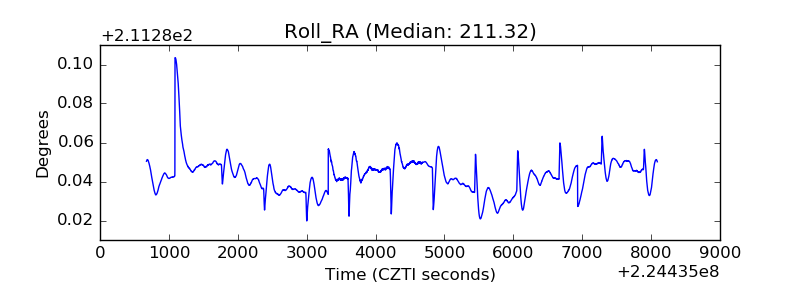

| _Roll_RA |  |
| Veto Counter |  |
