| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A02_108T01_9000001024_07441cztM0_level2.evt | modeM0/AS1A02_108T01_9000001024_07441cztM0_level2_quad_clean.evt |
| Size (bytes) | 427,279,680 | 92,396,160 |
| Size | 407.5 MB | 88.1 MB |
| Events in quadrant A | 2,990,237 | 596,060 |
| Events in quadrant B | 3,059,930 | 609,887 |
| Events in quadrant C | 3,378,068 | 588,793 |
| Events in quadrant D | 3,082,902 | 563,124 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13126 | 3 |
| B | 0 | 13265 | 2 |
| C | 0 | 14166 | 2 |
| D | 0 | 13612 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6309 | 69 | 1.093676% |
| B | 6309 | 79 | 1.252179% |
| C | 6309 | 36 | 0.570613% |
| D | 6310 | 60 | 0.950872% |

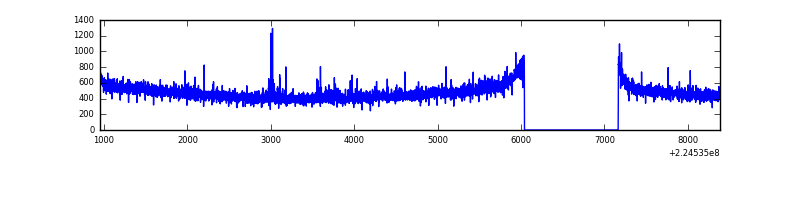

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7434 | 6310 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7434 | 6310 | 2 | 2 | 0.03% | 0.03% |  |
| C | 7434 | 6310 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7435 | 6311 | 31 | 31 | 0.42% | 0.49% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 248 | 20462 | 126.96 | 763 | 747 | 155.3 |
| A | 15 | 239 | 18704 | 115.64 | 763 | 747 | 155.3 |
| A | 3 | 1 | 11189 | 67.25 | 763 | 747 | 155.3 |
| B | 4 | 81 | 28939 | 191.55 | 772 | 752 | 147.2 |
| B | 0 | 214 | 25017 | 164.9 | 772 | 752 | 147.2 |
| B | 12 | 111 | 15051 | 97.17 | 772 | 752 | 147.2 |
| C | 9 | 68 | 467981 | 2713.78 | 741 | 745 | 172.2 |
| C | 4 | 238 | 8338 | 44.1 | 741 | 745 | 172.2 |
| C | 14 | 67 | 6426 | 33.0 | 741 | 745 | 172.2 |
| D | 2 | 14 | 117896 | 656.51 | 730 | 708 | 178.5 |
| D | 14 | 34 | 79265 | 440.09 | 730 | 708 | 178.5 |
| D | 12 | 233 | 57772 | 319.68 | 730 | 708 | 178.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

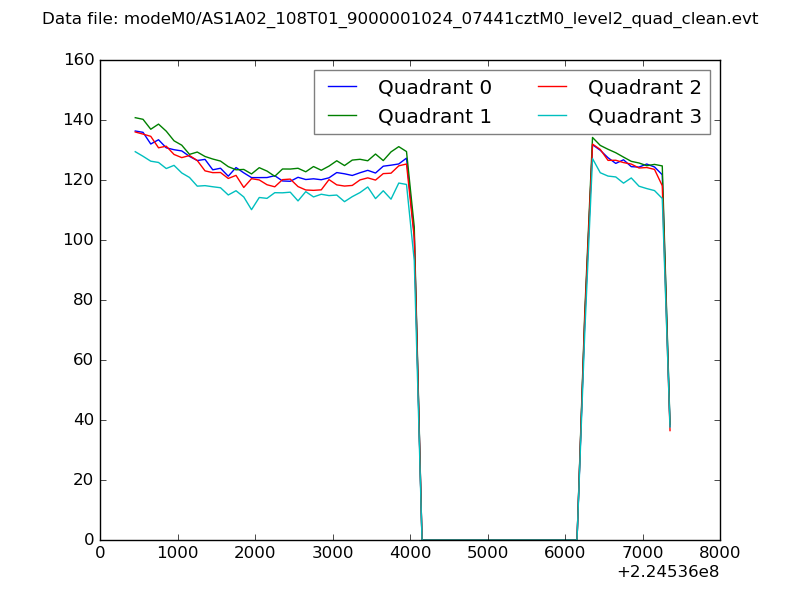

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

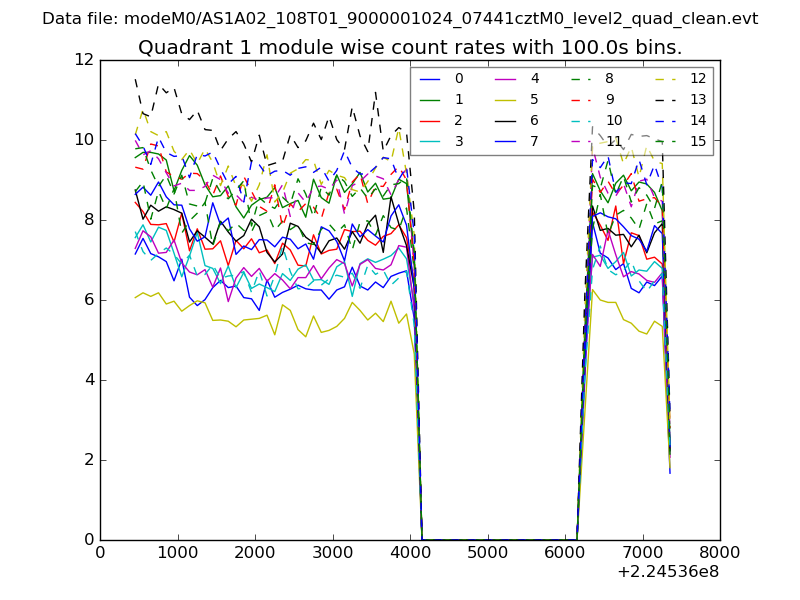

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

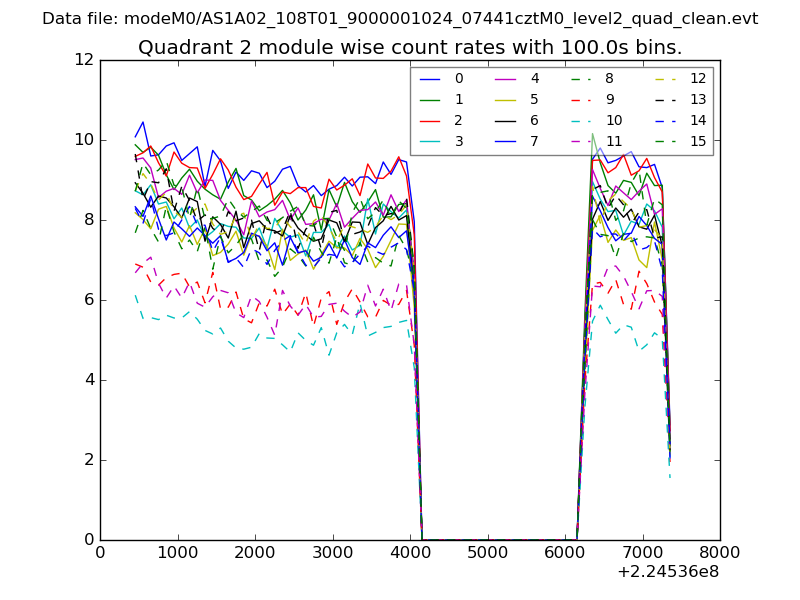

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

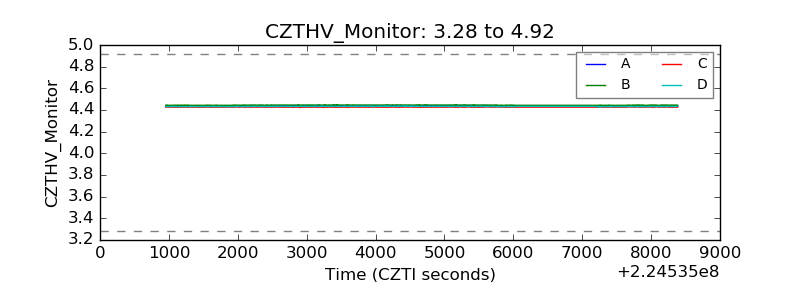

| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |

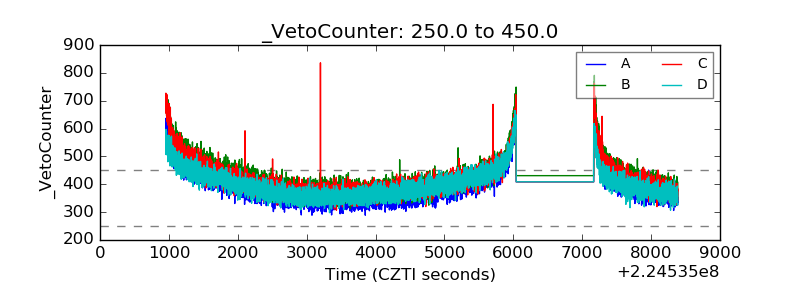

| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

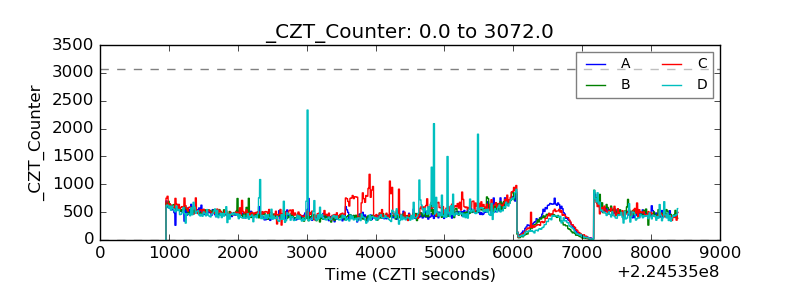

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
