| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A02_108T01_9000001024_07448cztM0_level2.evt | modeM0/AS1A02_108T01_9000001024_07448cztM0_level2_quad_clean.evt |
| Size (bytes) | 582,949,440 | 112,530,240 |
| Size | 555.9 MB | 107.3 MB |
| Events in quadrant A | 3,948,180 | 706,448 |
| Events in quadrant B | 4,003,395 | 724,387 |
| Events in quadrant C | 4,622,293 | 701,970 |
| Events in quadrant D | 4,489,998 | 670,639 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 178 | 0 |
| B | 0 | 178 | 0 |
| C | 0 | 178 | 0 |
| D | 0 | 178 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 8 | 0 |
| B | 0 | 8 | 0 |
| C | 0 | 8 | 0 |
| D | 0 | 8 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17781 | 3 |
| B | 0 | 17859 | 2 |
| C | 0 | 19230 | 2 |
| D | 0 | 19068 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 8705 | 106 | 1.217691% |
| B | 8705 | 125 | 1.435956% |
| C | 8705 | 128 | 1.470419% |
| D | 8705 | 143 | 1.642734% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

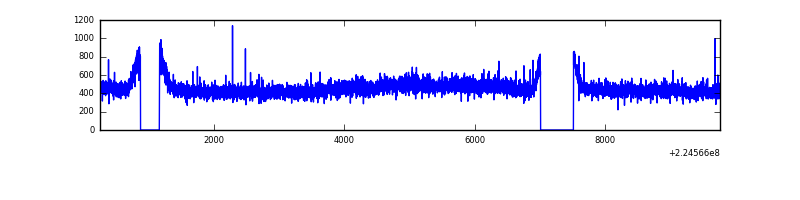

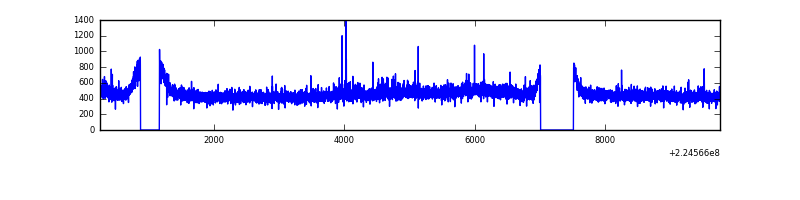

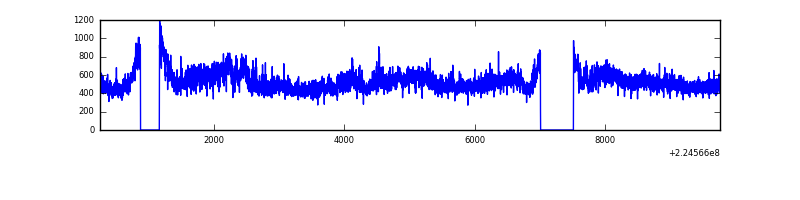

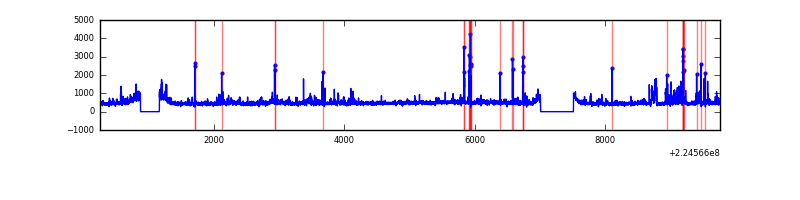

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 9500 | 8707 | 0 | 0 | 0.00% | 0.00% |  |
| B | 9500 | 8707 | 0 | 0 | 0.00% | 0.00% |  |
| C | 9500 | 8707 | 0 | 0 | 0.00% | 0.00% |  |
| D | 9500 | 8707 | 32 | 32 | 0.34% | 0.37% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 234 | 58117 | 277.31 | 1007 | 985 | 206.0 |
| A | 0 | 226 | 9542 | 41.53 | 1007 | 985 | 206.0 |
| A | 12 | 194 | 8901 | 38.42 | 1007 | 985 | 206.0 |
| B | 0 | 214 | 44731 | 225.46 | 1017 | 993 | 194.0 |
| B | 12 | 111 | 20818 | 102.19 | 1017 | 993 | 194.0 |
| B | 11 | 111 | 16391 | 79.37 | 1017 | 993 | 194.0 |
| C | 9 | 68 | 743579 | 3218.21 | 989 | 993 | 230.7 |
| C | 8 | 128 | 8197 | 31.22 | 989 | 993 | 230.7 |
| C | 13 | 61 | 7677 | 28.96 | 989 | 993 | 230.7 |
| D | 13 | 105 | 237678 | 979.41 | 983 | 952 | 241.7 |
| D | 1 | 52 | 157317 | 646.93 | 983 | 952 | 241.7 |
| D | 2 | 14 | 138112 | 567.47 | 983 | 952 | 241.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|

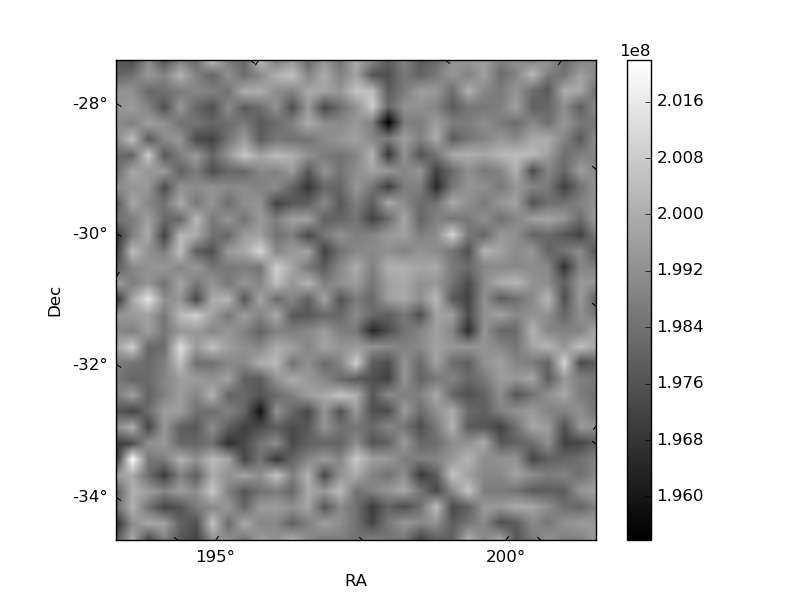

| Quadrant D |  |
 |
Quadrant C |

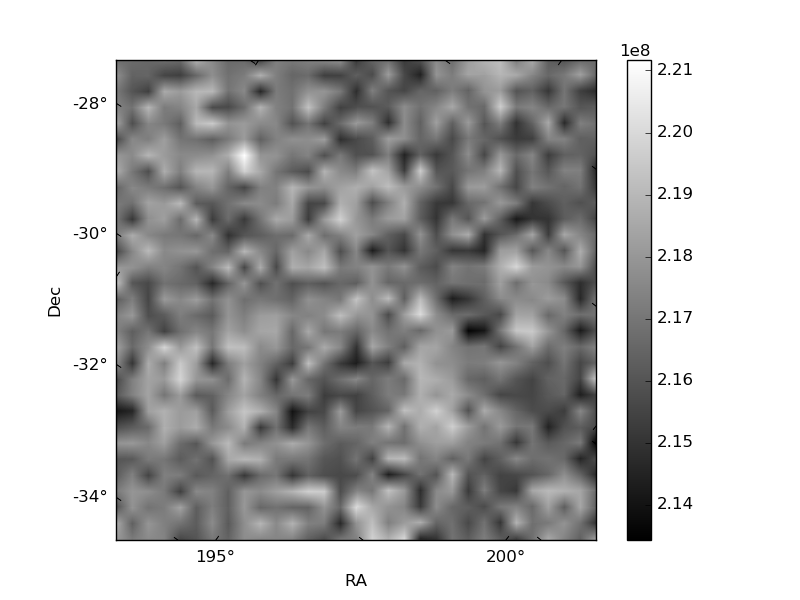

| Plot type | Count rate plots | Images |
|---|---|---|

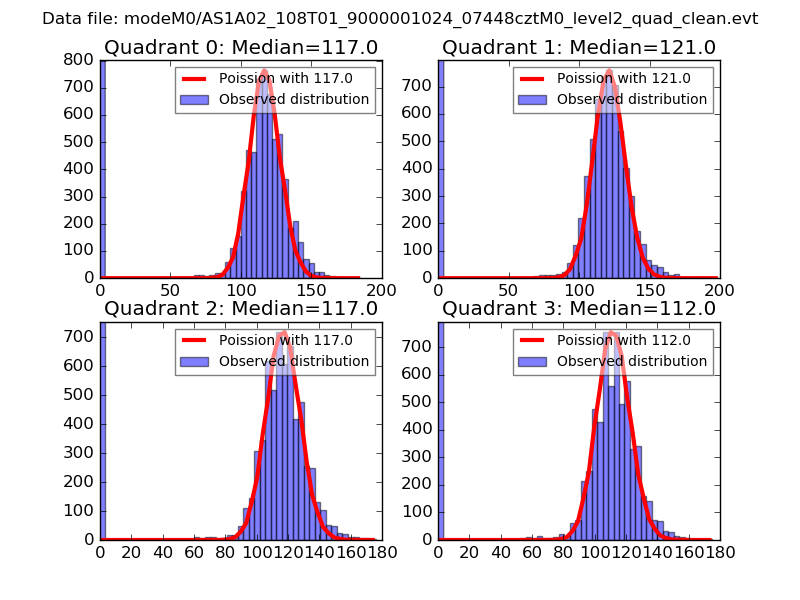

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

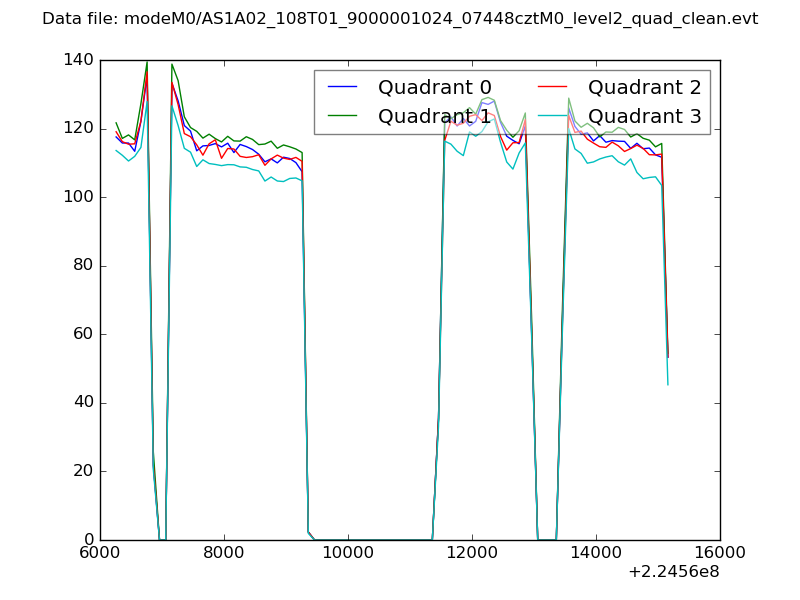

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

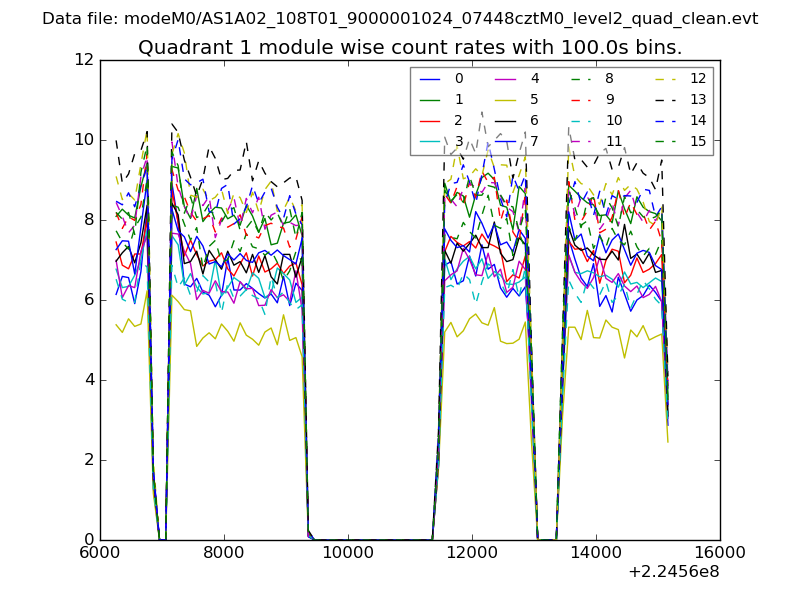

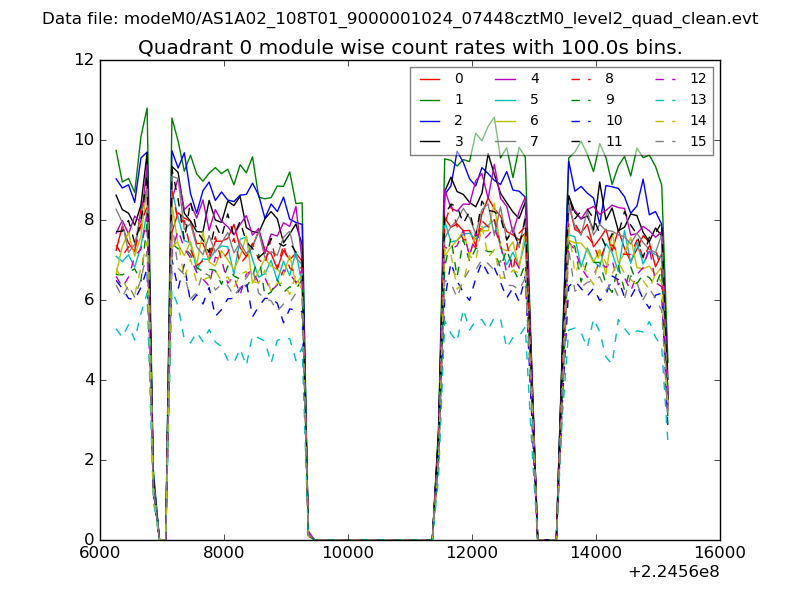

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

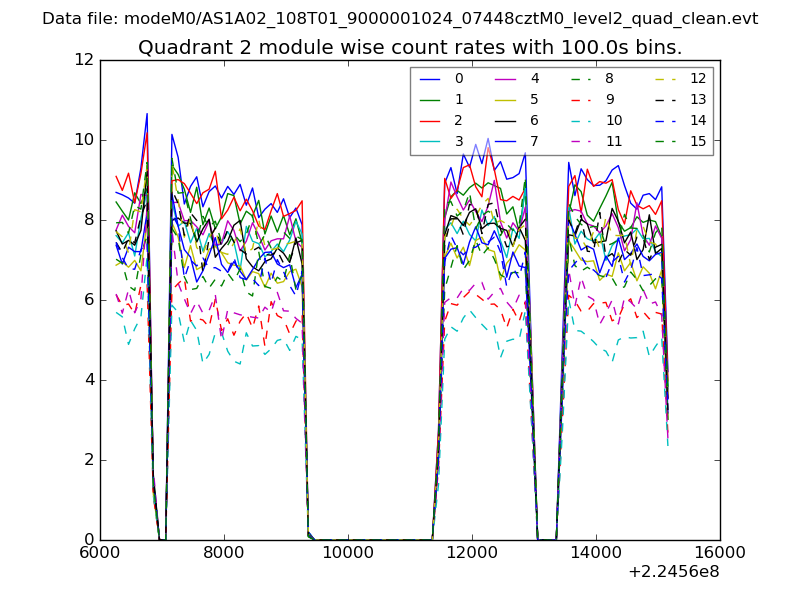

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

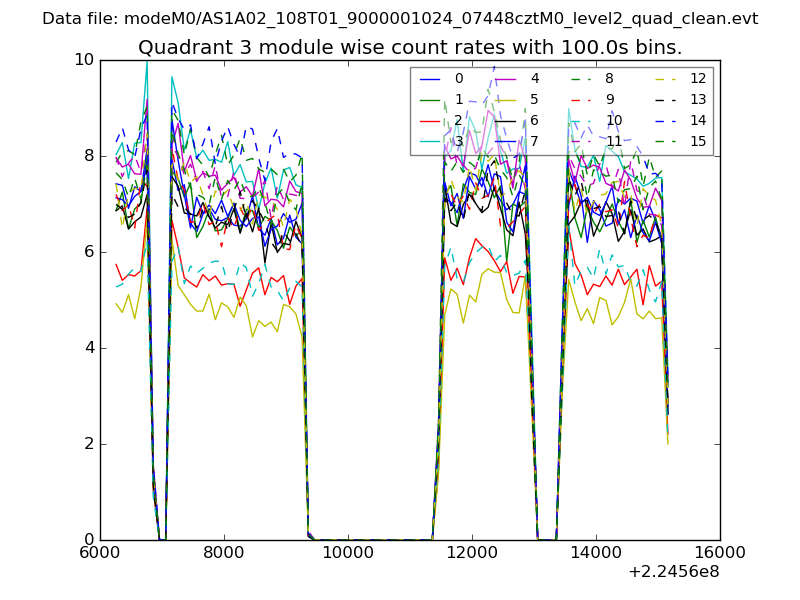

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

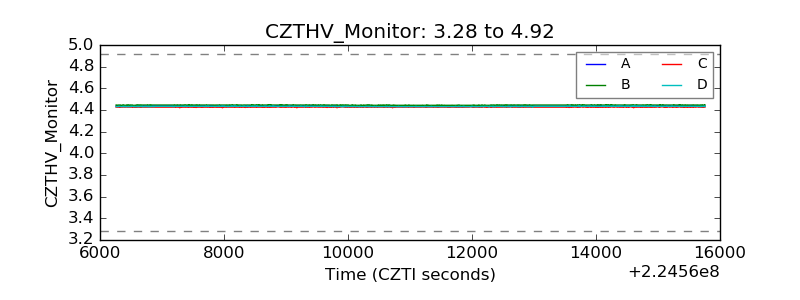

| CZT HV Monitor |  |

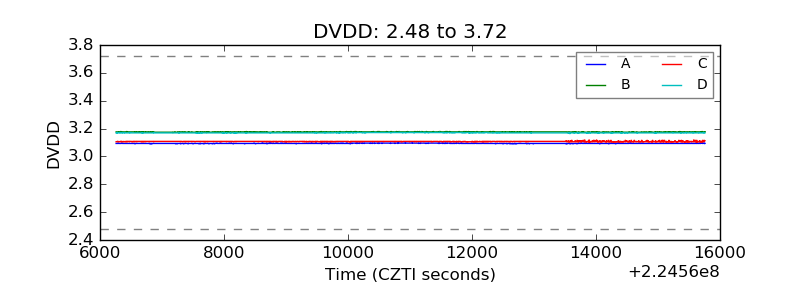

| D_VDD |  |

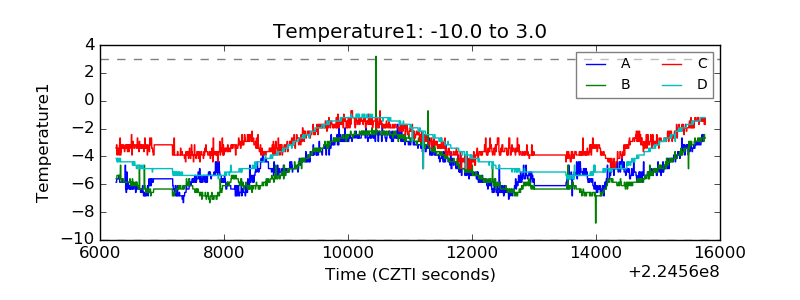

| Temperature 1 |  |

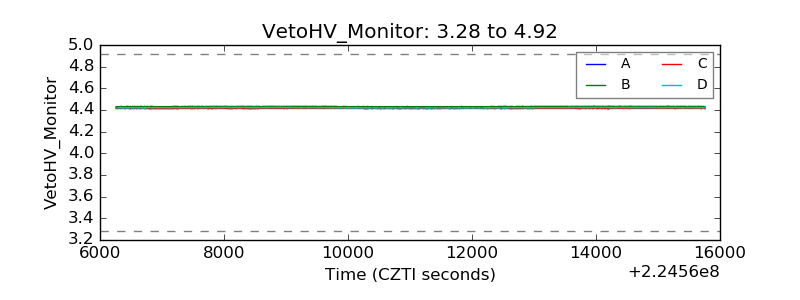

| Veto HV Monitor |  |
| Veto LLD |  |

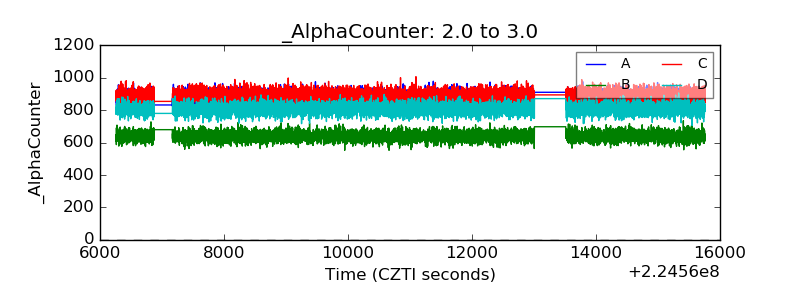

| Alpha Counter |  |

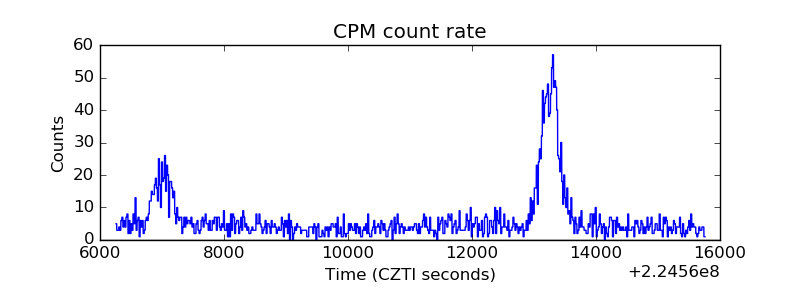

| _CPM_Rate |  |

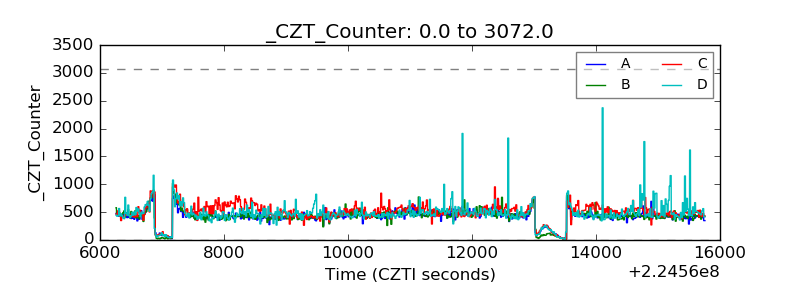

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

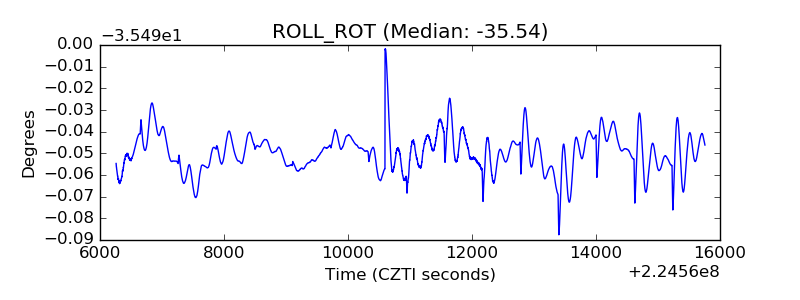

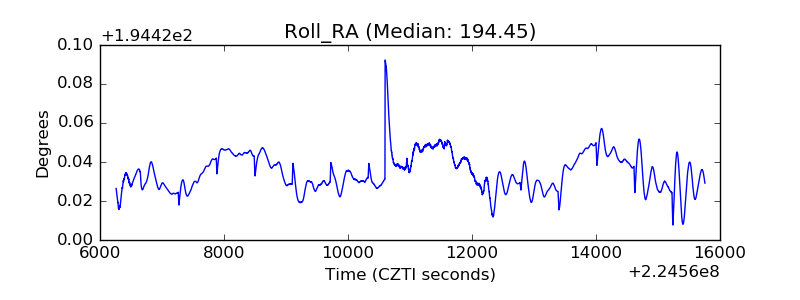

| _ROLL_ROT |  |

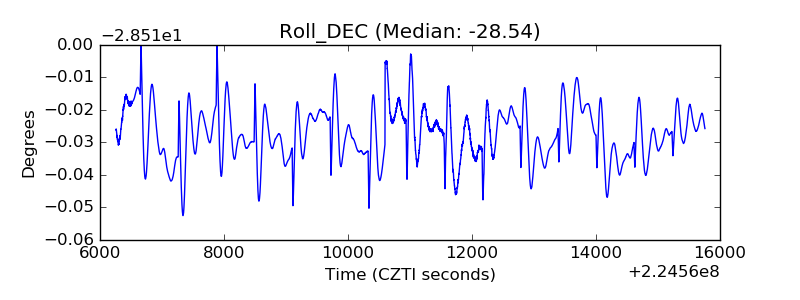

| _Roll_DEC |  |
| _Roll_RA |  |

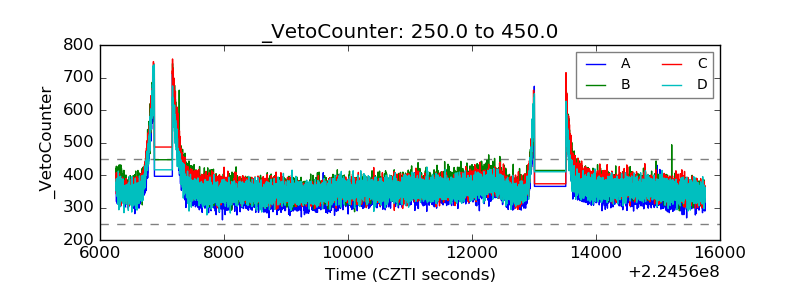

| Veto Counter |  |
