| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A02_108T01_9000001024_07451cztM0_level2.evt | modeM0/AS1A02_108T01_9000001024_07451cztM0_level2_quad_clean.evt |
| Size (bytes) | 542,234,880 | 66,983,040 |
| Size | 517.1 MB | 63.9 MB |
| Events in quadrant A | 3,346,777 | 391,467 |
| Events in quadrant B | 3,478,593 | 396,817 |
| Events in quadrant C | 4,125,686 | 389,493 |
| Events in quadrant D | 5,000,917 | 367,649 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 142 | 0 |
| B | 0 | 142 | 0 |
| C | 0 | 142 | 0 |
| D | 0 | 142 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 22 | 0 |
| B | 0 | 22 | 0 |
| C | 0 | 22 | 0 |
| D | 0 | 22 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14506 | 3 |
| B | 0 | 14716 | 2 |
| C | 0 | 16808 | 2 |
| D | 0 | 19470 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6928 | 105 | 1.515589% |
| B | 6928 | 111 | 1.602194% |
| C | 6928 | 104 | 1.501155% |
| D | 6928 | 366 | 5.282910% |

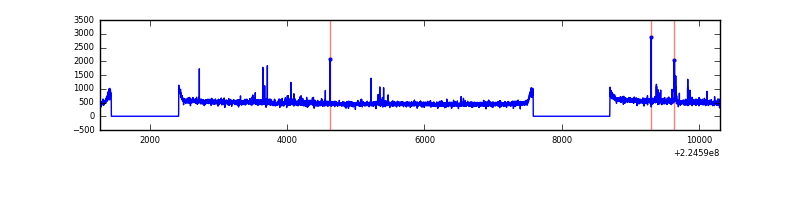

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 9023 | 6929 | 0 | 0 | 0.00% | 0.00% |  |
| B | 9023 | 6929 | 3 | 3 | 0.03% | 0.04% |  |
| C | 9023 | 6929 | 9 | 9 | 0.10% | 0.13% |  |
| D | 9023 | 6929 | 249 | 249 | 2.76% | 3.59% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 14 | 11573 | 61.3 | 863 | 846 | 175.0 |
| A | 0 | 226 | 8384 | 43.08 | 863 | 846 | 175.0 |
| A | 3 | 1 | 7963 | 40.67 | 863 | 846 | 175.0 |
| B | 0 | 214 | 115074 | 695.21 | 864 | 843 | 164.3 |
| B | 12 | 111 | 16776 | 96.97 | 864 | 843 | 164.3 |
| B | 11 | 111 | 13431 | 76.61 | 864 | 843 | 164.3 |
| C | 9 | 68 | 845460 | 4358.16 | 836 | 839 | 193.8 |
| C | 1 | 16 | 16172 | 79.12 | 836 | 839 | 193.8 |
| C | 13 | 61 | 6616 | 29.81 | 836 | 839 | 193.8 |
| D | 13 | 105 | 1161340 | 5711.62 | 831 | 805 | 203.2 |
| D | 14 | 34 | 244360 | 1198.66 | 831 | 805 | 203.2 |
| D | 1 | 20 | 239946 | 1176.94 | 831 | 805 | 203.2 |

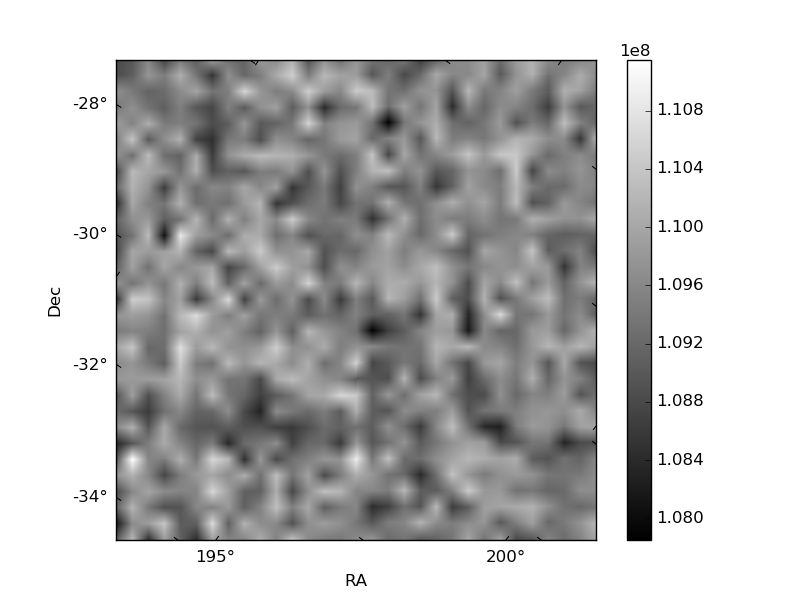

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

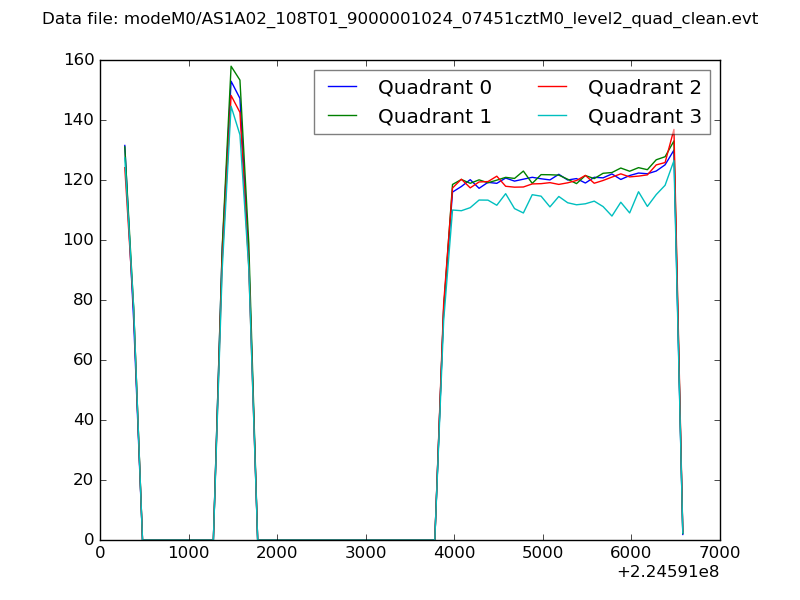

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

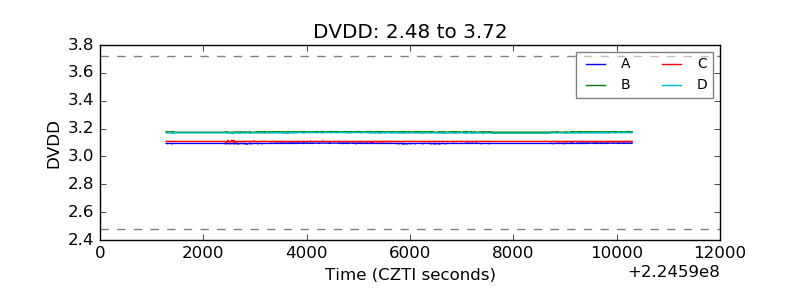

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

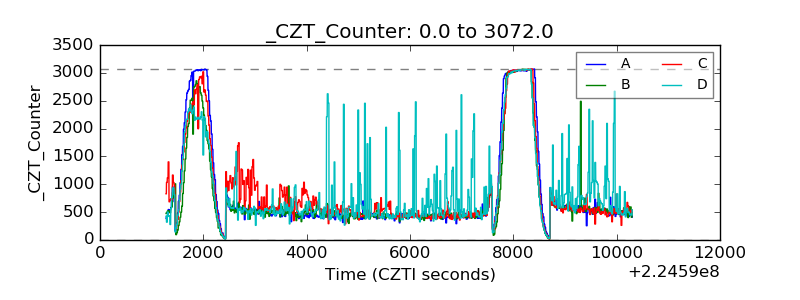

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

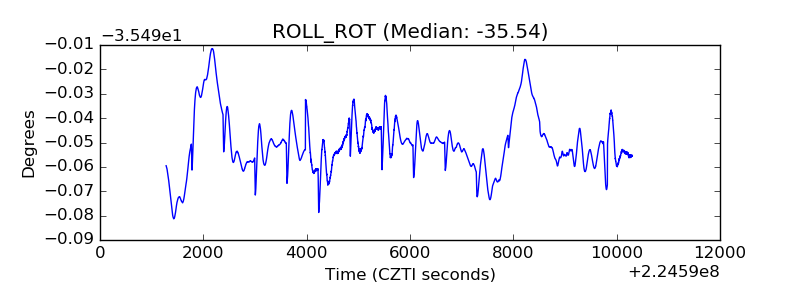

| _ROLL_ROT |  |

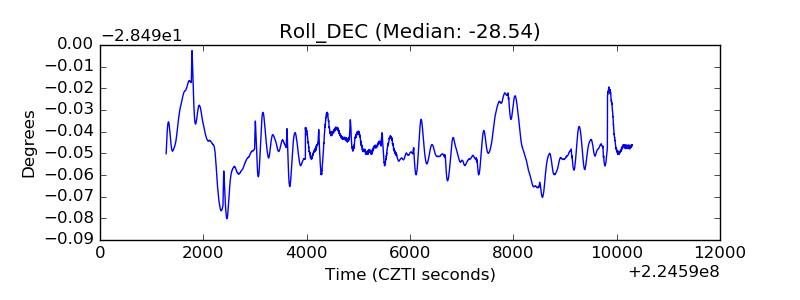

| _Roll_DEC |  |
| _Roll_RA |  |

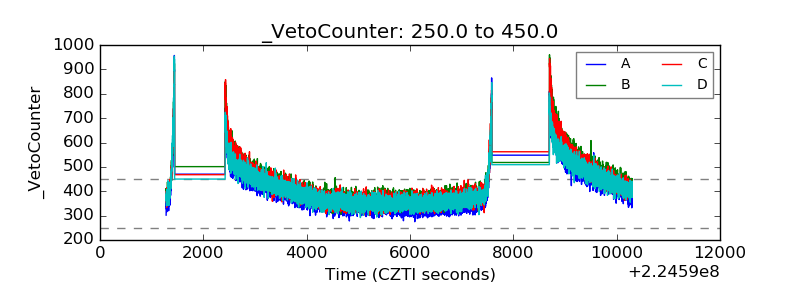

| Veto Counter |  |
