| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A02_108T01_9000001024_07456cztM0_level2.evt | modeM0/AS1A02_108T01_9000001024_07456cztM0_level2_quad_clean.evt |
| Size (bytes) | 774,380,160 | 87,361,920 |
| Size | 738.5 MB | 83.3 MB |
| Events in quadrant A | 12,593,111 | 392,183 |
| Events in quadrant B | 3,360,904 | 610,674 |
| Events in quadrant C | 3,174,345 | 594,145 |
| Events in quadrant D | 3,855,615 | 565,291 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 144 | 0 |
| B | 0 | 144 | 0 |
| C | 0 | 144 | 0 |
| D | 0 | 144 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 23 | 0 |
| B | 0 | 23 | 0 |
| C | 0 | 23 | 0 |
| D | 0 | 23 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 42054 | 3 |
| B | 0 | 14604 | 2 |
| C | 0 | 14215 | 2 |
| D | 0 | 16029 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6908 | 4205 | 60.871453% |
| B | 6908 | 69 | 0.998842% |
| C | 6908 | 19 | 0.275043% |
| D | 6908 | 72 | 1.042270% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 9233 | 6909 | 3976 | 3976 | 43.06% | 57.55% |  |
| B | 9233 | 6910 | 3 | 3 | 0.03% | 0.04% |  |
| C | 9233 | 6910 | 0 | 0 | 0.00% | 0.00% |  |
| D | 9233 | 6910 | 34 | 34 | 0.37% | 0.49% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 239 | 10185106 | 80777.65 | 621 | 606 | 126.1 |
| A | 13 | 14 | 11417 | 85.75 | 621 | 606 | 126.1 |
| A | 0 | 226 | 5797 | 41.17 | 621 | 606 | 126.1 |
| B | 0 | 214 | 36221 | 219.74 | 846 | 825 | 161.1 |
| B | 10 | 246 | 19774 | 117.64 | 846 | 825 | 161.1 |
| B | 12 | 111 | 16816 | 99.27 | 846 | 825 | 161.1 |
| C | 13 | 61 | 6295 | 29.02 | 811 | 816 | 188.8 |
| C | 9 | 68 | 3922 | 16.45 | 811 | 816 | 188.8 |
| C | 12 | 4 | 3359 | 13.47 | 811 | 816 | 188.8 |
| D | 1 | 52 | 232795 | 1181.93 | 803 | 777 | 196.3 |
| D | 12 | 221 | 164399 | 833.51 | 803 | 777 | 196.3 |
| D | 2 | 14 | 130572 | 661.2 | 803 | 777 | 196.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

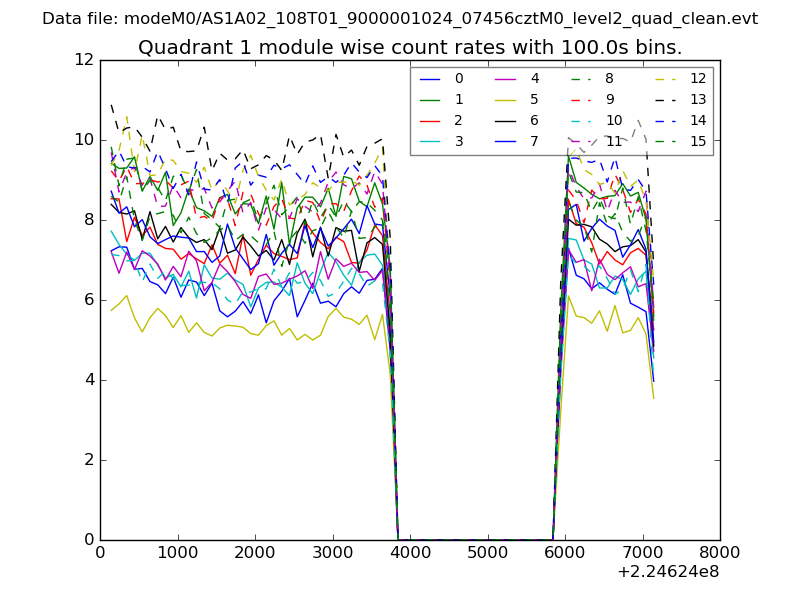

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

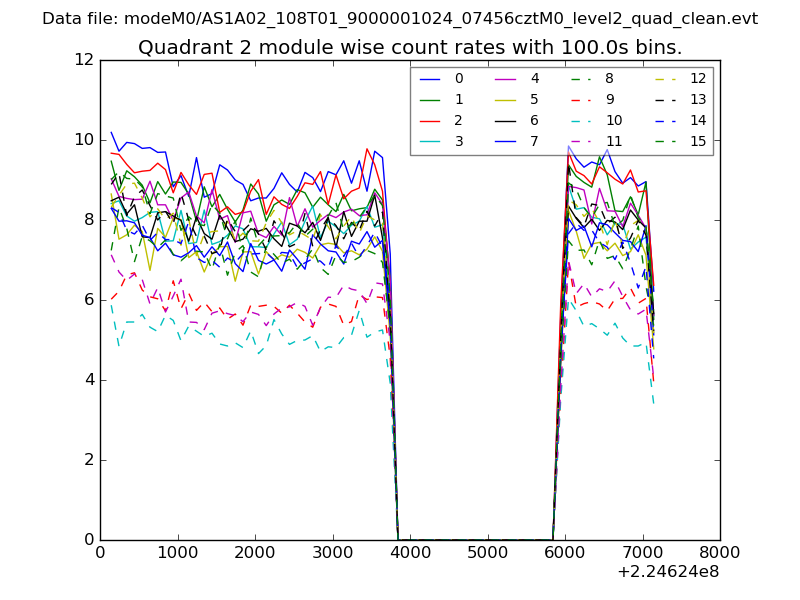

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |

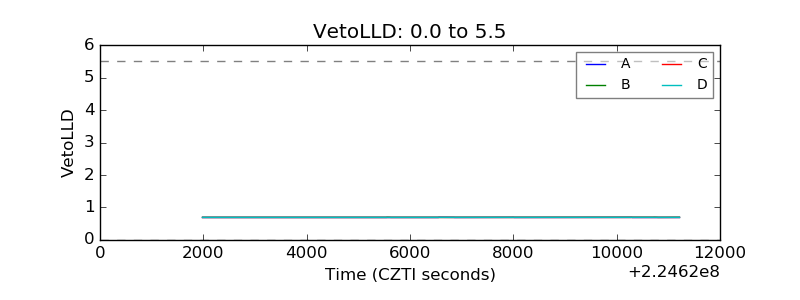

| Veto LLD |  |

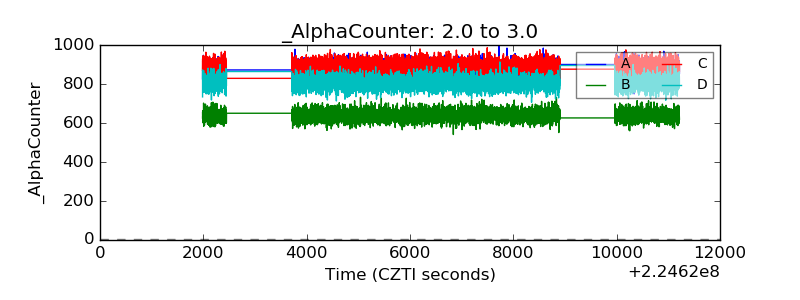

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

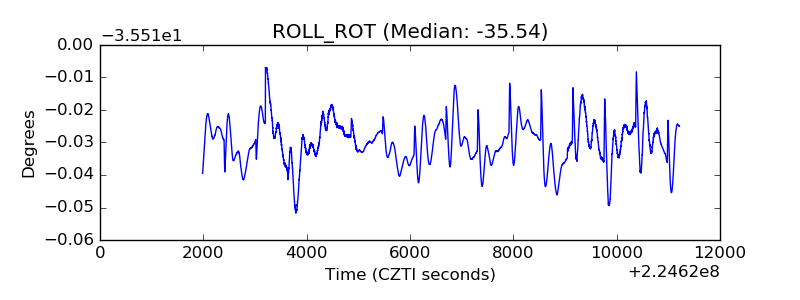

| _ROLL_ROT |  |
| _Roll_DEC |  |

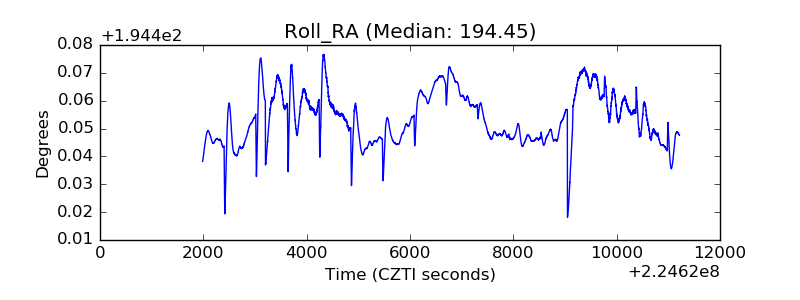

| _Roll_RA |  |

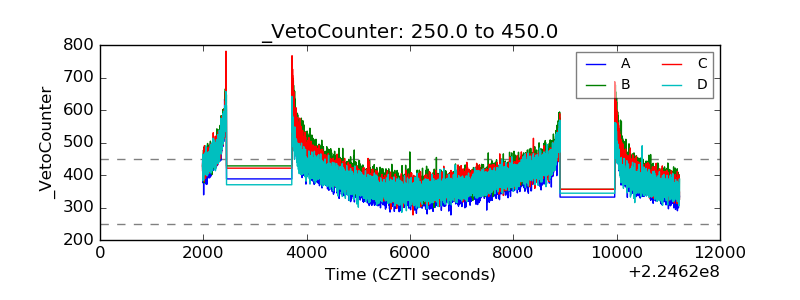

| Veto Counter |  |
