| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G06_116T01_9000001026_07471cztM0_level2.evt | modeM0/AS1G06_116T01_9000001026_07471cztM0_level2_quad_clean.evt |
| Size (bytes) | 446,281,920 | 124,778,880 |
| Size | 425.6 MB | 119.0 MB |
| Events in quadrant A | 3,043,885 | 827,659 |
| Events in quadrant B | 3,210,902 | 844,291 |
| Events in quadrant C | 3,018,884 | 838,437 |
| Events in quadrant D | 3,778,137 | 793,549 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14031 | 3 |
| B | 0 | 14299 | 2 |
| C | 0 | 13910 | 2 |
| D | 0 | 15564 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 138 | 0 |
| B | 0 | 138 | 0 |
| C | 0 | 138 | 0 |
| D | 0 | 138 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 12 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6822 | 30 | 0.439754% |
| B | 6822 | 35 | 0.513046% |
| C | 6822 | 13 | 0.190560% |
| D | 6822 | 133 | 1.949575% |

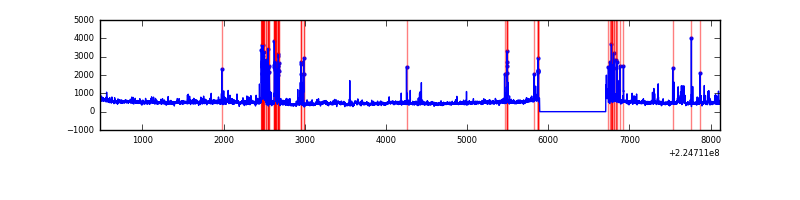

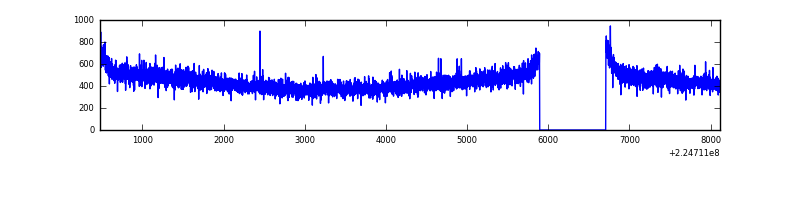

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7637 | 6823 | 11 | 11 | 0.14% | 0.16% |  |
| B | 7637 | 6823 | 7 | 7 | 0.09% | 0.10% |  |
| C | 7637 | 6823 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7637 | 6823 | 92 | 92 | 1.20% | 1.35% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 234 | 51062 | 319.6 | 775 | 756 | 157.4 |
| A | 3 | 1 | 8348 | 48.23 | 775 | 756 | 157.4 |
| A | 0 | 226 | 7328 | 41.75 | 775 | 756 | 157.4 |
| B | 4 | 81 | 77016 | 515.51 | 785 | 764 | 147.9 |
| B | 0 | 214 | 29513 | 194.36 | 785 | 764 | 147.9 |
| B | 4 | 170 | 21304 | 138.86 | 785 | 764 | 147.9 |
| C | 9 | 68 | 16392 | 88.69 | 766 | 768 | 176.2 |
| C | 1 | 16 | 6657 | 33.43 | 766 | 768 | 176.2 |
| C | 13 | 61 | 5870 | 28.96 | 766 | 768 | 176.2 |
| D | 2 | 14 | 259901 | 1424.28 | 754 | 732 | 182.0 |
| D | 13 | 105 | 241922 | 1325.48 | 754 | 732 | 182.0 |
| D | 12 | 221 | 204110 | 1117.68 | 754 | 732 | 182.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

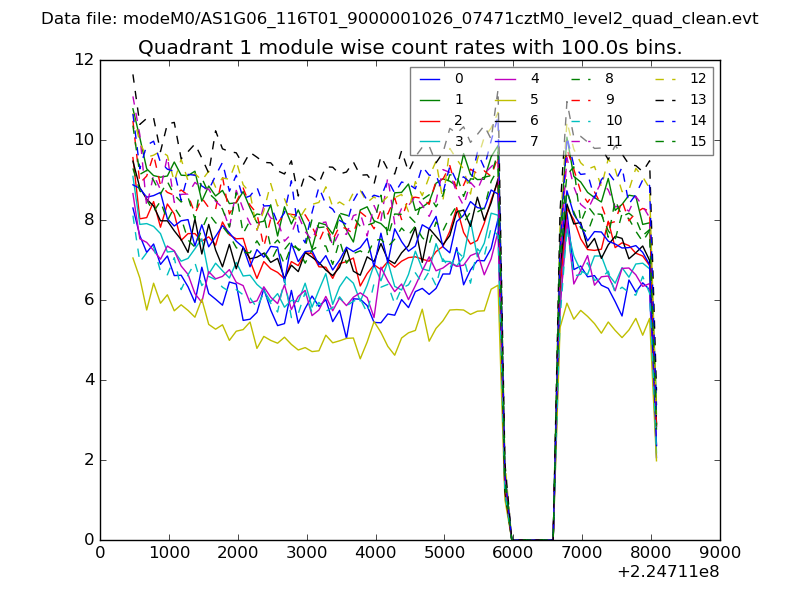

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

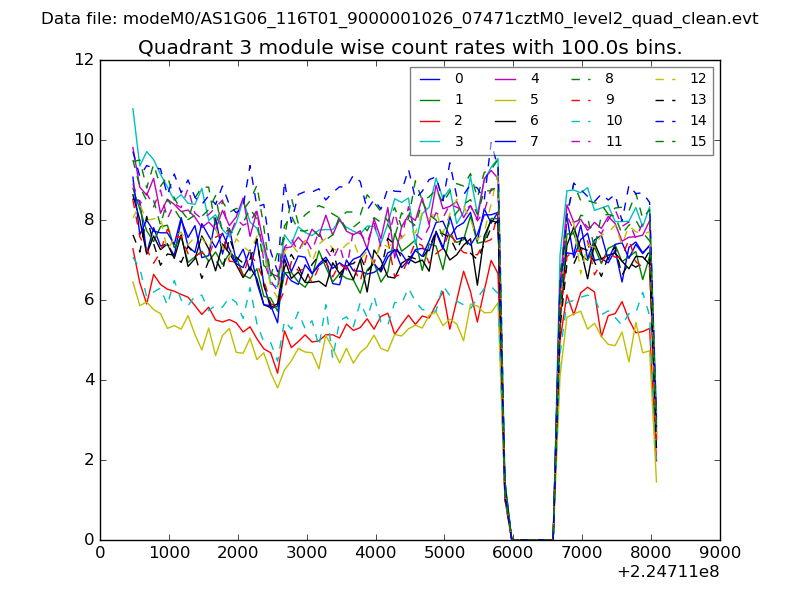

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

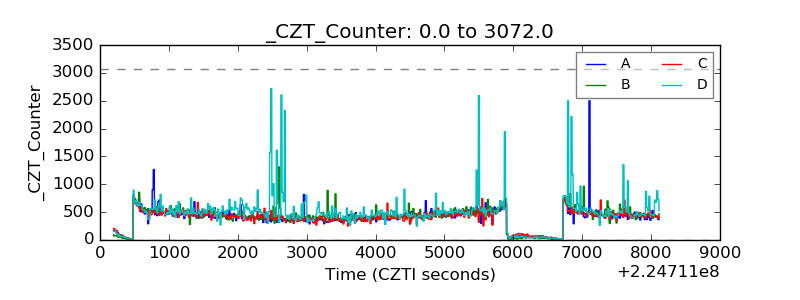

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

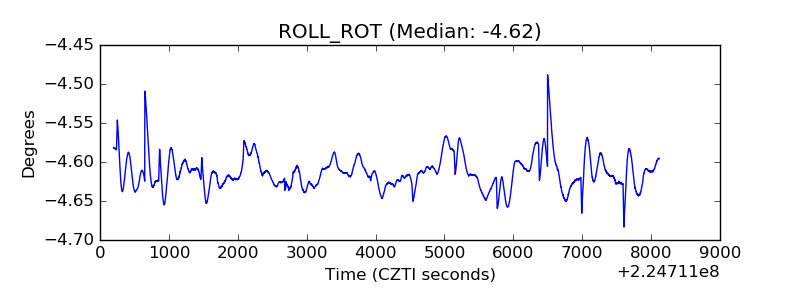

| _ROLL_ROT |  |

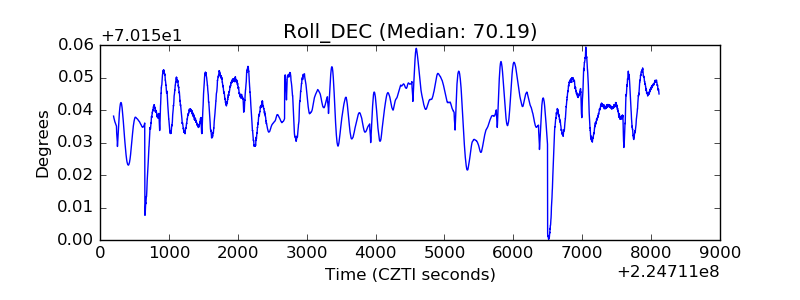

| _Roll_DEC |  |

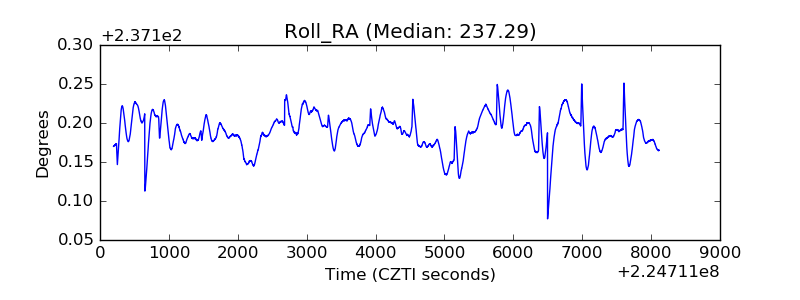

| _Roll_RA |  |
| Veto Counter |  |
