| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G06_087T04_9000001028_07481cztM0_level2.evt | modeM0/AS1G06_087T04_9000001028_07481cztM0_level2_quad_clean.evt |
| Size (bytes) | 474,546,240 | 63,757,440 |
| Size | 452.6 MB | 60.8 MB |
| Events in quadrant A | 3,287,801 | 367,816 |
| Events in quadrant B | 3,500,875 | 373,867 |
| Events in quadrant C | 3,247,070 | 372,488 |
| Events in quadrant D | 3,887,300 | 355,463 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14070 | 3 |
| B | 0 | 14707 | 2 |
| C | 0 | 13865 | 2 |
| D | 0 | 16017 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 134 | 0 |
| B | 0 | 134 | 0 |
| C | 0 | 134 | 0 |
| D | 0 | 134 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 21 | 0 |
| B | 0 | 21 | 0 |
| C | 0 | 21 | 0 |
| D | 0 | 22 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6606 | 78 | 1.180745% |
| B | 6606 | 89 | 1.347260% |
| C | 6606 | 66 | 0.999092% |
| D | 6606 | 192 | 2.906449% |

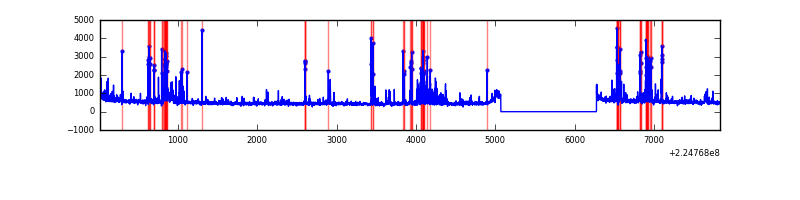

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7811 | 6606 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7811 | 6606 | 5 | 5 | 0.06% | 0.08% |  |
| C | 7811 | 6606 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7811 | 6606 | 101 | 101 | 1.29% | 1.53% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 226 | 8129 | 42.53 | 852 | 834 | 171.5 |
| A | 12 | 194 | 7737 | 40.25 | 852 | 834 | 171.5 |
| A | 15 | 239 | 6260 | 31.64 | 852 | 834 | 171.5 |
| B | 0 | 214 | 90454 | 556.5 | 853 | 835 | 161.0 |
| B | 0 | 213 | 48547 | 296.27 | 853 | 835 | 161.0 |
| B | 4 | 173 | 20224 | 120.4 | 853 | 835 | 161.0 |
| C | 13 | 61 | 6367 | 28.92 | 831 | 837 | 191.2 |
| C | 1 | 16 | 4350 | 18.37 | 831 | 837 | 191.2 |
| C | 12 | 4 | 2256 | 7.42 | 831 | 837 | 191.2 |
| D | 1 | 52 | 267759 | 1331.38 | 827 | 805 | 200.5 |
| D | 12 | 233 | 181146 | 899.41 | 827 | 805 | 200.5 |
| D | 2 | 152 | 77912 | 384.56 | 827 | 805 | 200.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

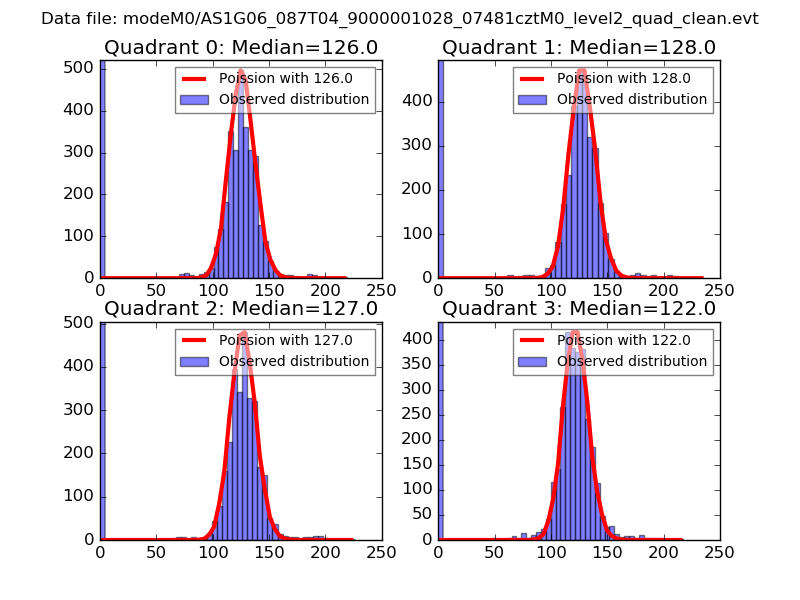

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

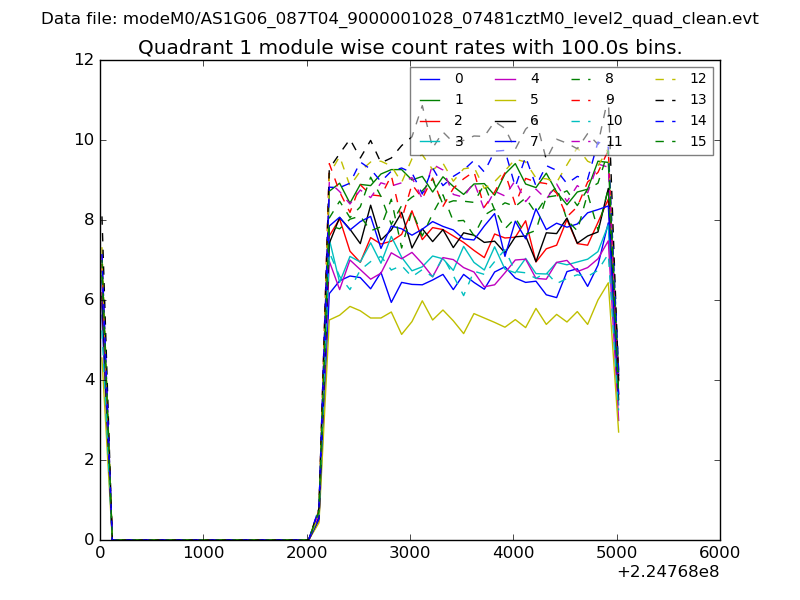

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

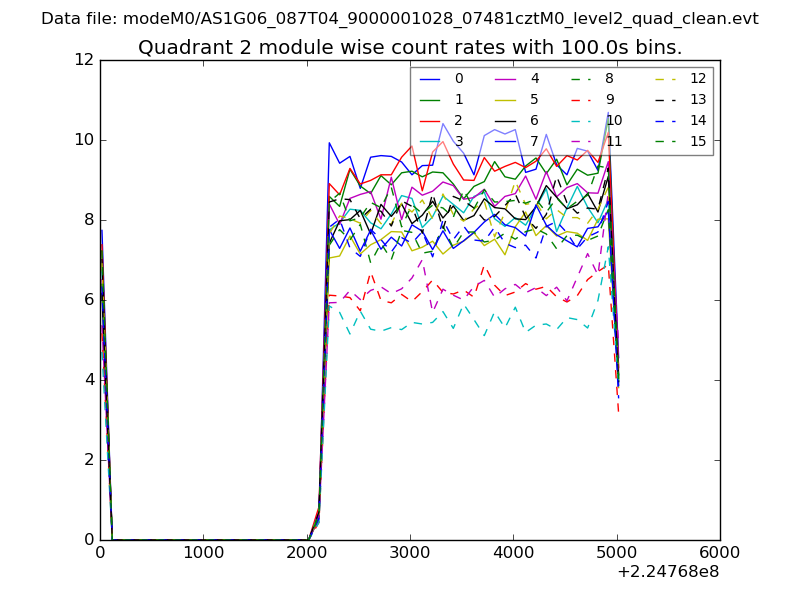

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

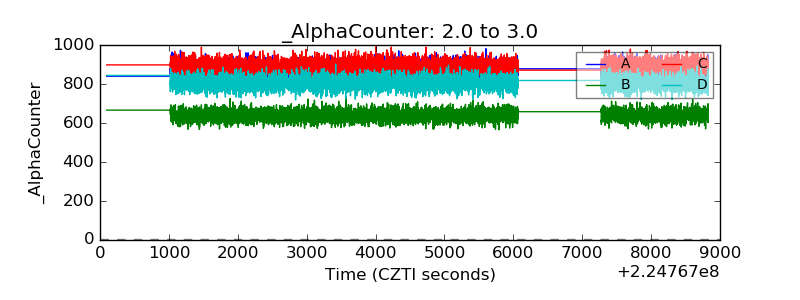

| Alpha Counter |  |

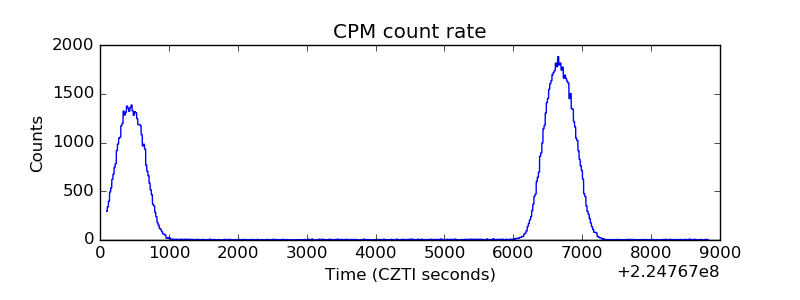

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

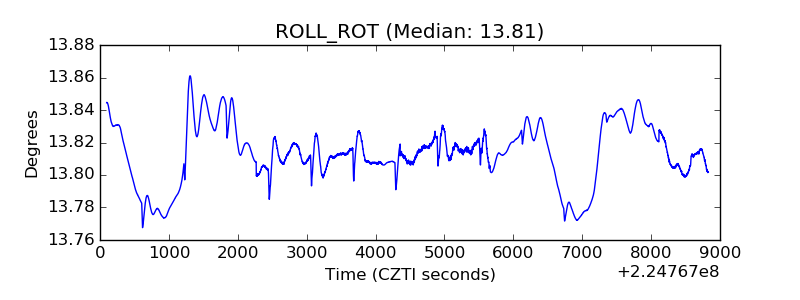

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
