| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T01_156T01_9000001034_07488cztM0_level2.evt | modeM0/AS1T01_156T01_9000001034_07488cztM0_level2_quad_clean.evt |
| Size (bytes) | 283,230,720 | 42,615,360 |
| Size | 270.1 MB | 40.6 MB |
| Events in quadrant A | 1,906,998 | 255,530 |
| Events in quadrant B | 2,309,646 | 258,590 |
| Events in quadrant C | 1,889,108 | 258,270 |
| Events in quadrant D | 2,207,859 | 244,571 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 3 | 0 |
| B | 0 | 3 | 0 |
| C | 0 | 3 | 0 |
| D | 0 | 3 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 78 | 0 |
| B | 0 | 78 | 0 |
| C | 0 | 78 | 0 |
| D | 0 | 78 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 8061 | 2 |
| B | 0 | 9334 | 1 |
| C | 0 | 8029 | 1 |
| D | 0 | 9143 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 3862 | 15 | 0.388400% |
| B | 3862 | 84 | 2.175039% |
| C | 3862 | 14 | 0.362506% |
| D | 3862 | 81 | 2.097359% |

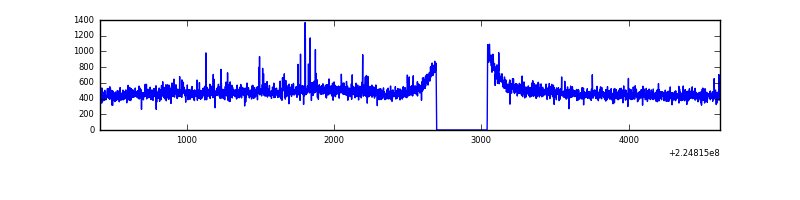

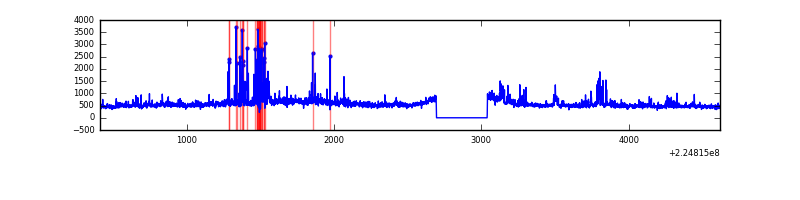

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 4207 | 3863 | 0 | 0 | 0.00% | 0.00% |  |
| B | 4207 | 3863 | 30 | 30 | 0.71% | 0.78% |  |
| C | 4207 | 3863 | 0 | 0 | 0.00% | 0.00% |  |
| D | 4207 | 3863 | 37 | 37 | 0.88% | 0.96% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 3 | 1 | 16442 | 157.52 | 487 | 475 | 101.4 |
| A | 15 | 239 | 5471 | 49.29 | 487 | 475 | 101.4 |
| A | 0 | 226 | 4646 | 41.15 | 487 | 475 | 101.4 |
| B | 0 | 214 | 140949 | 1445.87 | 491 | 480 | 97.2 |
| B | 0 | 219 | 134156 | 1375.95 | 491 | 480 | 97.2 |
| B | 4 | 81 | 38897 | 395.43 | 491 | 480 | 97.2 |
| C | 1 | 16 | 29839 | 264.09 | 473 | 475 | 111.2 |
| C | 8 | 128 | 4423 | 35.5 | 473 | 475 | 111.2 |
| C | 13 | 61 | 3684 | 28.86 | 473 | 475 | 111.2 |
| D | 2 | 152 | 117417 | 992.93 | 470 | 455 | 117.8 |
| D | 2 | 136 | 77788 | 656.51 | 470 | 455 | 117.8 |
| D | 14 | 34 | 73024 | 616.06 | 470 | 455 | 117.8 |

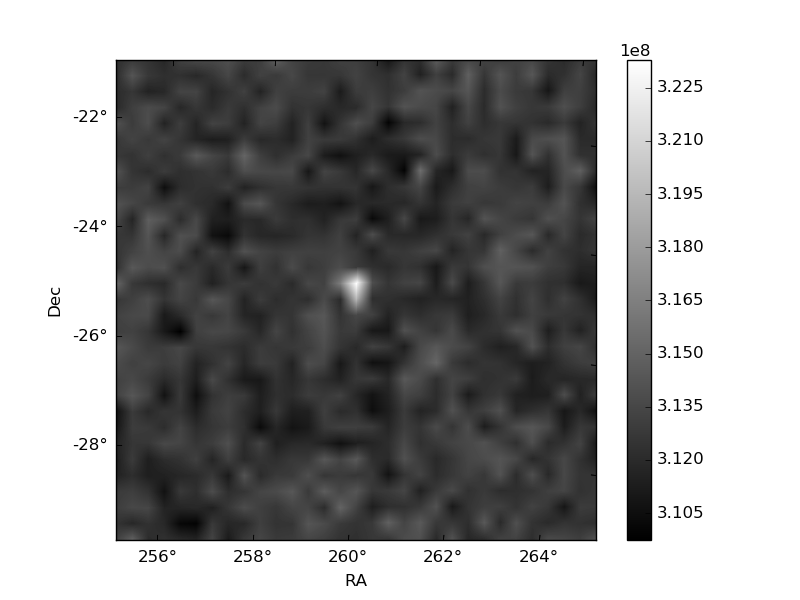

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

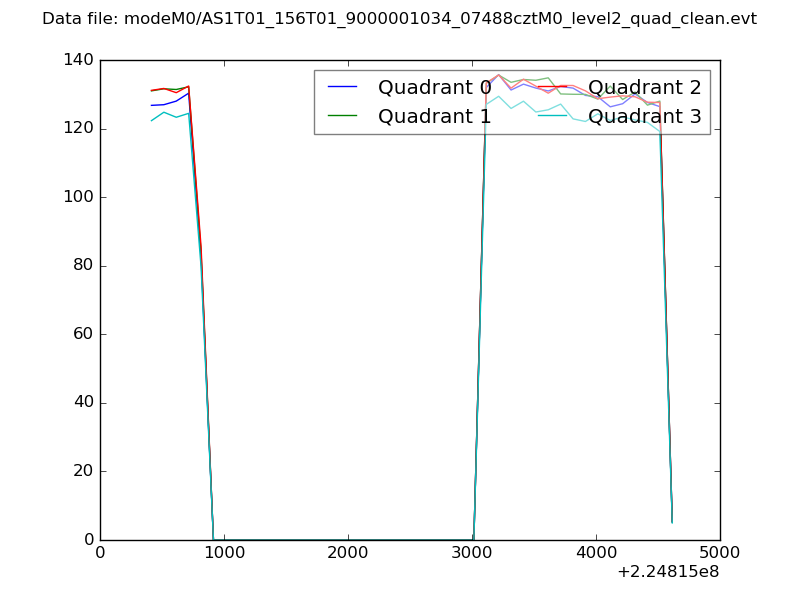

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

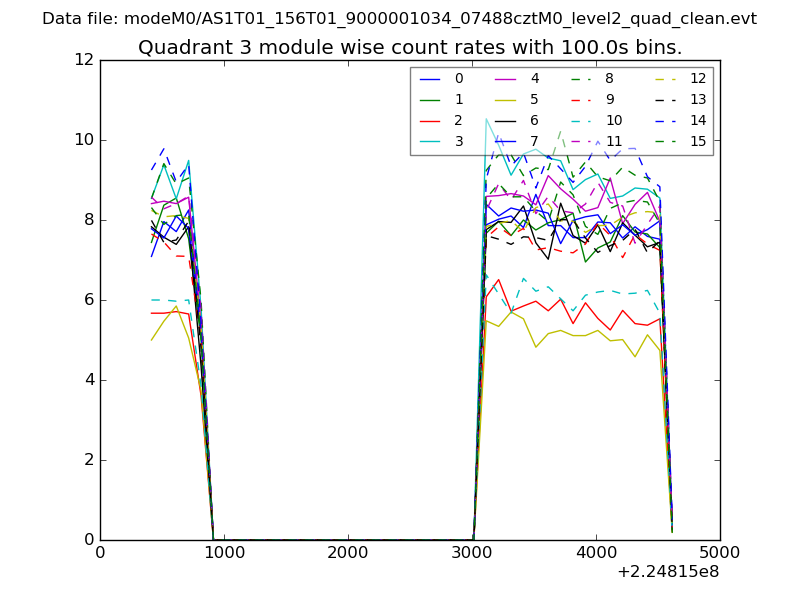

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

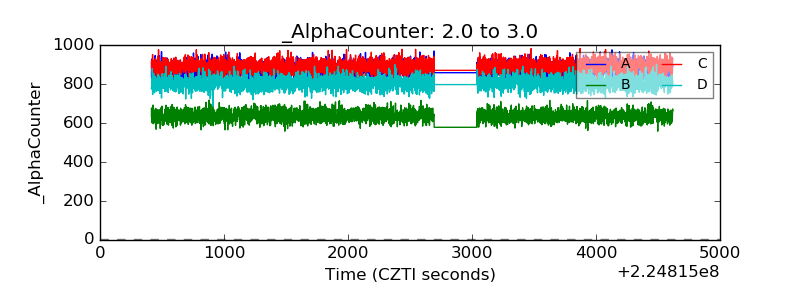

| Alpha Counter |  |

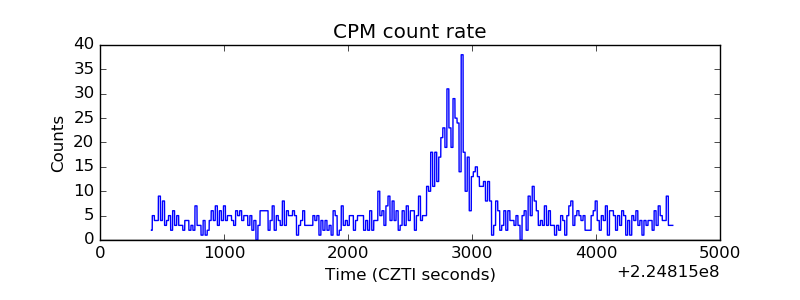

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

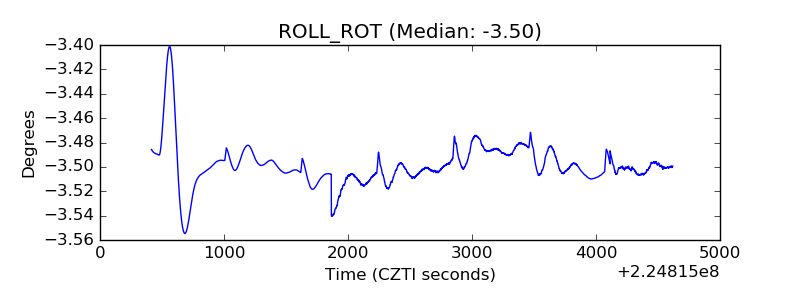

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
