| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T01_156T01_9000001034_07496cztM0_level2.evt | modeM0/AS1T01_156T01_9000001034_07496cztM0_level2_quad_clean.evt |
| Size (bytes) | 448,390,080 | 77,189,760 |
| Size | 427.6 MB | 73.6 MB |
| Events in quadrant A | 3,230,445 | 478,285 |
| Events in quadrant B | 3,420,245 | 485,458 |
| Events in quadrant C | 3,136,932 | 476,486 |
| Events in quadrant D | 3,360,649 | 454,291 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13386 | 2 |
| B | 0 | 13975 | 1 |
| C | 0 | 13204 | 1 |
| D | 0 | 13906 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6342 | 65 | 1.024913% |
| B | 6342 | 75 | 1.182592% |
| C | 6342 | 59 | 0.930306% |
| D | 6342 | 86 | 1.356039% |

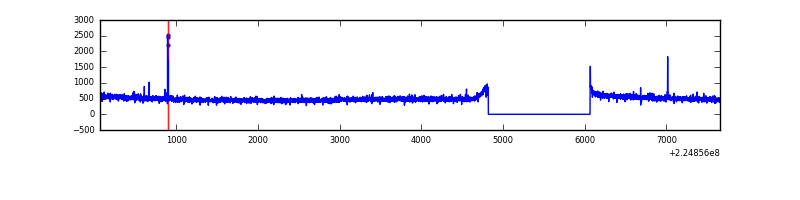

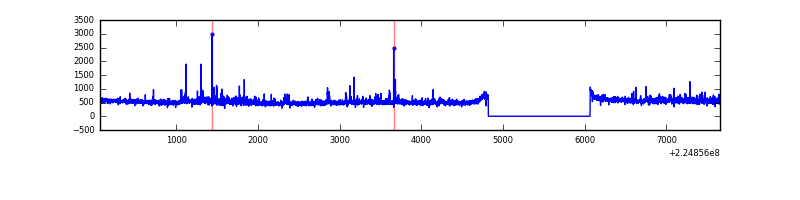

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7587 | 6342 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7587 | 6342 | 2 | 2 | 0.03% | 0.03% |  |
| C | 7587 | 6343 | 3 | 3 | 0.04% | 0.05% |  |
| D | 7587 | 6342 | 23 | 23 | 0.30% | 0.36% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 64 | 14180 | 80.48 | 829 | 815 | 166.1 |
| A | 15 | 239 | 11560 | 64.7 | 829 | 815 | 166.1 |
| A | 0 | 23 | 11545 | 64.61 | 829 | 815 | 166.1 |
| B | 0 | 214 | 138800 | 900.88 | 825 | 811 | 153.2 |
| B | 0 | 219 | 21511 | 135.14 | 825 | 811 | 153.2 |
| B | 4 | 170 | 19144 | 119.69 | 825 | 811 | 153.2 |
| C | 10 | 22 | 14145 | 72.77 | 797 | 804 | 183.3 |
| C | 8 | 229 | 8624 | 42.66 | 797 | 804 | 183.3 |
| C | 13 | 61 | 6112 | 28.95 | 797 | 804 | 183.3 |
| D | 2 | 136 | 104249 | 527.08 | 804 | 780 | 196.3 |
| D | 1 | 52 | 73508 | 370.48 | 804 | 780 | 196.3 |
| D | 2 | 152 | 51703 | 259.41 | 804 | 780 | 196.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

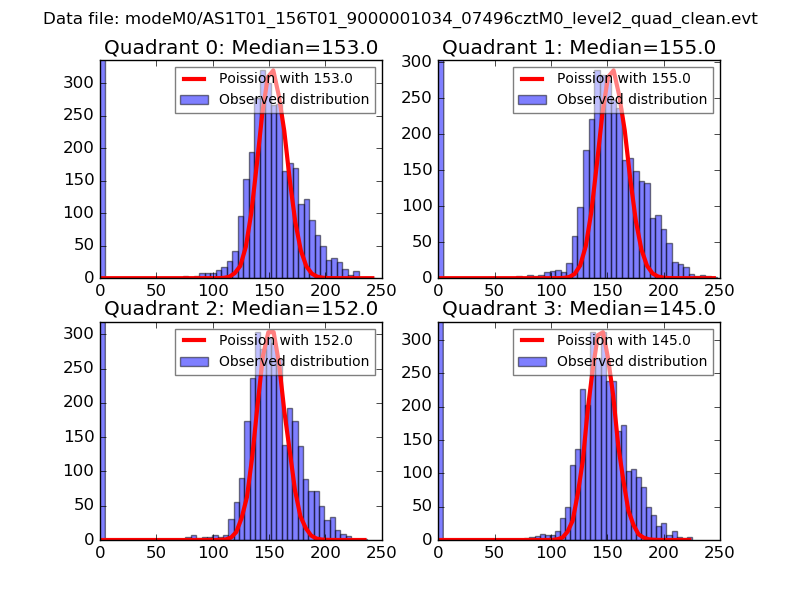

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

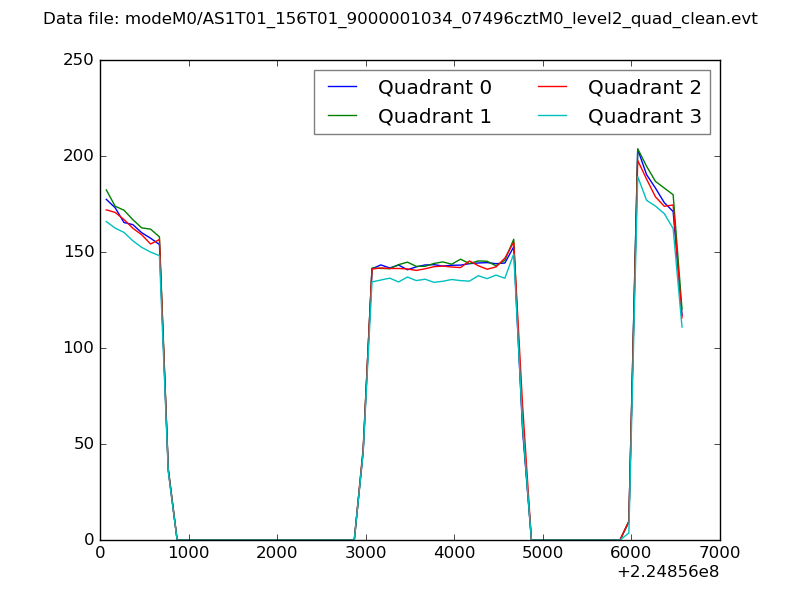

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

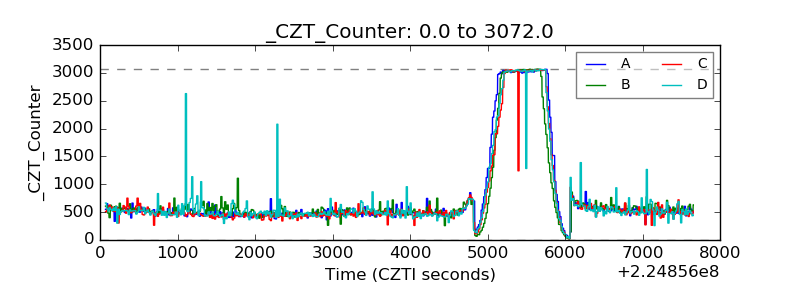

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
