| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T01_156T01_9000001034_07498cztM0_level2.evt | modeM0/AS1T01_156T01_9000001034_07498cztM0_level2_quad_clean.evt |
| Size (bytes) | 498,142,080 | 68,607,360 |
| Size | 475.1 MB | 65.4 MB |
| Events in quadrant A | 3,409,304 | 411,088 |
| Events in quadrant B | 3,679,339 | 417,092 |
| Events in quadrant C | 3,365,603 | 409,410 |
| Events in quadrant D | 4,186,267 | 381,588 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 13 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14027 | 2 |
| B | 0 | 15040 | 1 |
| C | 0 | 13994 | 1 |
| D | 0 | 16743 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6570 | 159 | 2.420091% |
| B | 6570 | 176 | 2.678843% |
| C | 6570 | 99 | 1.506849% |
| D | 6570 | 251 | 3.820396% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|

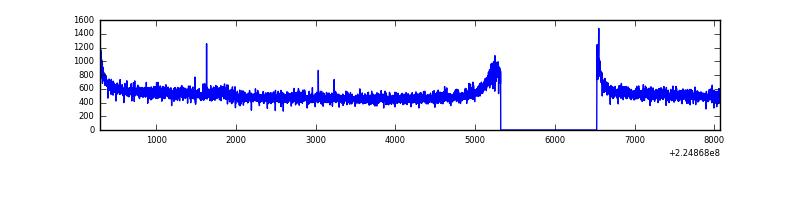

| A | 7775 | 6570 | 0 | 0 | 0.00% | 0.00% |  |

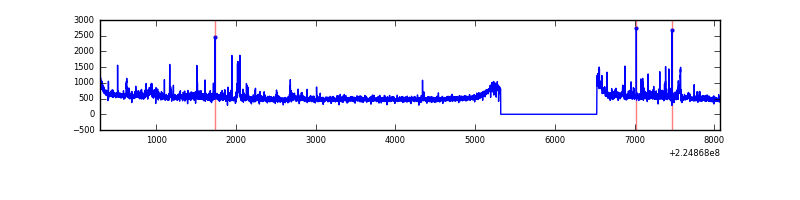

| B | 7775 | 6570 | 3 | 3 | 0.04% | 0.05% |  |
| C | 7775 | 6570 | 1 | 1 | 0.01% | 0.02% |  |

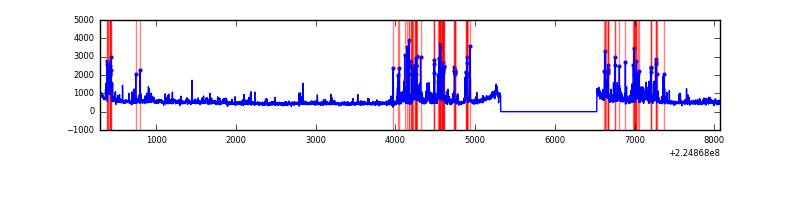

| D | 7775 | 6570 | 105 | 105 | 1.35% | 1.60% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 234 | 26266 | 144.88 | 873 | 856 | 175.4 |
| A | 15 | 239 | 15172 | 81.63 | 873 | 856 | 175.4 |
| A | 0 | 226 | 8341 | 42.68 | 873 | 856 | 175.4 |
| B | 0 | 214 | 144354 | 864.72 | 874 | 857 | 165.9 |
| B | 4 | 170 | 53822 | 319.17 | 874 | 857 | 165.9 |
| B | 4 | 81 | 28212 | 164.84 | 874 | 857 | 165.9 |
| C | 1 | 16 | 56275 | 285.7 | 841 | 849 | 194.0 |
| C | 8 | 229 | 24088 | 119.79 | 841 | 849 | 194.0 |
| C | 12 | 4 | 6721 | 30.27 | 841 | 849 | 194.0 |
| D | 2 | 152 | 647016 | 3161.71 | 839 | 818 | 204.4 |
| D | 13 | 169 | 102108 | 495.59 | 839 | 818 | 204.4 |
| D | 2 | 14 | 96303 | 467.19 | 839 | 818 | 204.4 |

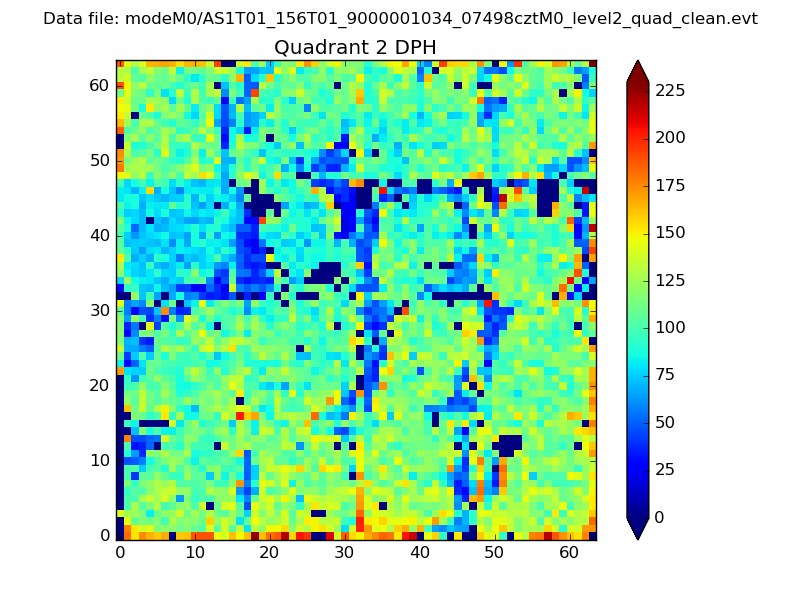

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

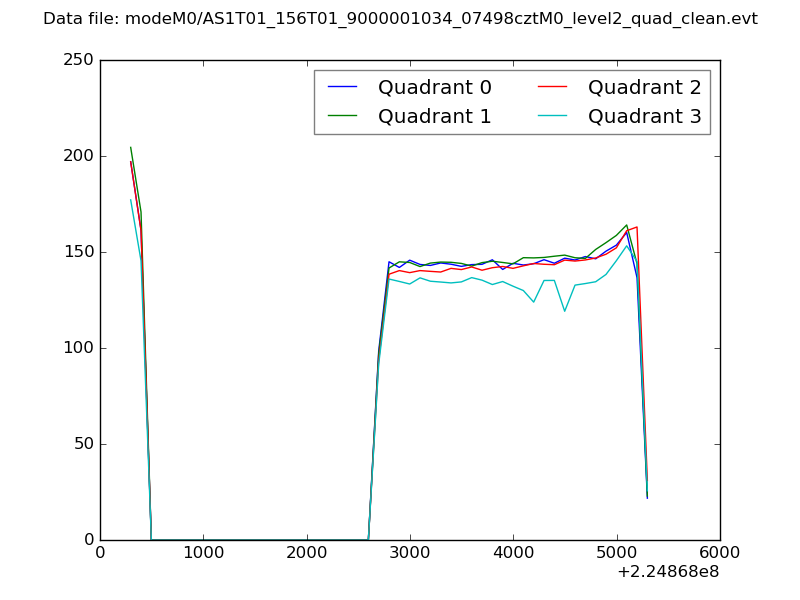

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

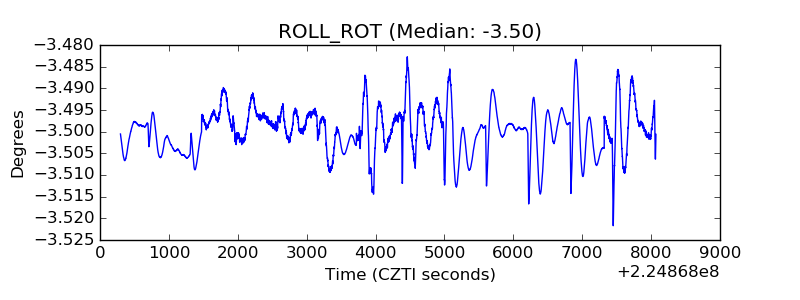

| _ROLL_ROT |  |
| _Roll_DEC |  |

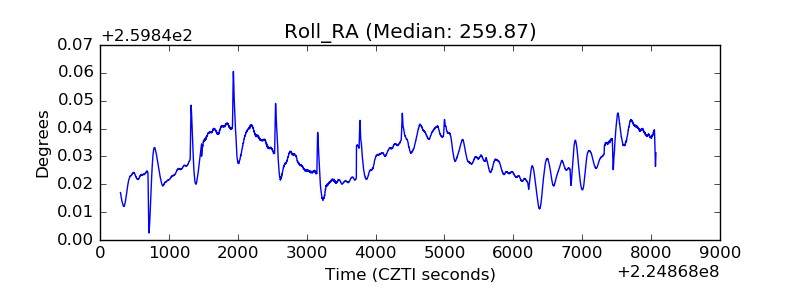

| _Roll_RA |  |
| Veto Counter |  |
