| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T01_156T01_9000001034_07500cztM0_level2.evt | modeM0/AS1T01_156T01_9000001034_07500cztM0_level2_quad_clean.evt |
| Size (bytes) | 454,875,840 | 81,734,400 |
| Size | 433.8 MB | 77.9 MB |
| Events in quadrant A | 3,241,275 | 505,395 |
| Events in quadrant B | 3,398,242 | 511,802 |
| Events in quadrant C | 3,206,523 | 503,940 |
| Events in quadrant D | 3,469,233 | 481,518 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16 | 0 |
| B | 0 | 16 | 0 |
| C | 0 | 16 | 0 |
| D | 0 | 17 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 138 | 0 |
| B | 0 | 138 | 0 |
| C | 0 | 138 | 0 |
| D | 0 | 138 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13969 | 3 |
| B | 0 | 14309 | 2 |
| C | 0 | 13971 | 2 |
| D | 0 | 14825 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6776 | 58 | 0.855962% |
| B | 6776 | 65 | 0.959268% |
| C | 6776 | 27 | 0.398465% |
| D | 6776 | 86 | 1.269185% |

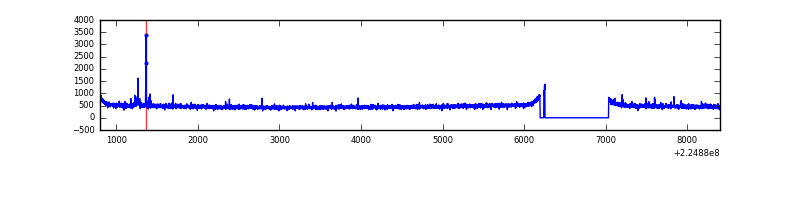

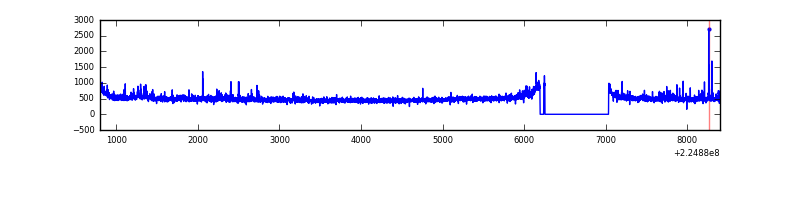

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7601 | 6778 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7601 | 6778 | 1 | 1 | 0.01% | 0.01% |  |
| C | 7601 | 6778 | 2 | 2 | 0.03% | 0.03% |  |
| D | 7601 | 6778 | 38 | 38 | 0.50% | 0.56% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 239 | 18232 | 103.03 | 833 | 817 | 169.0 |
| A | 0 | 226 | 8251 | 43.98 | 833 | 817 | 169.0 |
| A | 12 | 194 | 7560 | 39.89 | 833 | 817 | 169.0 |
| B | 0 | 214 | 47781 | 292.57 | 838 | 819 | 160.5 |
| B | 4 | 173 | 27111 | 163.79 | 838 | 819 | 160.5 |
| B | 0 | 229 | 20736 | 124.08 | 838 | 819 | 160.5 |
| C | 1 | 16 | 30997 | 160.77 | 809 | 815 | 187.7 |
| C | 8 | 229 | 17049 | 86.47 | 809 | 815 | 187.7 |
| C | 13 | 61 | 6239 | 28.89 | 809 | 815 | 187.7 |
| D | 2 | 152 | 146587 | 745.05 | 805 | 785 | 195.7 |
| D | 2 | 14 | 127690 | 648.49 | 805 | 785 | 195.7 |
| D | 12 | 233 | 41621 | 208.67 | 805 | 785 | 195.7 |

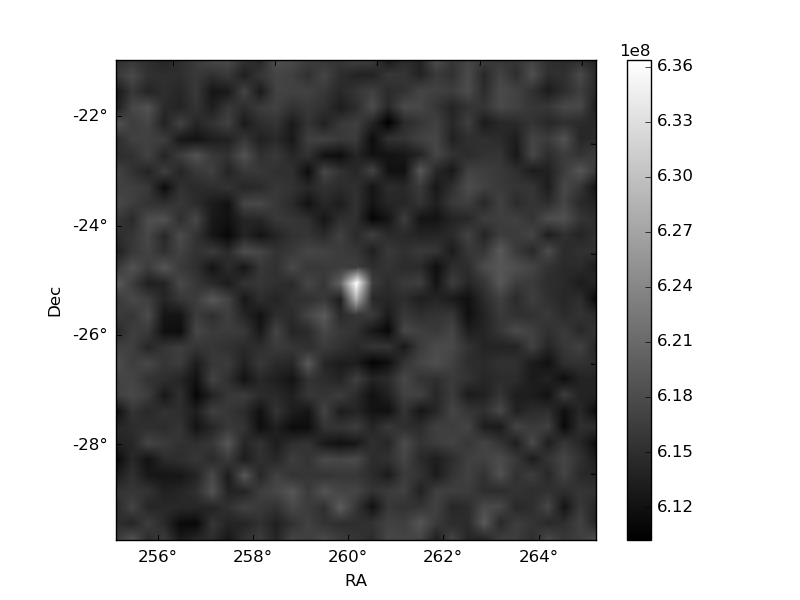

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

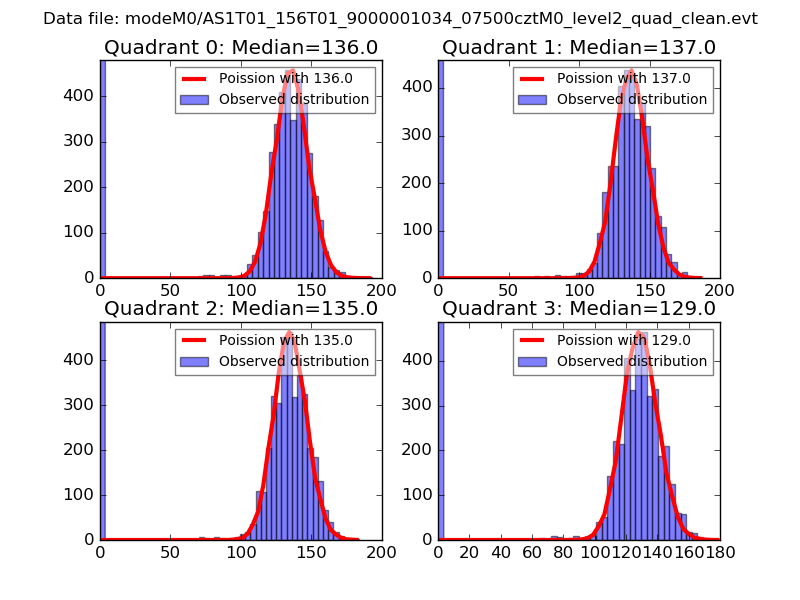

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

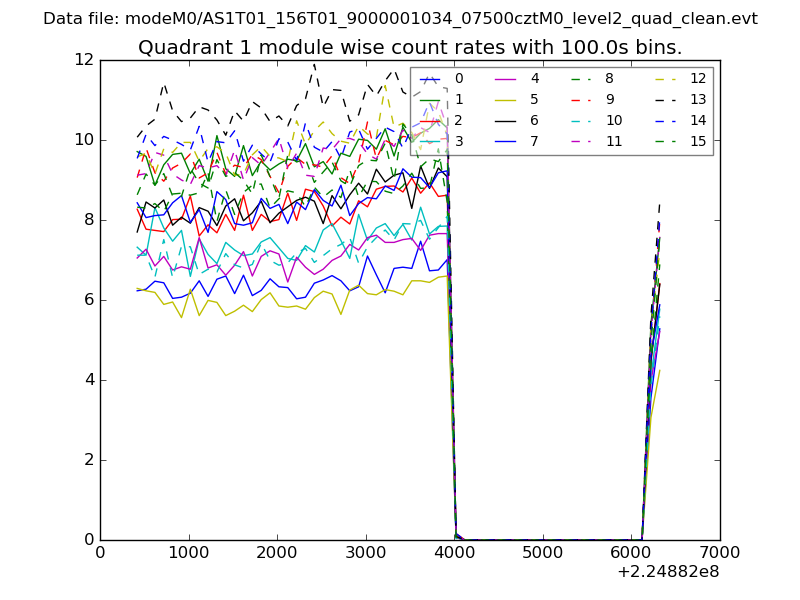

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

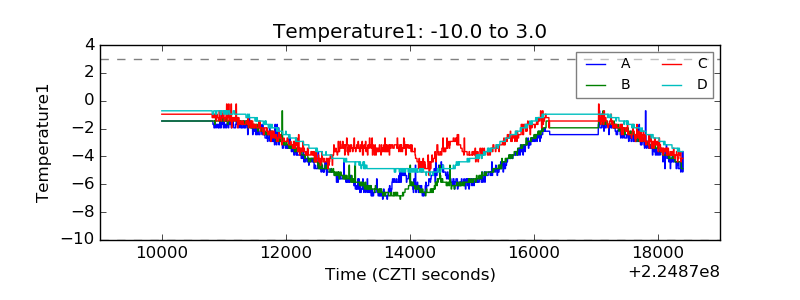

| Temperature 1 |  |
| Veto HV Monitor |  |

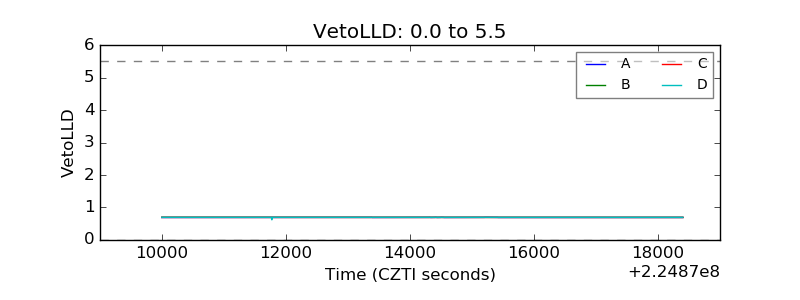

| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

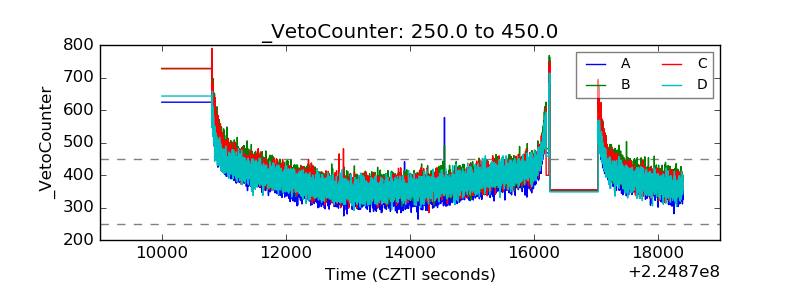

| Veto Counter |  |
