| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T01_156T01_9000001034_07501cztM0_level2.evt | modeM0/AS1T01_156T01_9000001034_07501cztM0_level2_quad_clean.evt |
| Size (bytes) | 613,437,120 | 93,988,800 |
| Size | 585.0 MB | 89.6 MB |
| Events in quadrant A | 3,796,721 | 598,262 |
| Events in quadrant B | 4,015,762 | 604,979 |
| Events in quadrant C | 3,866,891 | 595,101 |
| Events in quadrant D | 6,364,669 | 500,244 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 164 | 0 |
| B | 0 | 164 | 0 |
| C | 0 | 164 | 0 |
| D | 0 | 164 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16412 | 3 |
| B | 0 | 16919 | 2 |
| C | 0 | 16678 | 2 |
| D | 0 | 24158 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7871 | 127 | 1.613518% |
| B | 7871 | 160 | 2.032779% |
| C | 7871 | 95 | 1.206962% |
| D | 7871 | 932 | 11.840935% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 9026 | 7875 | 2 | 2 | 0.02% | 0.03% |  |
| B | 9026 | 7875 | 1 | 1 | 0.01% | 0.01% |  |
| C | 9026 | 7875 | 18 | 18 | 0.20% | 0.23% |  |
| D | 9026 | 7875 | 803 | 803 | 8.90% | 10.20% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 239 | 19110 | 90.58 | 977 | 957 | 200.4 |
| A | 0 | 226 | 9377 | 42.02 | 977 | 957 | 200.4 |
| A | 12 | 194 | 8794 | 39.11 | 977 | 957 | 200.4 |
| B | 0 | 214 | 94427 | 493.87 | 984 | 964 | 189.2 |
| B | 0 | 219 | 41167 | 212.44 | 984 | 964 | 189.2 |
| B | 4 | 173 | 23249 | 117.76 | 984 | 964 | 189.2 |
| C | 1 | 16 | 105400 | 471.38 | 949 | 953 | 221.6 |
| C | 8 | 229 | 58401 | 259.27 | 949 | 953 | 221.6 |
| C | 13 | 61 | 7308 | 28.68 | 949 | 953 | 221.6 |
| D | 1 | 52 | 2122871 | 9658.93 | 895 | 869 | 219.7 |
| D | 2 | 152 | 510566 | 2320.04 | 895 | 869 | 219.7 |
| D | 2 | 14 | 162988 | 737.93 | 895 | 869 | 219.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

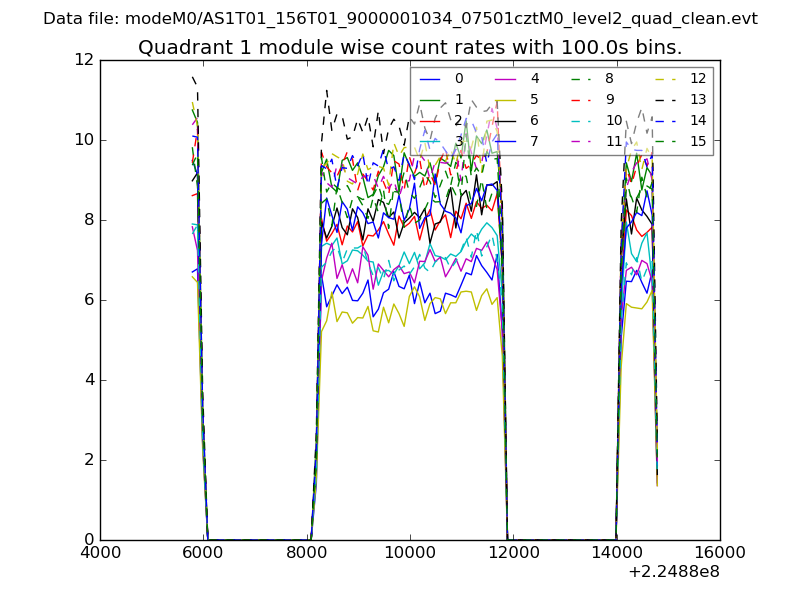

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

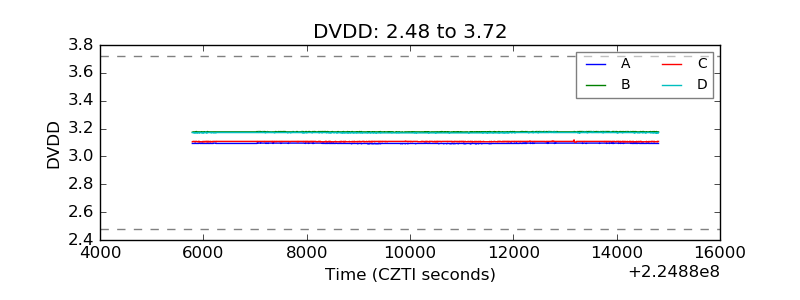

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

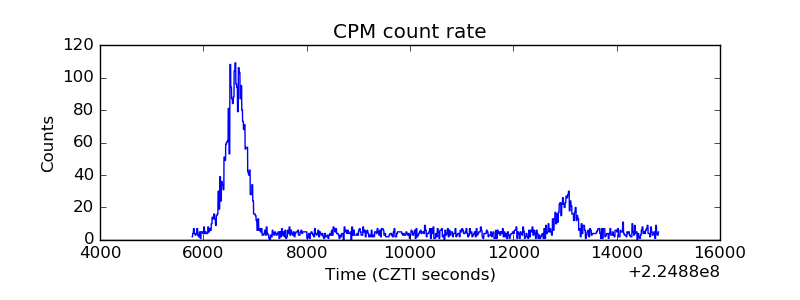

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

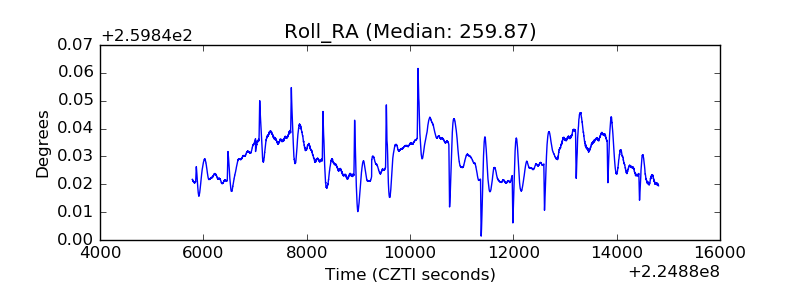

| _Roll_RA |  |
| Veto Counter |  |
