| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G06_076T01_9000001038_07527cztM0_level2.evt | modeM0/AS1G06_076T01_9000001038_07527cztM0_level2_quad_clean.evt |
| Size (bytes) | 460,681,920 | 80,245,440 |
| Size | 439.3 MB | 76.5 MB |
| Events in quadrant A | 3,230,826 | 500,363 |
| Events in quadrant B | 3,270,387 | 510,637 |
| Events in quadrant C | 3,138,301 | 493,801 |
| Events in quadrant D | 3,868,921 | 470,067 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 20 | 0 |
| B | 0 | 20 | 0 |
| C | 0 | 20 | 0 |
| D | 0 | 21 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13771 | 3 |
| B | 0 | 13877 | 2 |
| C | 0 | 13631 | 2 |
| D | 0 | 16068 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6523 | 145 | 2.222904% |
| B | 6523 | 144 | 2.207573% |
| C | 6523 | 101 | 1.548367% |
| D | 6523 | 287 | 4.399816% |

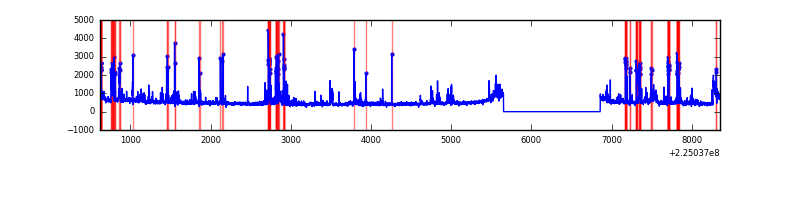

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7728 | 6523 | 1 | 1 | 0.01% | 0.02% |  |
| B | 7728 | 6523 | 1 | 1 | 0.01% | 0.02% |  |
| C | 7728 | 6523 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7728 | 6523 | 130 | 130 | 1.68% | 1.99% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 248 | 25681 | 150.22 | 824 | 806 | 165.6 |
| A | 13 | 14 | 22545 | 131.28 | 824 | 806 | 165.6 |
| A | 3 | 1 | 11788 | 66.32 | 824 | 806 | 165.6 |
| B | 0 | 213 | 34027 | 213.12 | 830 | 812 | 155.9 |
| B | 12 | 111 | 15146 | 91.97 | 830 | 812 | 155.9 |
| B | 11 | 111 | 12347 | 74.01 | 830 | 812 | 155.9 |
| C | 8 | 229 | 20143 | 106.56 | 795 | 799 | 181.5 |
| C | 9 | 68 | 8241 | 41.0 | 795 | 799 | 181.5 |
| C | 13 | 61 | 6249 | 30.02 | 795 | 799 | 181.5 |
| D | 2 | 244 | 294496 | 1537.08 | 787 | 763 | 191.1 |
| D | 2 | 152 | 279611 | 1459.19 | 787 | 763 | 191.1 |
| D | 14 | 34 | 129897 | 675.75 | 787 | 763 | 191.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

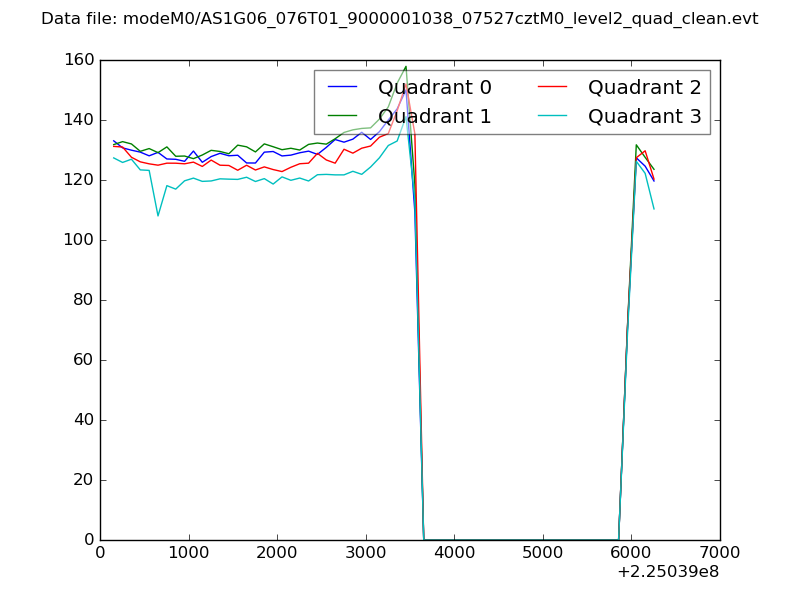

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

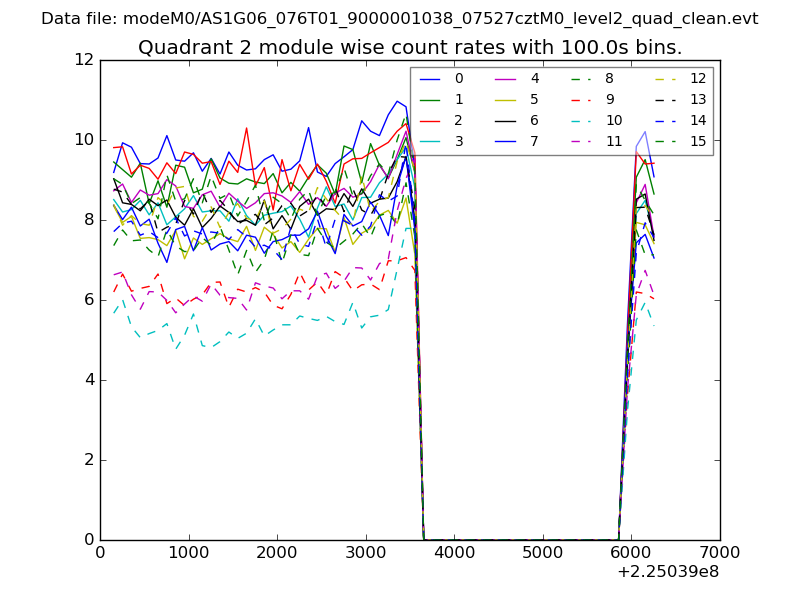

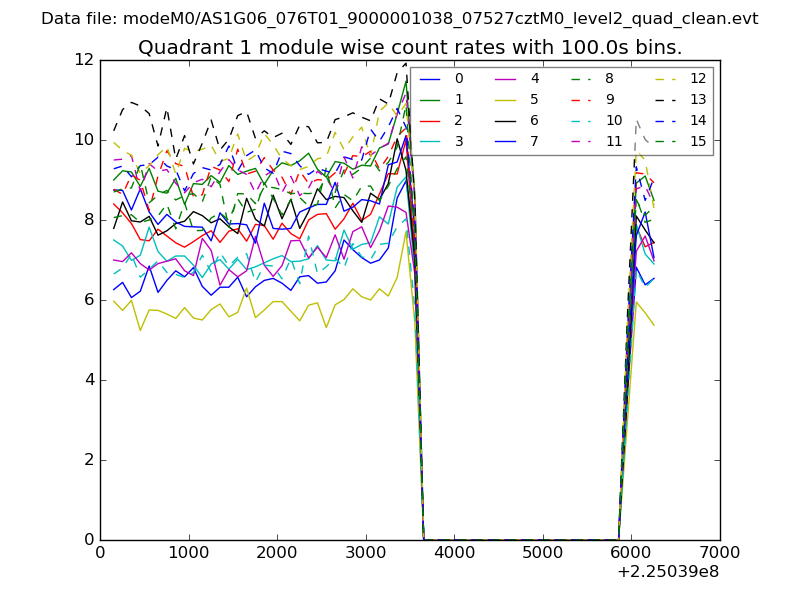

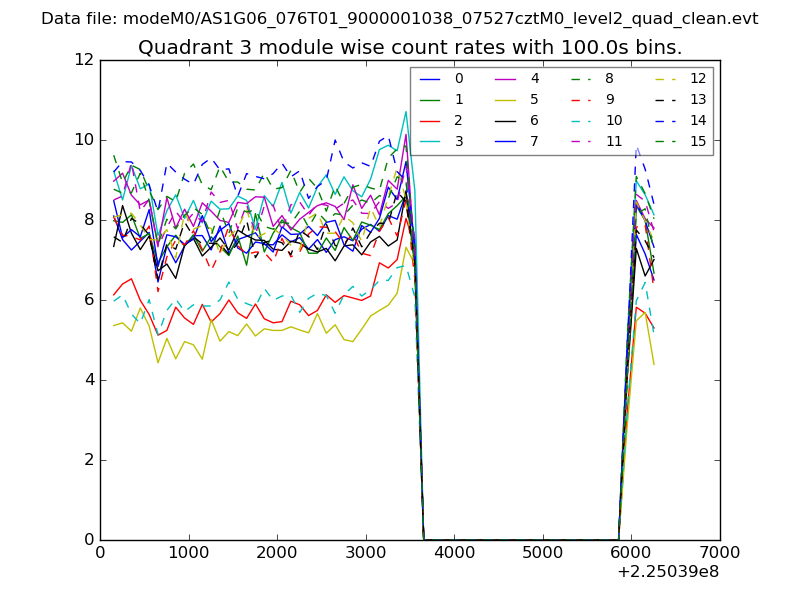

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

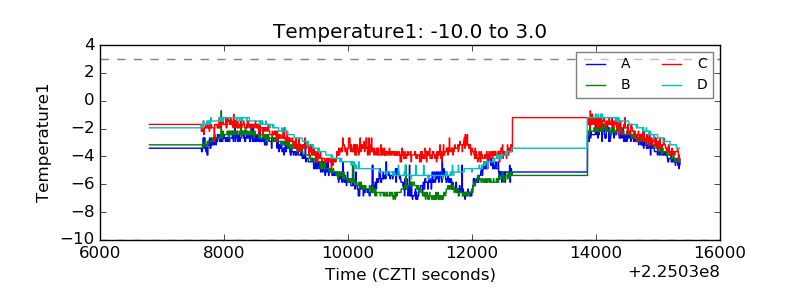

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

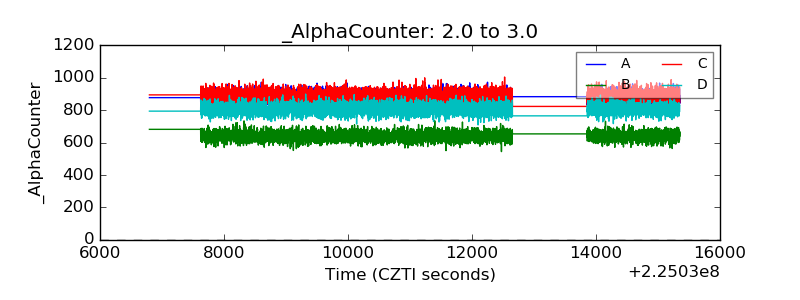

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

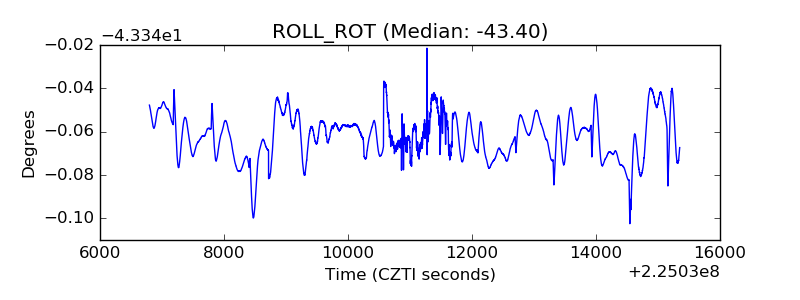

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
