| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G06_076T01_9000001038_07542cztM0_level2.evt | modeM0/AS1G06_076T01_9000001038_07542cztM0_level2_quad_clean.evt |
| Size (bytes) | 461,257,920 | 85,046,400 |
| Size | 439.9 MB | 81.1 MB |
| Events in quadrant A | 3,407,687 | 535,500 |
| Events in quadrant B | 3,243,994 | 546,653 |
| Events in quadrant C | 3,129,725 | 526,982 |
| Events in quadrant D | 3,736,895 | 503,743 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 21 | 0 |
| B | 0 | 21 | 0 |
| C | 0 | 21 | 0 |
| D | 0 | 22 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14477 | 3 |
| B | 0 | 13917 | 2 |
| C | 0 | 13796 | 2 |
| D | 0 | 15795 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 134 | 0 |
| B | 0 | 134 | 0 |
| C | 0 | 134 | 0 |
| D | 0 | 134 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6636 | 219 | 3.300181% |
| B | 6636 | 112 | 1.687764% |
| C | 6636 | 78 | 1.175407% |
| D | 6636 | 199 | 2.998794% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

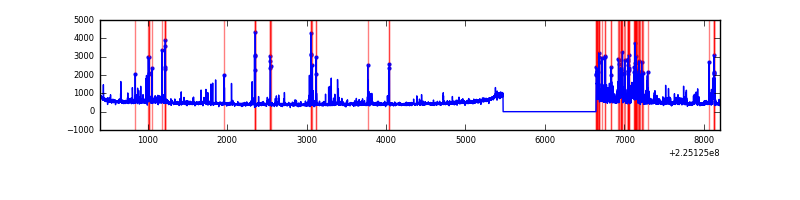

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7806 | 6637 | 73 | 73 | 0.94% | 1.10% |  |
| B | 7806 | 6636 | 0 | 0 | 0.00% | 0.00% |  |
| C | 7806 | 6637 | 1 | 1 | 0.01% | 0.02% |  |
| D | 7806 | 6636 | 95 | 95 | 1.22% | 1.43% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 14 | 111 | 235786 | 1423.12 | 820 | 803 | 165.1 |
| A | 13 | 14 | 10067 | 56.1 | 820 | 803 | 165.1 |
| A | 0 | 62 | 10067 | 56.1 | 820 | 803 | 165.1 |
| B | 12 | 111 | 15108 | 91.09 | 829 | 809 | 157.0 |
| B | 11 | 111 | 12425 | 73.99 | 829 | 809 | 157.0 |
| B | 4 | 173 | 12090 | 71.86 | 829 | 809 | 157.0 |
| C | 8 | 229 | 14194 | 73.24 | 794 | 799 | 182.9 |
| C | 9 | 68 | 10183 | 51.31 | 794 | 799 | 182.9 |
| C | 13 | 61 | 6080 | 28.87 | 794 | 799 | 182.9 |
| D | 14 | 34 | 272028 | 1428.24 | 789 | 764 | 189.9 |
| D | 2 | 152 | 220481 | 1156.84 | 789 | 764 | 189.9 |
| D | 2 | 14 | 118435 | 619.55 | 789 | 764 | 189.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

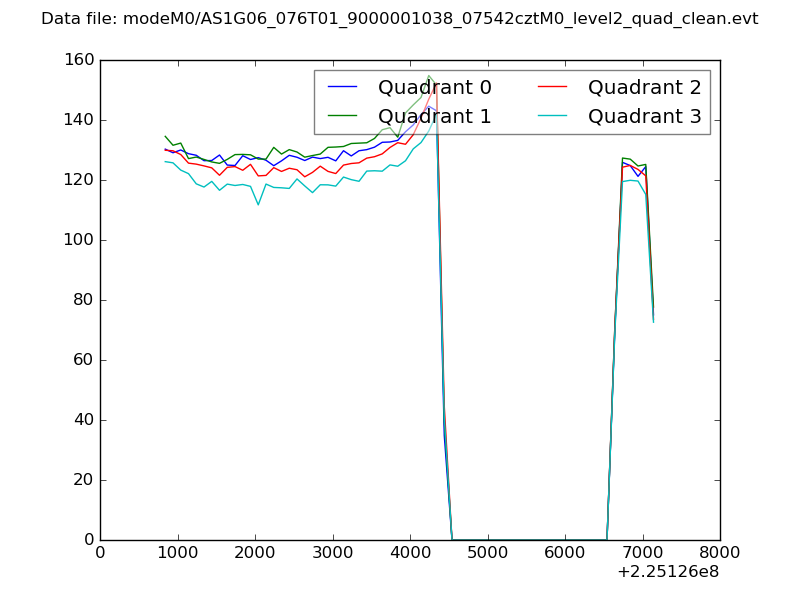

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

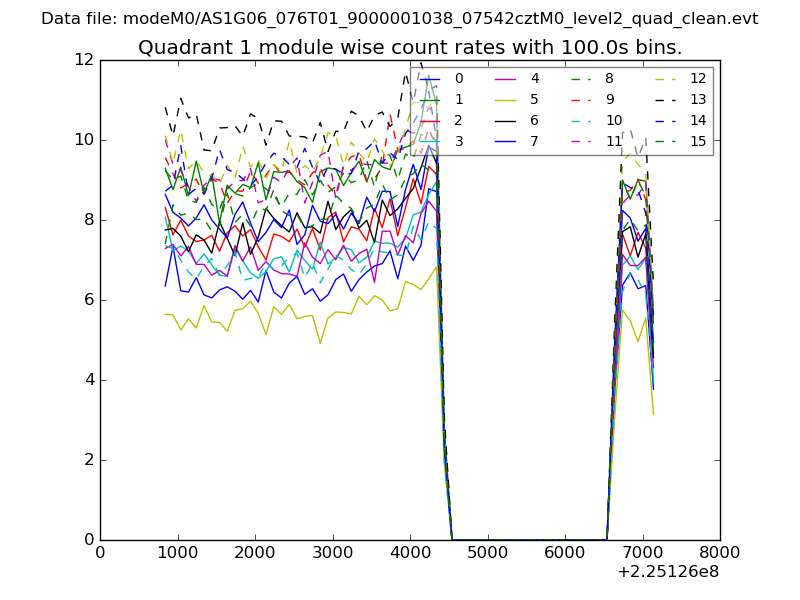

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

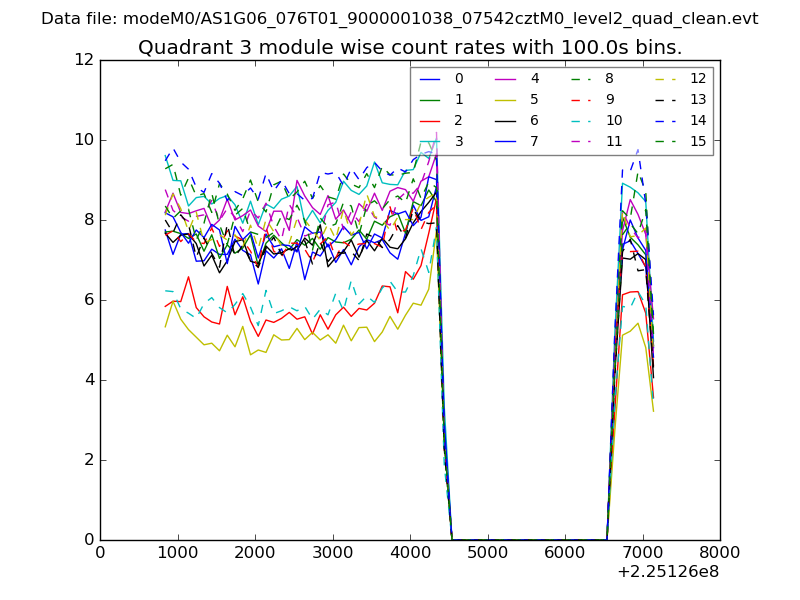

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

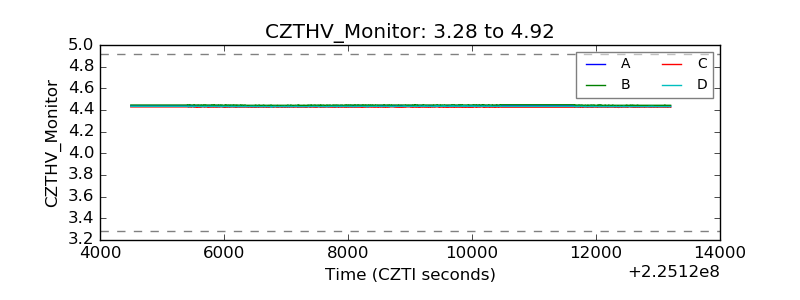

| CZT HV Monitor |  |

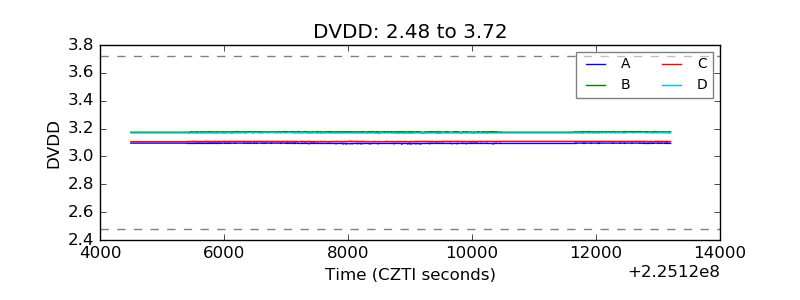

| D_VDD |  |

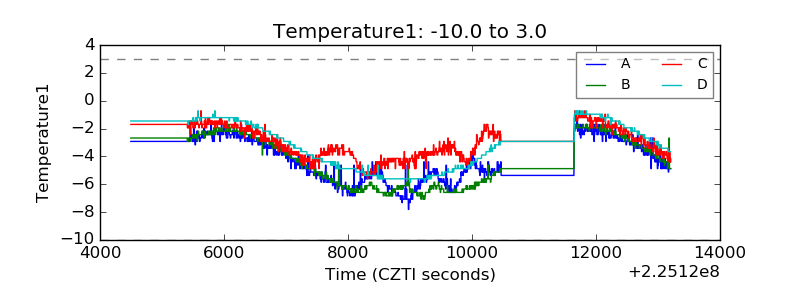

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

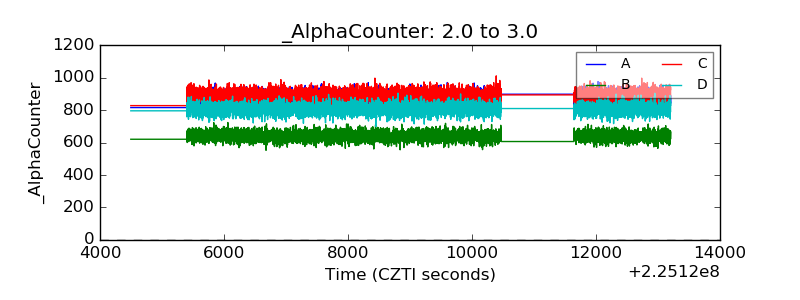

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
