| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G06_076T01_9000001038_07543cztM0_level2.evt | modeM0/AS1G06_076T01_9000001038_07543cztM0_level2_quad_clean.evt |
| Size (bytes) | 480,689,280 | 87,920,640 |
| Size | 458.4 MB | 83.8 MB |
| Events in quadrant A | 3,280,234 | 558,151 |
| Events in quadrant B | 3,129,494 | 569,888 |
| Events in quadrant C | 3,045,628 | 549,953 |
| Events in quadrant D | 4,653,801 | 524,224 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16 | 0 |
| B | 0 | 16 | 0 |
| C | 0 | 16 | 0 |
| D | 0 | 17 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14246 | 3 |
| B | 0 | 13643 | 2 |
| C | 0 | 13608 | 2 |
| D | 0 | 18527 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 134 | 0 |
| B | 0 | 134 | 0 |
| C | 0 | 134 | 0 |
| D | 0 | 134 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6602 | 146 | 2.211451% |
| B | 6602 | 51 | 0.772493% |
| C | 6602 | 20 | 0.302939% |
| D | 6602 | 397 | 6.013329% |

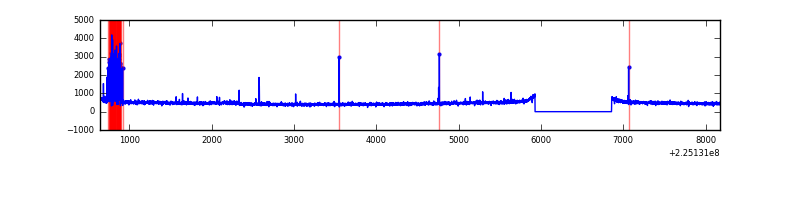

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7532 | 6603 | 76 | 76 | 1.01% | 1.15% |  |
| B | 7532 | 6603 | 0 | 0 | 0.00% | 0.00% |  |
| C | 7532 | 6603 | 4 | 4 | 0.05% | 0.06% |  |
| D | 7532 | 6603 | 269 | 269 | 3.57% | 4.07% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 14 | 111 | 268616 | 1699.35 | 779 | 762 | 157.6 |
| A | 13 | 14 | 13427 | 80.35 | 779 | 762 | 157.6 |
| A | 0 | 226 | 7470 | 42.56 | 779 | 762 | 157.6 |
| B | 12 | 111 | 14728 | 93.15 | 793 | 775 | 149.8 |
| B | 4 | 173 | 13211 | 83.02 | 793 | 775 | 149.8 |
| B | 0 | 219 | 12986 | 81.52 | 793 | 775 | 149.8 |
| C | 9 | 68 | 41507 | 233.29 | 761 | 765 | 174.6 |
| C | 1 | 16 | 25768 | 143.17 | 761 | 765 | 174.6 |
| C | 13 | 61 | 5831 | 29.01 | 761 | 765 | 174.6 |
| D | 2 | 152 | 1437027 | 7899.09 | 742 | 717 | 181.8 |
| D | 14 | 34 | 273461 | 1499.98 | 742 | 717 | 181.8 |
| D | 2 | 14 | 64314 | 349.76 | 742 | 717 | 181.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

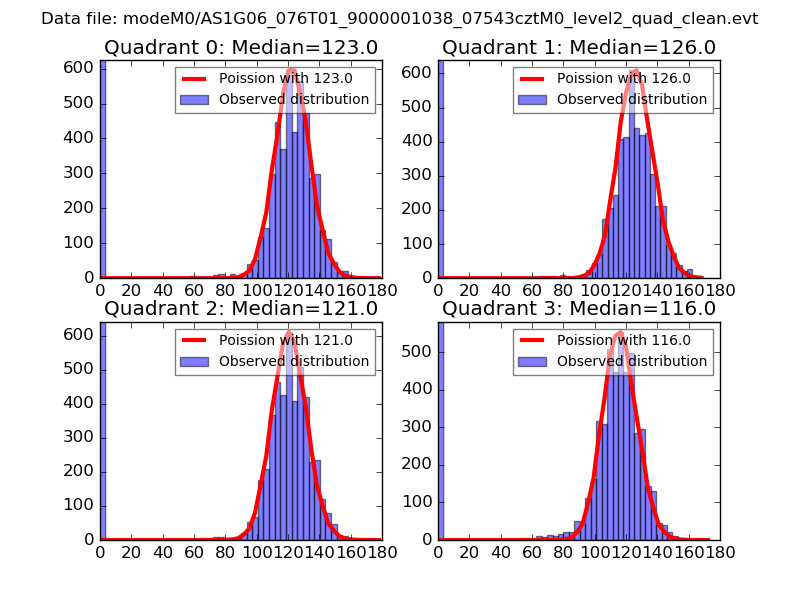

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

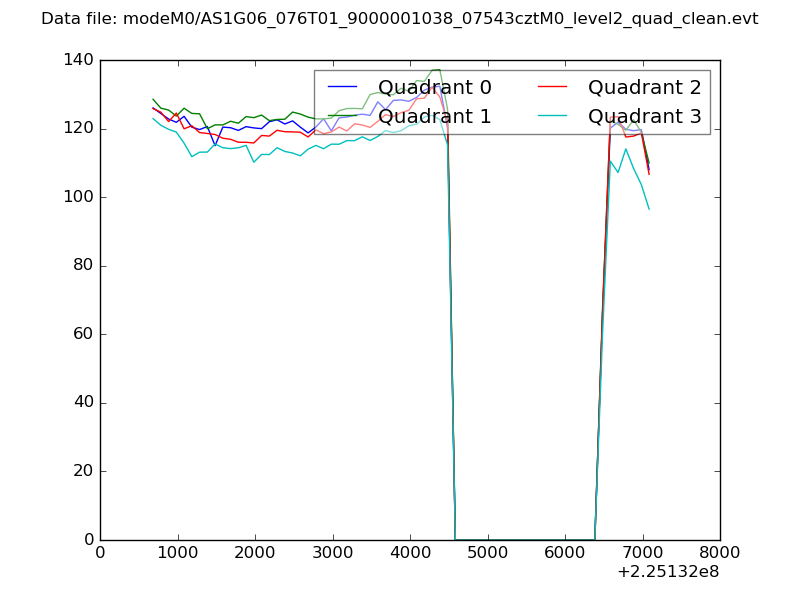

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

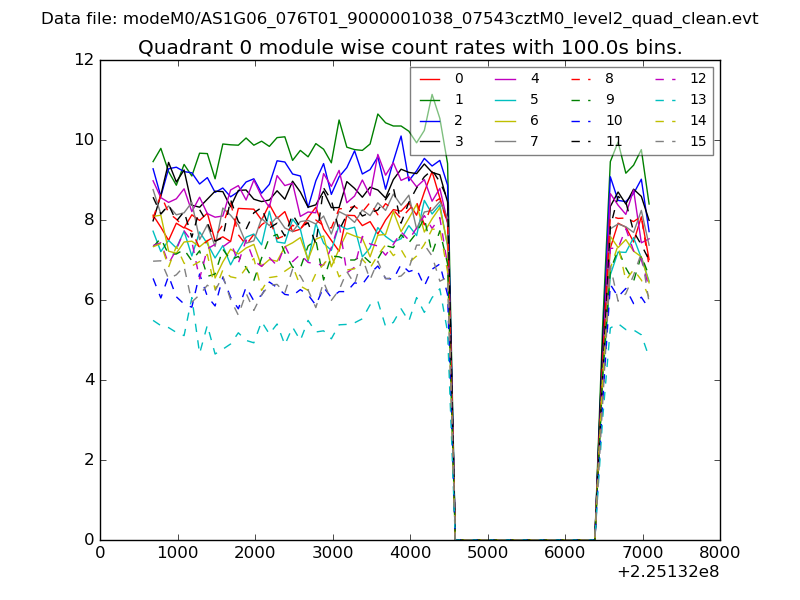

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

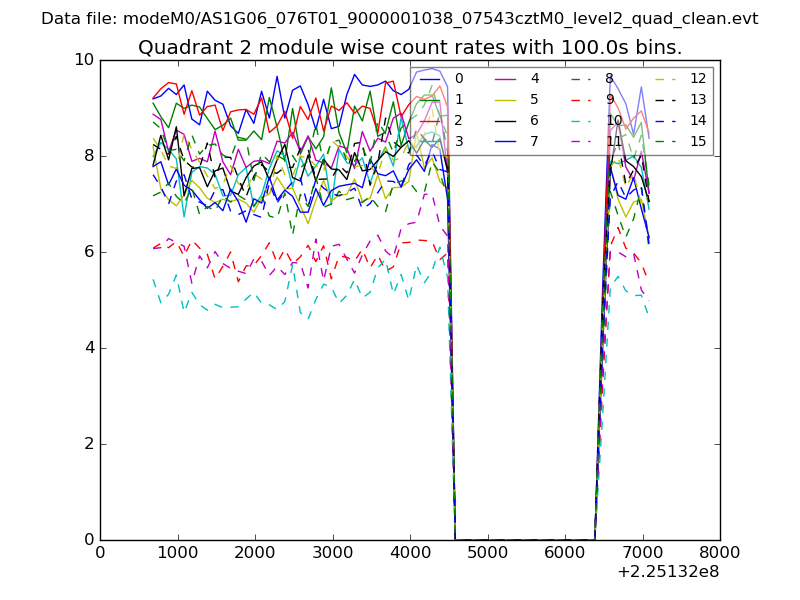

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

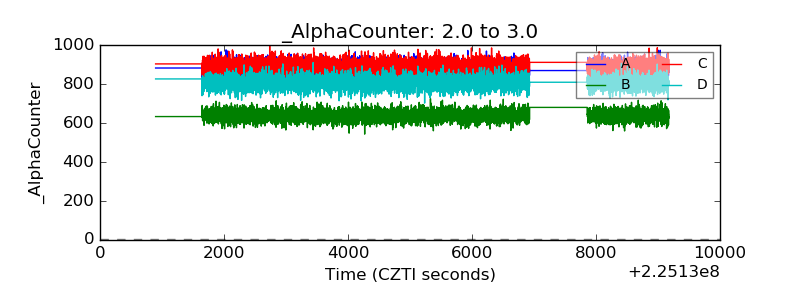

| Alpha Counter |  |

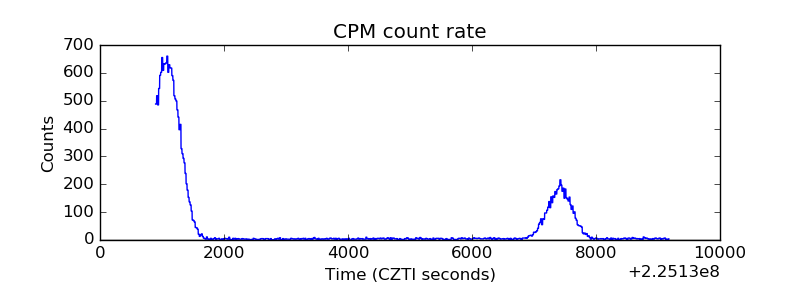

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
