| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G06_076T01_9000001038_07544cztM0_level2.evt | modeM0/AS1G06_076T01_9000001038_07544cztM0_level2_quad_clean.evt |
| Size (bytes) | 580,037,760 | 99,377,280 |
| Size | 553.2 MB | 94.8 MB |
| Events in quadrant A | 3,568,389 | 630,313 |
| Events in quadrant B | 3,712,470 | 638,953 |
| Events in quadrant C | 4,273,453 | 617,496 |
| Events in quadrant D | 5,487,435 | 584,548 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14 | 0 |
| B | 0 | 14 | 0 |
| C | 0 | 14 | 0 |
| D | 0 | 14 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15985 | 3 |
| B | 0 | 16177 | 2 |
| C | 0 | 18288 | 2 |
| D | 0 | 21774 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 160 | 0 |
| B | 0 | 160 | 0 |
| C | 0 | 160 | 0 |
| D | 0 | 160 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7734 | 59 | 0.762865% |
| B | 7734 | 94 | 1.215412% |
| C | 7734 | 236 | 3.051461% |
| D | 7734 | 432 | 5.585725% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

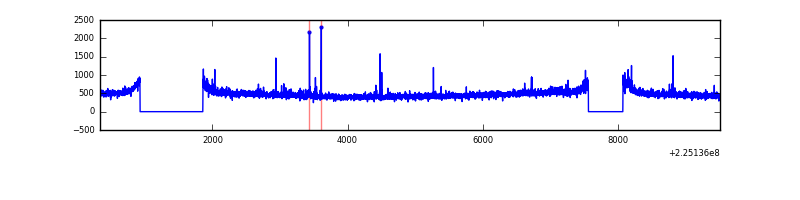

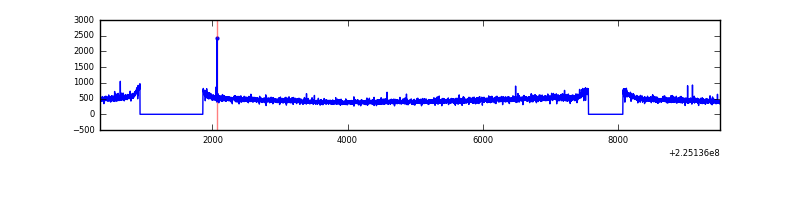

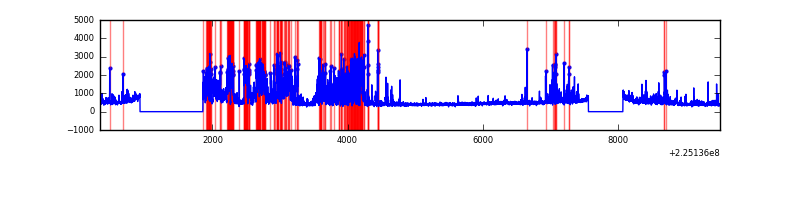

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 9174 | 7736 | 1 | 1 | 0.01% | 0.01% |  |
| B | 9174 | 7736 | 2 | 2 | 0.02% | 0.03% |  |
| C | 9174 | 7735 | 155 | 155 | 1.69% | 2.00% |  |
| D | 9174 | 7736 | 312 | 312 | 3.40% | 4.03% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 14 | 9724 | 47.21 | 923 | 901 | 186.9 |
| A | 0 | 226 | 8916 | 42.89 | 923 | 901 | 186.9 |
| A | 12 | 194 | 8263 | 39.39 | 923 | 901 | 186.9 |
| B | 0 | 219 | 23032 | 124.0 | 932 | 907 | 178.4 |
| B | 12 | 111 | 17647 | 93.82 | 932 | 907 | 178.4 |
| B | 11 | 111 | 14216 | 74.59 | 932 | 907 | 178.4 |
| C | 9 | 68 | 787640 | 3829.64 | 880 | 882 | 205.4 |
| C | 1 | 16 | 30305 | 143.22 | 880 | 882 | 205.4 |
| C | 13 | 61 | 6918 | 29.38 | 880 | 882 | 205.4 |
| D | 2 | 152 | 1749004 | 8096.79 | 877 | 848 | 215.9 |
| D | 2 | 14 | 211552 | 975.9 | 877 | 848 | 215.9 |
| D | 2 | 136 | 93060 | 427.09 | 877 | 848 | 215.9 |

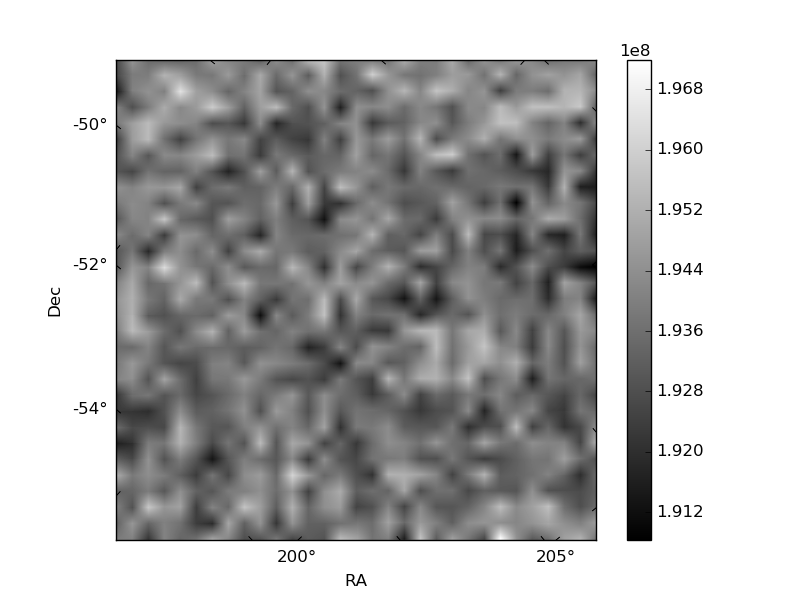

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

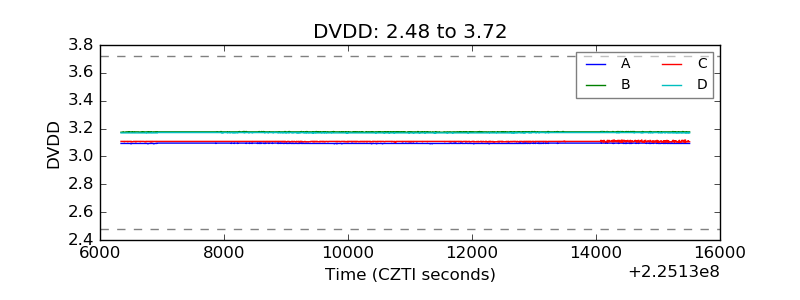

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

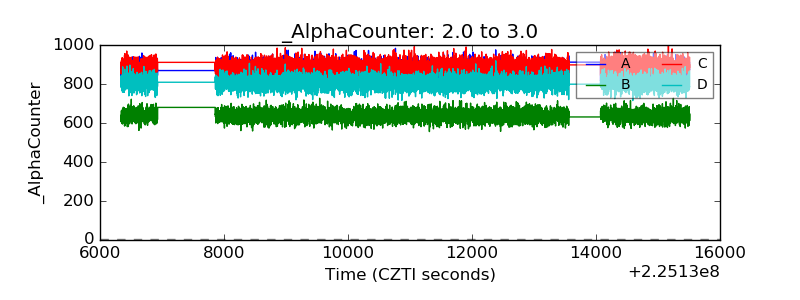

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

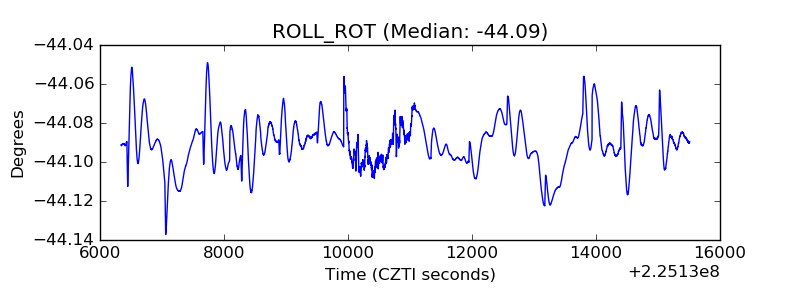

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

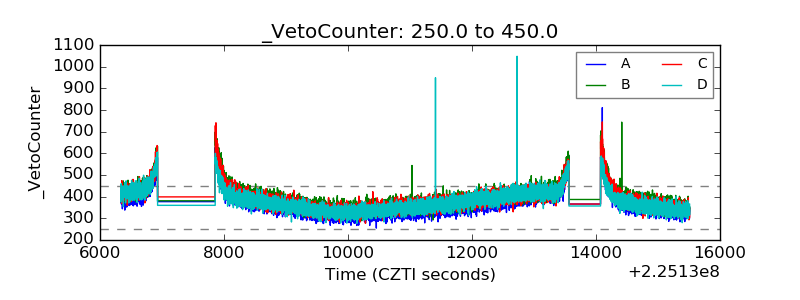

| Veto Counter |  |
