| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A02_024T01_9000001044_07582cztM0_level2.evt | modeM0/AS1A02_024T01_9000001044_07582cztM0_level2_quad_clean.evt |
| Size (bytes) | 476,907,840 | 73,998,720 |
| Size | 454.8 MB | 70.6 MB |
| Events in quadrant A | 3,496,965 | 448,554 |
| Events in quadrant B | 3,363,935 | 457,431 |
| Events in quadrant C | 3,294,525 | 448,633 |
| Events in quadrant D | 3,844,842 | 431,187 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14451 | 3 |
| B | 0 | 13956 | 2 |
| C | 0 | 13879 | 2 |
| D | 0 | 15584 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16 | 0 |
| B | 0 | 16 | 0 |
| C | 0 | 16 | 0 |
| D | 0 | 17 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6523 | 117 | 1.793653% |
| B | 6523 | 114 | 1.747662% |
| C | 6523 | 88 | 1.349073% |
| D | 6523 | 195 | 2.989422% |

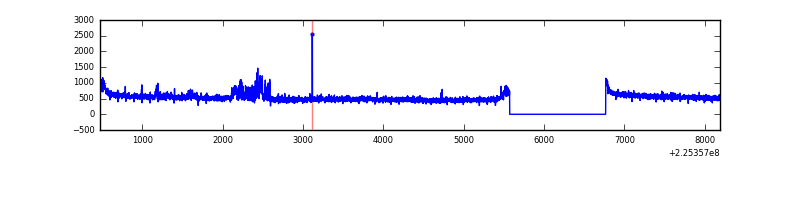

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7718 | 6523 | 1 | 1 | 0.01% | 0.02% |  |
| B | 7718 | 6523 | 1 | 1 | 0.01% | 0.02% |  |
| C | 7718 | 6523 | 1 | 1 | 0.01% | 0.02% |  |
| D | 7718 | 6523 | 63 | 63 | 0.82% | 0.97% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 239 | 185994 | 1074.67 | 851 | 836 | 172.3 |
| A | 3 | 1 | 22712 | 126.97 | 851 | 836 | 172.3 |
| A | 0 | 128 | 14828 | 81.21 | 851 | 836 | 172.3 |
| B | 0 | 214 | 53173 | 321.37 | 849 | 828 | 162.9 |
| B | 12 | 111 | 16302 | 95.0 | 849 | 828 | 162.9 |
| B | 0 | 219 | 15668 | 91.11 | 849 | 828 | 162.9 |
| C | 1 | 16 | 48398 | 250.63 | 823 | 831 | 189.8 |
| C | 9 | 68 | 30468 | 156.16 | 823 | 831 | 189.8 |
| C | 8 | 229 | 7783 | 36.63 | 823 | 831 | 189.8 |
| D | 2 | 152 | 330029 | 1620.56 | 828 | 803 | 203.2 |
| D | 5 | 233 | 155435 | 761.15 | 828 | 803 | 203.2 |
| D | 2 | 14 | 146752 | 718.41 | 828 | 803 | 203.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

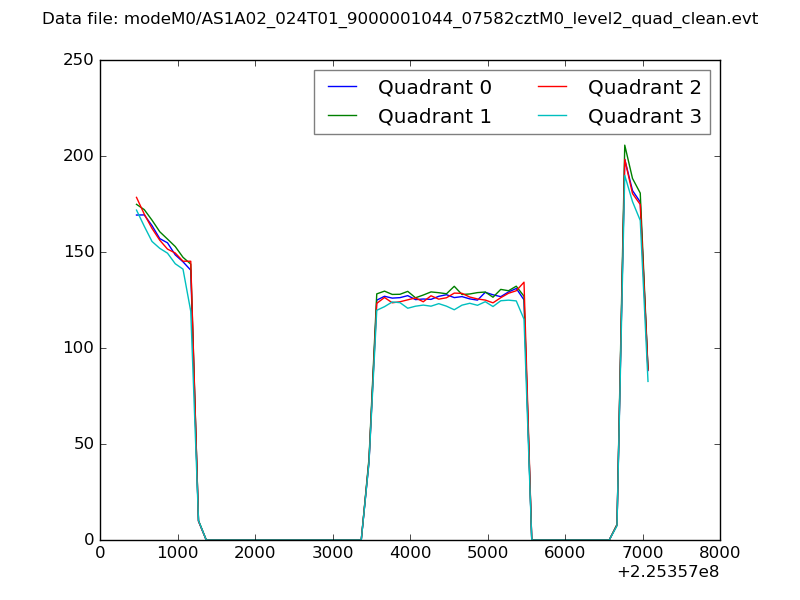

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

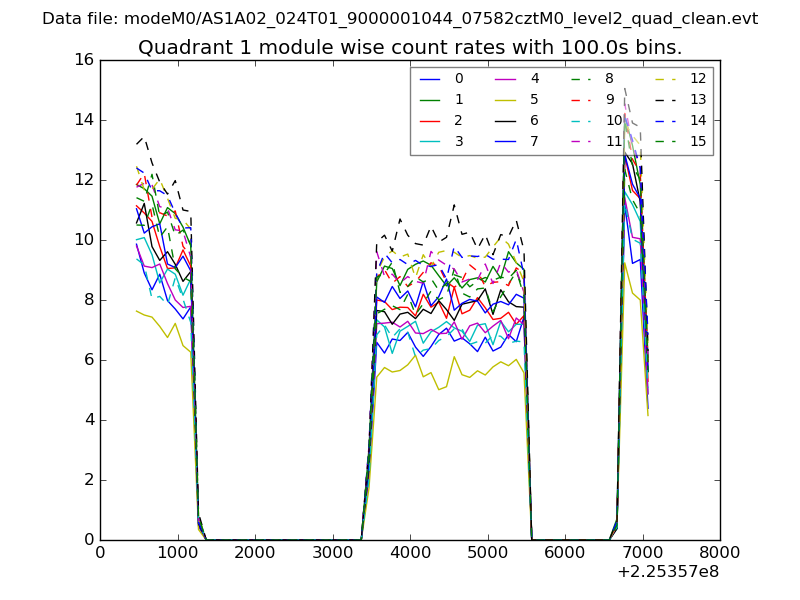

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

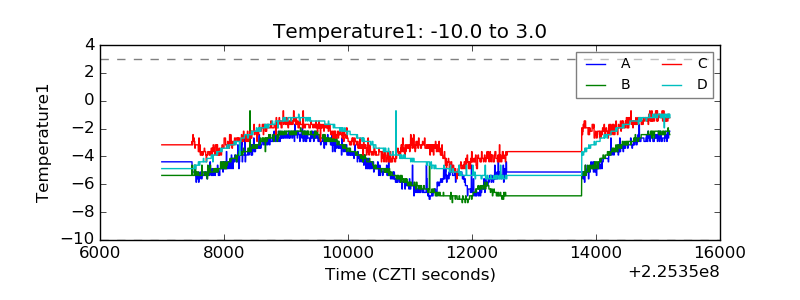

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |

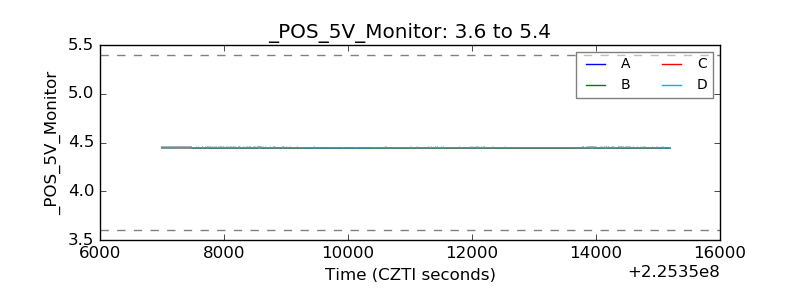

| +5 Volts monitor |  |

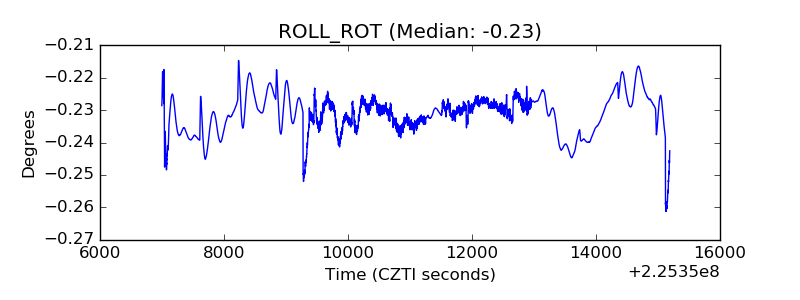

| _ROLL_ROT |  |

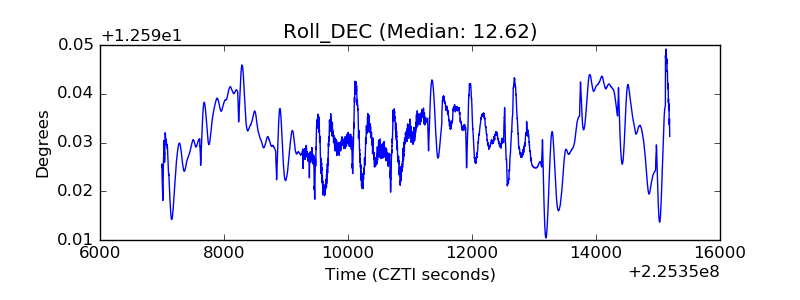

| _Roll_DEC |  |
| _Roll_RA |  |

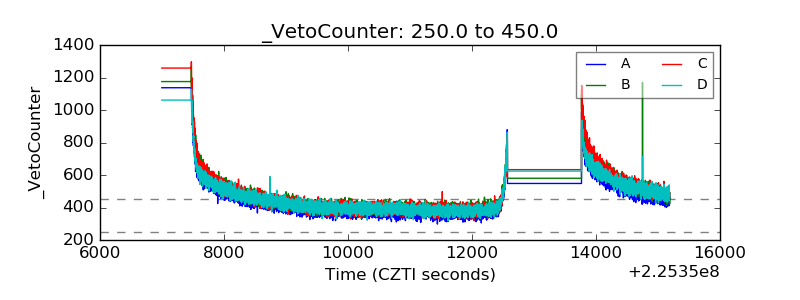

| Veto Counter |  |
