| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G06_117T01_9000001046_07593cztM0_level2.evt | modeM0/AS1G06_117T01_9000001046_07593cztM0_level2_quad_clean.evt |
| Size (bytes) | 825,621,120 | 85,348,800 |
| Size | 787.4 MB | 81.4 MB |
| Events in quadrant A | 3,322,049 | 574,679 |
| Events in quadrant B | 3,082,228 | 588,300 |
| Events in quadrant C | 12,245,825 | 440,605 |
| Events in quadrant D | 5,892,993 | 503,866 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 140 | 0 |
| B | 0 | 140 | 0 |
| C | 0 | 140 | 0 |
| D | 0 | 140 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13944 | 3 |
| B | 0 | 13826 | 2 |
| C | 0 | 41203 | 2 |
| D | 0 | 22260 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16 | 0 |
| B | 0 | 16 | 0 |
| C | 0 | 16 | 0 |
| D | 0 | 16 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6827 | 27 | 0.395489% |
| B | 6827 | 29 | 0.424784% |
| C | 6827 | 3190 | 46.726234% |
| D | 6827 | 951 | 13.929984% |

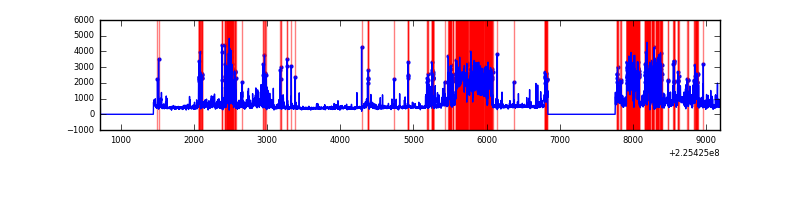

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8472 | 6829 | 1 | 1 | 0.01% | 0.01% |  |
| B | 8472 | 6829 | 0 | 0 | 0.00% | 0.00% |  |
| C | 8472 | 6828 | 3037 | 3037 | 35.85% | 44.48% |  |
| D | 8472 | 6829 | 750 | 750 | 8.85% | 10.98% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 239 | 319098 | 1995.37 | 779 | 761 | 159.5 |
| A | 0 | 226 | 7197 | 40.34 | 779 | 761 | 159.5 |
| A | 12 | 194 | 6926 | 38.64 | 779 | 761 | 159.5 |
| B | 12 | 111 | 16368 | 102.31 | 788 | 767 | 152.5 |
| B | 11 | 111 | 13101 | 80.89 | 788 | 767 | 152.5 |
| B | 0 | 214 | 11912 | 73.09 | 788 | 767 | 152.5 |
| C | 9 | 68 | 9782115 | 66402.62 | 630 | 632 | 147.3 |
| C | 13 | 61 | 4858 | 28.69 | 630 | 632 | 147.3 |
| C | 8 | 229 | 3888 | 22.1 | 630 | 632 | 147.3 |
| D | 5 | 233 | 2415734 | 13778.83 | 710 | 686 | 175.3 |
| D | 2 | 152 | 484836 | 2762.27 | 710 | 686 | 175.3 |
| D | 12 | 233 | 221429 | 1259.43 | 710 | 686 | 175.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

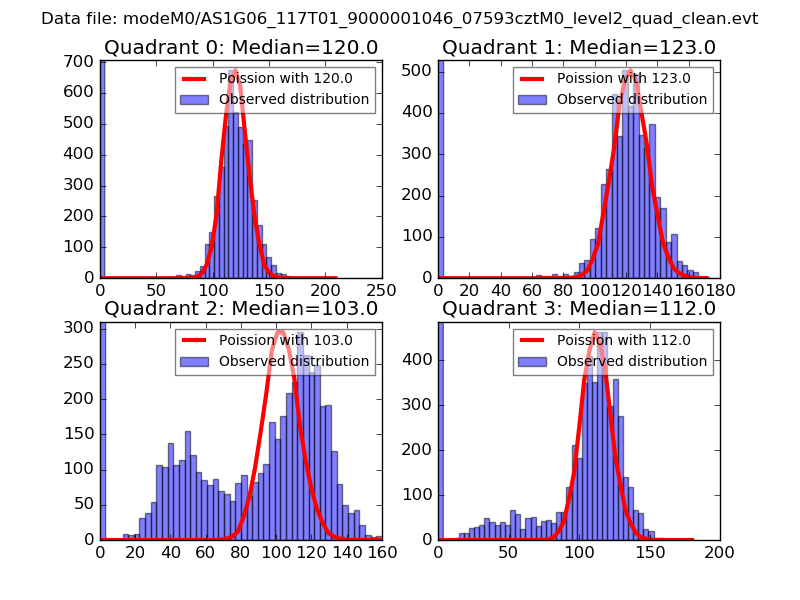

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

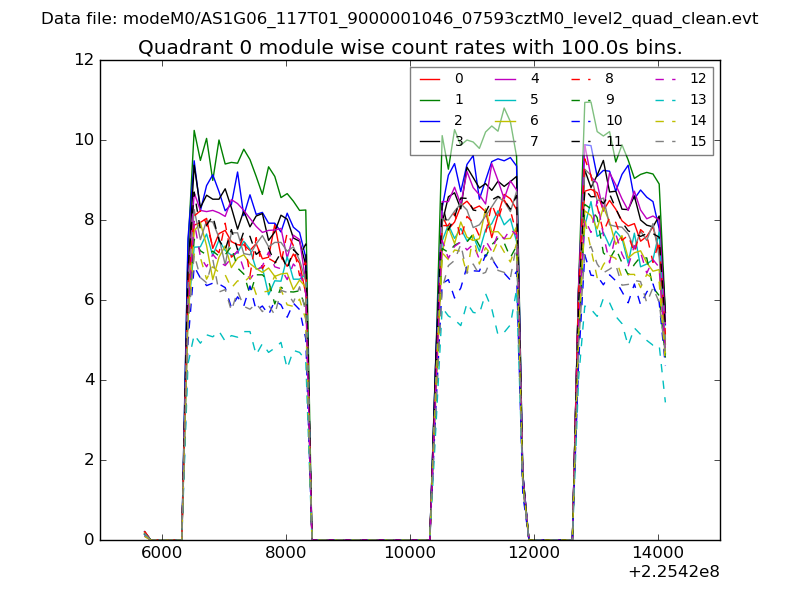

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

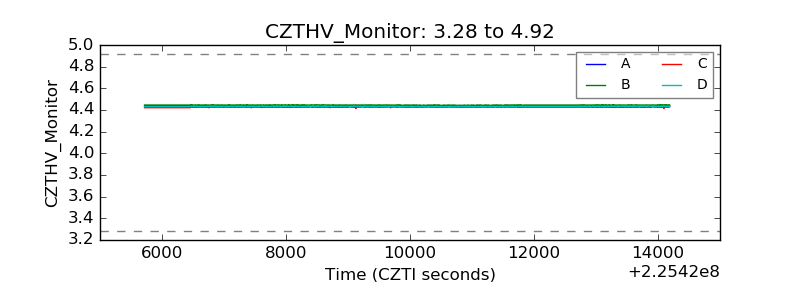

| CZT HV Monitor |  |

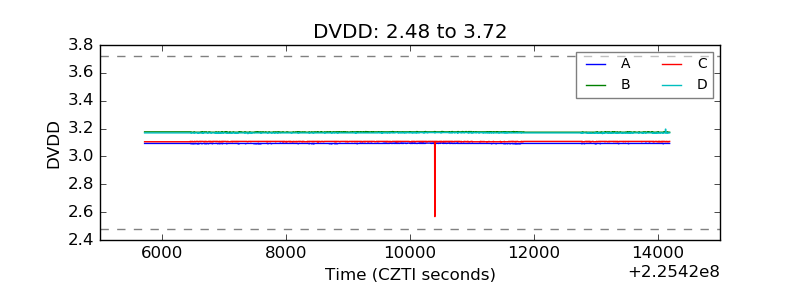

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

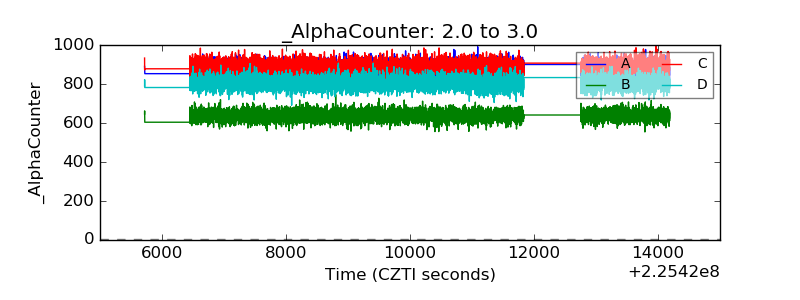

| Alpha Counter |  |
| _CPM_Rate |  |

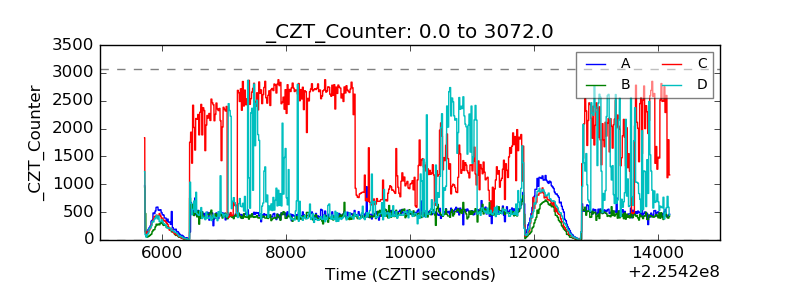

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
