| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G06_117T01_9000001046_07600cztM0_level2.evt | modeM0/AS1G06_117T01_9000001046_07600cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,083,830,400 | 146,851,200 |
| Size | 1.0 GB | 140.0 MB |
| Events in quadrant A | 5,829,317 | 943,023 |
| Events in quadrant B | 5,869,651 | 951,510 |
| Events in quadrant C | 13,502,336 | 857,841 |
| Events in quadrant D | 6,846,280 | 897,978 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 234 | 0 |
| B | 0 | 234 | 0 |
| C | 0 | 234 | 0 |
| D | 0 | 234 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 24646 | 3 |
| B | 0 | 24606 | 2 |
| C | 0 | 48441 | 2 |
| D | 0 | 27999 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 24 | 0 |
| B | 0 | 24 | 0 |
| C | 0 | 24 | 0 |
| D | 0 | 24 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 11512 | 221 | 1.919736% |
| B | 11512 | 221 | 1.919736% |
| C | 11512 | 1933 | 16.791174% |
| D | 11512 | 324 | 2.814454% |

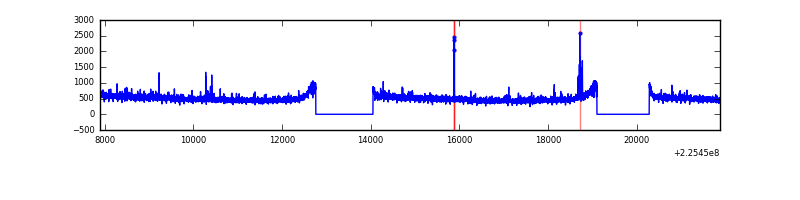

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 13982 | 11513 | 0 | 0 | 0.00% | 0.00% |  |
| B | 13982 | 11512 | 4 | 4 | 0.03% | 0.03% |  |
| C | 13982 | 11513 | 1166 | 1166 | 8.34% | 10.13% |  |
| D | 13982 | 11513 | 125 | 125 | 0.89% | 1.09% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 239 | 158627 | 534.43 | 1473 | 1443 | 294.1 |
| A | 0 | 226 | 13781 | 41.95 | 1473 | 1443 | 294.1 |
| A | 12 | 194 | 13095 | 39.62 | 1473 | 1443 | 294.1 |
| B | 4 | 81 | 44233 | 155.31 | 1476 | 1444 | 275.5 |
| B | 0 | 214 | 37163 | 129.65 | 1476 | 1444 | 275.5 |
| B | 4 | 173 | 34611 | 120.39 | 1476 | 1444 | 275.5 |
| C | 9 | 68 | 6515495 | 21095.48 | 1359 | 1368 | 308.8 |
| C | 4 | 254 | 1486263 | 4808.71 | 1359 | 1368 | 308.8 |
| C | 8 | 229 | 136024 | 436.07 | 1359 | 1368 | 308.8 |
| D | 5 | 233 | 530407 | 1528.89 | 1430 | 1388 | 346.0 |
| D | 1 | 52 | 430421 | 1239.92 | 1430 | 1388 | 346.0 |
| D | 13 | 104 | 149914 | 429.25 | 1430 | 1388 | 346.0 |

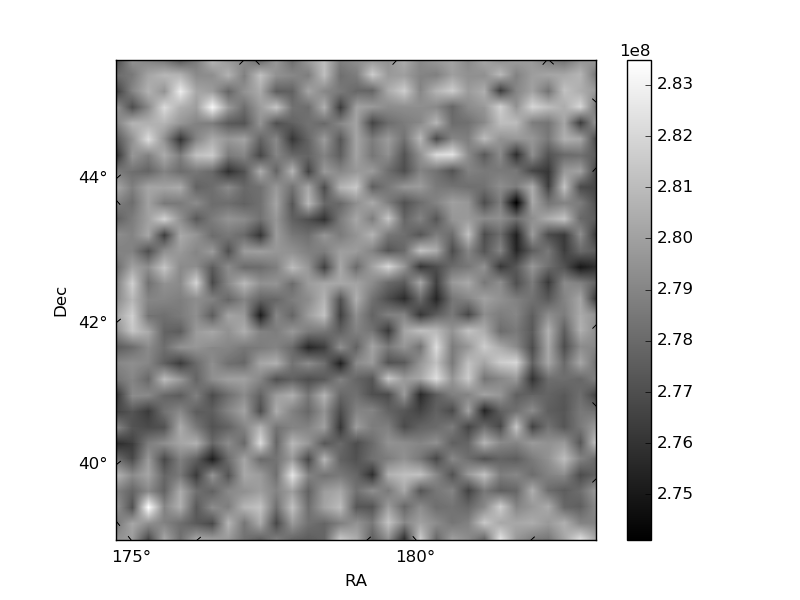

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

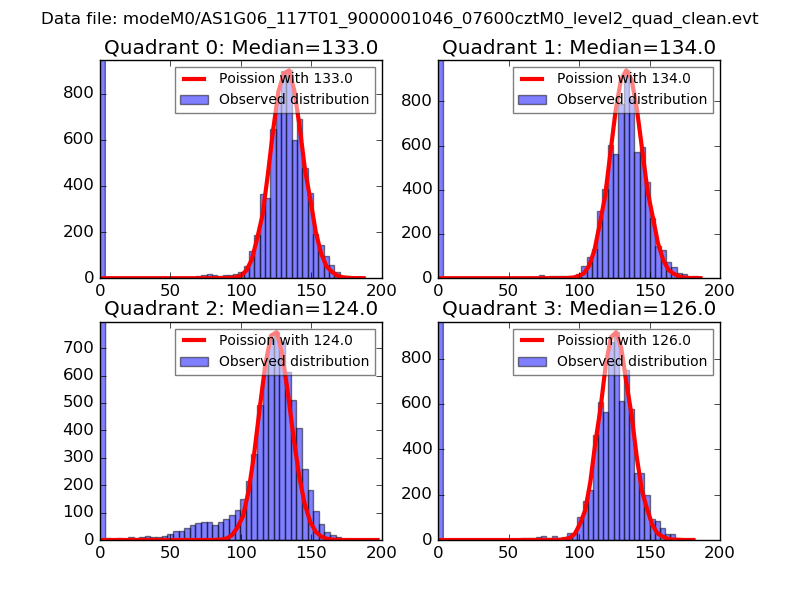

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

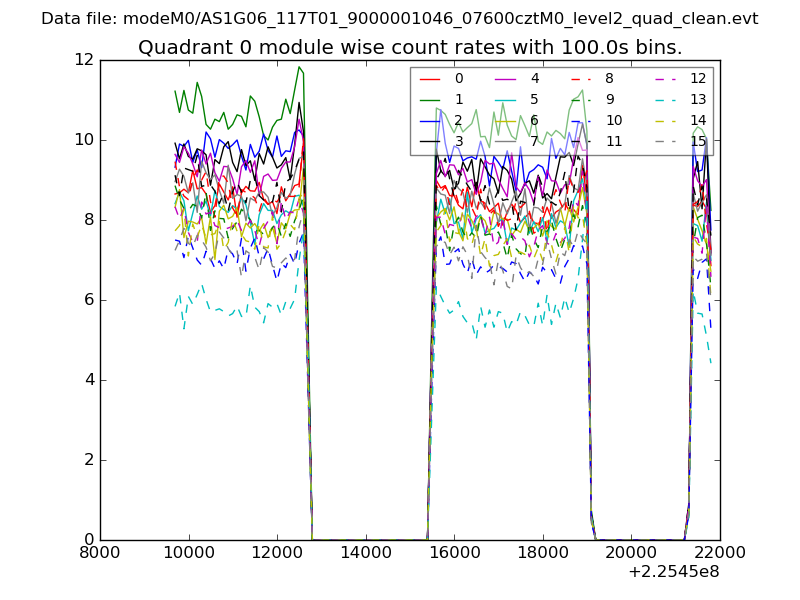

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

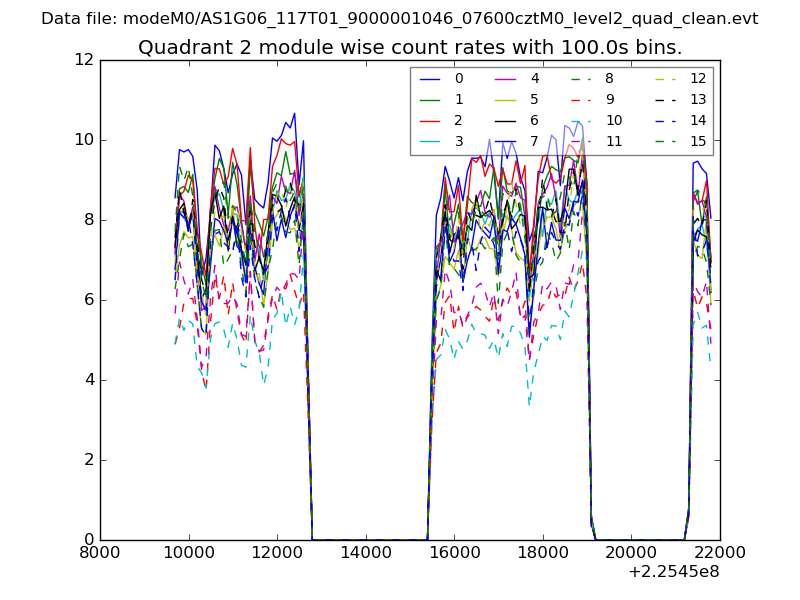

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

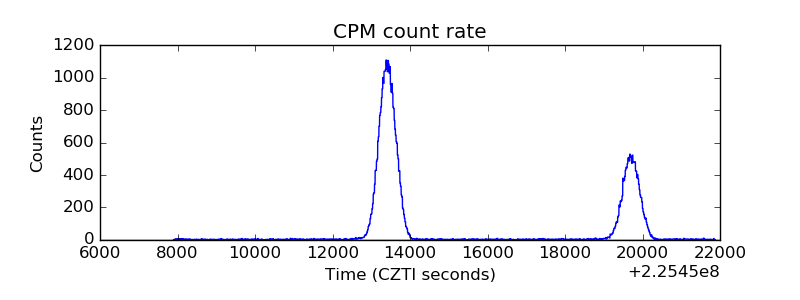

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

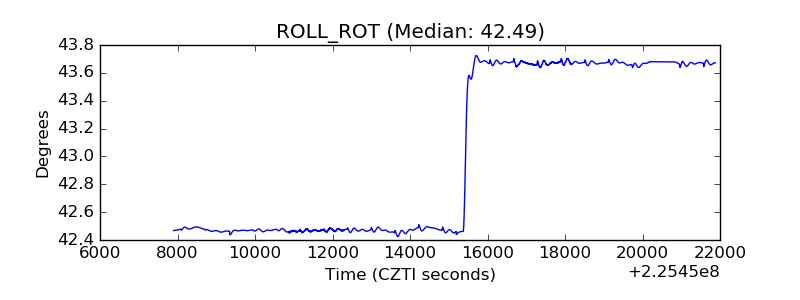

| _ROLL_ROT |  |
| _Roll_DEC |  |

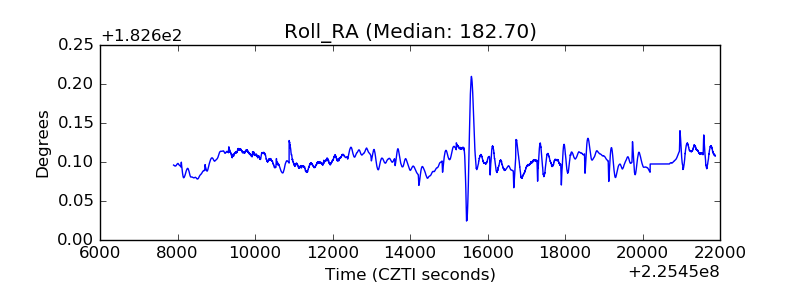

| _Roll_RA |  |
| Veto Counter |  |
