| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A02_178T01_9000001048_07613cztM0_level2.evt | modeM0/AS1A02_178T01_9000001048_07613cztM0_level2_quad_clean.evt |
| Size (bytes) | 543,398,400 | 69,886,080 |
| Size | 518.2 MB | 66.6 MB |
| Events in quadrant A | 3,372,262 | 423,254 |
| Events in quadrant B | 3,532,561 | 430,452 |
| Events in quadrant C | 4,955,367 | 412,357 |
| Events in quadrant D | 4,155,699 | 396,013 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19 | 0 |
| B | 0 | 19 | 0 |
| C | 0 | 19 | 0 |
| D | 0 | 20 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13892 | 3 |
| B | 0 | 14347 | 2 |
| C | 0 | 19030 | 2 |
| D | 0 | 16513 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6509 | 100 | 1.536334% |
| B | 6509 | 102 | 1.567061% |
| C | 6509 | 278 | 4.271009% |
| D | 6509 | 158 | 2.427408% |

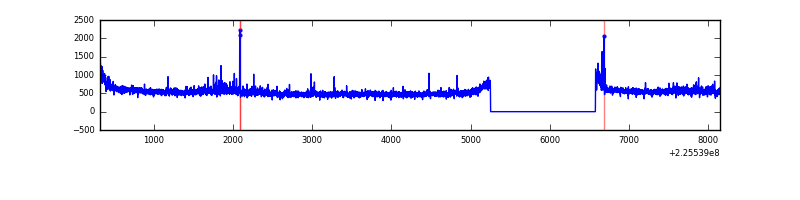

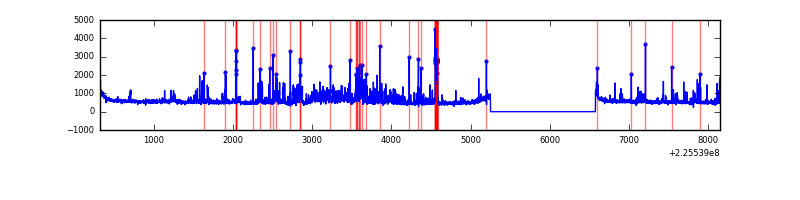

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7835 | 6510 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7835 | 6510 | 3 | 3 | 0.04% | 0.05% |  |
| C | 7835 | 6510 | 135 | 135 | 1.72% | 2.07% |  |
| D | 7835 | 6510 | 65 | 65 | 0.83% | 1.00% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 226 | 8217 | 42.05 | 875 | 858 | 175.0 |
| A | 12 | 194 | 7598 | 38.52 | 875 | 858 | 175.0 |
| A | 8 | 15 | 4650 | 21.67 | 875 | 858 | 175.0 |
| B | 0 | 214 | 49482 | 301.2 | 870 | 852 | 161.5 |
| B | 0 | 219 | 43787 | 265.92 | 870 | 852 | 161.5 |
| B | 4 | 81 | 23345 | 139.31 | 870 | 852 | 161.5 |
| C | 9 | 68 | 1260511 | 6572.48 | 836 | 843 | 191.7 |
| C | 4 | 254 | 353805 | 1841.62 | 836 | 843 | 191.7 |
| C | 1 | 16 | 76980 | 397.25 | 836 | 843 | 191.7 |
| D | 2 | 152 | 526955 | 2561.27 | 846 | 821 | 205.4 |
| D | 13 | 104 | 189400 | 918.02 | 846 | 821 | 205.4 |
| D | 12 | 233 | 102642 | 495.67 | 846 | 821 | 205.4 |

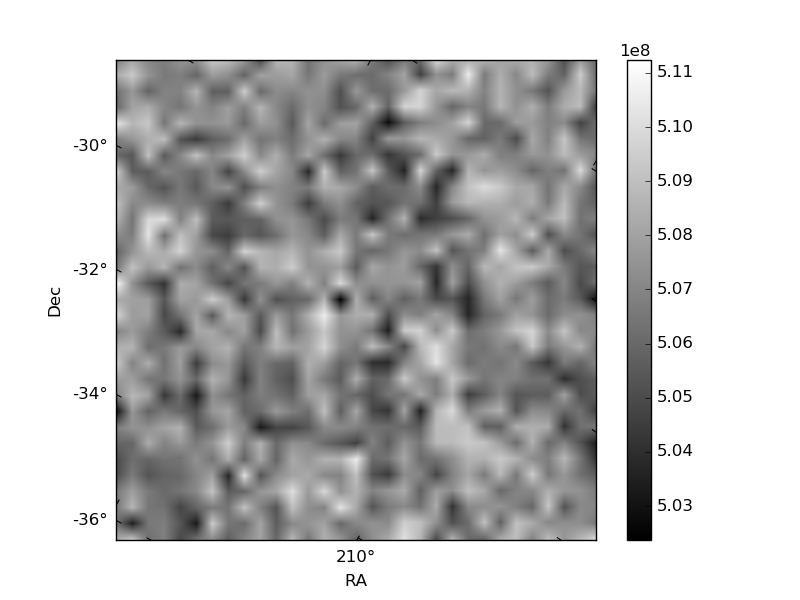

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

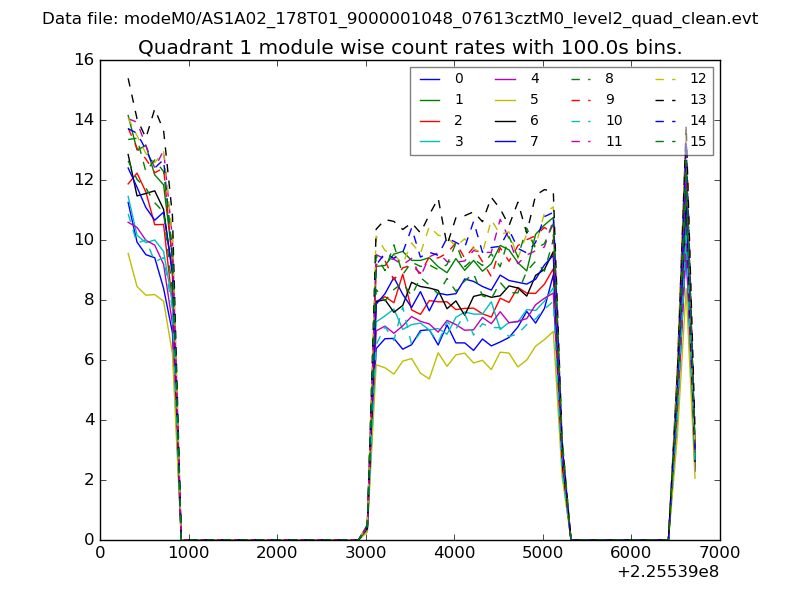

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

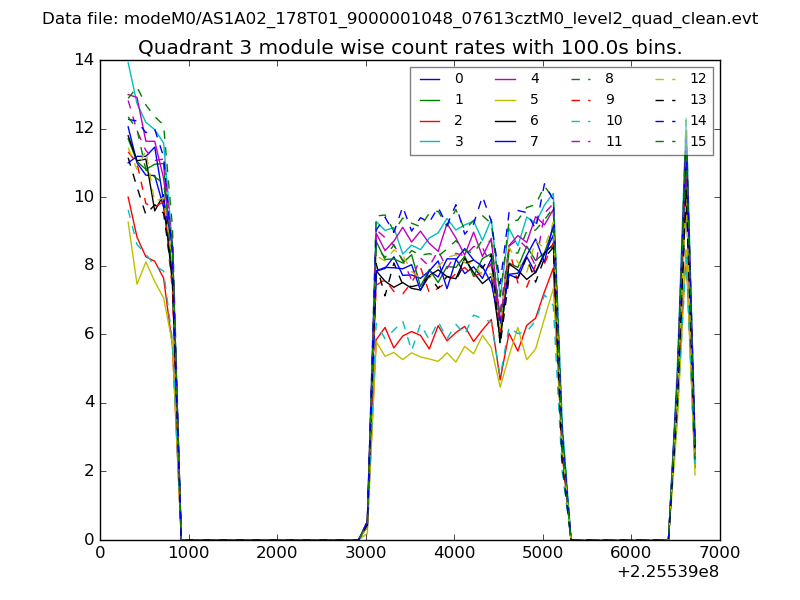

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

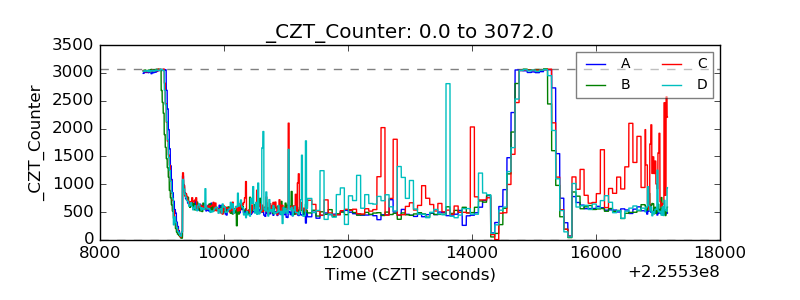

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

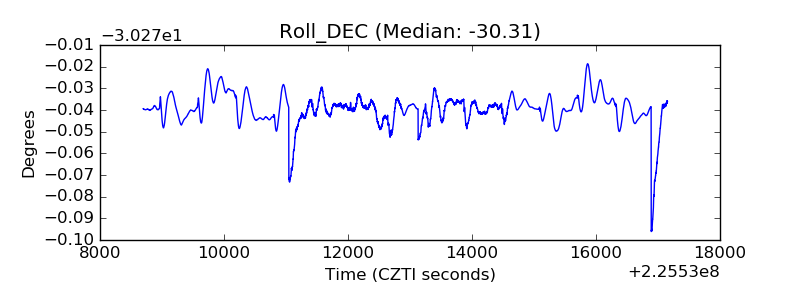

| _Roll_DEC |  |

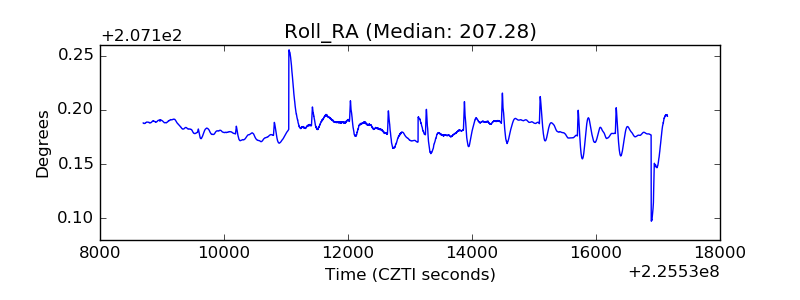

| _Roll_RA |  |
| Veto Counter |  |
