| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A02_178T01_9000001048_07614cztM0_level2.evt | modeM0/AS1A02_178T01_9000001048_07614cztM0_level2_quad_clean.evt |
| Size (bytes) | 712,307,520 | 63,403,200 |
| Size | 679.3 MB | 60.5 MB |
| Events in quadrant A | 3,375,140 | 381,043 |
| Events in quadrant B | 3,498,996 | 386,731 |
| Events in quadrant C | 10,484,689 | 325,436 |
| Events in quadrant D | 3,764,721 | 362,455 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15 | 0 |
| B | 0 | 15 | 0 |
| C | 0 | 15 | 0 |
| D | 0 | 16 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14018 | 3 |
| B | 0 | 14370 | 2 |
| C | 0 | 35843 | 2 |
| D | 0 | 15487 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 136 | 0 |
| B | 0 | 136 | 0 |
| C | 0 | 136 | 0 |
| D | 0 | 136 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6639 | 169 | 2.545564% |
| B | 6639 | 190 | 2.861877% |
| C | 6639 | 1760 | 26.510017% |
| D | 6639 | 197 | 2.967314% |

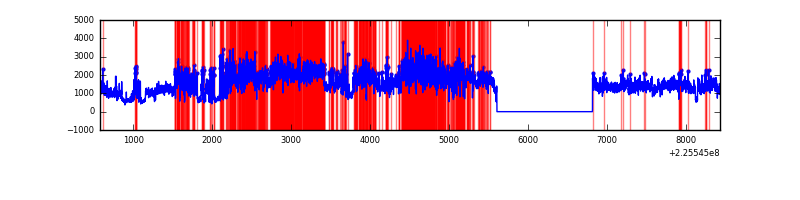

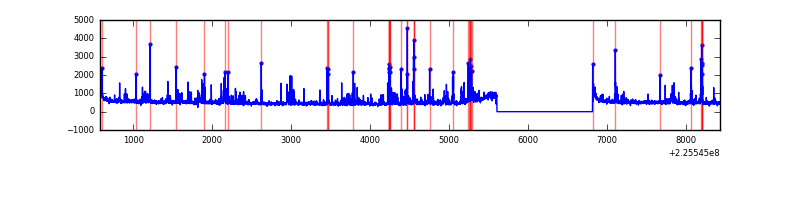

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7849 | 6639 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7849 | 6639 | 1 | 1 | 0.01% | 0.02% |  |
| C | 7849 | 6639 | 1448 | 1448 | 18.45% | 21.81% |  |
| D | 7849 | 6639 | 42 | 42 | 0.54% | 0.63% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 226 | 8240 | 41.94 | 874 | 857 | 176.0 |
| A | 3 | 1 | 7967 | 40.39 | 874 | 857 | 176.0 |
| A | 12 | 194 | 7834 | 39.63 | 874 | 857 | 176.0 |
| B | 0 | 214 | 30776 | 182.04 | 871 | 851 | 164.4 |
| B | 0 | 219 | 23583 | 138.29 | 871 | 851 | 164.4 |
| B | 15 | 204 | 20239 | 117.94 | 871 | 851 | 164.4 |
| C | 9 | 68 | 6844870 | 37924.85 | 789 | 794 | 180.5 |
| C | 4 | 254 | 455967 | 2522.24 | 789 | 794 | 180.5 |
| C | 1 | 16 | 100446 | 552.2 | 789 | 794 | 180.5 |
| D | 13 | 104 | 284455 | 1349.05 | 850 | 823 | 210.2 |
| D | 2 | 14 | 130478 | 616.68 | 850 | 823 | 210.2 |
| D | 2 | 152 | 95531 | 450.46 | 850 | 823 | 210.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

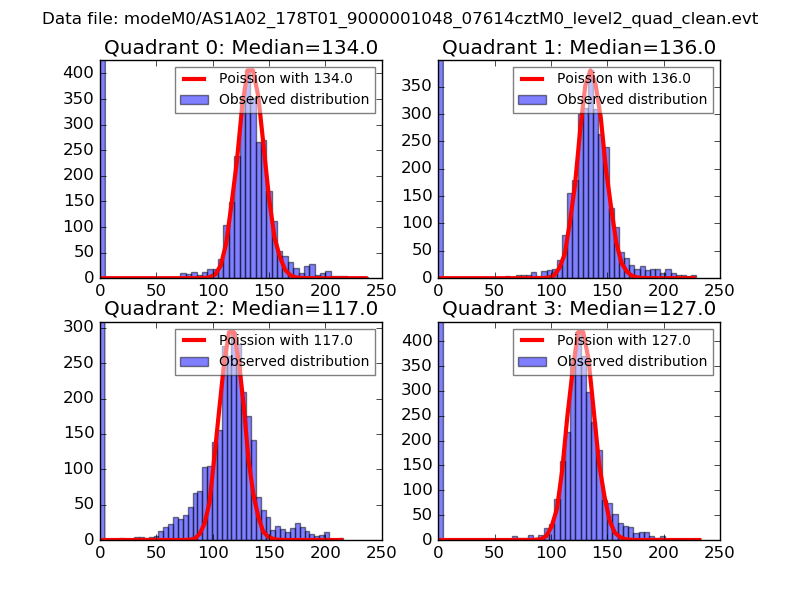

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

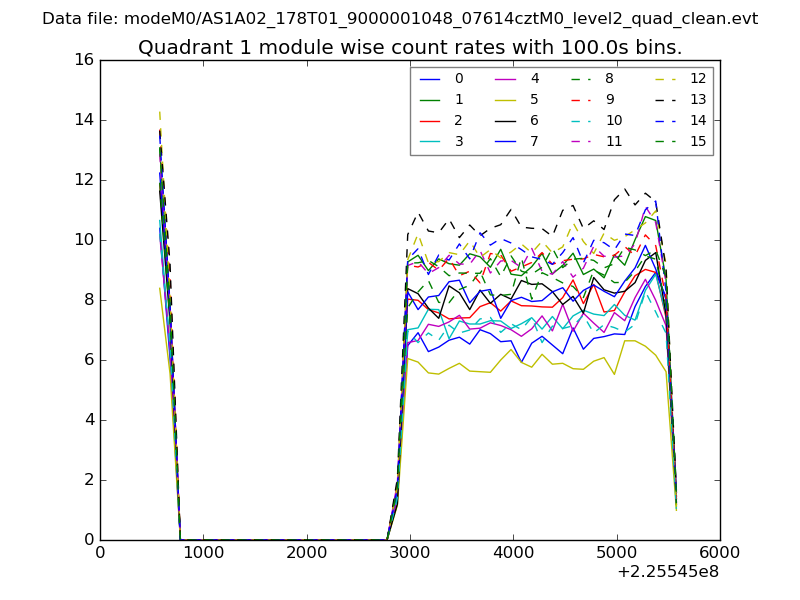

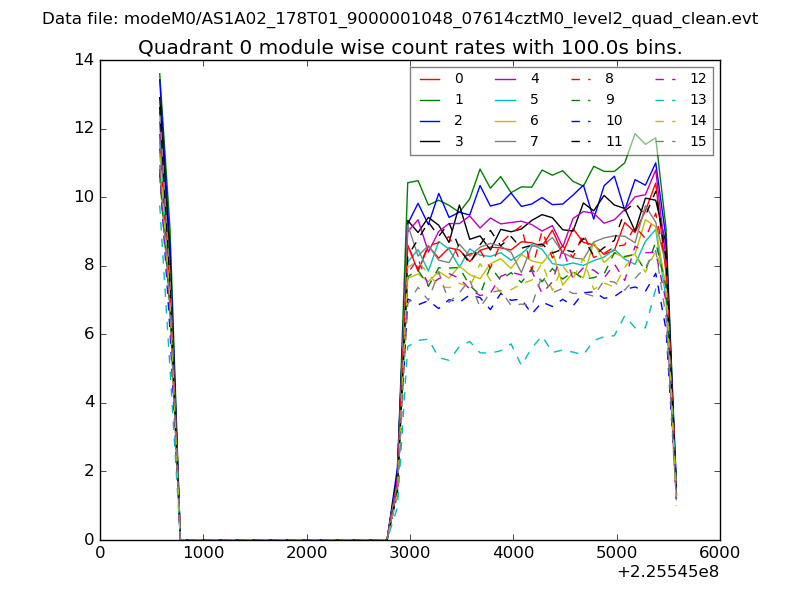

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

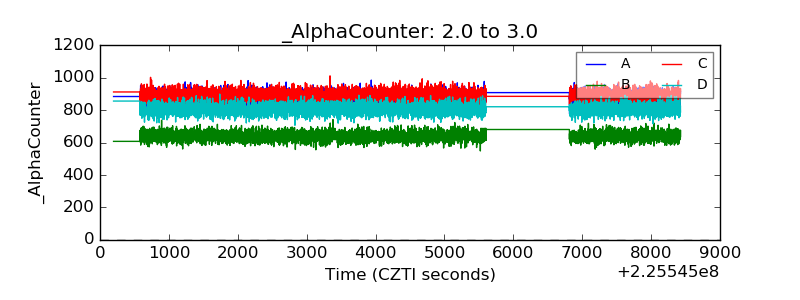

| Alpha Counter |  |
| _CPM_Rate |  |

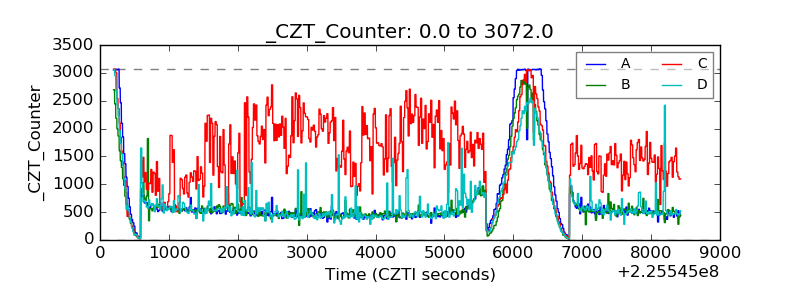

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

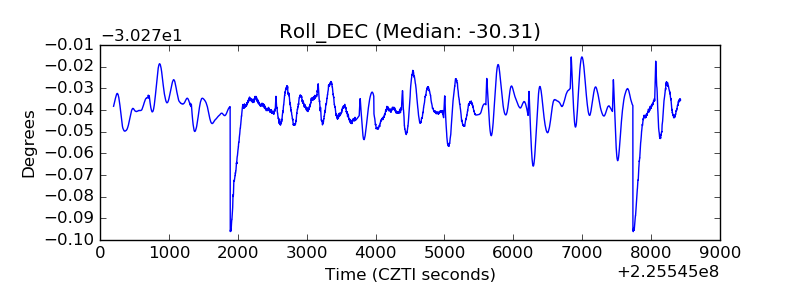

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
