| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A02_178T01_9000001048_07615cztM0_level2.evt | modeM0/AS1A02_178T01_9000001048_07615cztM0_level2_quad_clean.evt |
| Size (bytes) | 582,390,720 | 70,128,000 |
| Size | 555.4 MB | 66.9 MB |
| Events in quadrant A | 3,368,362 | 419,731 |
| Events in quadrant B | 3,462,241 | 424,246 |
| Events in quadrant C | 6,246,953 | 408,945 |
| Events in quadrant D | 4,096,500 | 393,070 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16 | 0 |
| B | 0 | 16 | 0 |
| C | 0 | 16 | 0 |
| D | 0 | 17 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14352 | 3 |
| B | 0 | 14606 | 2 |
| C | 0 | 23338 | 2 |
| D | 0 | 16701 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 138 | 0 |
| B | 0 | 138 | 0 |
| C | 0 | 138 | 0 |
| D | 0 | 138 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6852 | 143 | 2.086982% |
| B | 6852 | 154 | 2.247519% |
| C | 6852 | 240 | 3.502627% |
| D | 6852 | 258 | 3.765324% |

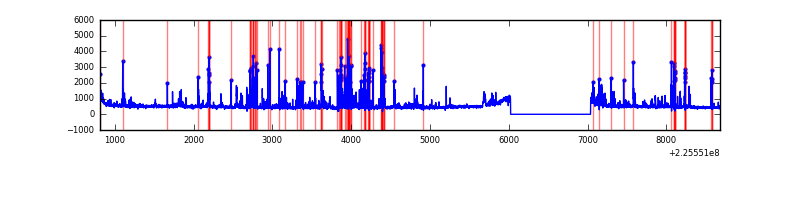

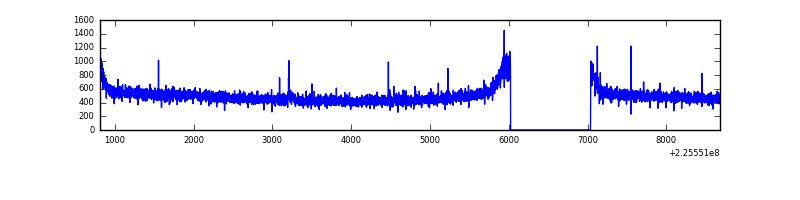

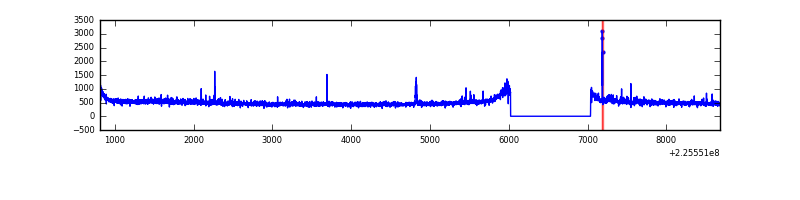

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7867 | 6852 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7867 | 6853 | 3 | 3 | 0.04% | 0.04% |  |
| C | 7867 | 6853 | 50 | 50 | 0.64% | 0.73% |  |
| D | 7867 | 6852 | 114 | 114 | 1.45% | 1.66% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 128 | 15960 | 86.68 | 869 | 851 | 174.3 |
| A | 0 | 226 | 8216 | 42.26 | 869 | 851 | 174.3 |
| A | 12 | 194 | 7647 | 38.99 | 869 | 851 | 174.3 |
| B | 0 | 214 | 29226 | 170.88 | 867 | 846 | 166.1 |
| B | 4 | 81 | 28105 | 164.13 | 867 | 846 | 166.1 |
| B | 12 | 111 | 16758 | 95.81 | 867 | 846 | 166.1 |
| C | 9 | 68 | 2932010 | 15287.83 | 830 | 834 | 191.7 |
| C | 4 | 254 | 42089 | 215.17 | 830 | 834 | 191.7 |
| C | 1 | 16 | 31177 | 158.26 | 830 | 834 | 191.7 |
| D | 13 | 104 | 507941 | 2476.33 | 837 | 809 | 204.8 |
| D | 2 | 14 | 235027 | 1143.69 | 837 | 809 | 204.8 |
| D | 2 | 152 | 134055 | 650.64 | 837 | 809 | 204.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

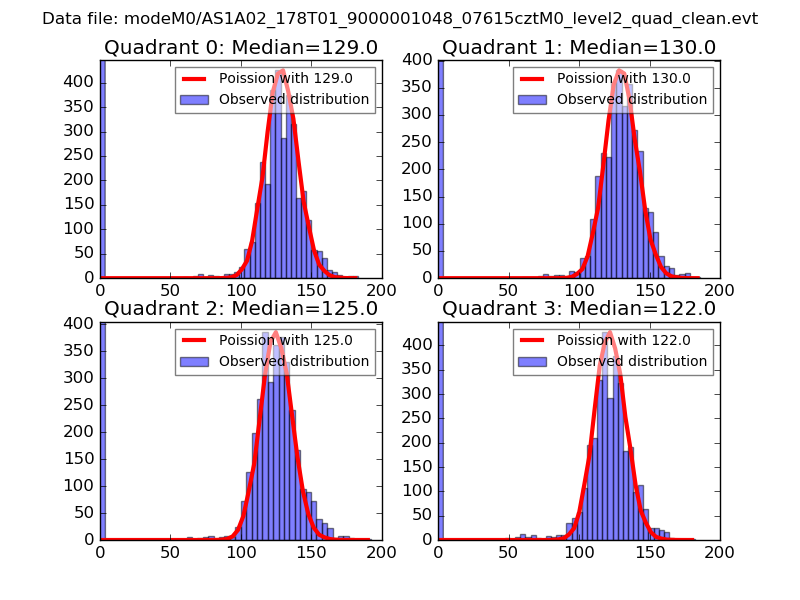

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

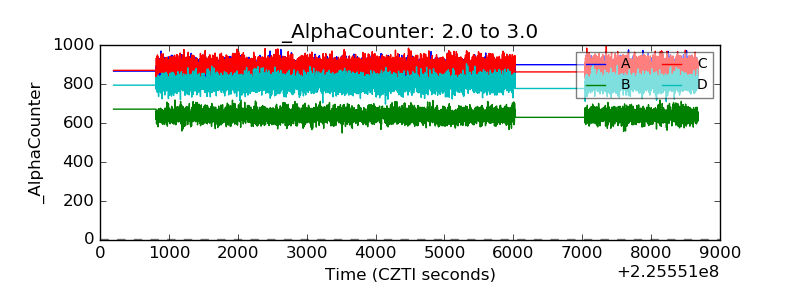

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

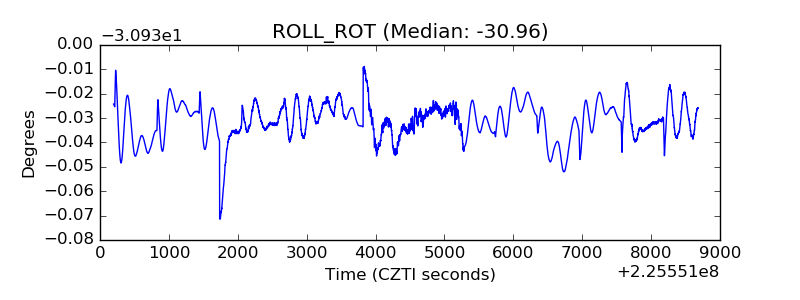

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
