| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A02_178T01_9000001048_07616cztM0_level2.evt | modeM0/AS1A02_178T01_9000001048_07616cztM0_level2_quad_clean.evt |
| Size (bytes) | 526,037,760 | 81,296,640 |
| Size | 501.7 MB | 77.5 MB |
| Events in quadrant A | 3,370,011 | 500,154 |
| Events in quadrant B | 3,484,775 | 505,097 |
| Events in quadrant C | 4,737,168 | 480,793 |
| Events in quadrant D | 3,850,923 | 474,965 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 14 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14832 | 3 |
| B | 0 | 15063 | 2 |
| C | 0 | 18883 | 2 |
| D | 0 | 16451 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 146 | 0 |
| B | 0 | 146 | 0 |
| C | 0 | 146 | 0 |
| D | 0 | 146 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7189 | 101 | 1.404924% |
| B | 7189 | 123 | 1.710947% |
| C | 7189 | 349 | 4.854639% |
| D | 7189 | 144 | 2.003060% |

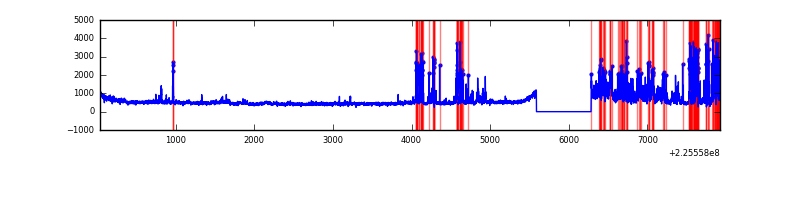

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7884 | 7190 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7884 | 7190 | 5 | 5 | 0.06% | 0.07% |  |
| C | 7884 | 7190 | 202 | 202 | 2.56% | 2.81% |  |
| D | 7884 | 7190 | 50 | 50 | 0.63% | 0.70% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 226 | 8303 | 41.6 | 875 | 854 | 179.1 |
| A | 12 | 194 | 7614 | 37.75 | 875 | 854 | 179.1 |
| A | 3 | 1 | 3743 | 16.13 | 875 | 854 | 179.1 |
| B | 0 | 214 | 20375 | 114.93 | 877 | 857 | 169.8 |
| B | 12 | 111 | 17269 | 96.64 | 877 | 857 | 169.8 |
| B | 0 | 219 | 16486 | 92.03 | 877 | 857 | 169.8 |
| C | 4 | 254 | 1234588 | 6351.77 | 835 | 840 | 194.2 |
| C | 9 | 68 | 199889 | 1024.77 | 835 | 840 | 194.2 |
| C | 1 | 16 | 39448 | 198.77 | 835 | 840 | 194.2 |
| D | 13 | 104 | 354631 | 1706.75 | 845 | 821 | 207.3 |
| D | 2 | 152 | 142881 | 685.29 | 845 | 821 | 207.3 |
| D | 2 | 14 | 114656 | 549.13 | 845 | 821 | 207.3 |

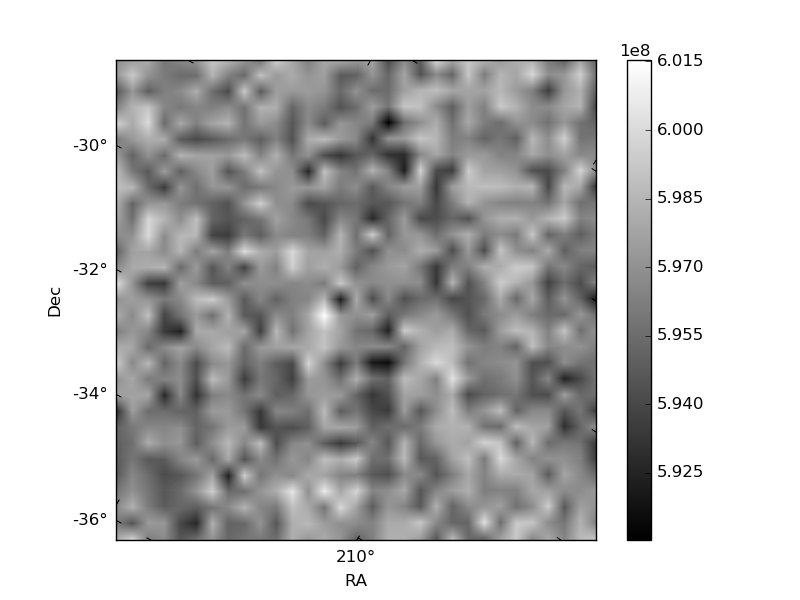

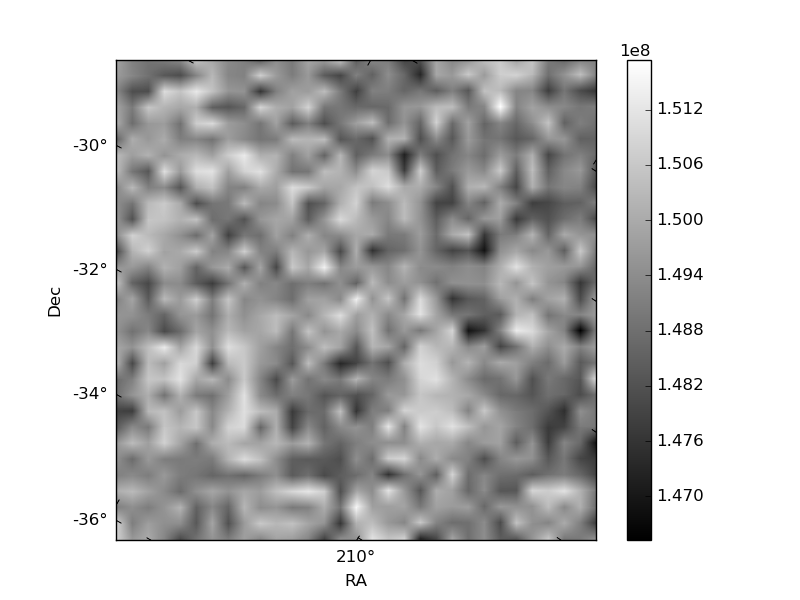

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

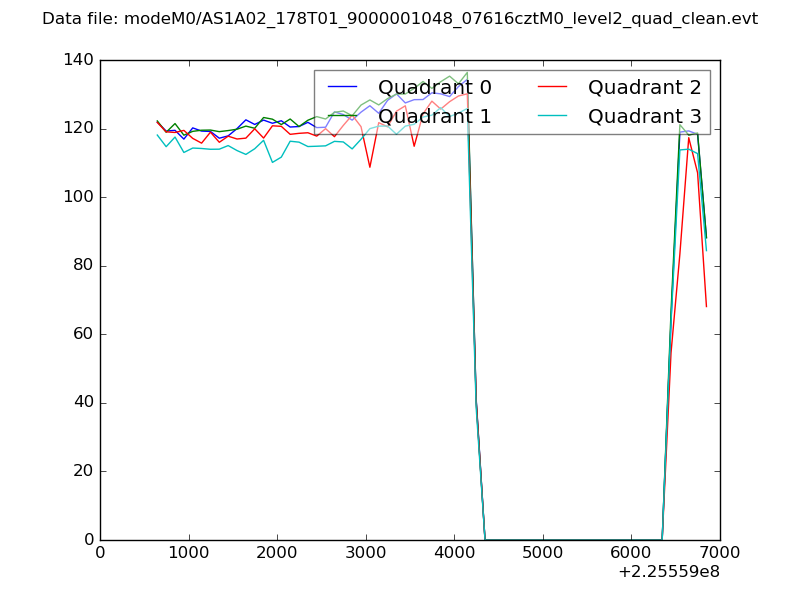

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

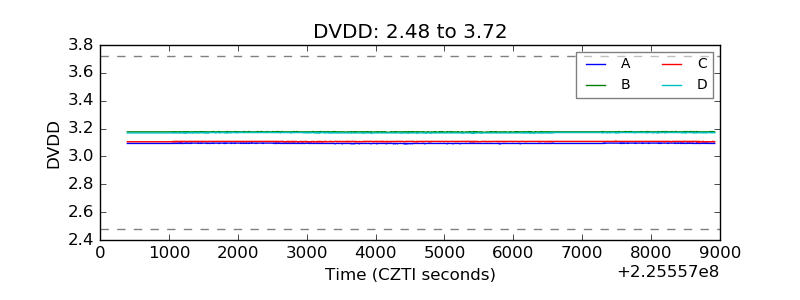

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

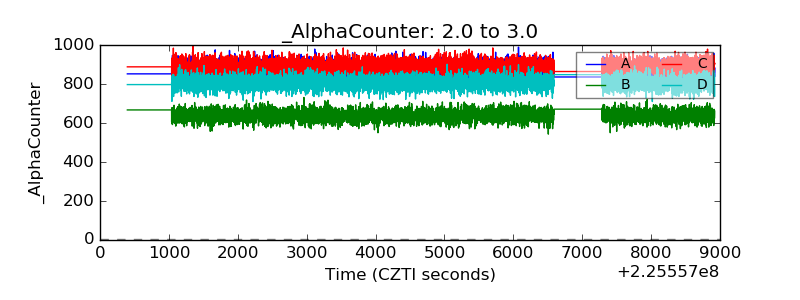

| Alpha Counter |  |

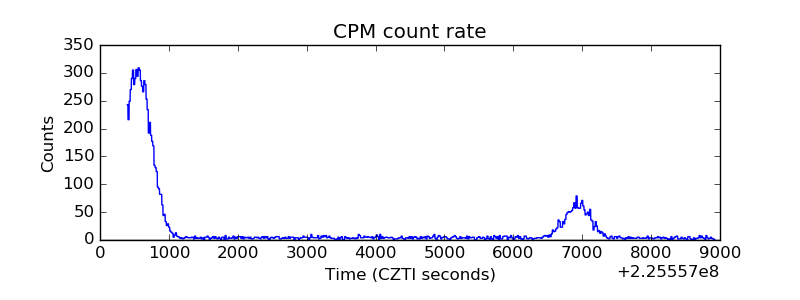

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

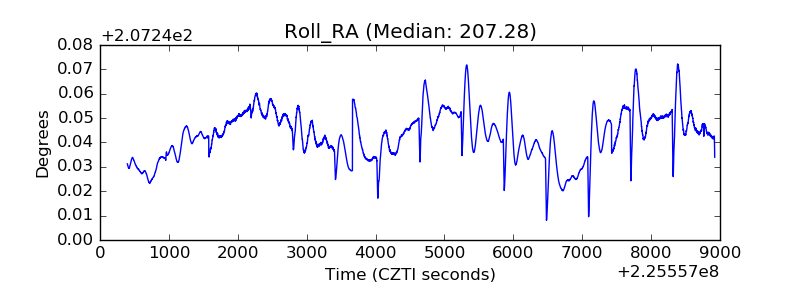

| _Roll_RA |  |
| Veto Counter |  |
