| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A02_178T01_9000001048_07627cztM0_level2.evt | modeM0/AS1A02_178T01_9000001048_07627cztM0_level2_quad_clean.evt |
| Size (bytes) | 530,470,080 | 69,177,600 |
| Size | 505.9 MB | 66.0 MB |
| Events in quadrant A | 4,276,616 | 424,490 |
| Events in quadrant B | 3,235,475 | 434,207 |
| Events in quadrant C | 4,662,157 | 413,743 |
| Events in quadrant D | 3,483,366 | 401,426 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16826 | 2 |
| B | 0 | 13111 | 1 |
| C | 0 | 17835 | 1 |
| D | 0 | 14143 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 122 | 0 |
| B | 0 | 122 | 0 |
| C | 0 | 122 | 0 |
| D | 0 | 122 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6025 | 120 | 1.991701% |
| B | 6025 | 72 | 1.195021% |
| C | 6025 | 280 | 4.647303% |
| D | 6025 | 110 | 1.825726% |

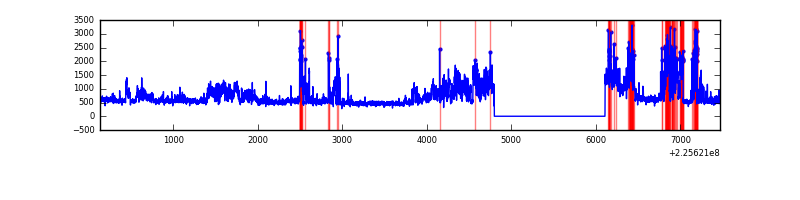

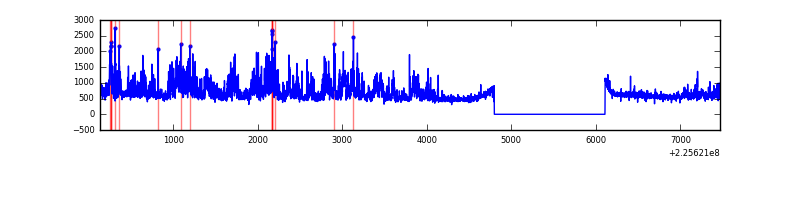

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7335 | 6026 | 16 | 16 | 0.22% | 0.27% |  |
| B | 7335 | 6026 | 3 | 3 | 0.04% | 0.05% |  |
| C | 7335 | 6026 | 137 | 137 | 1.87% | 2.27% |  |
| D | 7335 | 6026 | 55 | 55 | 0.75% | 0.91% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 251 | 1241226 | 7879.36 | 788 | 775 | 157.4 |
| A | 0 | 226 | 7570 | 43.16 | 788 | 775 | 157.4 |
| A | 12 | 194 | 6860 | 38.65 | 788 | 775 | 157.4 |
| B | 0 | 219 | 64525 | 433.08 | 785 | 770 | 147.2 |
| B | 4 | 81 | 63636 | 427.04 | 785 | 770 | 147.2 |
| B | 0 | 214 | 25549 | 168.32 | 785 | 770 | 147.2 |
| C | 9 | 68 | 1530649 | 8799.48 | 759 | 765 | 173.9 |
| C | 4 | 254 | 128160 | 732.74 | 759 | 765 | 173.9 |
| C | 1 | 16 | 38923 | 219.47 | 759 | 765 | 173.9 |
| D | 2 | 14 | 168949 | 906.79 | 767 | 745 | 185.5 |
| D | 12 | 233 | 156064 | 837.33 | 767 | 745 | 185.5 |
| D | 2 | 152 | 146490 | 785.72 | 767 | 745 | 185.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |

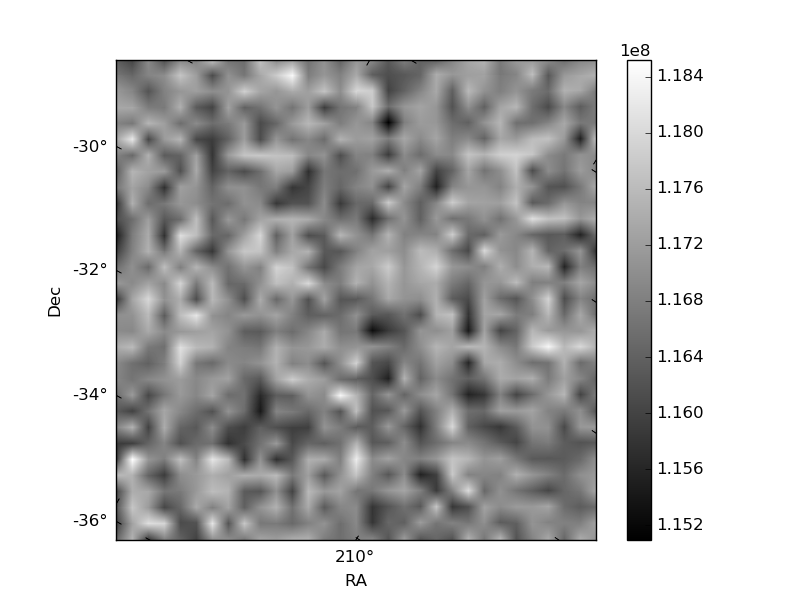

| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

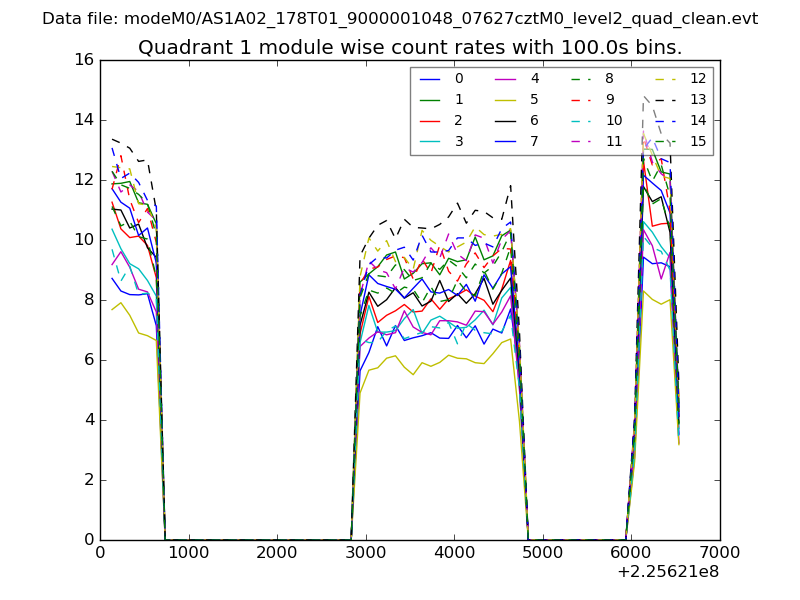

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

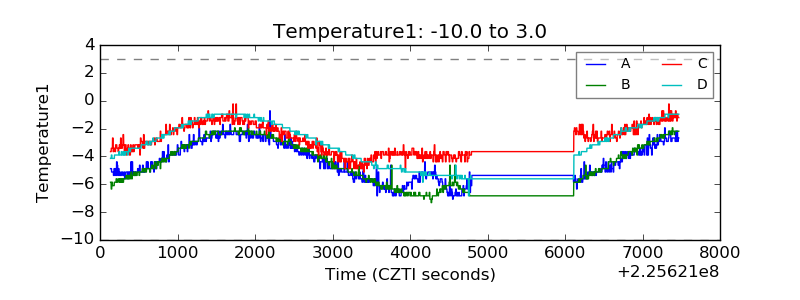

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

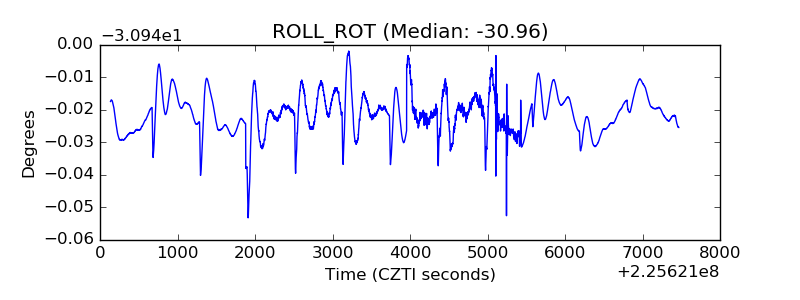

| _ROLL_ROT |  |
| _Roll_DEC |  |

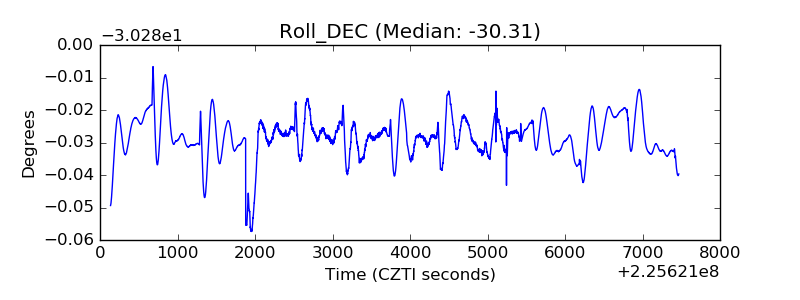

| _Roll_RA |  |

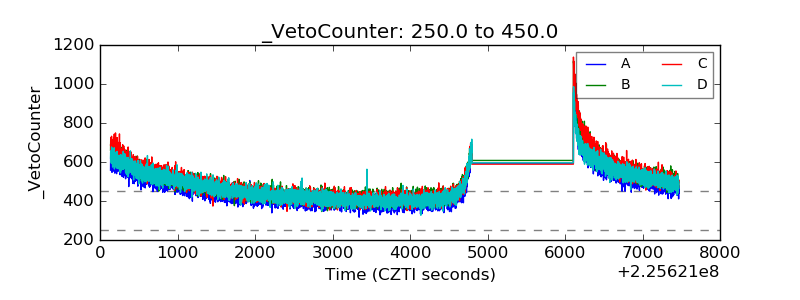

| Veto Counter |  |
