| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T01_157T01_9000001050_07631cztM0_level2.evt | modeM0/AS1T01_157T01_9000001050_07631cztM0_level2_quad_clean.evt |
| Size (bytes) | 833,561,280 | 65,517,120 |
| Size | 794.9 MB | 62.5 MB |
| Events in quadrant A | 4,528,564 | 398,084 |
| Events in quadrant B | 3,724,521 | 404,181 |
| Events in quadrant C | 12,245,423 | 317,013 |
| Events in quadrant D | 4,247,321 | 349,998 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 148 | 0 |
| B | 0 | 148 | 0 |
| C | 0 | 148 | 0 |
| D | 0 | 148 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18217 | 0 |
| B | 0 | 15820 | 0 |
| C | 0 | 41500 | 0 |
| D | 0 | 17616 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 6 | 0 |
| B | 0 | 6 | 0 |
| C | 0 | 6 | 0 |
| D | 0 | 7 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7393 | 261 | 3.530367% |
| B | 7393 | 197 | 2.664683% |
| C | 7393 | 2889 | 39.077506% |
| D | 7393 | 268 | 3.625051% |

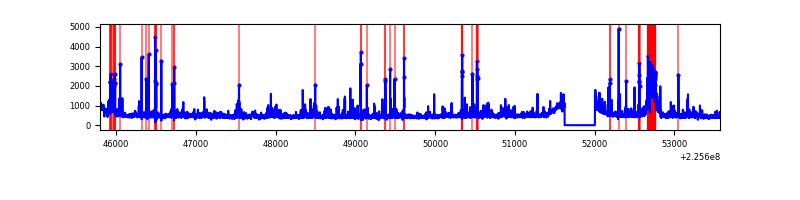

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7773 | 7394 | 22 | 22 | 0.28% | 0.30% |  |
| B | 7773 | 7394 | 5 | 5 | 0.06% | 0.07% |  |
| C | 7773 | 7394 | 2256 | 2256 | 29.02% | 30.51% |  |
| D | 7773 | 7394 | 122 | 122 | 1.57% | 1.65% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 251 | 965688 | 5177.5 | 901 | 880 | 186.3 |
| A | 15 | 234 | 74292 | 393.95 | 901 | 880 | 186.3 |
| A | 3 | 1 | 20843 | 107.13 | 901 | 880 | 186.3 |
| B | 0 | 219 | 59235 | 333.31 | 907 | 886 | 175.1 |
| B | 0 | 229 | 59081 | 332.43 | 907 | 886 | 175.1 |
| B | 0 | 214 | 24966 | 137.55 | 907 | 886 | 175.1 |
| C | 9 | 68 | 4880912 | 26867.6 | 775 | 778 | 181.6 |
| C | 9 | 243 | 2606502 | 14345.82 | 775 | 778 | 181.6 |
| C | 4 | 254 | 1695926 | 9332.64 | 775 | 778 | 181.6 |
| D | 1 | 83 | 217648 | 1005.71 | 875 | 848 | 215.6 |
| D | 13 | 104 | 189545 | 875.35 | 875 | 848 | 215.6 |
| D | 2 | 152 | 170769 | 788.25 | 875 | 848 | 215.6 |

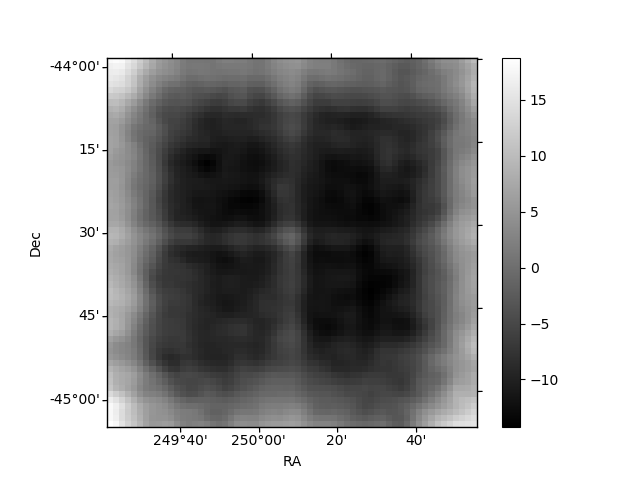

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

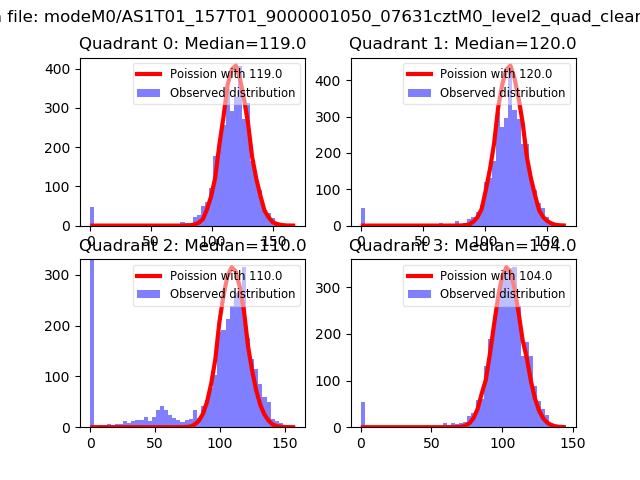

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

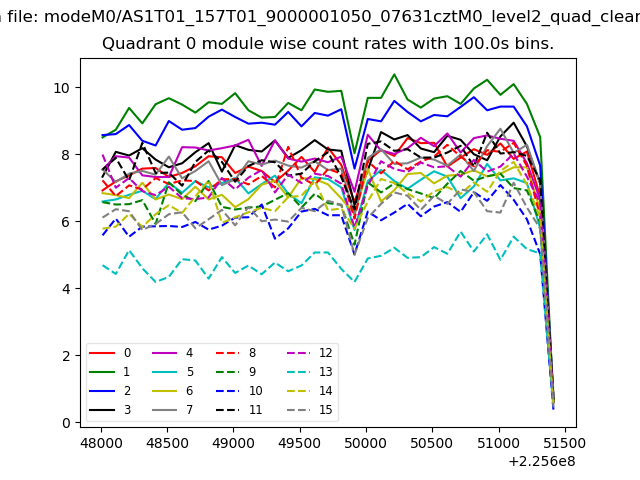

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

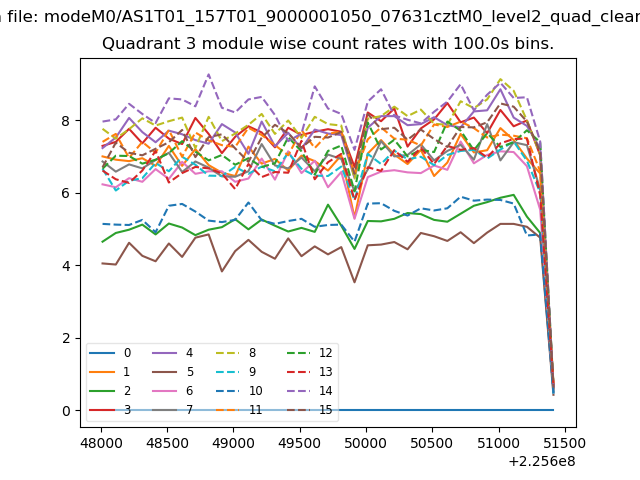

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

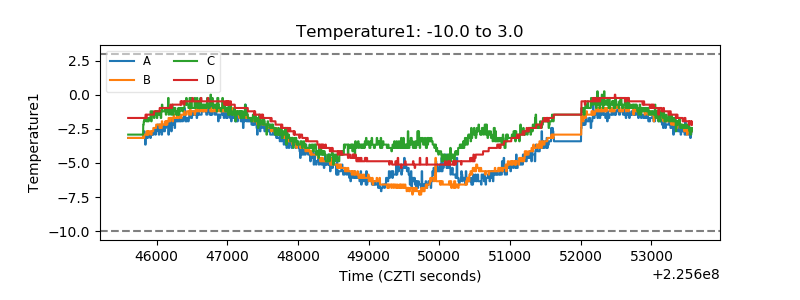

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

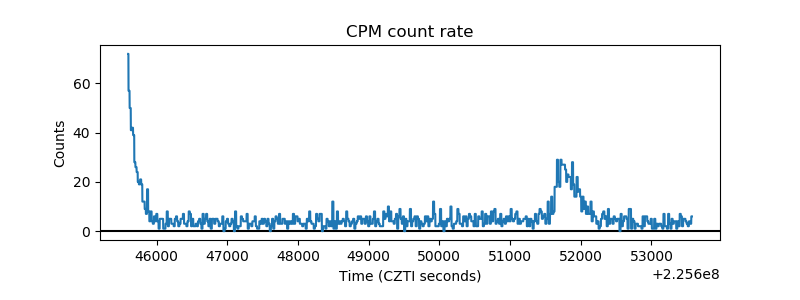

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

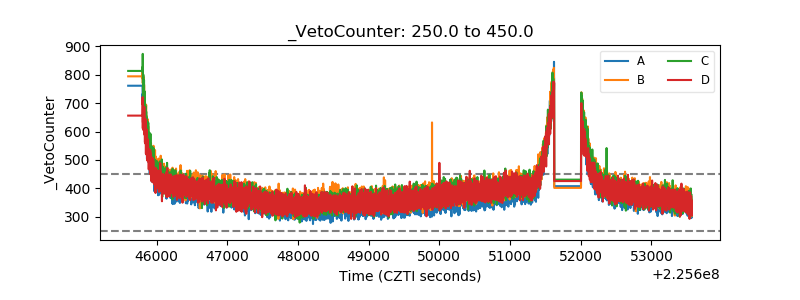

| Veto Counter |  |
