| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G06_124T01_9000001054_07657cztM0_level2.evt | modeM0/AS1G06_124T01_9000001054_07657cztM0_level2_quad_clean.evt |
| Size (bytes) | 440,311,680 | 65,871,360 |
| Size | 419.9 MB | 62.8 MB |
| Events in quadrant A | 3,240,076 | 391,216 |
| Events in quadrant B | 3,277,158 | 396,928 |
| Events in quadrant C | 3,187,059 | 392,457 |
| Events in quadrant D | 3,202,208 | 373,823 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14 | 0 |
| B | 0 | 14 | 0 |
| C | 0 | 14 | 0 |
| D | 0 | 15 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13339 | 2 |
| B | 0 | 13431 | 1 |
| C | 0 | 13293 | 1 |
| D | 0 | 13471 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6312 | 109 | 1.726869% |
| B | 6312 | 100 | 1.584284% |
| C | 6312 | 63 | 0.998099% |
| D | 6312 | 67 | 1.061470% |

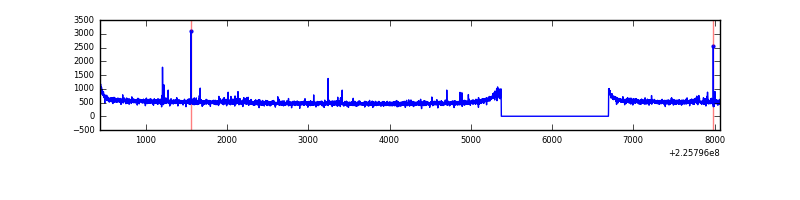

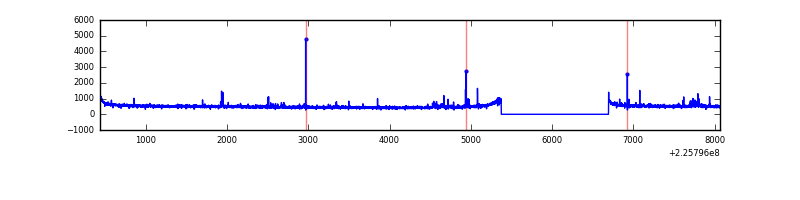

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7632 | 6312 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7632 | 6313 | 2 | 2 | 0.03% | 0.03% |  |
| C | 7632 | 6313 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7632 | 6313 | 3 | 3 | 0.04% | 0.05% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 248 | 11864 | 65.52 | 838 | 822 | 168.5 |
| A | 0 | 226 | 7994 | 42.56 | 838 | 822 | 168.5 |
| A | 12 | 194 | 7661 | 40.58 | 838 | 822 | 168.5 |
| B | 0 | 214 | 20027 | 121.89 | 834 | 816 | 157.6 |
| B | 12 | 111 | 15985 | 96.24 | 834 | 816 | 157.6 |
| B | 11 | 111 | 13257 | 78.93 | 834 | 816 | 157.6 |
| C | 13 | 61 | 6161 | 28.41 | 816 | 819 | 188.0 |
| C | 12 | 4 | 2369 | 8.24 | 816 | 819 | 188.0 |
| C | 3 | 202 | 2102 | 6.82 | 816 | 819 | 188.0 |
| D | 2 | 152 | 39920 | 195.78 | 818 | 792 | 199.9 |
| D | 2 | 14 | 34028 | 166.3 | 818 | 792 | 199.9 |
| D | 2 | 234 | 26104 | 126.65 | 818 | 792 | 199.9 |

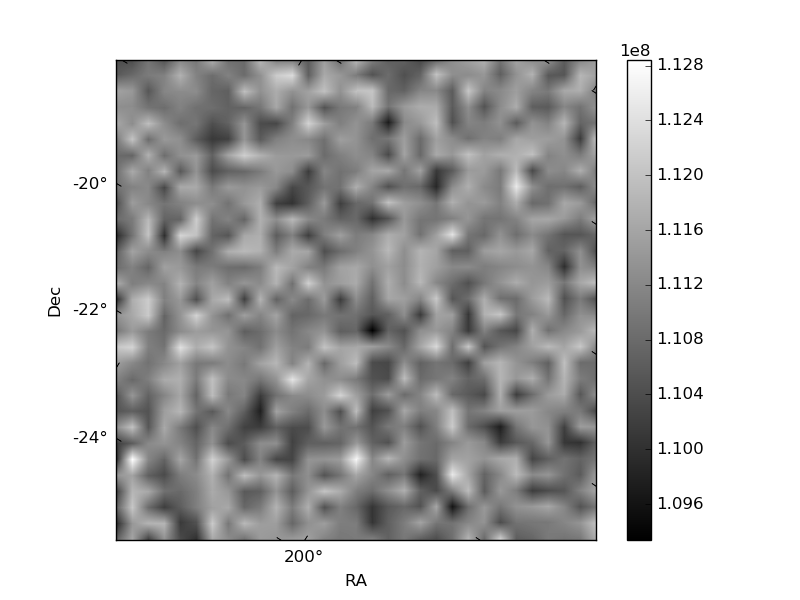

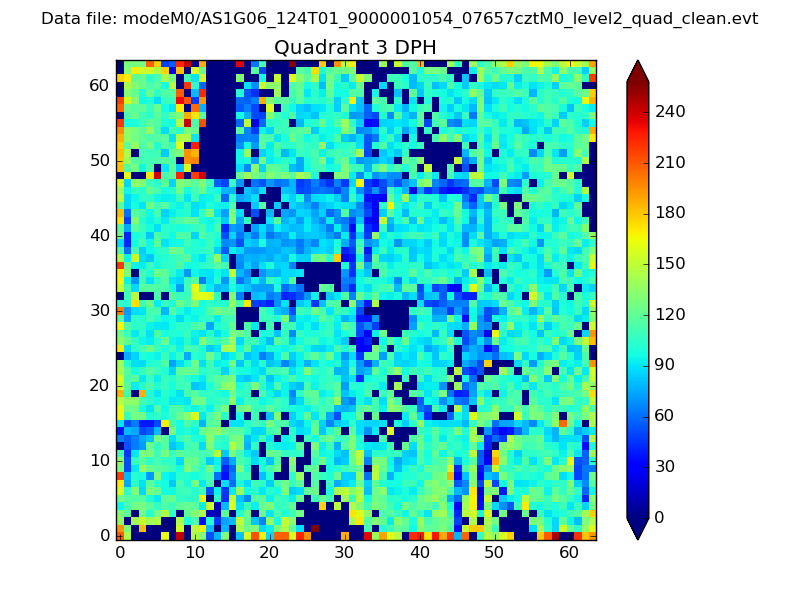

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

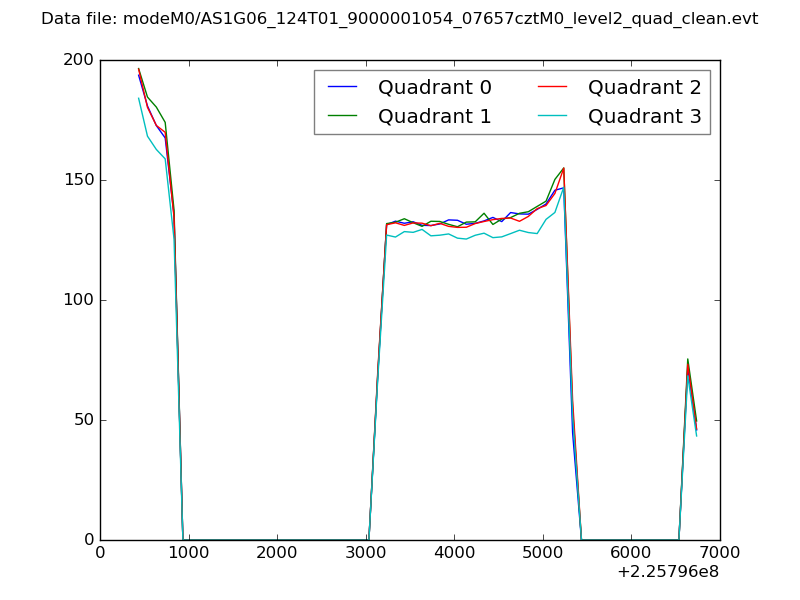

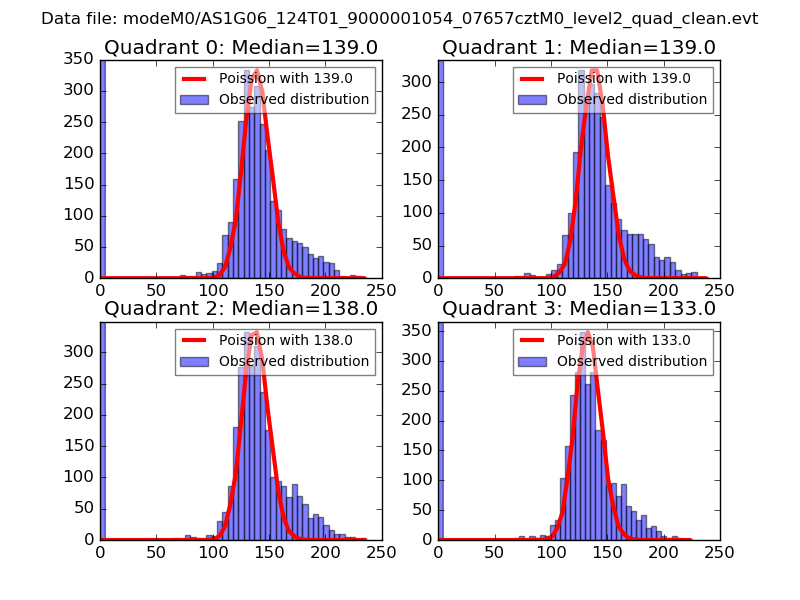

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

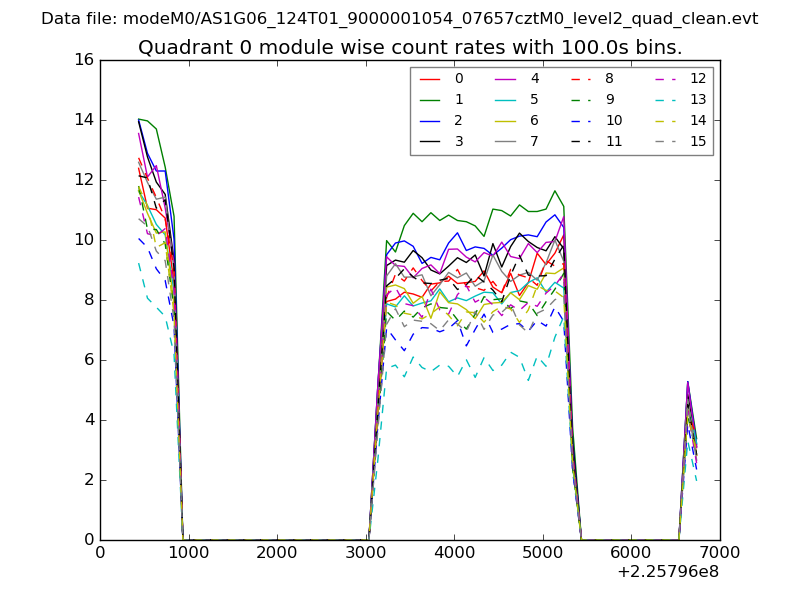

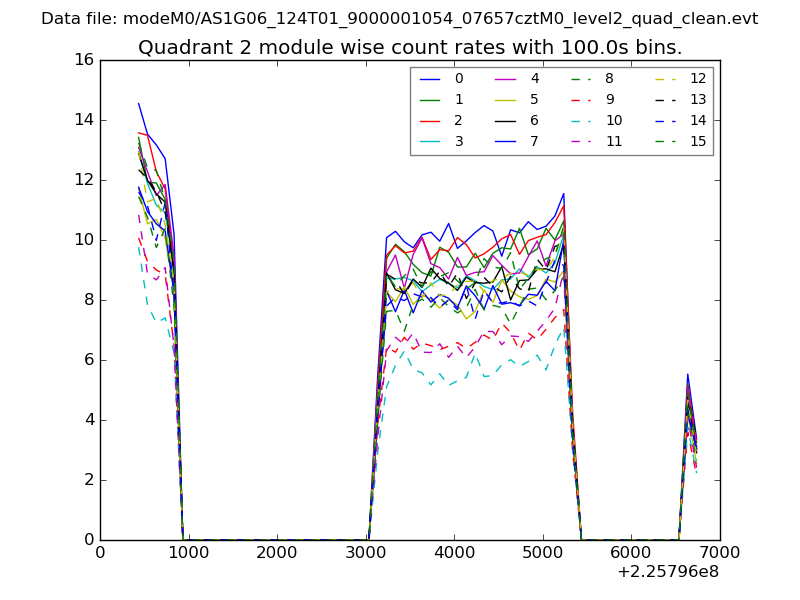

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

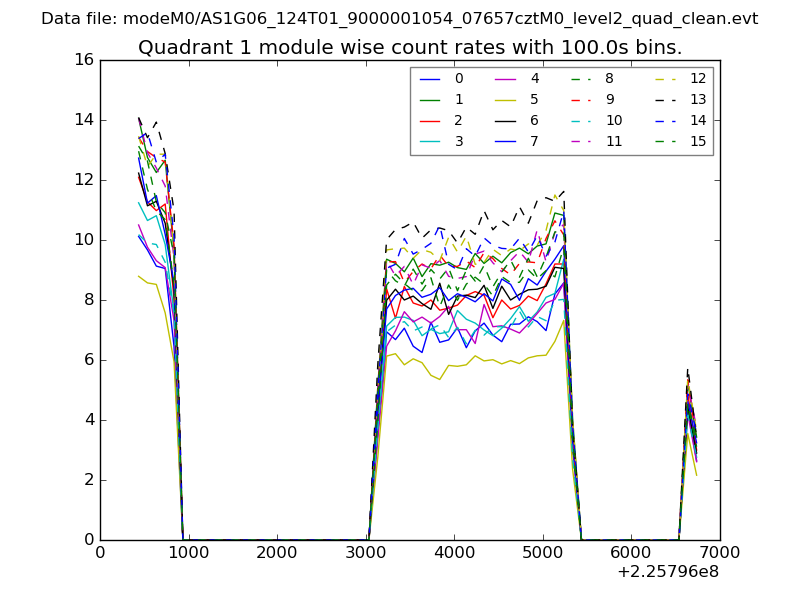

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

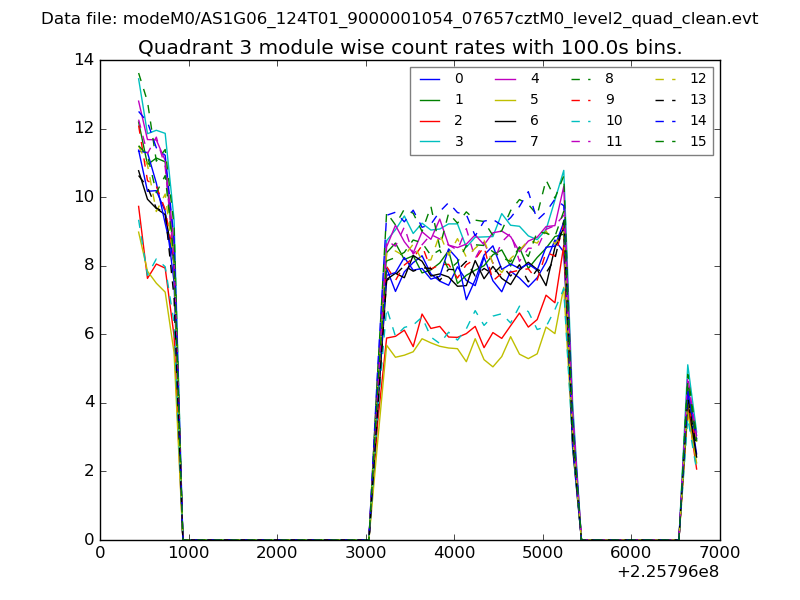

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |

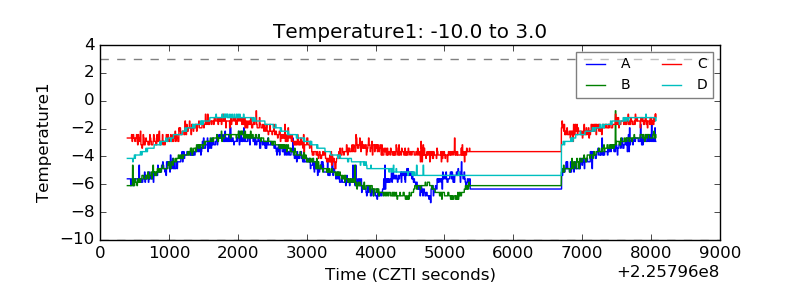

| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

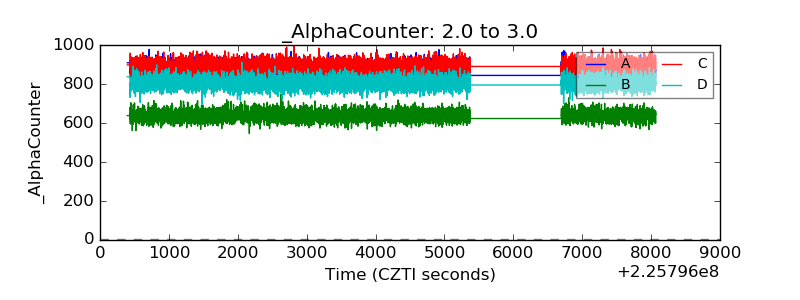

| Alpha Counter |  |
| _CPM_Rate |  |

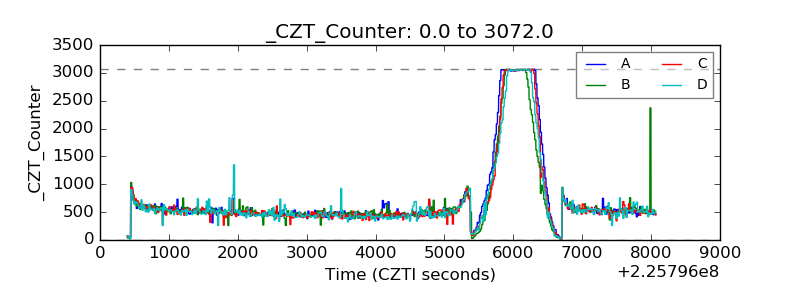

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

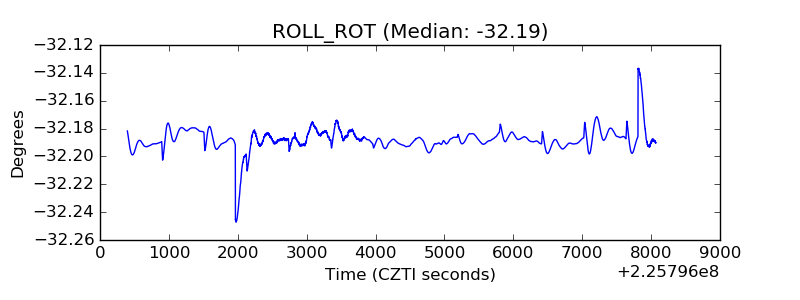

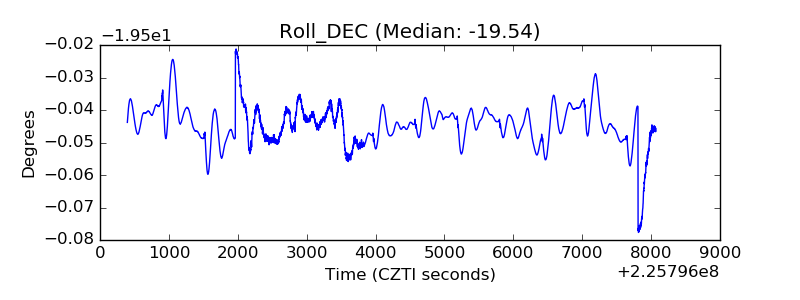

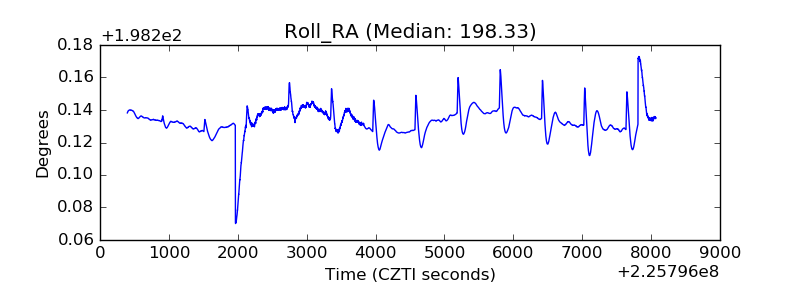

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

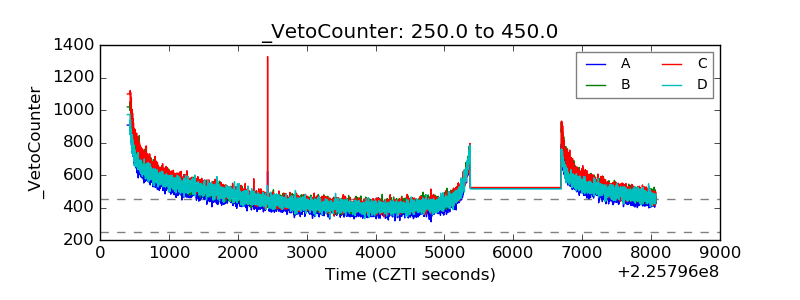

| Veto Counter |  |
