| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G06_124T01_9000001054_07659cztM0_level2.evt | modeM0/AS1G06_124T01_9000001054_07659cztM0_level2_quad_clean.evt |
| Size (bytes) | 459,953,280 | 73,486,080 |
| Size | 438.6 MB | 70.1 MB |
| Events in quadrant A | 3,327,098 | 437,008 |
| Events in quadrant B | 3,390,472 | 441,221 |
| Events in quadrant C | 3,292,154 | 437,892 |
| Events in quadrant D | 3,445,104 | 422,270 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 142 | 0 |
| B | 0 | 142 | 0 |
| C | 0 | 142 | 0 |
| D | 0 | 142 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17 | 0 |
| B | 0 | 17 | 0 |
| C | 0 | 17 | 0 |
| D | 0 | 18 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14474 | 3 |
| B | 0 | 14568 | 2 |
| C | 0 | 14427 | 2 |
| D | 0 | 15004 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6986 | 104 | 1.488692% |
| B | 6986 | 96 | 1.374177% |
| C | 6986 | 59 | 0.844546% |
| D | 6986 | 69 | 0.987690% |

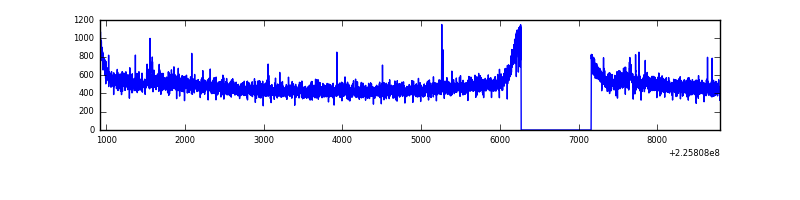

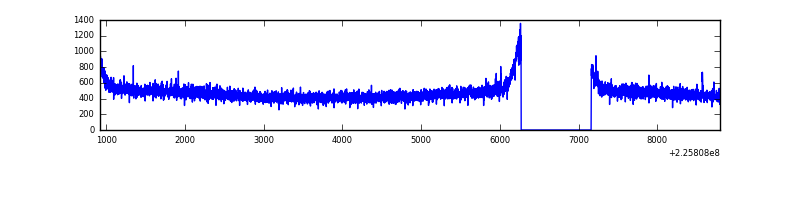

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7876 | 6987 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7876 | 6987 | 0 | 0 | 0.00% | 0.00% |  |
| C | 7876 | 6987 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7876 | 6987 | 13 | 13 | 0.17% | 0.19% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 226 | 8255 | 42.05 | 864 | 843 | 176.3 |
| A | 12 | 194 | 7747 | 39.16 | 864 | 843 | 176.3 |
| A | 13 | 254 | 3331 | 14.11 | 864 | 843 | 176.3 |
| B | 0 | 214 | 24960 | 144.14 | 865 | 843 | 167.3 |
| B | 12 | 111 | 17484 | 99.46 | 865 | 843 | 167.3 |
| B | 11 | 111 | 14247 | 80.11 | 865 | 843 | 167.3 |
| C | 13 | 61 | 6546 | 29.0 | 842 | 847 | 196.5 |
| C | 10 | 22 | 5064 | 21.46 | 842 | 847 | 196.5 |
| C | 1 | 16 | 2903 | 10.46 | 842 | 847 | 196.5 |
| D | 2 | 152 | 100882 | 485.06 | 842 | 817 | 206.3 |
| D | 2 | 14 | 68768 | 329.39 | 842 | 817 | 206.3 |
| D | 14 | 34 | 29695 | 139.98 | 842 | 817 | 206.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

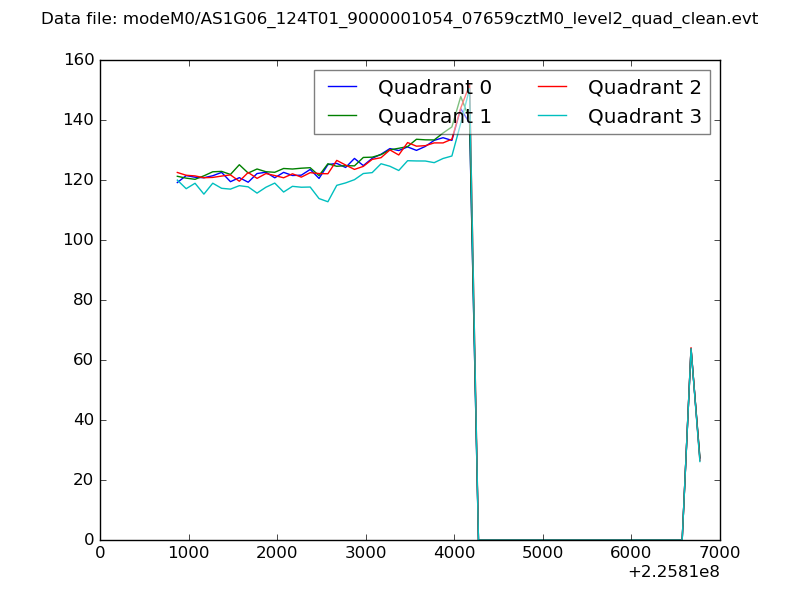

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

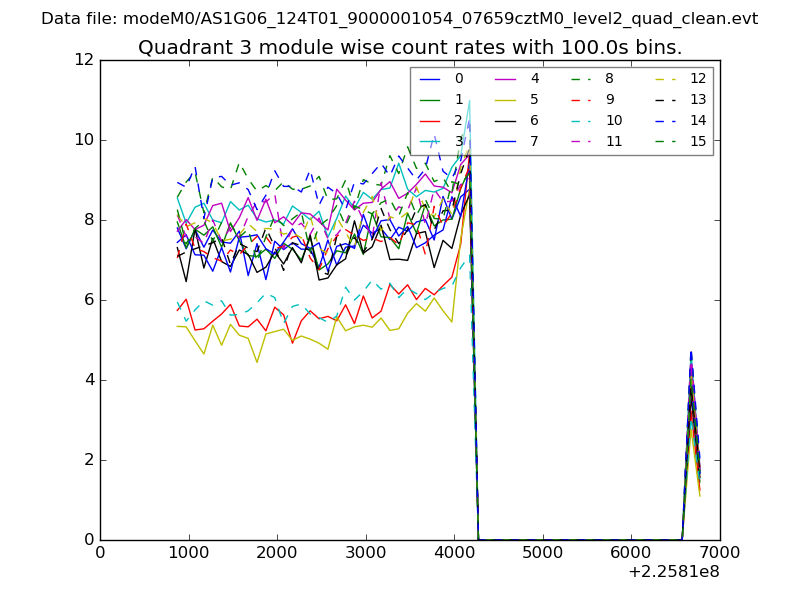

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

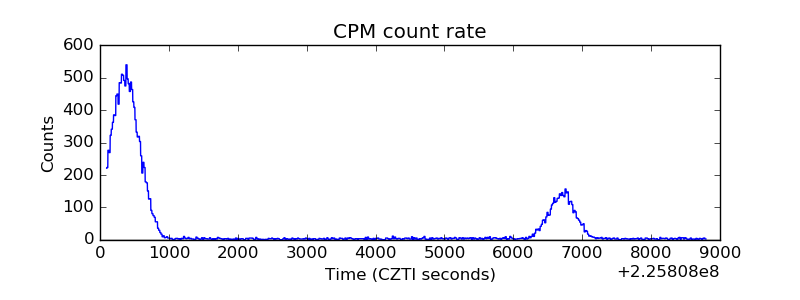

| _CPM_Rate |  |

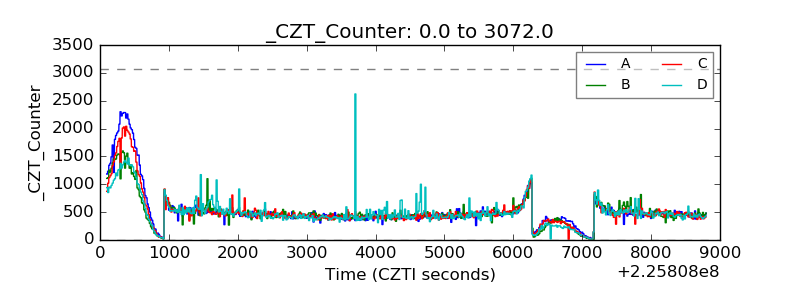

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

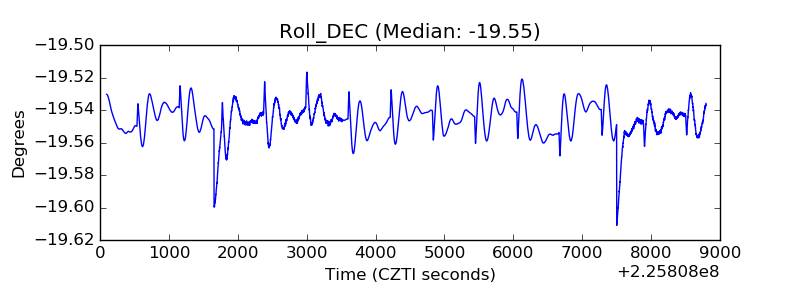

| _Roll_DEC |  |
| _Roll_RA |  |

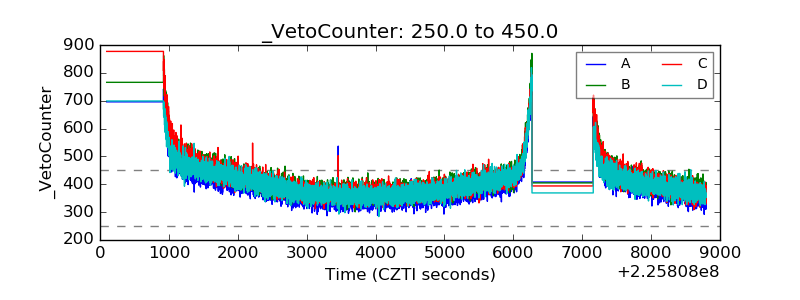

| Veto Counter |  |
