| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G06_124T01_9000001054_07661cztM0_level2.evt | modeM0/AS1G06_124T01_9000001054_07661cztM0_level2_quad_clean.evt |
| Size (bytes) | 613,644,480 | 127,036,800 |
| Size | 585.2 MB | 121.2 MB |
| Events in quadrant A | 4,380,428 | 796,979 |
| Events in quadrant B | 4,574,163 | 804,105 |
| Events in quadrant C | 4,348,725 | 799,527 |
| Events in quadrant D | 4,614,326 | 766,247 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 200 | 0 |
| B | 0 | 200 | 0 |
| C | 0 | 200 | 0 |
| D | 0 | 200 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 4 | 0 |
| B | 0 | 4 | 0 |
| C | 0 | 4 | 0 |
| D | 0 | 4 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 20012 | 1 |
| B | 0 | 20377 | 1 |
| C | 0 | 19970 | 1 |
| D | 0 | 20854 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 9812 | 81 | 0.825520% |
| B | 9812 | 89 | 0.907053% |
| C | 9812 | 32 | 0.326131% |
| D | 9812 | 108 | 1.100693% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 10257 | 9813 | 0 | 0 | 0.00% | 0.00% |  |
| B | 10257 | 9813 | 1 | 1 | 0.01% | 0.01% |  |
| C | 10257 | 9813 | 0 | 0 | 0.00% | 0.00% |  |
| D | 10257 | 9813 | 67 | 67 | 0.65% | 0.68% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 226 | 10807 | 42.04 | 1134 | 1108 | 230.7 |
| A | 12 | 194 | 10156 | 39.22 | 1134 | 1108 | 230.7 |
| A | 15 | 234 | 7175 | 26.3 | 1134 | 1108 | 230.7 |
| B | 0 | 229 | 67049 | 298.9 | 1143 | 1113 | 220.6 |
| B | 0 | 219 | 30319 | 132.4 | 1143 | 1113 | 220.6 |
| B | 12 | 111 | 23120 | 99.76 | 1143 | 1113 | 220.6 |
| C | 13 | 61 | 8711 | 29.31 | 1112 | 1119 | 259.0 |
| C | 10 | 22 | 7208 | 23.51 | 1112 | 1119 | 259.0 |
| C | 9 | 68 | 4027 | 11.23 | 1112 | 1119 | 259.0 |
| D | 2 | 14 | 220991 | 818.98 | 1102 | 1071 | 268.5 |
| D | 13 | 104 | 44542 | 161.89 | 1102 | 1071 | 268.5 |
| D | 5 | 233 | 43975 | 159.77 | 1102 | 1071 | 268.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

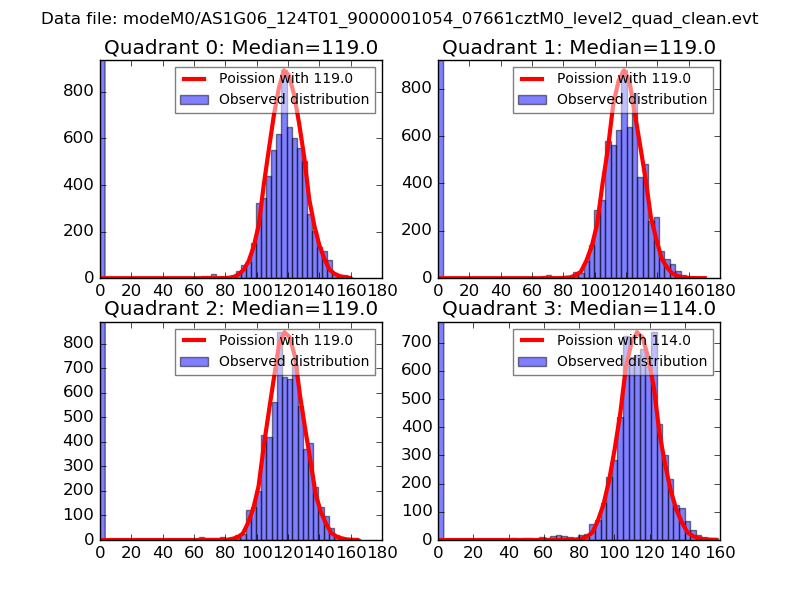

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

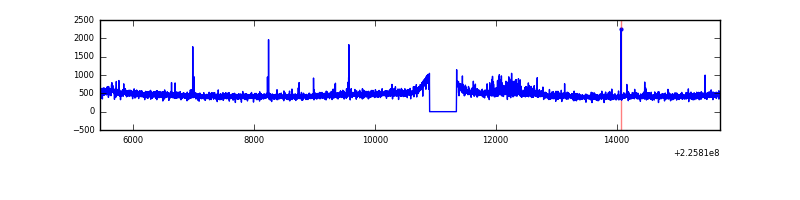

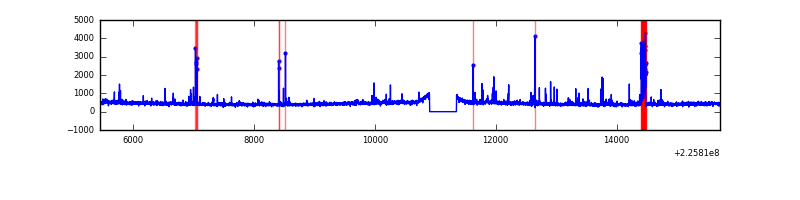

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

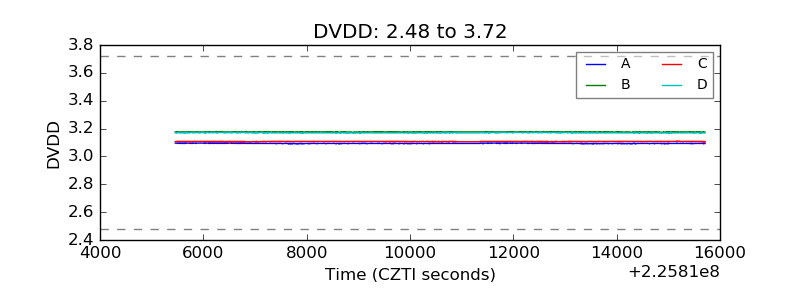

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

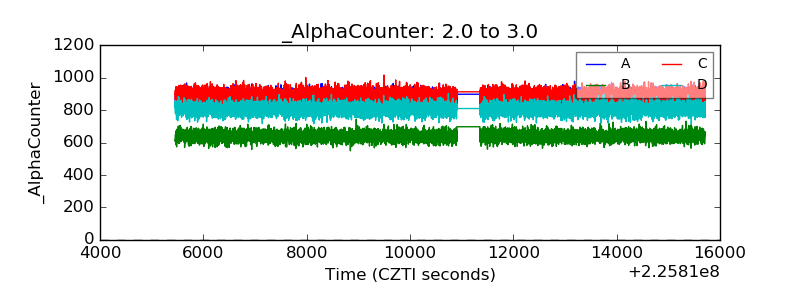

| Alpha Counter |  |

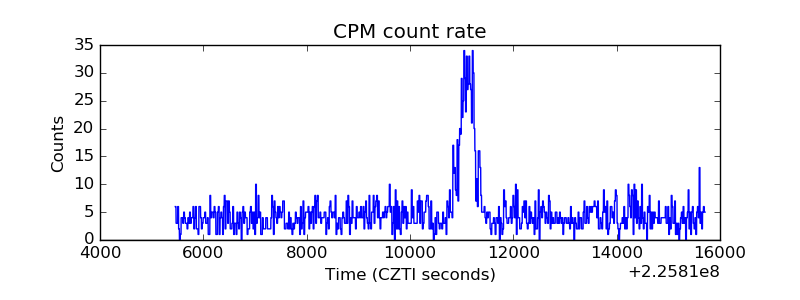

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

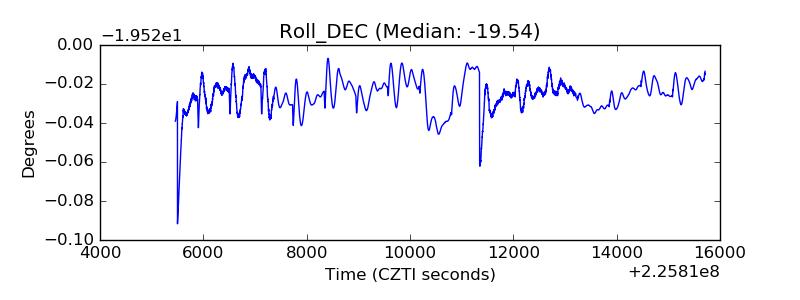

| _Roll_DEC |  |
| _Roll_RA |  |

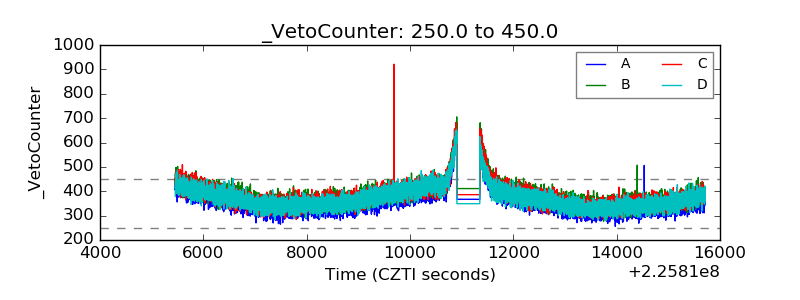

| Veto Counter |  |
