| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G06_114T01_9000001056_07665cztM0_level2.evt | modeM0/AS1G06_114T01_9000001056_07665cztM0_level2_quad_clean.evt |
| Size (bytes) | 794,926,080 | 160,724,160 |
| Size | 758.1 MB | 153.3 MB |
| Events in quadrant A | 5,312,435 | 1,026,193 |
| Events in quadrant B | 5,519,110 | 1,031,692 |
| Events in quadrant C | 5,393,431 | 1,020,975 |
| Events in quadrant D | 7,046,995 | 969,833 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 242 | 0 |
| B | 0 | 242 | 0 |
| C | 0 | 242 | 0 |
| D | 0 | 242 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 24008 | 3 |
| B | 0 | 24429 | 2 |
| C | 0 | 24045 | 2 |
| D | 0 | 29165 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 11842 | 40 | 0.337781% |
| B | 11842 | 61 | 0.515116% |
| C | 11842 | 27 | 0.228002% |
| D | 11842 | 316 | 2.668468% |

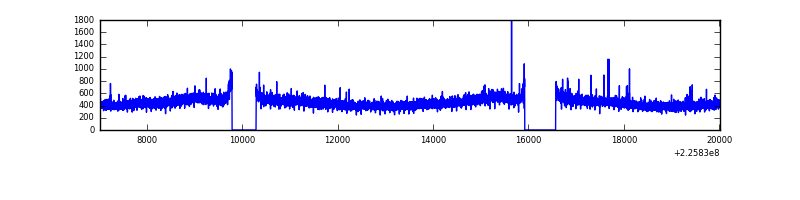

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 12997 | 11844 | 0 | 0 | 0.00% | 0.00% |  |
| B | 12997 | 11844 | 0 | 0 | 0.00% | 0.00% |  |
| C | 12997 | 11844 | 0 | 0 | 0.00% | 0.00% |  |
| D | 12997 | 11844 | 156 | 156 | 1.20% | 1.32% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 226 | 12996 | 41.49 | 1373 | 1343 | 280.9 |
| A | 12 | 194 | 12504 | 39.74 | 1373 | 1343 | 280.9 |
| A | 15 | 234 | 9871 | 30.36 | 1373 | 1343 | 280.9 |
| B | 0 | 229 | 56260 | 209.08 | 1382 | 1349 | 262.6 |
| B | 4 | 80 | 27296 | 98.8 | 1382 | 1349 | 262.6 |
| B | 0 | 214 | 26330 | 95.12 | 1382 | 1349 | 262.6 |
| C | 9 | 68 | 104419 | 329.17 | 1345 | 1351 | 313.1 |
| C | 8 | 128 | 13947 | 40.23 | 1345 | 1351 | 313.1 |
| C | 8 | 222 | 11343 | 31.91 | 1345 | 1351 | 313.1 |
| D | 13 | 104 | 650341 | 1980.68 | 1329 | 1286 | 327.7 |
| D | 2 | 152 | 532022 | 1619.61 | 1329 | 1286 | 327.7 |
| D | 1 | 20 | 476981 | 1451.65 | 1329 | 1286 | 327.7 |

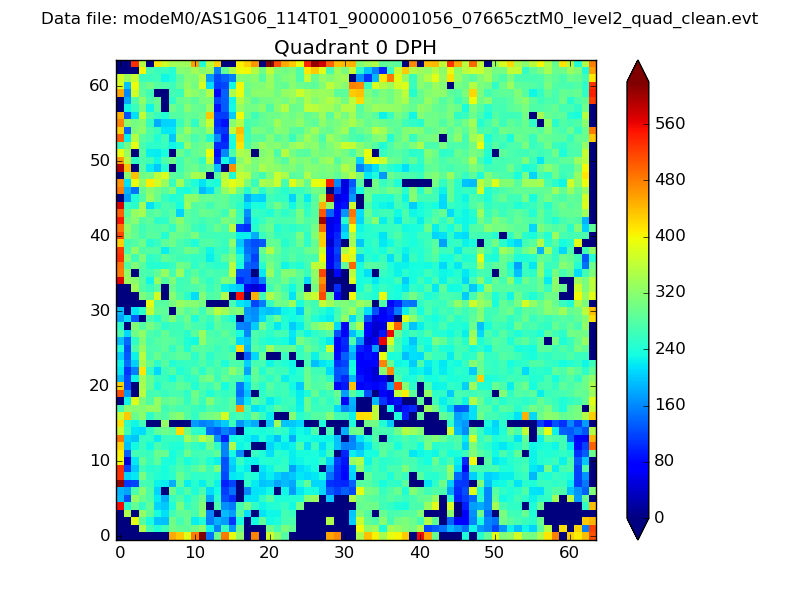

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

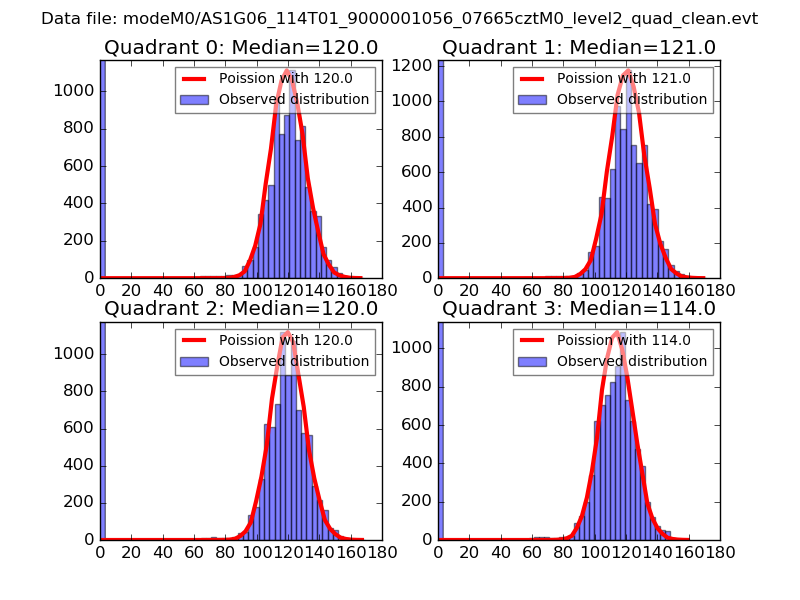

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

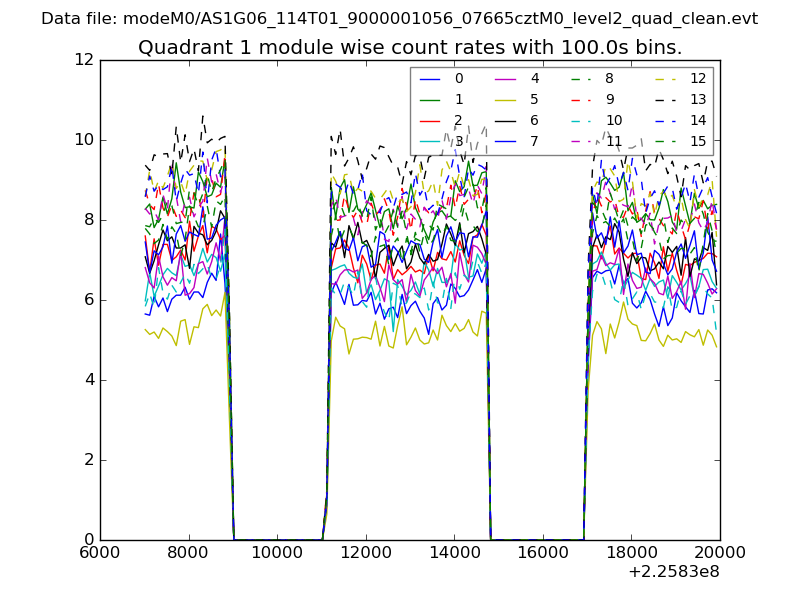

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

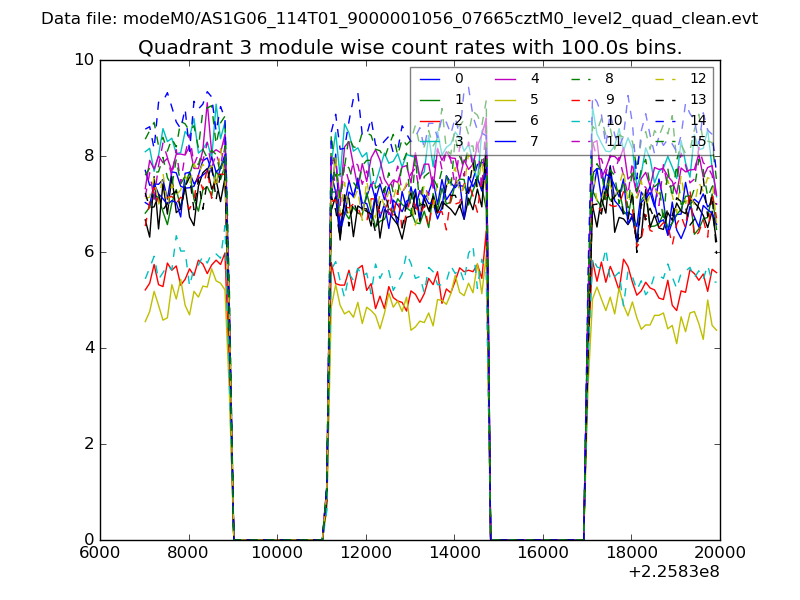

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

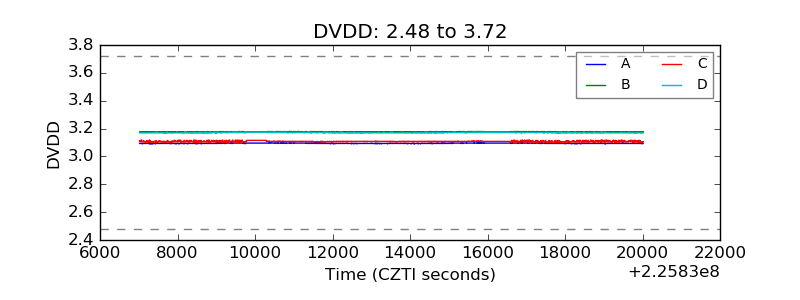

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

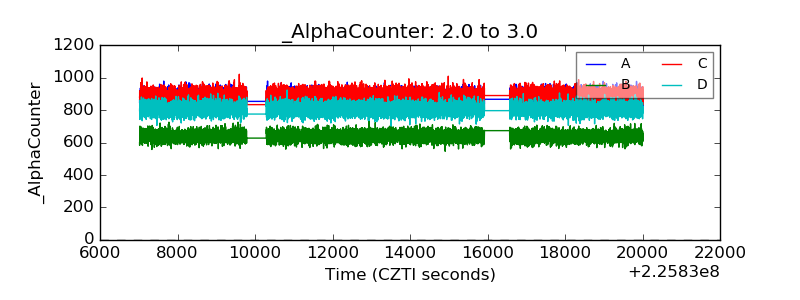

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

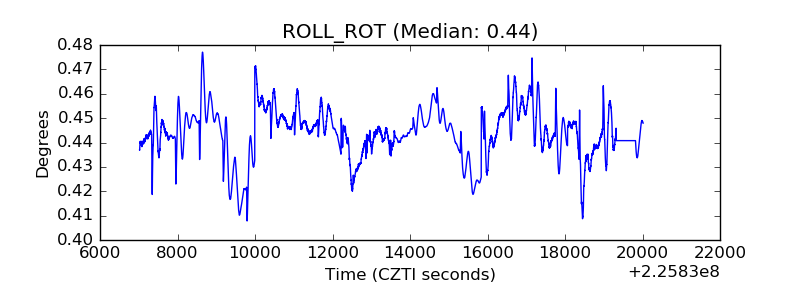

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
